MERLYN - MB6 Bathscreen

Description

With a stylish, minimalistic and smooth outward opening 8mm glass panel, the Hinged Square Bath Screen is a stunning design feature to benefit any bathroom space.

The 850mm outward opening screen allows for easy access to your bath with designer chrome hinges to give that ultra contemporary look.

This download is for the MB6 Bathscreen Range created by bimstore.co.uk for Merlyn.

Object Data

1 Revision

Last Updated

04/10/2017

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

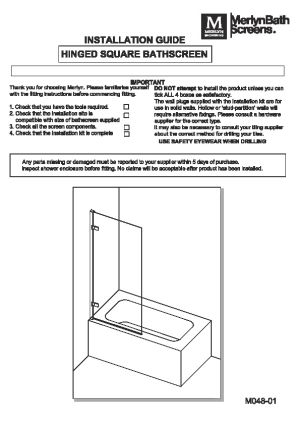

Installation Guide

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRyan Lashley
_Bim Spec Guid0
_Bimstore Bible Version14
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Assembly CodeD2010100
Asset TypeFixed
BIM Object NameCaseworkEnclosures_Merlyn_MB6_Bathscreen
Classification NameUniclass2015
Classification ValuePr_40_20_06_79
Code Performancen/a
ColorChrome
Constituentsn/a
Created Byinfo@merlyn.ie
Created On2016-09-01-T00:00:00
DescriptionWith a stylish, minimalistic and smooth outward opening 8mm glass panel, the Hinged Square Bath Screen is a stunning design feature to benefit any bathroom space.
Documentation Certificatesn/a
Documentation Installation Guidespecifi.bimstore.co.uk/document/share/2273
Documentation Literaturen/a
Documentation Maintenancen/a
Documentation Technicalspecifi.bimstore.co.uk/document/share/2272
Duration UnitYears
Expected Life30
FeaturesMershield Stayclear protected glass, Frameless hinged moving panel, Reversible, Lifetime Guarantee
Glass Thickness8 mm
Graden/a
Height1500 mm
Ifc Export AsIfcBuildingElementProxy
Ifc Export TypeSurface
KeynoteN13/375
ManufacturerMerlyn
Manufacturer NameMerlyn
MaterialGlass & Chrome
Material Merlyn ChromeMerlyn - Chrome
Material Merlyn GlassMerlyn - Glass
Material Merlyn RubberMerlyn - Rubber
ModelMB6 Bathscreen
Model NumberMB6 Bathscreen
Model ReferenceMB6 - Hinged Square Bath Screen
NBS DescriptionShower enclosures
NBS Object NameMerlyn - Shower enclosures
NBS Office Master Tagn/a
NBS Reference45-35-70/332
Nominal Height1500 mm
Nominal Length850 mm
Production Year2016
Referenced StandardCE Standards
Replacement Costn/a
ShapeRectangular
Size1500mm x 850mm
Spare Partsn/a
Type CommentsMB6 - Hinged Square Bath Screen
Type NameMB6 - Hinged Square Bath Screen
URLwww.ionicbymerlyn.com
Warranty DescriptionLifetime
Warranty Duration Laborn/a
Warranty Duration Partsn/a
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@merlyn.ie
Warranty Guarantor Partsinfo@merlyn.ie
Width850 mm
