KOMFORT ULTRA L 250

Download Add to collection

Description

Ventilation units for organizing efficient supply and exhaust ventilation in commercial, office and other public or industrial premises.

Objects included:

KOMFORT Ultra L 250-H

Object Data

1 Revision

Last Updated

15/09/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

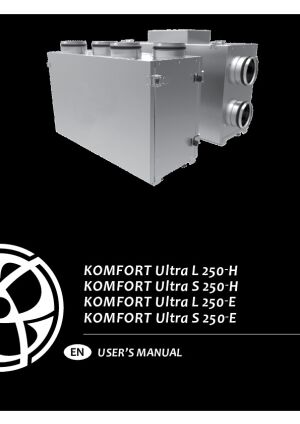

Installation Guide

Product Literature

Product Data Sheet

Object metadata

_Authortechnicalsupport@blauberg.co.uk
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created ByBlauberg UK
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/komfort-ultra-l-250/document/object-user-guide
Accessibility Performancen/a
Asset TypeFixed
B286 mm
B1143 mm
B2143 mm
Back Feet D20 mm
BIM Object Nameblauberg_MechanicalEquipment_Komfort_Ultra_L_2502
Casing MaterialPainted Steel White
Classification NameUniclass2015
Classification ValuePr_60_65_03_86
Code Performancen/a
Colorn/a
Constituentsn/a
Created Bytechnicalsupport@blauberg.co.uk
Created On2021-08-31T09:00:00
Current1 A
D125 mm
d B Feets70 mm
DescriptionAir Handling Unit
d L Feets22 mm
Documentation Certificateswww.bimstore.co/products/komfort-ultra-l-250/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/komfort-ultra-l-250/document/installation-guide
Documentation Literaturewww.bimstore.co/products/komfort-ultra-l-250/document/product-literature
Documentation Maintenancewww.bimstore.co/products/komfort-ultra-l-250/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/komfort-ultra-l-250/document/technical-data-sheet
Drain Con B247 mm
Drain Connection Diameter16 mm
Drain PipeYes
Drain Pipe D16 mm
Duct Connection Diameter125 mm
Duration UnitYears
El Box A255 mm
El Box B198 mm
El Box H63 mm
El Con B143 mm
El Con L358 mm
Expected Life0
Extract Air FilterG4
Featuresn/a
Finishn/a
Front Maintenance Zone Height500 mm
Graden/a
H419 mm
H1114 mm
H2114 mm
H Duct Con50 mm
Heat Exchanger Materialpolystyrene
Heat Exchanger Typecross-flow
Heatrecoveryefficiency Percentage55..78
Ifc Export AsIfcEnergyConversionDeviceType
Ifc Export TypeIfcUnitaryEquipmentTypeEnum.AIRCONDITIONINGUNIT
L715 mm
Load ClassificationHVAC
Maintenance Zone MaterialMaintenance Zone
ManufacturerBlauberg
Manufacturer NameBlauberg UK
Materialn/a
Maximum Air Flow250 m³/h
Maximum Unit Power148 W
Metal MaterialMetal Zinc
ModelKOMFORT Ultra L 250-H
Model NumberKomfort Ultra L 2502
Model ReferenceKOMFORT Ultra L 250-H
Mounting Plate B22 mm
Mounting Plate Gap B7 mm
Mounting Plate H180 mm
Mounting Plate H2339 mm
NBS DescriptionSupply air handling units
NBS Object NameBlauberg UK - Air Handling Units
NBS Office Master Tagn/a
NBS Reference90-45-15/310
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Number Of Poles1
Plastic MaterialPolypropylene Black
Power148 W
Power Factor1
Production Year2021
Referenced Standardn/a
Replacement Costn/a
RP Mmin 12700
SEC ClassE
Service Door B20 mm
Shapen/a
Sizen/a
Sound Pressure Levelat 3m DBA0
Spare Partsn/a
Supply Air FilterG4 (option F8)
Transported Air Temperature Degrees C-25…+40
Type CommentsAir Handling Unit KOMFORT Ultra L 250-H
Type NameAir Handling Unit KOMFORT Ultra L 250-H
Unit Current1 A
URLblaubergventilatoren.de/ru/product/komfort-ultra-l250-h-s12
Voltage230 V
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partstechnicalsupport@blauberg.co.uk
Weight26.00 kg

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
