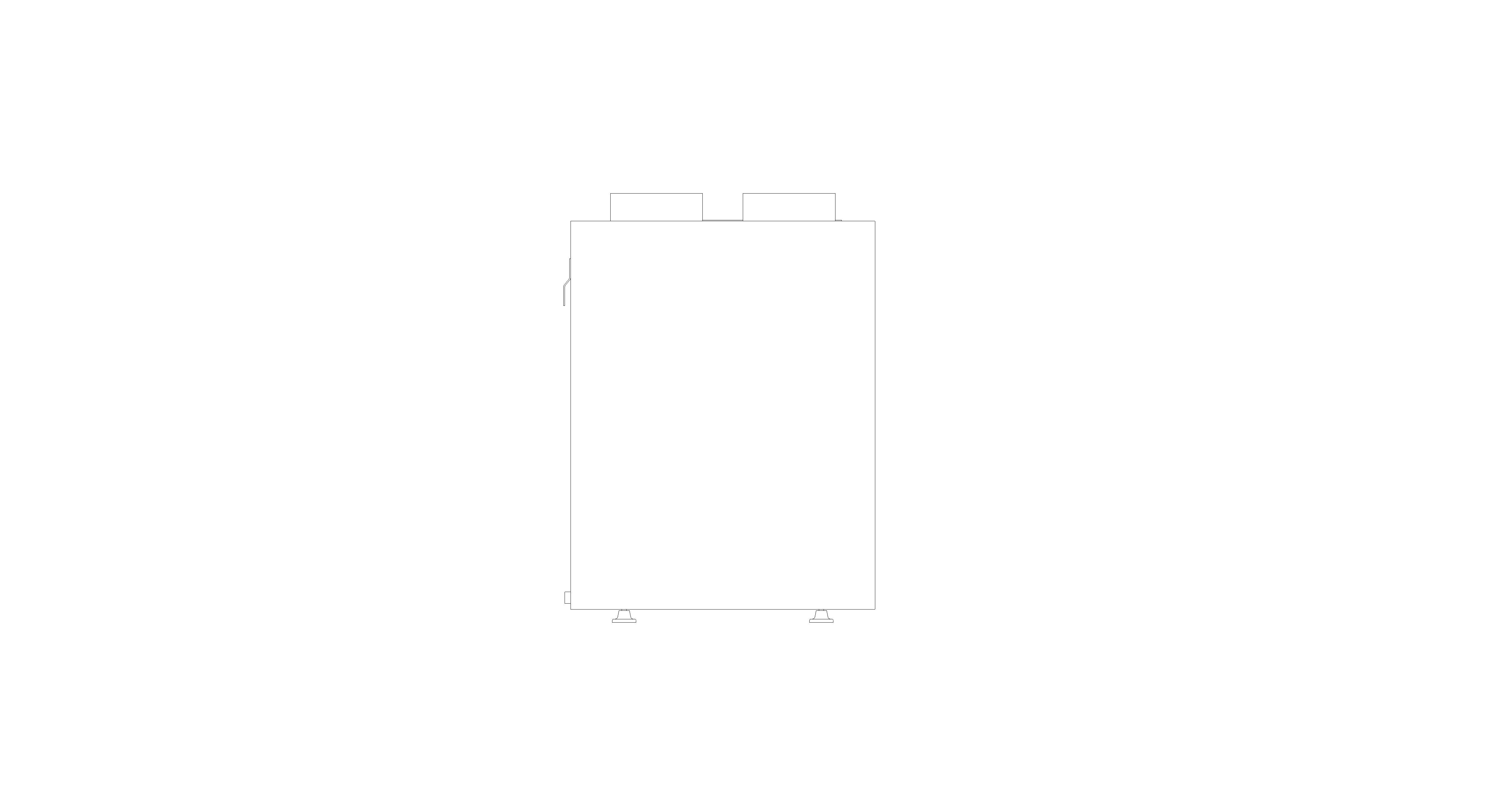

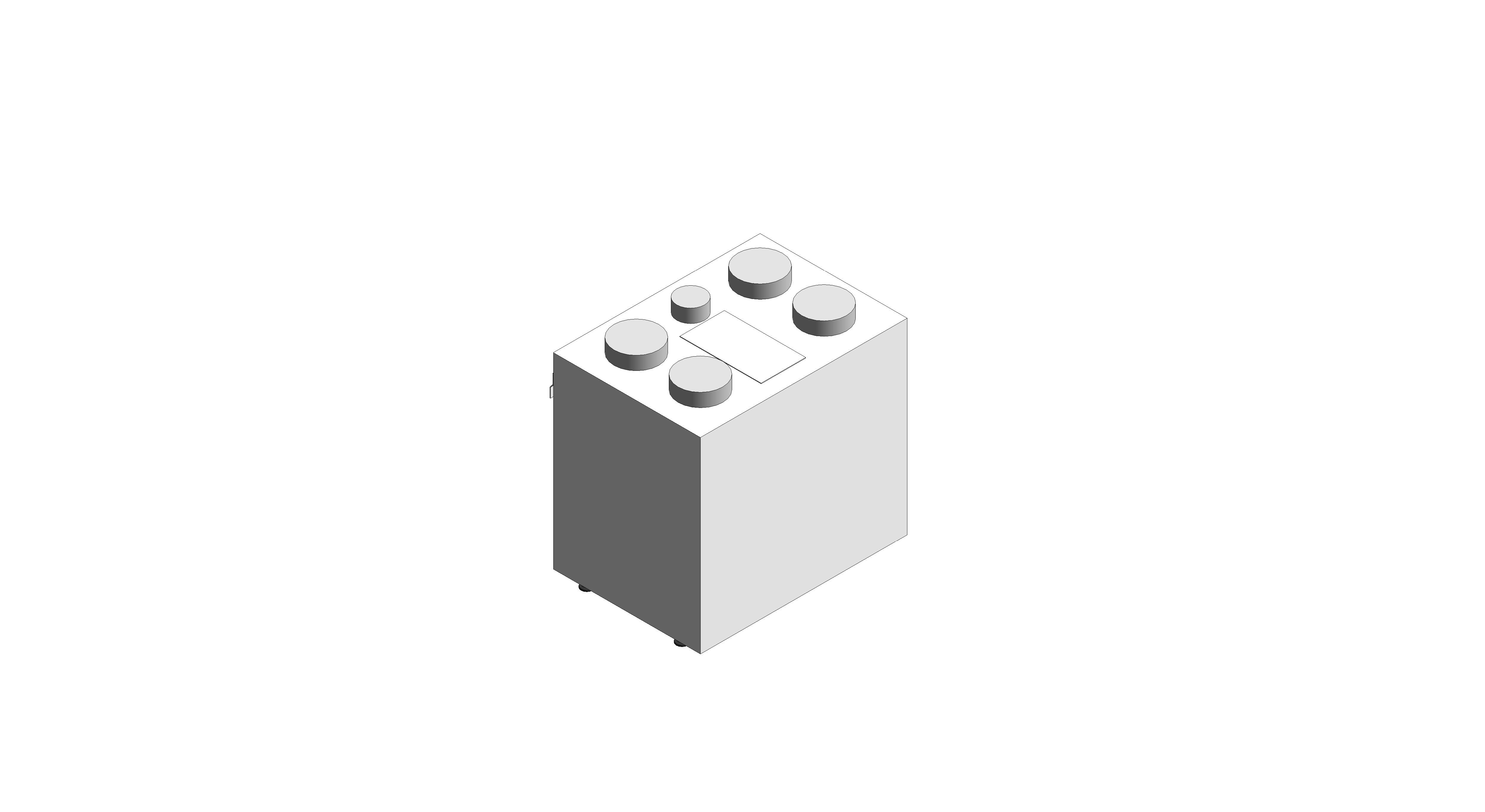

KOMFORT ROTO EC S 400

Download Add to collection

Description

Air handling units for efficient supply and exhaust ventilation in flats, houses, cottages and other buildings.

Objects included:

KOMFORT Roto EC S 400 S21

Object Data

1 Revision

Last Updated

15/09/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

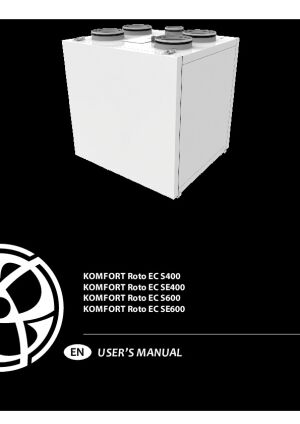

Installation Guide

Product Literature

Product Data Sheet

Object metadata

_Authortechnicalsupport@blauberg.co.uk
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created ByBlauberg UK
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/komfort-roto-ec-s-400-s21/document/object-user-guide
Accessibility Performancen/a
Asset TypeFixed
B528 mm
B1149 mm
B2149 mm
B3121 mm
Back Feet D20 mm
BIM Object Nameblauberg_MechanicalEquipment_Komfort_Roto_EC_S400_SE4002
Casing MaterialPainted Steel White
Classification NameUniclass2015
Classification ValuePr_60_65_03_86
Code Performancen/a
Colorn/a
Constituentsn/a
Created Bytechnicalsupport@blauberg.co.uk
Created On2021-08-31T09:00:00
Current1 A
D160 mm
d B Feets93 mm
DescriptionAir Handling Unit
d L Feets27 mm
Documentation Certificateswww.bimstore.co/products/komfort-roto-ec-s-400-s21/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/komfort-roto-ec-s-400-s21/document/installation-guide
Documentation Literaturewww.bimstore.co/products/komfort-roto-ec-s-400-s21/document/product-literature
Documentation Maintenancewww.bimstore.co/products/komfort-roto-ec-s-400-s21/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/komfort-roto-ec-s-400-s21/document/technical-data-sheet
Duct Connection Diameter160 mm
Duct Connection Diameter Kitchen Hood100 mm
Duration UnitYears
El Box A160 mm
El Box B292 mm
El Con A356 mm
El Con B324 mm
Expected Life0
Extract Air FilterG4
Featuresn/a
Finishn/a
Front Maintenance Zone Height750 mm
Front Maintenance Zone Length742 mm
Front Maintenance Zone Width674 mm
Graden/a
H674 mm
H Duct Con48 mm
Heater Power0 W
Heat Exchanger Materialaluminium
Heat Exchanger Typerotary
Heatrecoveryefficiency Percentage76..85
Ifc Export AsIfcEnergyConversionDeviceType
Ifc Export TypeIfcUnitaryEquipmentTypeEnum.AIRCONDITIONINGUNIT
L742 mm
L1149 mm
L2149 mm
L3372 mm
Load ClassificationHVAC
Maintenance Zone MaterialMaintenance Zone
ManufacturerBlauberg
Manufacturer NameBlauberg UK
Materialn/a
Maximum Air Flow440 m³/h
Maximum Unit Current With Electric Heater1 A
Maximum Unit Current Without Electric Heater1 A
Maximum Unit Power Without Electric Heater200 W
Metal MaterialMetal Zinc
ModelKOMFORT Roto EC S 400 S21
Model NumberKomfort Roto EC S400 SE4002
Model ReferenceKOMFORT Roto EC S 400 S21
Mounting Plate H100 mm
NBS DescriptionSupply air handling units
NBS Object NameBlauberg UK - Air Handling Units
NBS Office Master Tagn/a
NBS Reference90-45-15/310
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Number Of Poles1
Plastic MaterialPolypropylene Black
Power200 W
Power Factor1
Production Year2021
Referenced Standardn/a
Replacement Costn/a
RP Mmin 13280
SEC ClassA
Service Door B20 mm
Shapen/a
Sizen/a
Sound Pressure Levelat 3m DBA33
Spare Partsn/a
Supply Air FilterG4,F7
Transported Air Temperature Degrees C-25…+40
Type CommentsAir Handling Unit KOMFORT Roto EC S 400 S21
Type NameAir Handling Unit KOMFORT Roto EC S 400 S21
URLblaubergventilatoren.de/en/product/komfort-roto-ec-s400-s21
Voltage230 V
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partstechnicalsupport@blauberg.co.uk
Weight81.00 kg

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
