KOMFORT ROTO EC D 250

by Blauberg

Download Add to collection

Description

Ventilation units for organizing efficient supply and exhaust ventilation in commercial, office and other public or industrial premises.

Objects Included:

KOMFORT Roto EC D 250 S21 (Left/Right)

Object Data

1 Revision

Last Updated

15/09/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

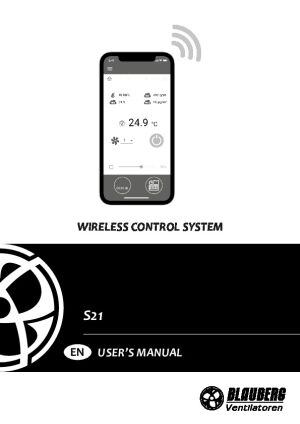

Installation Guide

Product Literature

Technical Data Sheet

Product Data Sheet

Object metadata

_Authortechnicalsupport@blauberg.co.uk
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created ByBlauberg UK
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/komfort-roto-ec-d2e-250/document/object-user-guide
Accessibility Performancen/a
Asset TypeFixed
B643 mm
B1224 mm
B2175 mm
B3154 mm
B4149 mm
BIM Object Nameblauberg_MechanicalEquipment_Komfort_Roto_EC_D_D2_DE_D2E_250_Left
Bottom Maintenance Zone Height600 mm
Casing MaterialPainted Steel White
Classification NameUniclass2015
Classification ValuePr_60_65_03_86
Code Performancen/a
Colorn/a
Constituentsn/a
Created Bytechnicalsupport@blauberg.co.uk
Created On2021-08-31T09:00:00
Current1 A
D160 mm
DescriptionAir Handling Unit
Documentation Certificateswww.bimstore.co/products/komfort-roto-ec-d2e-250/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/komfort-roto-ec-d2e-250/document/installation-guide
Documentation Literaturewww.bimstore.co/products/komfort-roto-ec-d2e-250/document/product-literature
Documentation Maintenancewww.bimstore.co/products/komfort-roto-ec-d2e-250/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/komfort-roto-ec-d2e-250/document/technical-data-sheet
Duct Connection Diameter160 mm
Duct Connection Diameter Kitchen Hood125 mm
Duration UnitYears
El Box A502 mm
El Box B216 mm
El Box Depth22 mm
El Box H166 mm
El Box L476 mm
Expected Life0
Extract Air FilterG4
Featuresn/a
Filter Cover B1176 mm
Filter Cover B2176 mm
Filter Cover L1152 mm
Filter Cover L11306 mm
Filter Cover L12306 mm
Filter Cover L2166 mm
Filter Cover W11170 mm
Filter Cover W12100 mm
Finishn/a
Graden/a
H308 mm
H1141 mm
H2153 mm
H3162 mm
H4168 mm
H5194 mm
Heater Power0 W
Heat Exchanger Materialaluminum
Heat Exchanger Typerotary
Heatrecoveryefficiency Percentage71..87
Ifc Export AsIfcEnergyConversionDeviceType
Ifc Export TypeIfcUnitaryEquipmentTypeEnum.AIRCONDITIONINGUNIT
L1002 mm
L3119 mm
L Duct Con50 mm
Load ClassificationHVAC
Maintenance Zone MaterialMaintenance Zone
ManufacturerBlauberg
Manufacturer NameBlauberg UK
Materialn/a
Maximum Air Flow310 m³/h
Maximum Unit Current With Electric Heater1 A
Maximum Unit Current Without Electric Heater1 A
Maximum Unit Power Without Electric Heater135 W
Metal MaterialMetal Zinc
ModelKOMFORT Roto EC D 250 S21 L
Model NumberKomfort Roto EC D D2 DE D2E 250 Left
Model ReferenceKOMFORT Roto EC D 250 S21 L
Mounting Plate L643 mm
NBS DescriptionSupply air handling units
NBS Object NameBlauberg UK - Air Handling Units
NBS Office Master Tagn/a
NBS Reference90-45-15/310
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Number Of Poles1
Power135 W
Power Factor1
Production Year2021
Referenced Standardn/a
Replacement Costn/a
RP Mmin 12200
SEC ClassA
Shapen/a
Side Maintenance Zone Height400 mm
Sizen/a
Sound Pressure Levelat 3m DBA21
Spare Partsn/a
Supply Air FilterG4, F7
Transported Air Temperature Degrees C-25…+40
Type CommentsAir Handling Unit KOMFORT Roto EC D 250 S21 L
Type NameAir Handling Unit KOMFORT Roto EC D 250 S21 L
URLblaubergventilatoren.de/ru/product/komfort-roto-ec-d-250-l-r-s21
Voltage230 V
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partstechnicalsupport@blauberg.co.uk
Weight55.00 kg
