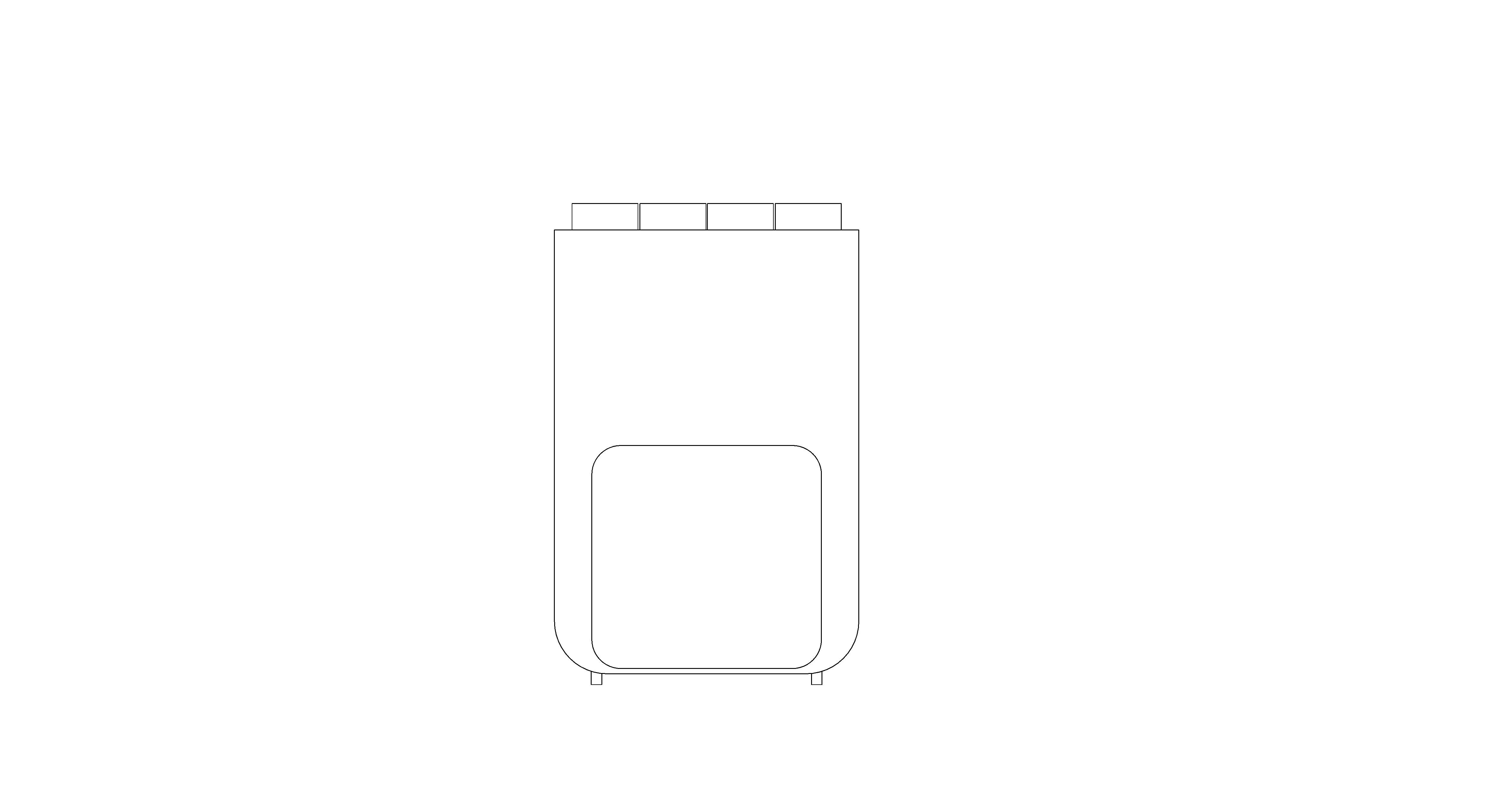

KOMFORT EC S5B 270 - Heat Recovery Unit

Object metadata

• _Authortechnicalsupport@blauberg.co.uk
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version16
• _Created ByBlauberg UK
• _Current Revision1
• _Distributed Bywww.bimstore.co/
• _Object User Guidewww.bimstore.co/products/komfort-ec-s5b-270-s21/document/object-user-guide
• Accessibility Performancen/a
• Asset TypeFixed
• B300 mm
• B191 mm
• B291 mm
• B Half150 mm
• BIM Object Nameblauberg_MechanicalEquipment_Komfort_EC_S5B_2702
• Casing MaterialPolypropylene Black
• Casing R100 mm
• Classification NameUniclass2015
• Classification ValuePr_60_65_03_86
• Code Performancen/a
• Colorn/a
• Constituentsn/a
• Created Bytechnicalsupport@blauberg.co.uk
• Created On2021-08-31T09:00:00
• Current1 A
• D125 mm
• d B Floor Supports55 mm
• DescriptionAir Handling Unit
• d L Floor Supports80 mm
• Documentation Certificateswww.bimstore.co/products/komfort-ec-s5b-270-s21/document/product-certificates

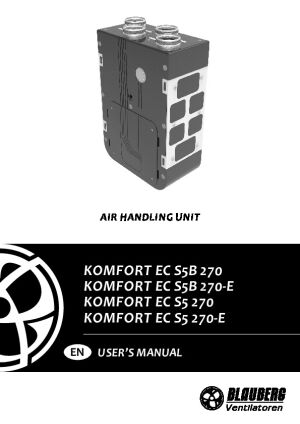

• Documentation Installation Guidewww.bimstore.co/products/komfort-ec-s5b-270-s21/document/installation-guide
• Documentation Literaturewww.bimstore.co/products/komfort-ec-s5b-270-s21/document/product-literature
• Documentation Maintenancewww.bimstore.co/products/komfort-ec-s5b-270-s21/document/maintenance-information
• Documentation Technicalwww.bimstore.co/products/komfort-ec-s5b-270-s21/document/technical-data-sheet
• Drain Con B1143 mm
• Drain Con B2143 mm
• Drain Connection Diameter15 mm
• Drain PipeYes
• Drain Pipe D15 mm
• Duct Connection Diameter125 mm
• Duration UnitYears
• El Con H520 mm
• El Con L289 mm
• Expected Life0
• Extract Air FilterG4
• Featuresn/a
• Finishn/a
• Floor Support H20 mm
• Floor Support H Calc30 mm
• Front Maintenance Zone Height500 mm
• Graden/a
• H844 mm
• H Duct Con50 mm
• Heat Exchanger Materialpolystyrene
• Heat Exchanger Typecounter-flow
• Heatrecoveryefficiency Percentage87..98
• Ifc Export AsIfcEnergyConversionDeviceType
• Ifc Export TypeIfcUnitaryEquipmentTypeEnum.AIRCONDITIONINGUNIT
• L578 mm
• L196 mm
• L2225 mm
• L396 mm
• L4225 mm
• Load ClassificationHVAC
• Maintenance Zone MaterialMaintenance Zone
• ManufacturerBlauberg
• Manufacturer NameBlauberg UK
• Materialn/a
• Maximum Air Flow300 m³/h
• Maximum Unit Power162 W
• Metal MaterialMetal Zinc
• ModelKOMFORT EC S5B 270 S21
• Model NumberKomfort EC S5B 2702
• Model ReferenceKOMFORT EC S5B 270 S21
• NBS DescriptionSupply air handling units
• NBS Object NameBlauberg UK - Air Handling Units
• NBS Office Master Tagn/a
• NBS Reference90-45-15/310
• Nominal Depth0 mm
• Nominal Height0 mm
• Nominal Length0 mm
• Number Of Poles1
• Plastic MaterialPolypropylene Black
• Power162 W
• Power Factor1
• Production Year2021
• Referenced Standardn/a
• Replacement Costn/a
• RP Mmin 13200
• SEC ClassA+
• Service Door H424 mm
• Service Door H110 mm
• Service Door L436 mm
• Service Door R55 mm
• Service Door Thickness5 mm
• Sevice Door MaterialPolypropylene Blue
• Shapen/a
• Sizen/a
• Sound Pressure Levelat 3m DBA0
• Spare Partsn/a
• Supply Air FilterG4 (option F8)
• Transported Air Temperature Degrees C-25…+40
• Type CommentsAir Handling Unit KOMFORT EC S5B 270 S21
• Type NameAir Handling Unit KOMFORT EC S5B 270 S21
• Unit Current1 A
• URLblaubergventilatoren.de/en/product/komfort-ec-s5b270-s21
• Voltage230 V
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts0
• Warranty Duration UnitYears
• Warranty Guarantor Laborn/a
• Warranty Guarantor Partstechnicalsupport@blauberg.co.uk
• Weight13.00 kg
