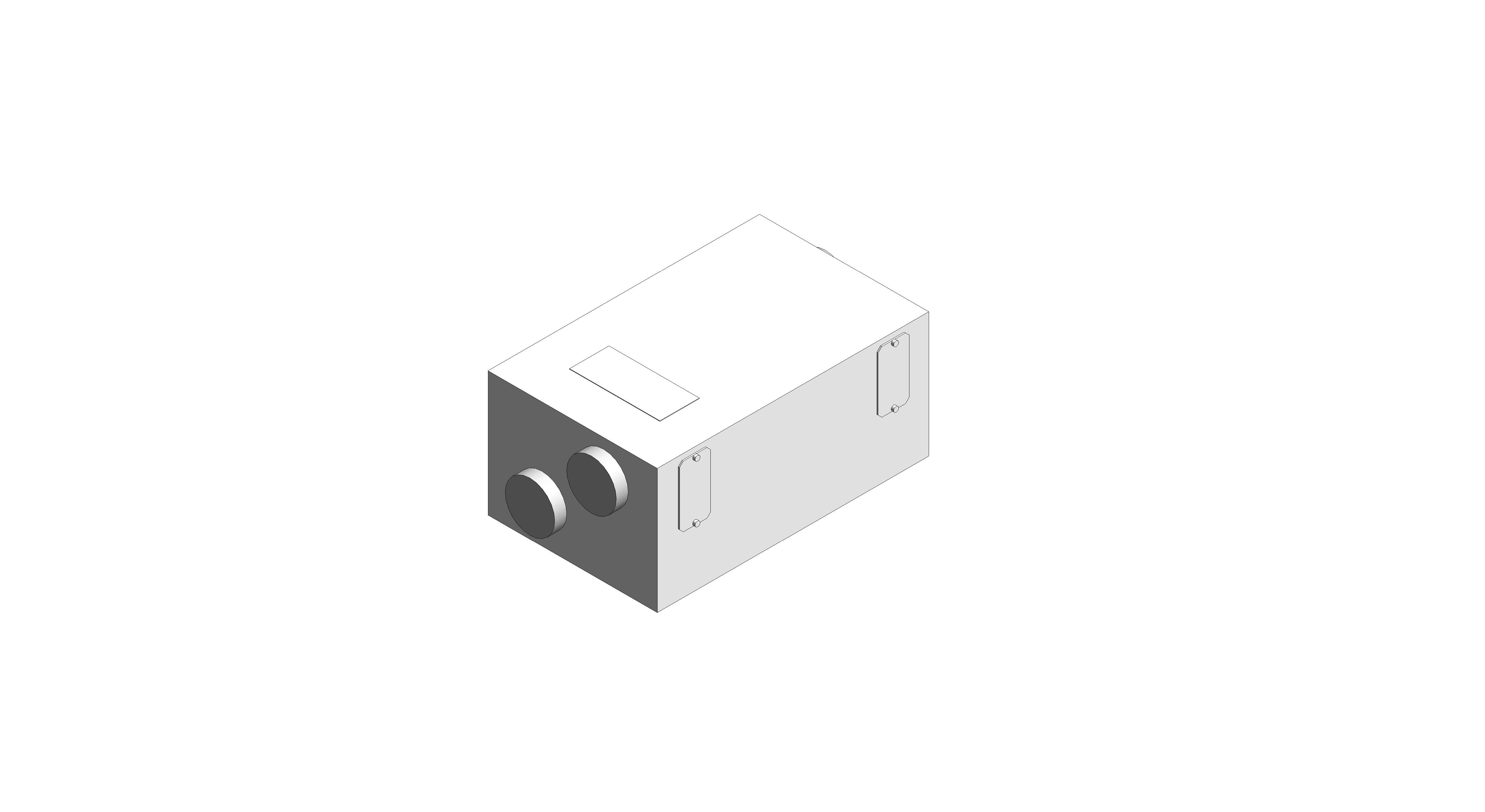

KOMFORT EC LBE 400 - Heat Recovery Unit

by Blauberg UK Limited

Download Add to collection

Description

Air handling units for efficient supply and exhaust ventilation in flats, houses, cottages and other buildings.

Automatic Summer Bypass

Pure air G4 and F7 pollen and allergy filtration system reducing particulate matter down to PM2.5.

Objects included:

KOMFORT EC LBE 400 S21

Object Data

1 Revision

Last Updated

15/09/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

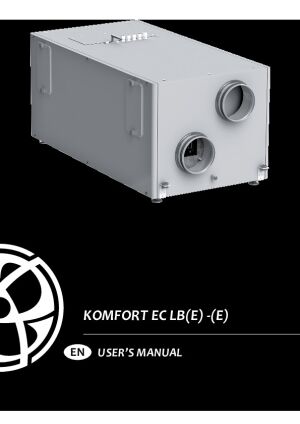

Installation Guide

Product Literature

Technical Data Sheet

Product Data Sheet

Object metadata

_Authortechnicalsupport@blauberg.co.uk
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created ByBlauberg UK
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/komfort-ec-lbe-400-s21/document/object-user-guide
Accessibility Performancen/a
Asset TypeFixed
B682 mm
B1217 mm
B2217 mm
B Drain Con341 mm
BIM Object Nameblauberg_MechanicalEquipment_Komfort_EC_LBE_4002
Casing MaterialPainted Steel White
Classification NameUniclass2015
Classification ValuePr_60_65_03_86
Code Performancen/a
Colorn/a
Constituentsn/a
Cover H247 mm
Cover H1145 mm
Cover L1147 mm
Cover L2147 mm
Cover W125 mm
Created Bytechnicalsupport@blauberg.co.uk
Created On2021-08-31T09:00:00
Current14 A
D200 mm
d B Feets58 mm
Ddrain15 mm
DescriptionAir Handling Unit
d L Feets48 mm
Documentation Certificateswww.bimstore.co/products/komfort-ec-lbe-400-s21/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/komfort-ec-lbe-400-s21/document/installation-guide
Documentation Literaturewww.bimstore.co/products/komfort-ec-lbe-400-s21/document/product-literature
Documentation Maintenancewww.bimstore.co/products/komfort-ec-lbe-400-s21/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/komfort-ec-lbe-400-s21/document/technical-data-sheet
Drain Connection Diameter16 mm
Drain PipeYes
Duct Connection Diameter200 mm
Duration UnitYears
El Box A159 mm
El Box B364 mm
El Con A249 mm
El Con B341 mm
Expected Life0
Extract Air FilterG4
Featuresn/a
Finishn/a
Front Maintenance Zone Height900 mm
Graden/a
H504 mm
H1141 mm
H2162 mm
H Drain Con52 mm
H Duct Con48 mm
Heat Exchanger Materialpolystyrene
Heater Power2800 W
Heat Exchanger Typecounter-flow
Heatrecoveryefficiency Percentage84..98
Ifc Export AsIfcEnergyConversionDeviceType
Ifc Export TypeIfcUnitaryEquipmentTypeEnum.AIRCONDITIONINGUNIT
L1094 mm
Load ClassificationHVAC
Maintenance Zone MaterialMaintenance Zone
ManufacturerBlauberg
Manufacturer NameBlauberg UK
Materialn/a
Maximum Unit Current With Electric Heater14 A
Maximum Unit Current Without Electric Heater2 A
Maximum Air Flow540 m³/h
Maximum Unit Power Without Electric Heater289 W
Metal MaterialMetal Zinc
ModelKOMFORT EC LBE 400 S21
Model NumberKomfort EC LBE 4002
Model ReferenceKOMFORT EC LBE 400 S21
NBS DescriptionSupply air handling units
NBS Object NameBlauberg UK - Air Handling Units
NBS Office Master Tagn/a
NBS Reference90-45-15/310
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Number Of Poles1
Plastic MaterialPolypropylene Black
Power3089 W
Power Factor1
Production Year2021
Referenced Standardn/a
Replacement Costn/a
RP Mmin 12600
SEC ClassA+
Shapen/a
Sizen/a
Sound Pressure Levelat 3m DBA27
Spare Partsn/a
Supply Air FilterG4+F7
Top Maintenance Zone Height900 mm
Transported Air Temperature Degrees C-25…+40
Type CommentsAir Handling Unit KOMFORT EC LBE 400 S21
Type NameAir Handling Unit KOMFORT EC LBE 400 S21
URLblaubergventilatoren.de/en/product/komfort-ec-lbe400-s21
Voltage230 V
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partstechnicalsupport@blauberg.co.uk
Weight76.00 kg
