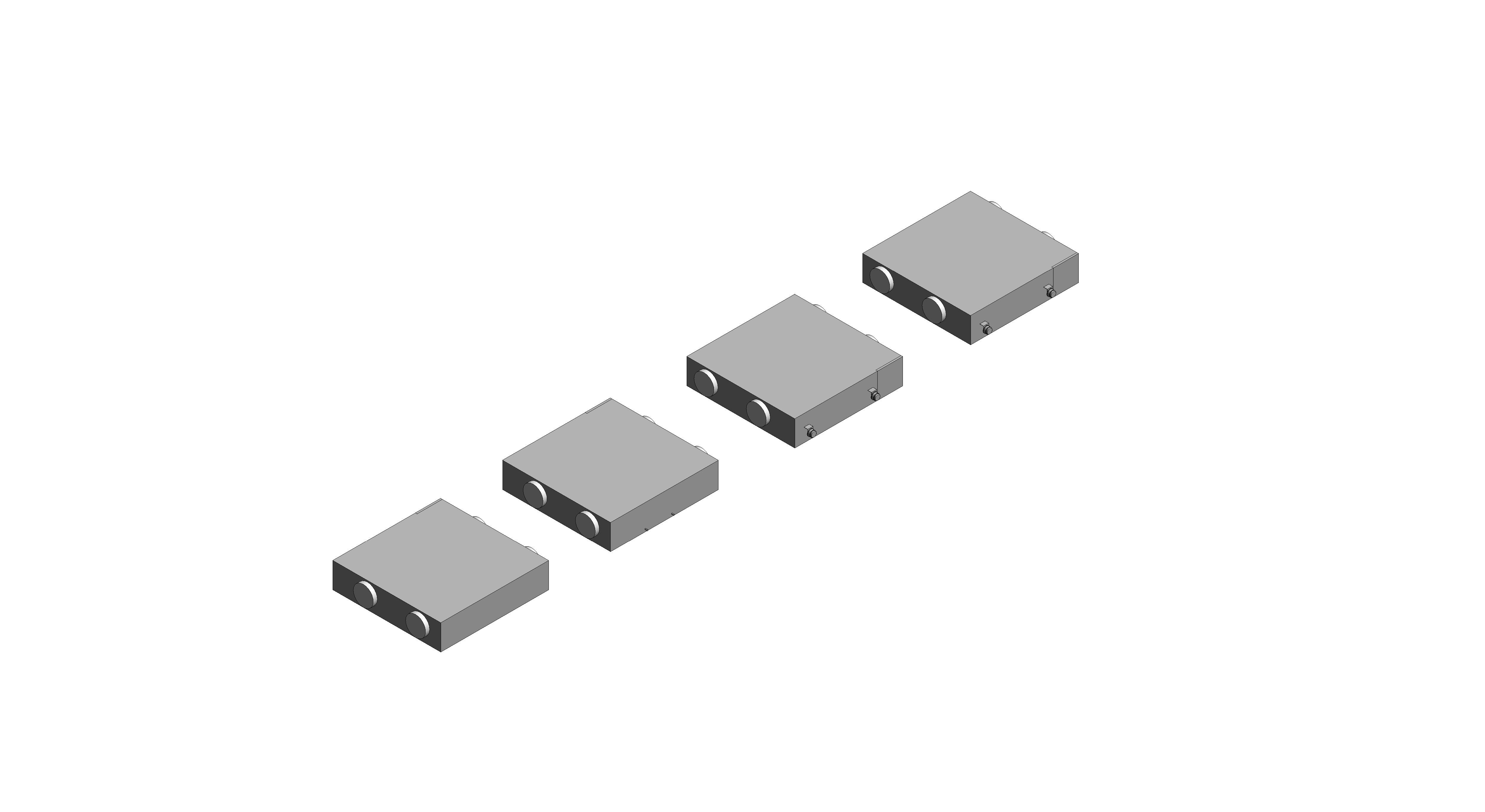

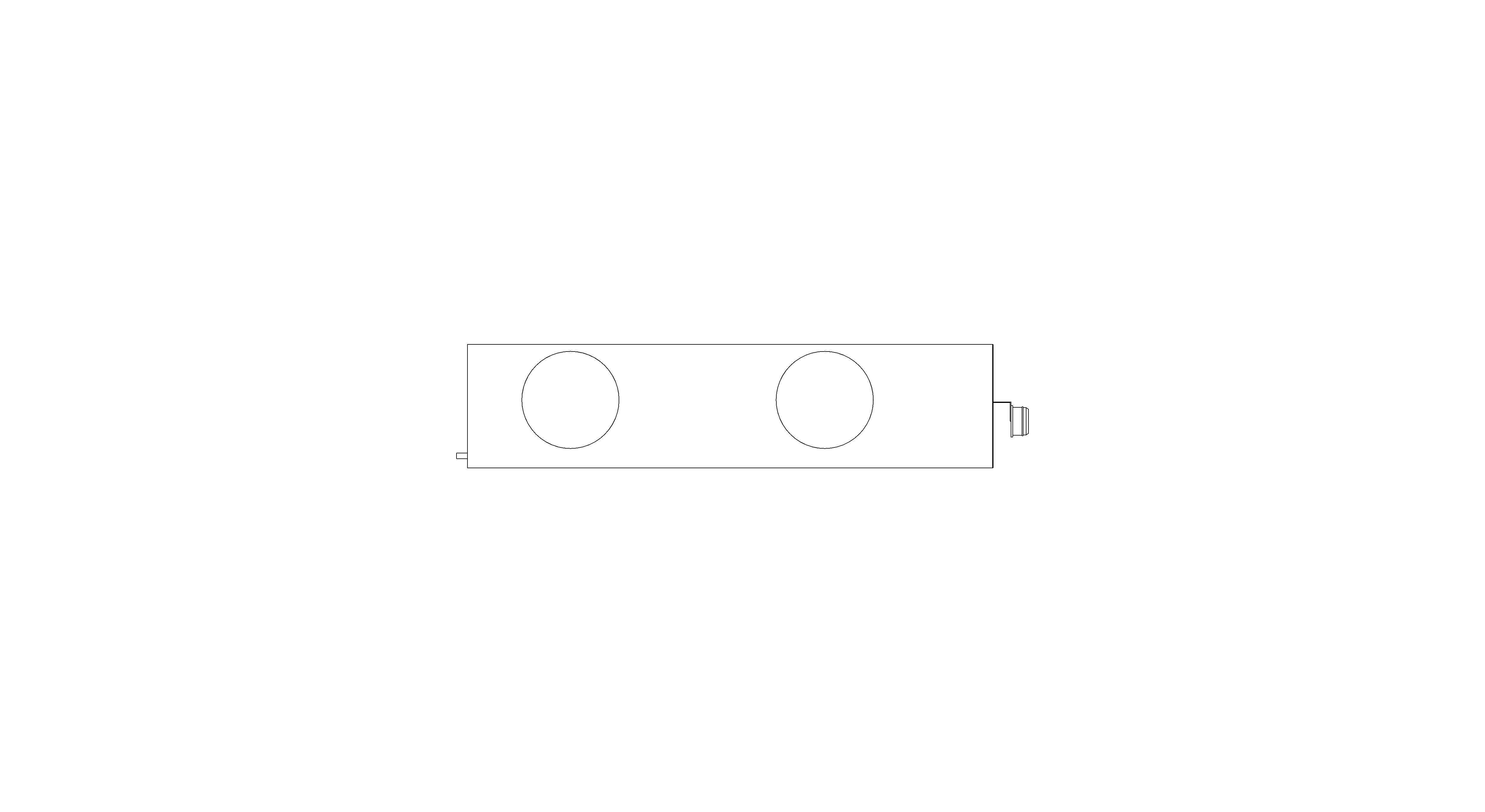

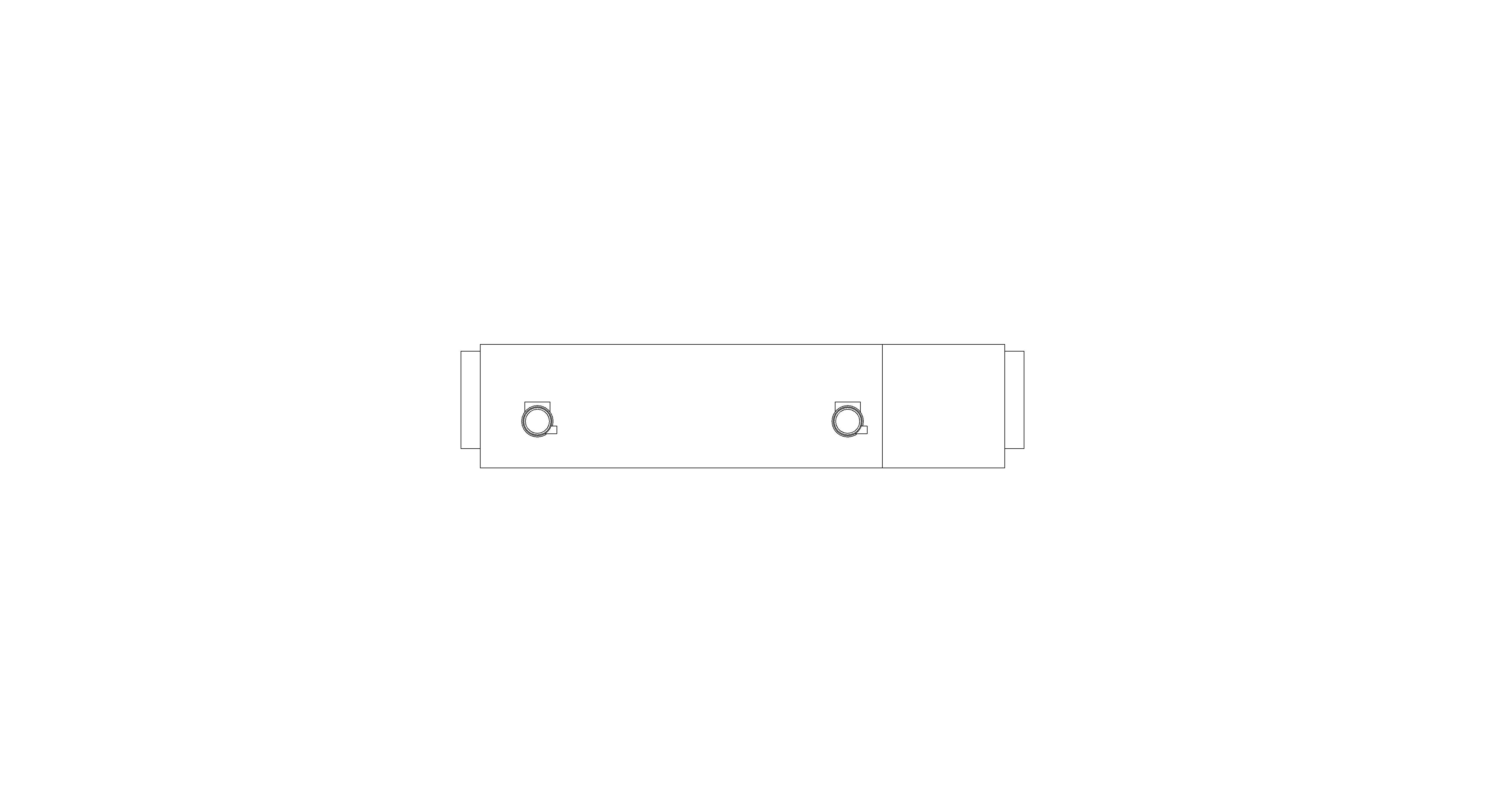

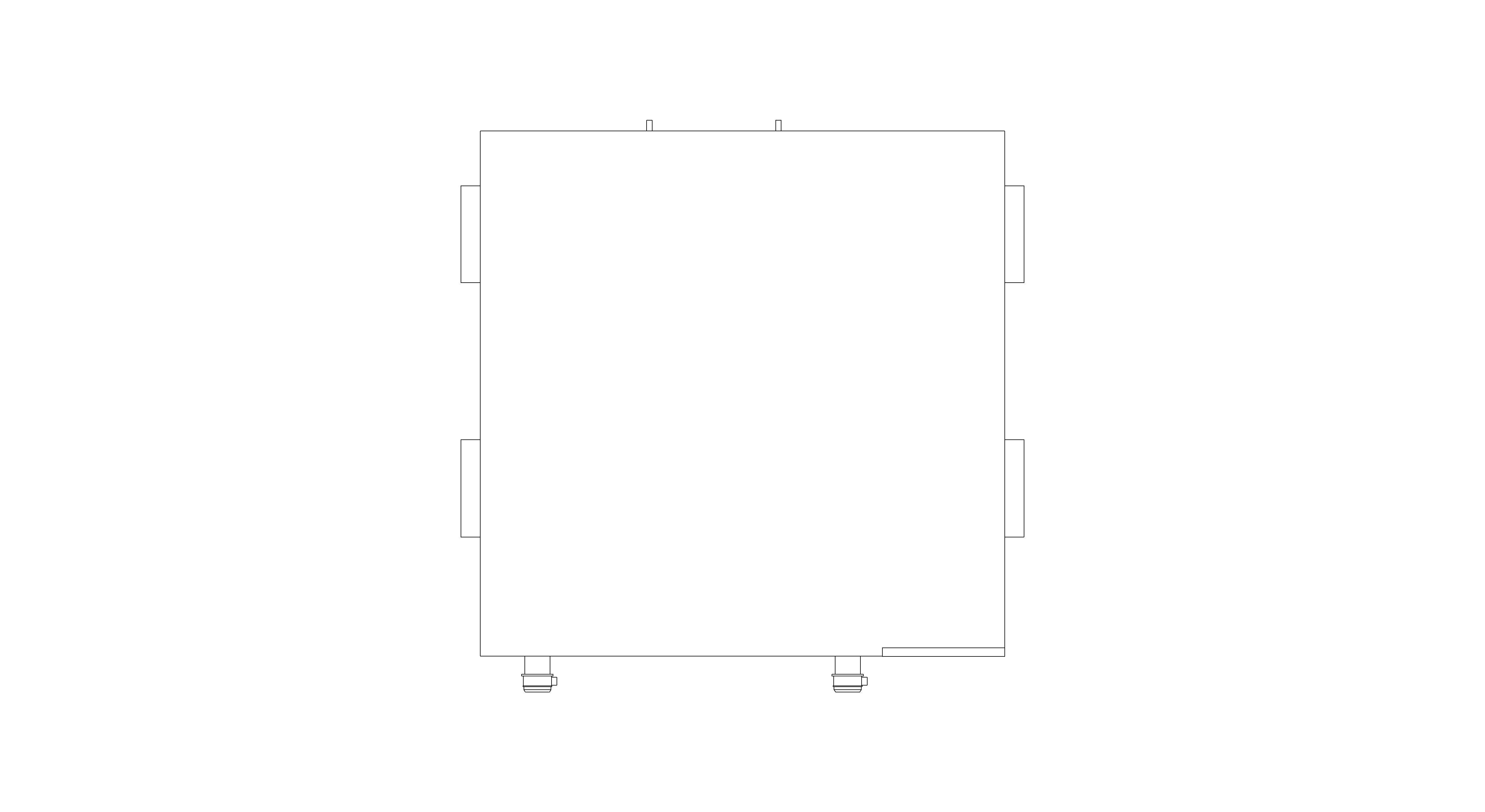

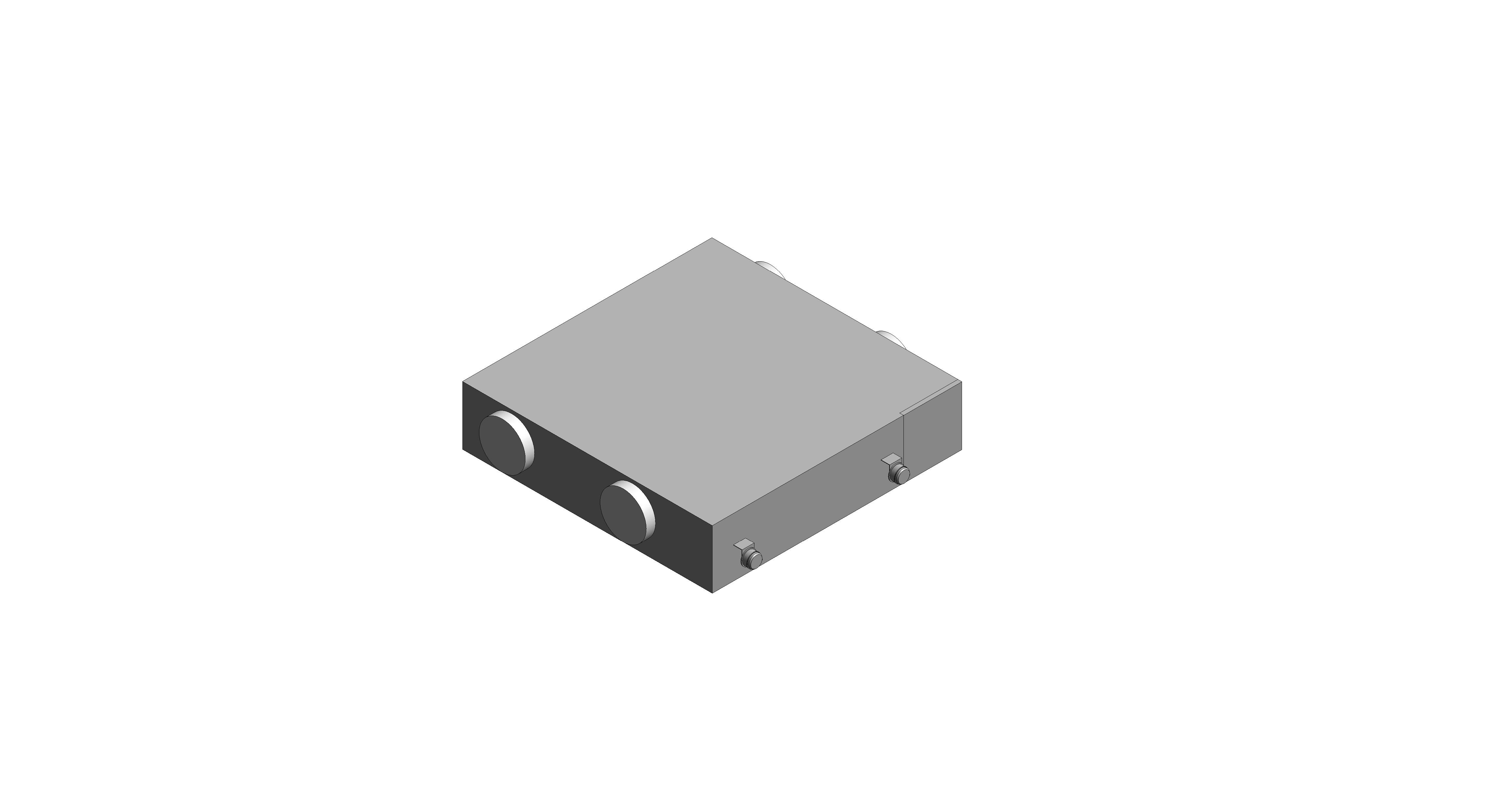

KOMFORT EC DBE 900 - Heat Recovery Unit

by Blauberg

Download Add to collection

Description

Air handling units for efficient supply and exhaust ventilation for commerical properties

Counterflow Plate Heat Exchanger

Built in summer bypass

Inegrated Electric Heat

Higher filtration as standard

Objects included:

KOMFORT EC DBE 900 L S21

Object Data

1 Revision

Last Updated

15/09/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

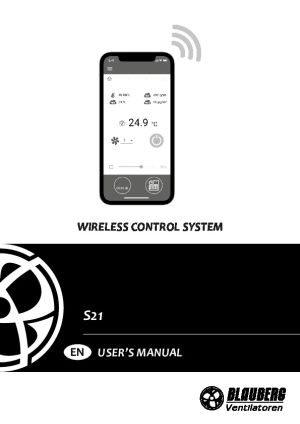

Installation Guide

Product Literature

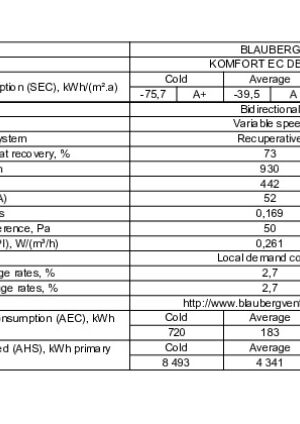

Technical Data Sheet

Product Data Sheet

Object metadata

_Authortechnicalsupport@blauberg.co.uk
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.blauberg.co.uk/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/komfort-ec-dbe-900/document/object-user-guide
Accessibility Performancen/a
Asset TypeFixed
B1351 mm
B1432 mm
B2265 mm
BIM Object Nameblauberg_MechanicalEquipment_Komfort_EC_DBE_900_Left
Casing MaterialPainted Steel Gray
Classification NameUniclass2015
Classification ValuePr_60_65_03_86
Code Performancen/a
Colorn/a
Constituentsn/a
Created Bytechnicalsupport@blauberg.co.uk
Created On2021-08-31T09:00:00
Current17 A
D250 mm
DescriptionAir Handling Unit
Documentation Certificateswww.bimstore.co/products/komfort-ec-dbe-900/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/komfort-ec-dbe-900/document/installation-guide
Documentation Literaturewww.bimstore.co/products/komfort-ec-dbe-900/document/product-literature
Documentation Maintenancewww.bimstore.co/products/komfort-ec-dbe-900/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/komfort-ec-dbe-900/document/technical-data-sheet
DPS_H198 mm
DPS_L1147 mm
DPS_L2404 mm
Drain Connection Diameter14 mm
Drain D14 mm
Drain PipeYes
Duct Connection Diameter250 mm
Duration UnitYears
El Box B22 mm
El Box B121 mm
El Box L315 mm
Expected Life0
Extract Air FilterG4
Featuresn/a
Finishn/a
Front Maintenance Zone Height800 mm
Front Maintenance Zone Length1349 mm
Front Maintenance Zone Width318 mm
Graden/a
H318 mm
H1143 mm
H Drain Con31 mm
Heater Power3300 W
Heat Exchanger Materialpolystyrene
Heat Exchanger Typecounter-flow
Heatrecoveryefficiency Percentage75..88
Ifc Export AsIfcEnergyConversionDeviceType
Ifc Export TypeIfcUnitaryEquipmentTypeEnum.AIRCONDITIONINGUNIT
L1349 mm
L Drain Con28 mm
L Drain Con 1435 mm
L Drain Con 2582 mm
L Duct Con50 mm
Load ClassificationHVAC
Maintenance Zone MaterialMaintenance Zone
ManufacturerBlauberg
Manufacturer NameBlauberg UK
Materialn/a
Maximum Air Flow1030 m³/h
Maximum Unit Current With Electric Heater17 A
Maximum Unit Current Without Electric Heater3 A
Maximum Unit Power Without Electric Heater442 W
Metal MaterialMetal Zinc
ModelKOMFORT EC DBE 900 L S21
Model NumberKomfort EC DBE 900 Left
Model ReferenceKOMFORT EC DBE 900 L S21
NBS DescriptionSupply air handling units
NBS Object NameBlauberg UK - Air Handling Units
NBS Office Master Tagn/a
NBS Reference90-45-15/310
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Number Of Poles1
Power3742 W
Power Factor1
Production Year2021
Referenced Standardn/a
Replacement Costn/a
RP Mmin 12720
SEC ClassA
Shapen/a
Sizen/a
Sound Pressure Levelat 3m DBA33
Spare Partsn/a
Supply Air FilterG4 (F7 option)
Transported Air Temperature Degrees C-25…+40
Type CommentsAir Handling Unit KOMFORT EC DBE 900 L S21
Type NameAir Handling Unit KOMFORT EC DBE 900 L S21
URLwww.blauberg.co.uk/
Voltage230 V
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partstechnicalsupport@blauberg.co.uk
Weight111 kg
