Two part Kitchen drain with membrane – Tile / Resin / Concrete

  • Product: Two part Kitchen drain with membrane – Tile / Resin / Concrete
  • Product: Two part Kitchen drain with membrane – Tile / Resin / Concrete
  • Product: Two part Kitchen drain with membrane – Tile / Resin / Concrete
  • v
SketchfabSketchfab
  • Views 16.8k
  • Comments 0
  • Rating- / 5
    Rate this product
    1/5 Rating1/5 Rating2/5 Rating2/5 Rating3/5 Rating3/5 Rating4/5 Rating4/5 Rating5/5 Rating5/5 Rating

-

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

2 Revision

Last Updated

02/11/2020

Available for:
  • Logo: Autodesk Revit

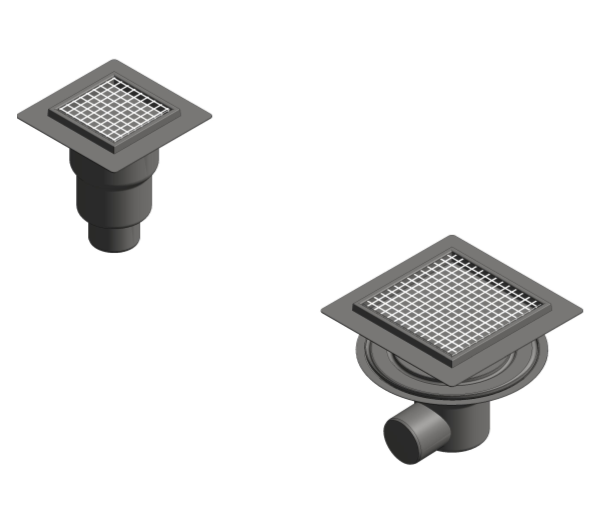

This Download Contains the BLÜCHER® Kitchen Drain Square model 200/300 mm with liquid membrane flange, with all parts, Flow rate up to 4.0 ltr/sec.

Select the product(s) based on outside (visible) dimension, flow rate, and / or item number, to upload in your project.

  • Horizontal and Vertical outlet, height adjustable, 75 / 110mm
  • With and without membrane and for concrete, tiled and resin floors.
  • Upper part models Square 774.422 / 710.423
  • Lower part models 760.002 / 760.160. / 763.002 / 763.042 / 769 / 771 / 774 / 775
  • The product is made from 1.5 mm acid-pickled stainless steel.
  • Grating with non-slip, 2 types
  • Designed in accordance with EN1253.

Key Component Features:

  • User selectable Channel
  • User selectable Gratings
  • User selectable Lower Parts
  • User selectable Water trap
  • User selectable Filter Basket
  • 360 degree Lower Part
  • Height adjustment
  • Automated product codes
  • Pre-selected concrete cut out / base concrete slab and elevated floor screed cut-out option for installation purpose
