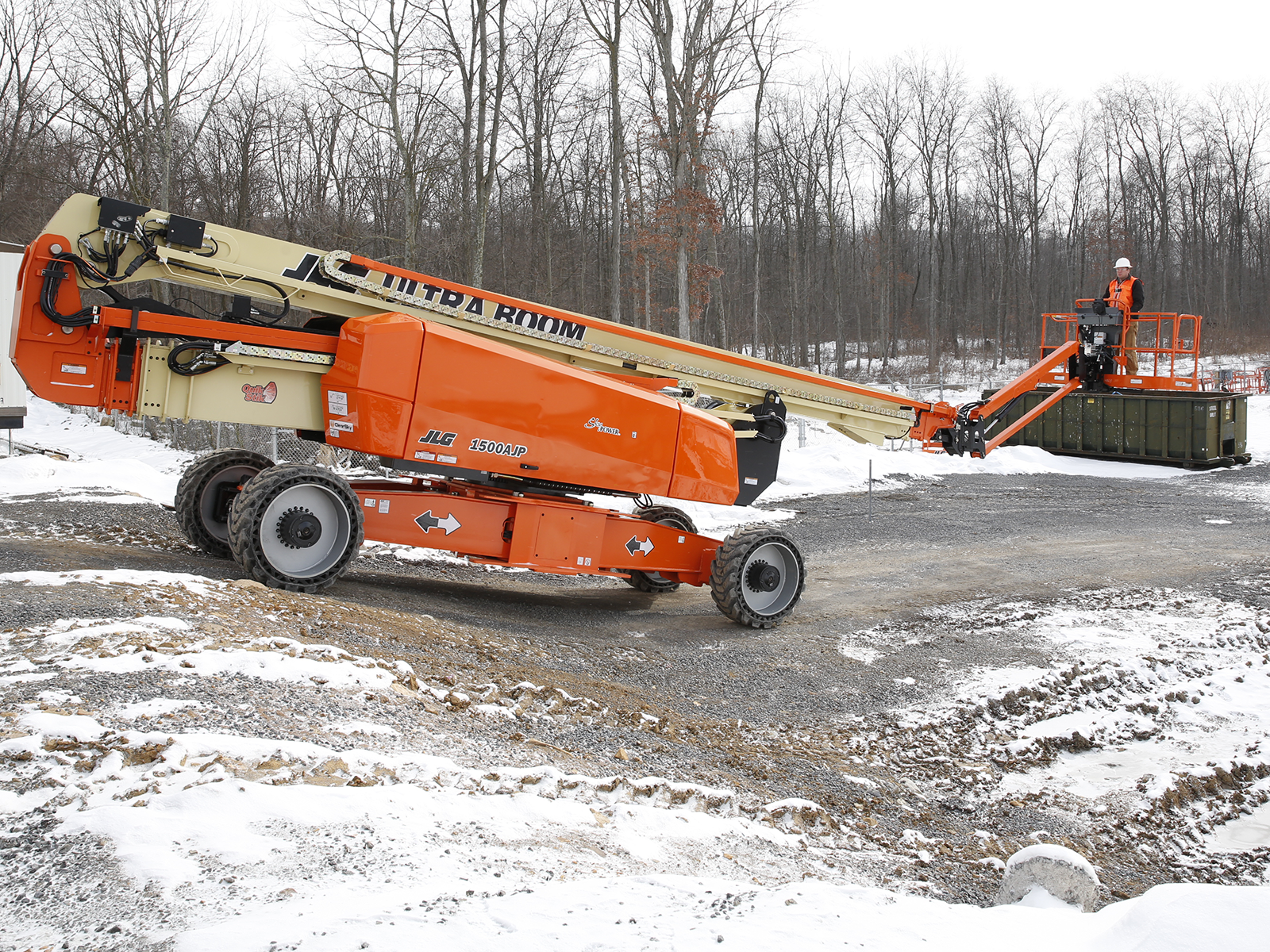

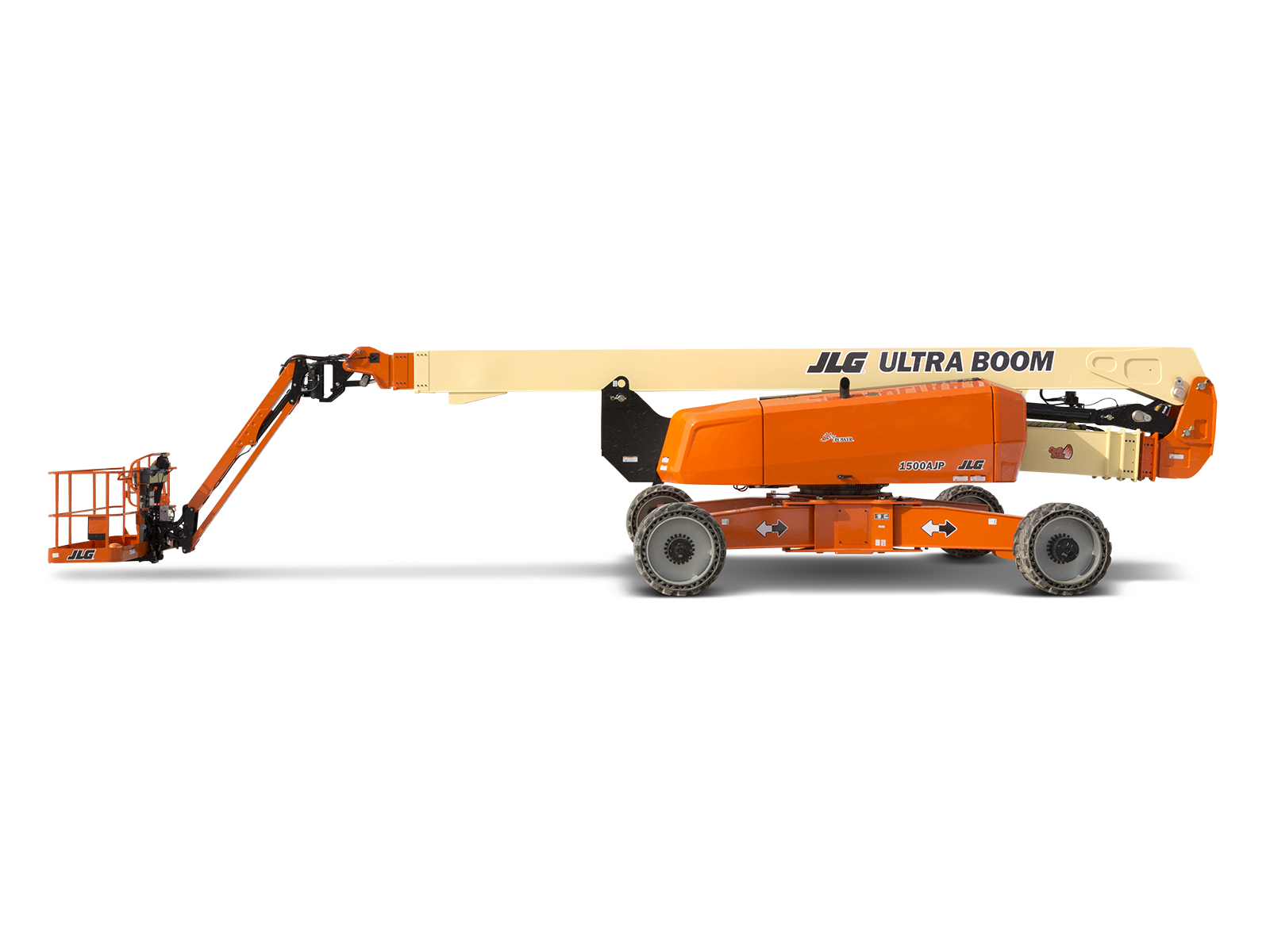

1500AJP New - Articulating Boom Lifts

Description

Discover the world's tallest articulating boom lift and learn more about its superior reach and industry-leading lift speeds.

Key Specs

Platform Height: 46.15 m / 151.4 ft
Platform Capacity - Restricted: 450 kg / 992.1 lb
Platform Capacity - Unrestricted: 270 kg / 595.2 lb

Key Features

Productivity redefined
World's largest working envelope with high capacity throughout
JLG QuickStickTM capability allows for full height to ground in ~2 minutes

This machine may also be known as: Cherry Pickers, Platforms, Spider Lifts, Toucans, Cranes, Lifts, AWP, MEWP, IPAF 3a, 3b

Object Data

1 Revision

Last Updated

04/02/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

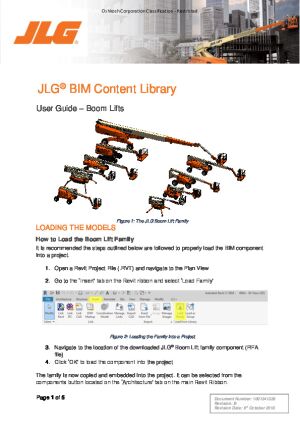

Object User Guide

Technical Data Sheet

Product Data Sheet

Object metadata

Object

Parameter Type

_AuthorJLG
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.jlg.com/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/jlg-1500ajp-new-articulating-boom-lifts/document/object-user-guide
Aa55.00 °
Aa 1235.00 °
Accessibility Performancen/a
A Ea46.50 °
A Ea 1133.50 °
Articulating Jib2.44 m (8 ft 0 in) articulating jib
Assembly CodeE1030100
Asset TypeMovable
Auxiliary Power12V DC
Axle Oscillation0.3 m (1 ft 0 in)

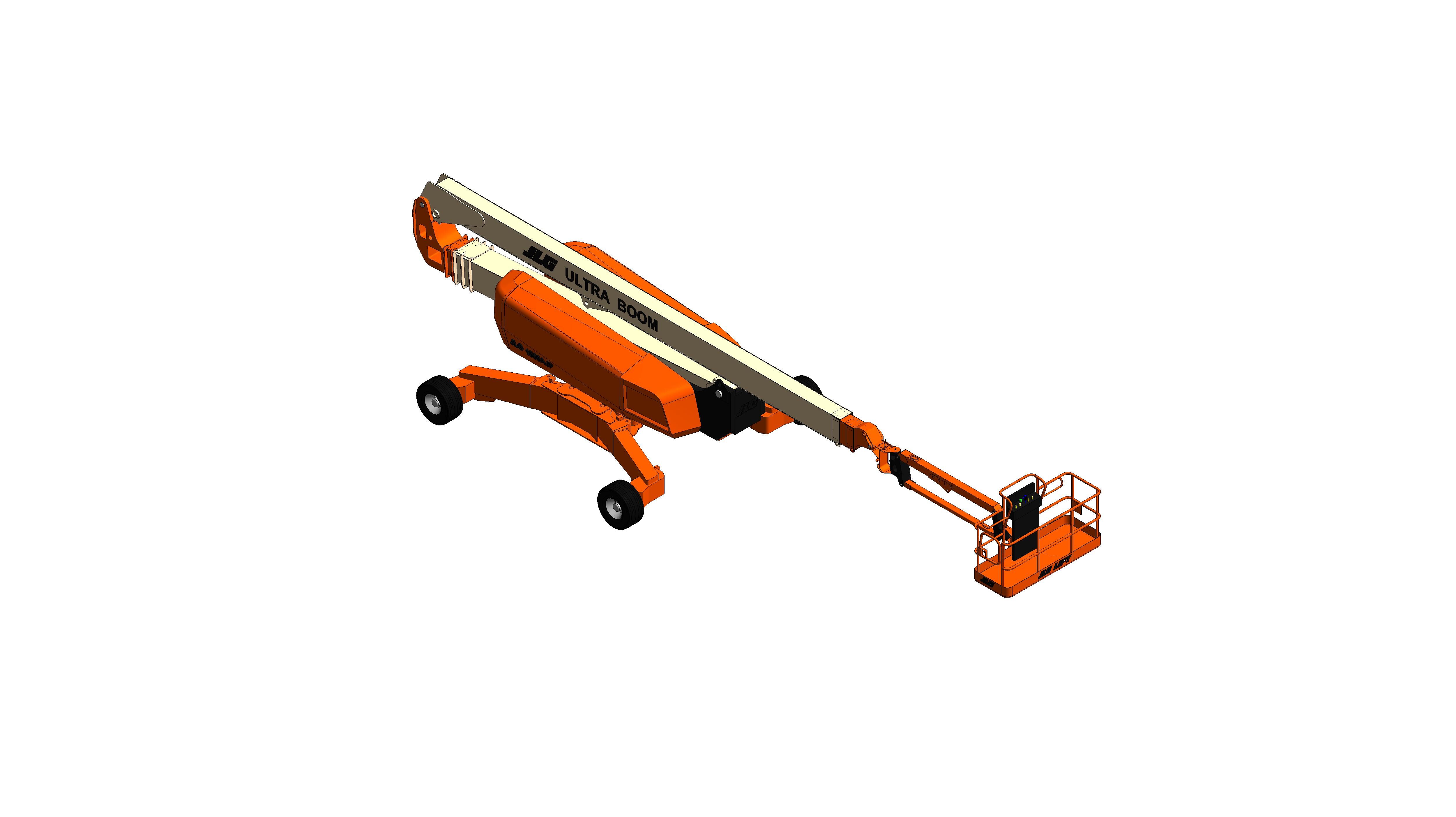

BIM Object NameJLG_Site_ArticulatingBoomLift_1500AJP
Classification NameUniclass2015
Classification ValueTE_30_30_10_60
Code Performancen/a
Colorn/a
Constituentsn/a
Created Bywww.jlg.com/
Created On2020-12-01T09:30:00
Descriptionn/a
Diesel EngineDeutz T4F 3.6L, 100 bhp
Documentation Certificateswww.bimstore.co/products/jlg-1500ajp-new-articulating-boom-lifts/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/jlg-1500ajp-new-articulating-boom-lifts/document/installation-guide
Documentation Literaturewww.bimstore.co/products/jlg-1500ajp-new-articulating-boom-lifts/document/product-literature
Documentation Maintenancewww.bimstore.co/products/jlg-1500ajp-new-articulating-boom-lifts/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/jlg-1500ajp-new-articulating-boom-lifts/document/technical-data-sheet
Drive Speed4.5 kph (2.8 mph)
Duration UnitYears
E80.00 mm
E11230.00 mm
Expected Life0
Featuresn/a
Finishn/a
Fuel Tank Capacity170L (45 gal)
Graden/a
Gradeability 4 WD40%
Ha55.00 °
Ha 1235.00 °
Horizontal Outreach Restricted20.42 m (67 ft 0 in)
Horizontal Outreach Unrestricted22.86 m (75 ft 0 in)
Hydraulic Platform Rotator125 Degrees
Hydraulic Tank Capacity352L (93 gal)
Ifc Export AsIfcTransportElement
Ifc Export TypeIfcTransportElementType
Ja48.00 °
Ja 1132.00 °
J Ha46.50 °
J Ha 1226.50 °
Jib Overall Length2.44 m (8 ft 0 in)
Jib Range Of Articulation130 Degrees (+75°/ -55°)
Jib Rotation0.00 °
KeynoteX
Machine Weight ANSI26,027kg (57,380 lbs)
Machine Weight CE26,027kg (57,380 lbs)
ManufacturerJLG
Manufacturer NameJLG
MaterialSteel
Max Ground Bearing Pressure ANSI8.61kg/cm2 (122.5 psi)
Max Ground Bearing Pressure CE8.61kg/cm2 (122.5 psi)
ModelArticulating Boom Lift - 1500AJP
Model Name1500AJP
Model NumberArticulating Boom Lift - 1500AJP
Model ReferenceArticulating Boom Lift
NBS DescriptionLift platforms
NBS Object NameJLG - Lift platforms
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth0.00 mm
Nominal Height0.00 mm
Nominal Length0.00 mm
P270Yes
P450Yes
P Ha48.00 °
P Ha 1228.00 °
Platform Capacity Restricted ANSI450 Kg (992 lbs)
Platform Capacity Restricted CE450 Kg (992 lbs)
Platform Capacity Unrestricted ANSI270 Kg (595 lbs)
Platform Capacity Unrestricted CE270 Kg (595 lbs)
Platform Height Restricted46.15 m (151 ft 5 in)
Platform Height Unrestricted46.15 m (151 ft 5 in)
Platform Side Entry0.91 m x 2.44 m (3 ft 0 in x 8 ft 0 in)
Platform Size0.91 m x 2.44 m (3 ft 0 in x 8 ft 0 in)
Production Year2020
Reach5
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsn/a
Tilt Alarm Indicator Light5 degree tilt alarm and indicator light
Turning Radius Inside Axles Extended2.3 m (7 ft 6.25 in)
Turning Radius Inside Axles Retracted7.10 m(23 ft 3.75 in)
Turning Radius Outside Axles Extended6.6 m (21 ft 7.5 in)
Turning Radius Outside Axles Retracted9.5 m (31 ft 2.25 in)
Type CommentsHeight=-3.00m(-9'-10")_Reach=12.00m(39'-4")
Type NameHeight=-3.00m(-9'-10")_Reach=12.00m(39'-4")
Unique Model Reference FAPL1001194422
URLwww.jlg.com
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborwww.jlg.com/
Warranty Guarantor Partswww.jlg.com/

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
