Isocheck Acoustic Cradle System

Object metadata

• _AuthorRyan Lashley
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version16
• _Created Bywww.bimstore.co
• _Current Revision1
• _Distributed Bywww.bimstore.co
• _Object User Guiden/a
• Accessibility Performancen/a
• Assembly CodeB1010
• Asset TypeFixed
• BIM Object NameIsomass_SpecialityEquipment_IsocheckAcousticCradleSystem
• Classification NameUniclass2015
• Classification ValuePr_20_85_47_04
• Code Performancen/a
• Colorn/a
• Constituentsn/a
• Created Bytechnical@isomass.co.uk
• Created On2019-06-01T09:00:00
• Default Elevation0 mm

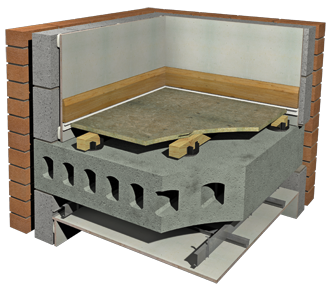

• DescriptionIsocheck Cradle acoustic flooring system is designed to reduce impact sound transmission through uneven or cambered concrete floors by elevating the floor on timber battens that are supported by a pre-treated adjustable plastic cradle (otherwise referred to as an acoustic saddle). This system not only facilitates the incorporation of services but is also frequently specified with water based underfloor heating systems.
• Dia96 mm
• Documentation Certificateswww.isomass.co.uk/

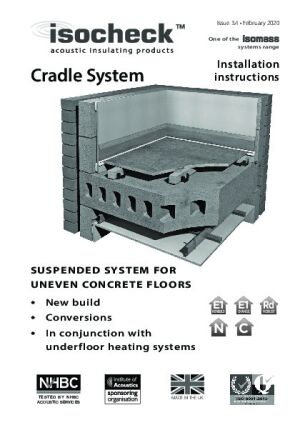

• Documentation Installation Guidewww.isomass.co.uk/

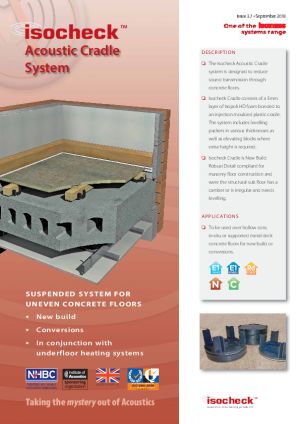

• Documentation Literaturewww.isomass.co.uk/
• Documentation Maintenancewww.isomass.co.uk/

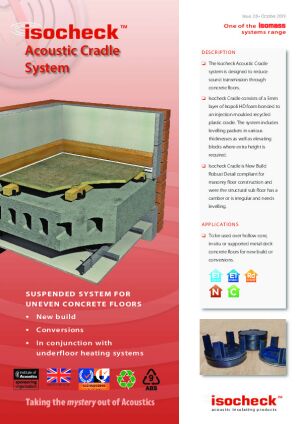

• Documentation Technicalwww.isomass.co.uk/
• Duration UnitYears
• Expected Life0
• FeaturesIsocheck Cradle acoustic flooring system is designed to reduce impact sound transmission through uneven or cambered concrete floors by elevating the floor on timber battens that are supported by a pre-treated adjustable plastic cradle (otherwise referred to as an acoustic saddle). This system not only facilitates the incorporation of services but is also frequently specified with water based underfloor heating systems.
• Finishn/a
• Graden/a
• Height43 mm
• Ifc Export AsIfcBuildingElementProxy
• Ifc Export TypeIfcBuildingElementProxy
• Inner Rad3 mm
• Inner Thickness3 mm
• Inner Width40 mm
• ManufacturerIsomass
• Manufacturer NameIsomass
• Materialn/a
• ModelIsocheck Acoustic Cradle System
• Model NumberIsocheck Acoustic Cradle System
• Model ReferenceIsocheck Acoustic Cradle System
• NBS DescriptionAcoustic batten cradles
• NBS Object NameIsomass - Acoustic batten cradles
• NBS Office Master Tagn/a
• NBS Reference45-70-45/320
• Nominal Depth0 mm
• Nominal Height0 mm
• Nominal Length0 mm
• Production Year2019
• Referenced Standardn/a
• Replacement Costn/a
• Shapen/a
• Sizen/a
• Spare Partsn/a
• Timber Width45 mm
• Type CommentsIsocheck Acoustic Cradle System
• Type NameIsocheck Acoustic Cradle System
• URLwww.isomass.co.uk/
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts0
• Warranty Duration UnitYears
• Warranty Guarantor Labortechnical@isomass.co.uk
• Warranty Guarantor Partstechnical@isomass.co.uk
