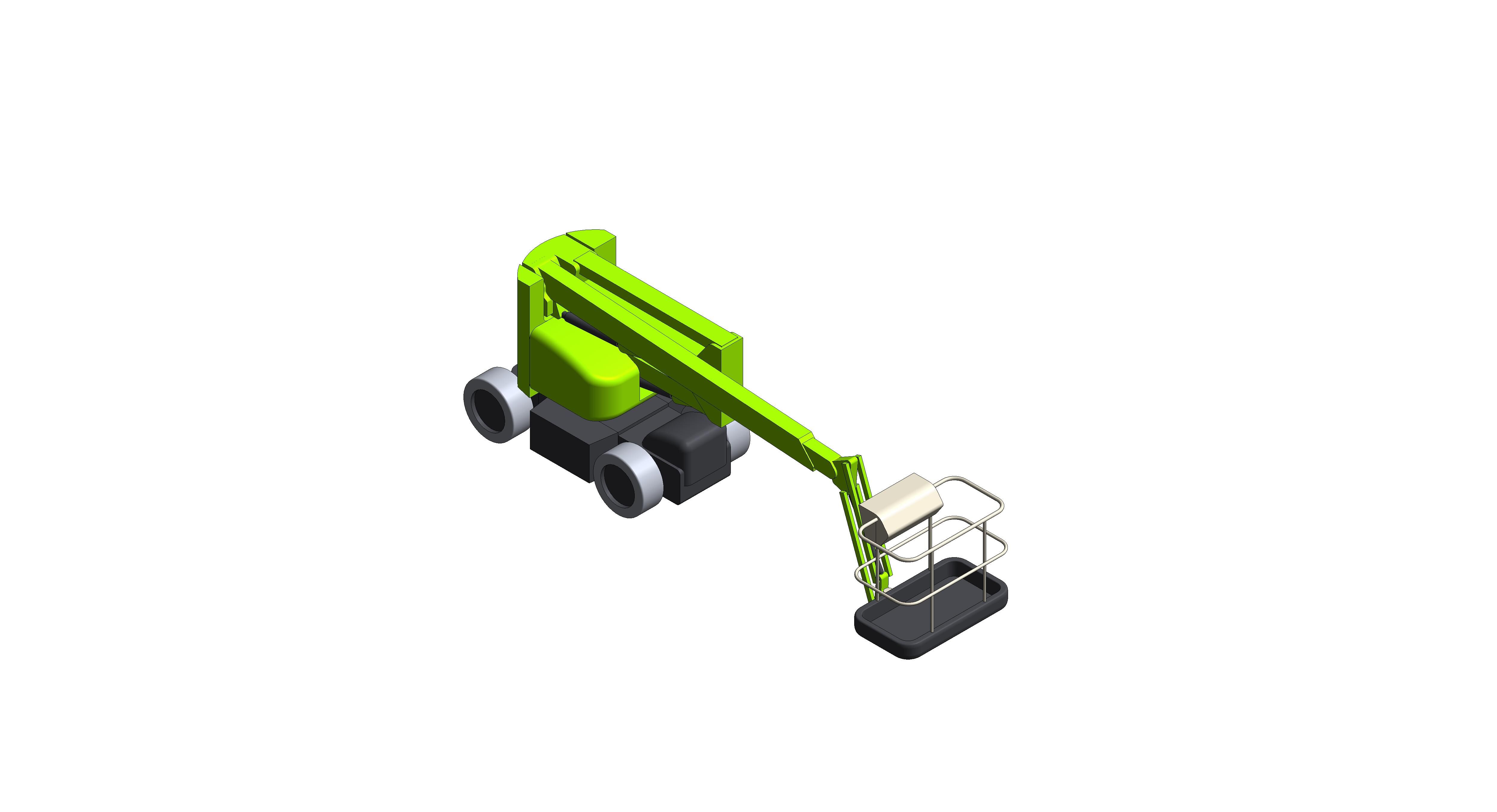

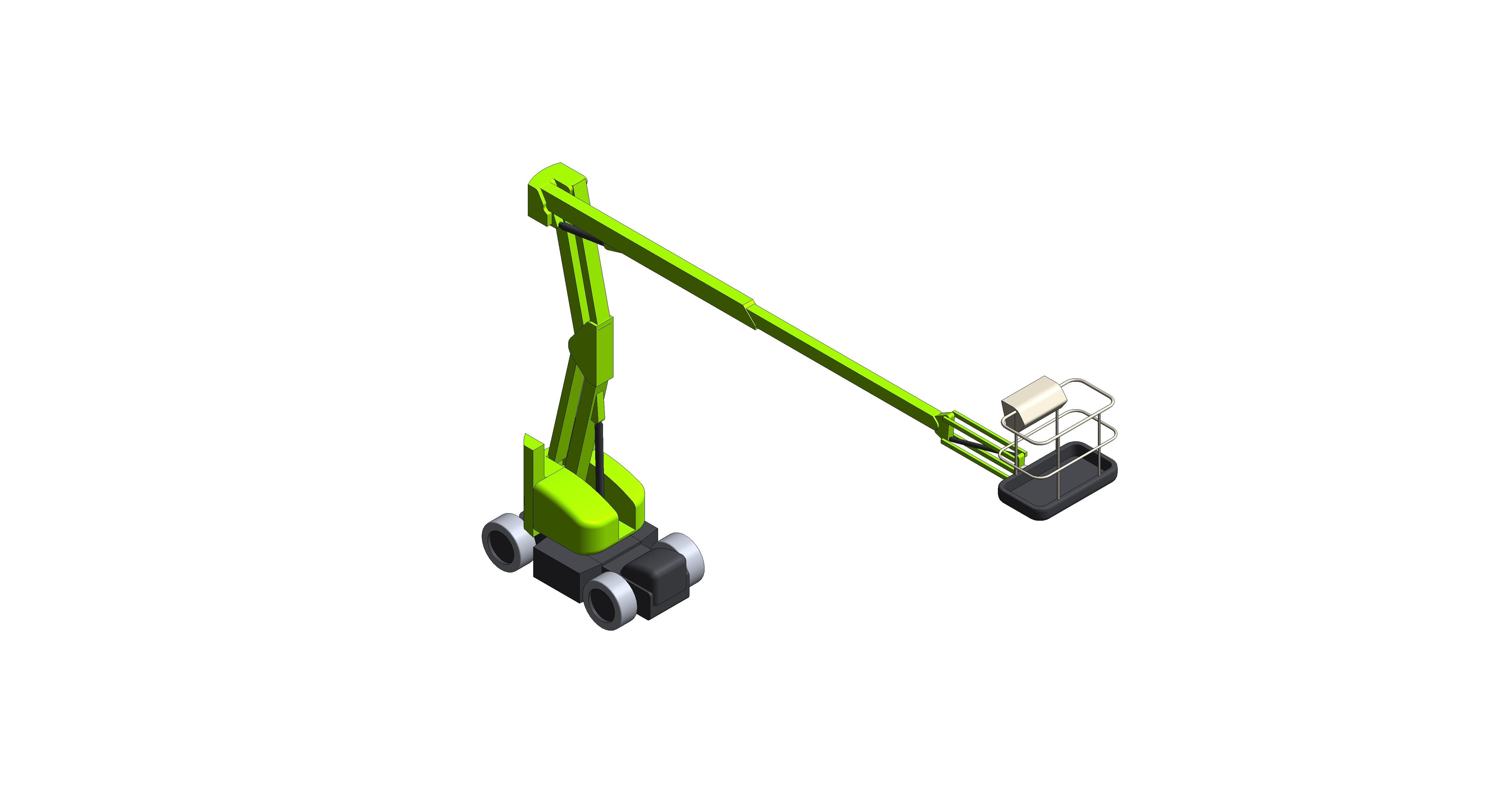

The new HeightRider 15N (HR15N) will lift 2 people and their tools to a working height of 15.5m or a working outreach of 9.7m.

180° rotating cage and fly-boom coupled with fully proportional multi-function controls deliver exceptional precision when positioning, making tasks easier and quicker to complete.

The HR15N's compact dimensions and zero-tail-swing enable it to travel through and work in restricted spaces, while its non-marking tyres mean it can work both inside and out, making it ideal for maintenance or industrial work.

The HR15N is available with two power options. You can choose from super-efficient battery power, or Niftylift's revolutionary second-generation Hybrid power system.

Battery ('Electric') power is ideal for indoor use, or for quiet, clean operation. It comes with an all-electric drive that allows its maintenance-free AGM batteries to work for longer on a single charge, so more work can be completed and running costs reduced.

Hybrid power incorporates a smaller, power-optimised EU Stage V compliant engine, supported by the machine's electric motor when extra power is needed. This maintains power and performance while reducing fuel consumption for maximum efficiency. The Innovative 'Diesel Re-Gen' feature also recharges the batteries, giving a 'fast-charge' whenever the machine is idle and the engine running. In addition, the Hybrid system also offers an electric-only mode, perfect for indoor, or quiet and clean operation.

The HR15N also incorporates Niftylift's ToughCage, and multi-award-winning SiOPS® safety system, which eliminates sustained involuntary operation by instantly halting machine movement if the operator is pushed against the control console.

All HR15Ns manufactured since the first of January, 2020 are also fitted with Niftylink as standard. Niftylink is a powerful telematics tool that provides data insights on your Niftylift’s health, activity and location. These insights provide a better understanding of machine usage, performance and life-cycle, as well as real-time error-code reporting. By maximising machine ‘up-time’ and reducing lifetime running costs, Niftylink offers significant improvements in efficiency and profitability, helping you to get more from your Niftylift.

For more information regarding the HR15N or any other self-propelled cherry picker from Niftylift, such as the HR12N or HR17N, please contact us.



HR15N Features

All-Electric Power Option

Outstanding battery performance

180° Platform Rotation with Fly-Boom

Improving operator access

Second-Generation Hybrid Power Option

Smart, efficient, environmentally conscious power

Proportional Multi-Function Control

Fast & precise operation

EU Stage V Compliant Engine

Lowered emissions for greener performance

Superb Manoeuvrability

3.5m outside turning radius

1.5m Narrow Chassis

Allowing operation in confined areas

Niftylink® as Standard

Advanced Telematics for your Niftylift

ToughCage with SiOPS®

Multi-award-winning operator protection

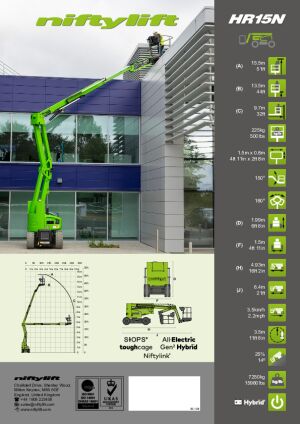

HR15N Specifications

Working Height (A)

15.5m (51ft)

Working Outreach (C)

9.7m (32ft)

Platform Height (B)

13.5m (44ft)

Machine Width (F)

1.5m (4ft 11in)

Machine Height (D)

1.99m (6ft 6in)

Machine Length (J)

6.4m (21ft)

Transport Length (H)

4.93m (16ft 2in)

Travel Speed

3.5km/h (2.2mph)

Gradeability

25%

Gradeability

14°

Turning Radius

3.5m (11ft 6in)

Minimum Weight

7250kg (15980lbs)

Safe Working Load

225kg (500lbs)

Fly Boom Arc

150°

Cage Rotation

180°

Cage Width

1.5m (4ft 11in)

Cage Depth

0.8m (2ft 8in)

Power Options

Battery only
Hybrid (Battery & Diesel)



Keywords: MEWP, Mobile Elevating Work Platform, Cherry Picker, Boom Lift, Work Platform, Aerial Work Platform
