The HeightRider 15 4-wheel-drive (HR15 4x4) offers one of the most impressive working envelopes in its class.

Its compact base allows it to manoeuvre easily in enclosed spaces and its extremely low overall weight helps to minimise transportation costs.

The HR15 4x4's 1.8m wide ToughCage offers more space for materials and tools and a 150° fly-boom with 180° cage rotation increases accuracy when positioning the cage. The tough, impact-resistant composite base and larger cross-section steel rails of the ToughCage give strength and durability, while the multi-award-winning SiOPS® provides additional operator protection.

The HR15 4x4 is available with two power options, Diesel power or Niftylift's revolutionary second-generation Hybrid power:

Diesel power incorporates a versatile and efficient EU Stage V compliant engine to deliver maximum traction and gradeability, making it ideal for rough or uneven ground.

Hybrid power incorporates a smaller, power-optimised EU Stage V compliant engine supported by the machine's battery pack for when extra power is needed. This maintains power and performance while reducing fuel consumption for maximum efficiency. The Innovative 'Diesel Re-Gen' feature also recharges the batteries, giving a 'fast-charge' whenever the machine is idle and the engine running. In addition, an electric-only mode allows zero-emission operation, making it ideal for indoor use, or for quiet, clean operation.

Both power options include Niftylift's advanced exhaust purification system, which greatly reduces Carbon Monoxide, Hydrocarbon and particulate emissions making either an environmentally conscious choice.

All HR15 4x4s manufactured since the first of January, 2020 are also fitted with Niftylink as standard. Niftylink is a powerful telematics tool that provides data insights on your Niftylift’s health, activity and location. These insights provide a better understanding of machine usage, performance and life-cycle, as well as real-time error-code reporting. By maximising machine ‘up-time’ and reducing lifetime running costs, Niftylink offers significant improvements in efficiency and profitability, helping you to get more from your Niftylift.

For more information regarding the HR15 4x4 or any other self-propelled cherry picker from Niftylift, including the HR12 4x4 and HR17 4x4, please contact Niftylift.



HR15 4x4 Features

Second-Generation Hybrid Power Option

Smart, efficient, environmentally conscious power

Superb Manoeuvrability

3.7m outside turning radius

EU Stage V Compliant Engine

Lowered emissions for greener performance

Maintenance-Free Batteries

Reducing maintenance downtime

GVW From Only 4,500kg

Lowest weight in its class

Full Battery Monitoring & Protection

Increasing battery life and lowering costs

ToughCage with SiOPS®

Multi-award-winning operator protection

Swing-Out Engine Tray

Quick & easy to service

180º Platform Rotation & Fly-Boom

Improved access to applications

Niftylink® as Standard

Advanced Telematics for your Niftylift

45% Gradeability

4WD for rough terrain

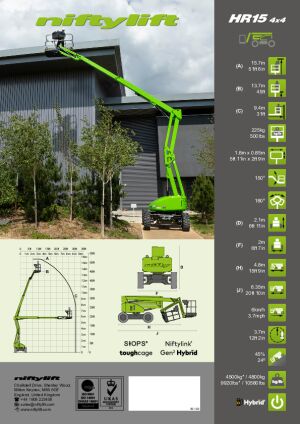

HR15 4x4 Specifications

Working Height (A)

15.7m (51ft 6in)

Working Outreach (C)

9.4m (31ft)

Platform Height (B)

13.7m (45ft)

Machine Width (F)

2m (6ft 7in)

Machine Height (D)

2.1m (6ft 11in)

Machine Length (J)

6.35m (20ft 10in)

Transport Length (H)

4.8m (15ft 9in)

Travel Speed

6km/h (3.7mph)

Gradeability

45%

Gradeability

24°

Turning Radius

3.7m (12ft 2in)

Minimum Weight

4500(D) / 4800(H) kg (9920(D) / 10580(H) lbs)

Safe Working Load

225kg (500lbs)

Fly Boom Arc

150°

Cage Rotation

180°

Cage Width

1.8m (5ft 11in)

Cage Depth

0.85m (2ft 9in)

Power Options

Diesel only (Kubota 1105 - 25Hp/18.5kW)
Hybrid (Battery & Diesel Kubota 722 - 18Hp/14kW)



Keywords: MEWP, Mobile Elevating Work Platform, Cherry Picker, Boom Lift, Work Platform, Aerial Work Platform
