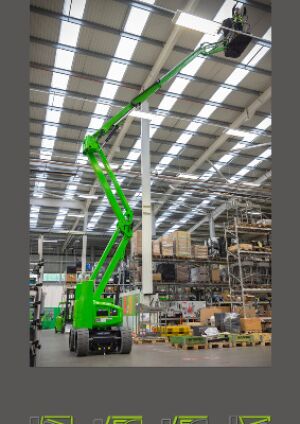

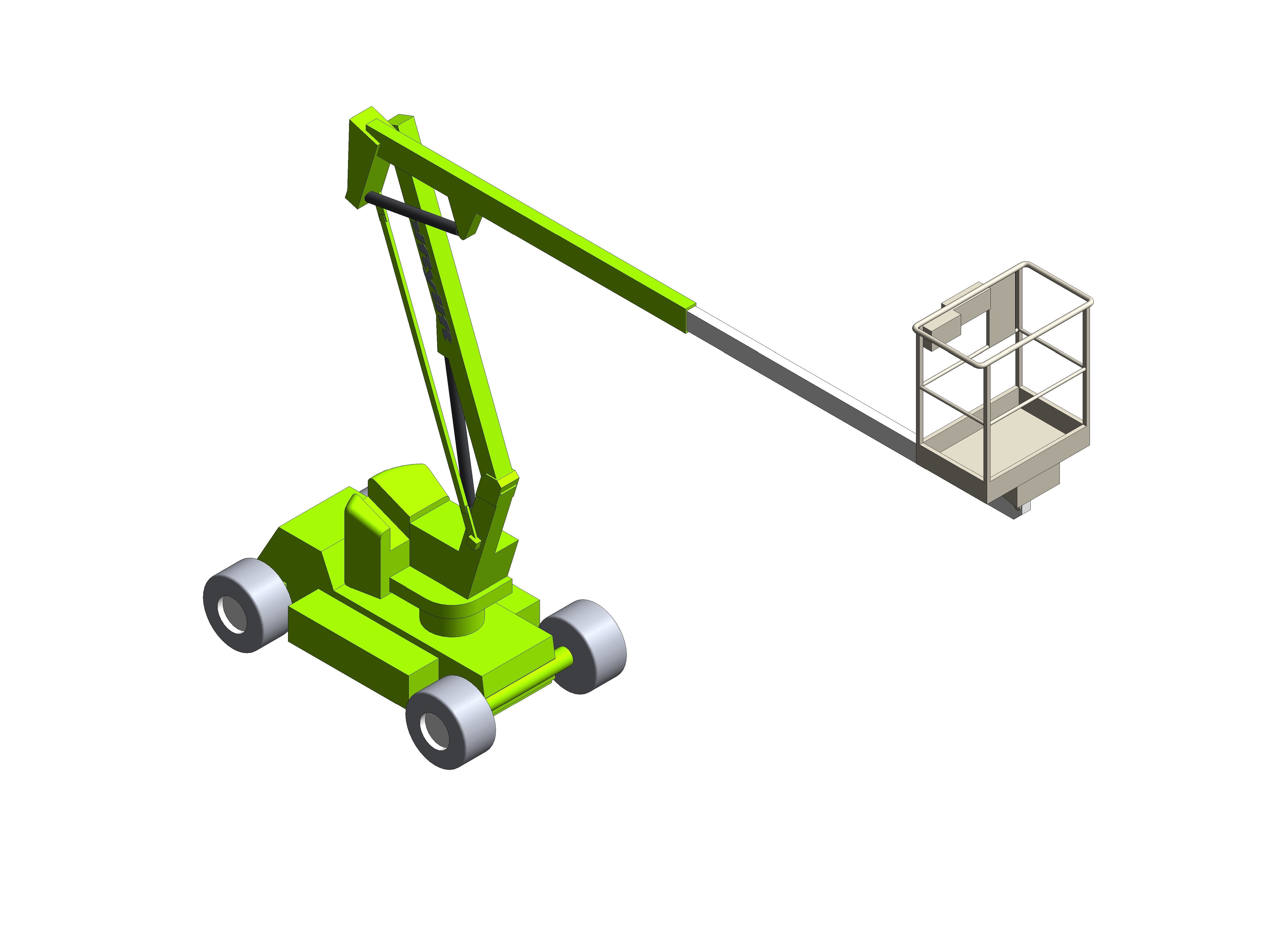

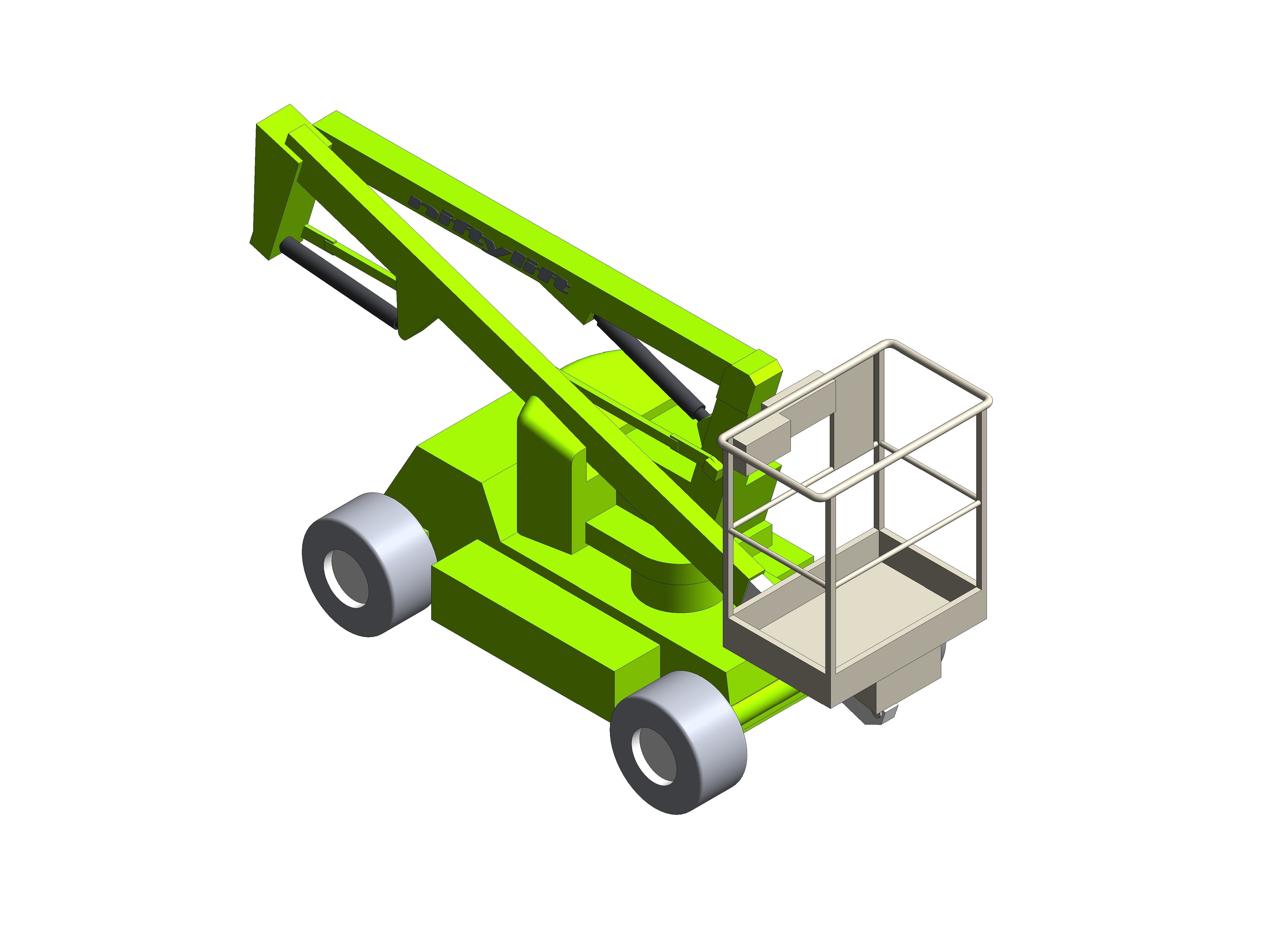

The HeightRider 12 Narrow (HR12N) self-propelled boom lift is one of the most versatile and reliable machines in its class.

It is specifically designed to give maximum reach performance from the lightest, most compact base possible. A telescopic upper boom gives the HR12N improved accuracy when positioning the platform and superb manoeuvrability makes it ideal for a wide range of applications.

With a 1.50m (4ft 11in) narrow chassis, the HR12N is ideal for working in factories, warehouses or anywhere that space is restricted.

Its Bi-Energy option allows the HR12N to work for extended periods inside and outside, making it the perfect all-rounder.

For more information regarding the HR12N or any other self-propelled boom lift, including the HR12 4x4 and HR15N, please contact us.



HR12N Features

Telescopic Upper Boom

Greater accuracy when positioning platform

Fully Proportional Hydraulic Controls

Simple, reliable & easy to maintain

1.5m Chassis Width

Improved narrow aisle access

Bi-Energy Available

Optimising utilisation

Weight Under 3.5 Tonnes

Low cost transportation

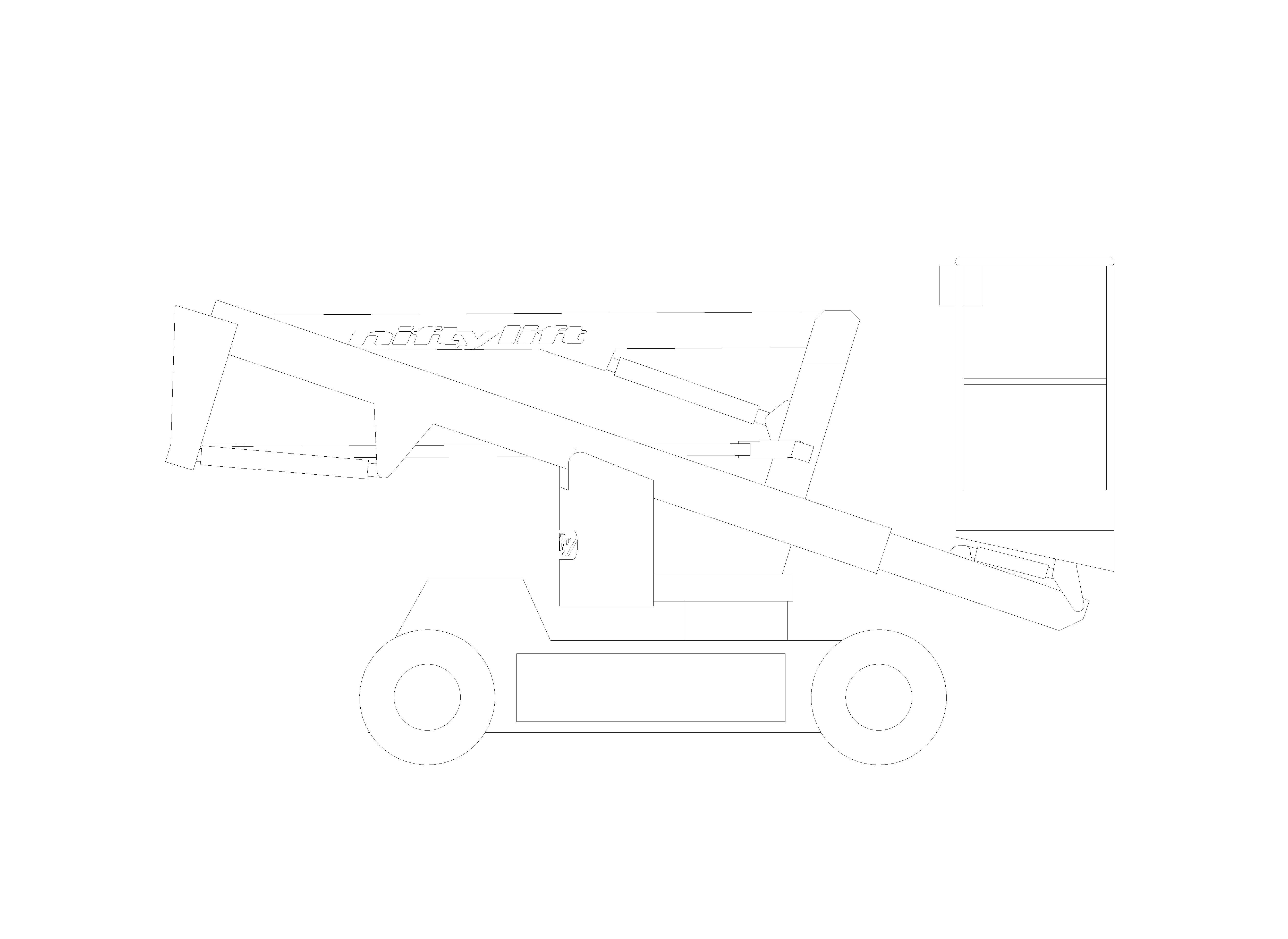

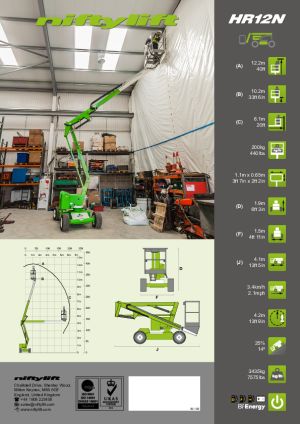

HR12N Specifications

Working Height (A)

12.2m (40ft)

Working Outreach (C)

6.1m (20ft)

Platform Height (B)

10.2m (33ft 6in)

Machine Width (F)

1.5m (4ft 11in)

Machine Height (D)

1.9m (6ft 3in)

Machine Length (J)

4.1m (13ft 5in)

Travel Speed

3.4km/h (2.1mph)

Gradeability

25%

Gradeability

14°

Turning Radius

4.2m (13ft 9in)

Minimum Weight

3435kg (7575lbs)

Safe Working Load

200kg (440lbs)

Cage Width

1.1m (3ft 7in)

Cage Depth

0.65m (2ft 2in)

Power Options

Battery only
Petrol, Diesel or LPG only
Bi-Energy (Engine & Battery)



Keywords: MEWP, Mobile Elevating Work Platform, Cherry Picker, Boom Lift, Work Platform, Aerial Work Platform
