HR12L | 12.1m Self Propelled

2k
0
- / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

27/10/2020

Download BIM

Add to collection

Available for:

The HeightRider 12 Low-Weight (HR12L) self-propelled cherry picker from Niftylift, is one of the lightest and most versatile machines in its class.

Weighing just 2,540kg (a 2,470kg Lithium battery option is available), the HR12L can be transported on a trailer (rather than a truck), offering significant savings for site-to-site transportation. This smaller transportation option also reduces potential emissions during delivery allowing the machine to be moved easily in low-emission zones such as Central London's LEZ.

The HR12L utilises a super-efficient battery power system with an all-electric drive that allows the batteries to work for twice as long, so more work can be completed on a charge and running costs reduced.

A telescopic upper boom gives the HR12L improved accuracy when positioning the platform and superb chassis manoeuvrability makes it ideal for a wide range of applications.

The HR12L also incorporates Niftylift's ToughCage and multi-award-winning SiOPS® safety system:

The impact-resistant Composite/Aluminium base and larger cross-section steel rails of the ToughCage give additional strength and durability.

SiOPS® provides additional operator protection, eliminating sustained involuntary operation by instantly stopping machine movement if the operator is pushed onto the control console.

All HR12Ls manufactured since the first of January, 2020 are also fitted with Niftylink as standard. Niftylink is a powerful telematics tool that provides data insights on your Niftylift’s health, activity and location. These insights provide a better understanding of machine usage, performance and life-cycle, as well as real-time error-code reporting. By maximising machine ‘up-time’ and reducing lifetime running costs, Niftylink offers significant improvements in efficiency and profitability, helping you to get more from your Niftylift.

For more information regarding the HR12L, or other self-propelled boom lifts from Niftylift such as the HR12N or HR12 4x4, please contact us.

HR12L Features

Telescopic Upper Boom

Greater accuracy when positioning platform

Efficient Battery Power System

Maximising battery output to do more with each charge

Proportional Multi-Function Control

Fast & precise operation

Maintenance-Free Batteries as Standard

Reducing maintenance downtime

GVW Only 2,540kg*

Low cost transportation

Niftylink® as Standard

Advanced Telematics for your Niftylift

ToughCage with SiOPS®

Multi-award winning operator protection
*Lithium battery option
GVW - 2,470kg

HR12L Specifications

Working Height (A)

12.1m (39ft 6in)

Working Outreach (C)

6.4m (21ft)

Platform Height (B)

10.1m (33ft)

Machine Width (F)

1.79m (5ft 11in)

Machine Height (D)

1.98m (6ft 6in)

Machine Length (J)

3.97m (13ft)

Travel Speed

6km/h (3.7mph)

Gradeability

25%

Gradeability

14°

Turning Radius

3.63m (11ft 11in)

Minimum Weight

2540kg (5600lbs)

Safe Working Load

200kg (440lbs)

Cage Width

1.2m (3ft 11in)

Cage Depth

0.85m (2ft 9in)

Power Options

Battery only
AGM - Maintenance Free
*Lithium Option

Lithium battery option Minimum Weight: 2470kg (5445lbs)

Keywords: MEWP, Mobile Elevating Work Platform, Cherry Picker, Boom Lift, Work Platform, Aerial Work Platform

_Authormarketing@niftylift.com
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.niftylift.com/uk
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/hr12l-12-1m-self-propelled/document/object-user-guide
Accessibility Performancen/a
Assembly CodeE1030100
Asset TypeMovable
BIM Object NameNiftylift_Site_SelfPropelledCherryPicker_HR12L
Cage Size1200 x 850 mm
Classification NameUniclass2015
Classification ValueTE_30_30_60_50
Code Performancen/a
ColorGreen, Black & Grey
Constituentsn/a
Created Bymarketing@niftylift.com
Created On2020-10-26T09:00:00
DescriptionThe HeightRider 12 Low-Weight (HR12L) self-propelled cherry picker from Niftylift, is one of the lightest and most versatile machines in its class. Weighing just 2,540kg (a 2,470kg Lithium battery option is available), the HR12L can be transported on a trailer (rather than a truck), offering significant savings for site-to-site transportation. This smaller transportation option also reduces potential emissions during delivery allowing the machine to be moved easily in low-emission zones such as Central London's LEZ. The HR12L utilises a super-efficient battery power system with an all-electric drive that allows the batteries to work for twice as long, so more work can be completed on a charge and running costs reduced. A telescopic upper boom gives the HR12L improved accuracy when positioning the platform and superb chassis manoeuvrability makes it ideal for a wide range of applications. The HR12L also incorporates Niftylift's ToughCage and multi-award-winning SiOPS® safety system: The impact-resistant Composite/Aluminium base and larger cross-section steel rails of the ToughCage give additional strength and durability. SiOPS® provides additional operator protection, eliminating sustained involuntary operation by instantly stopping machine movement if the operator is pushed onto the control console. All HR12Ls manufactured since the first of January, 2020 are also fitted with Niftylink as standard. Niftylink is a powerful telematics tool that provides data insights on your Niftylift’s health, activity and location. These insights provide a better understanding of machine usage, performance and life-cycle, as well as real-time error-code reporting. By maximising machine ‘up-time’ and reducing lifetime running costs, Niftylink offers significant improvements in efficiency and profitability, helping you to get more from your Niftylift.
Documentation Certificateswww.bimstore.co/products/hr12l-12-1m-self-propelled/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/hr12l-12-1m-self-propelled/document/installation-guide

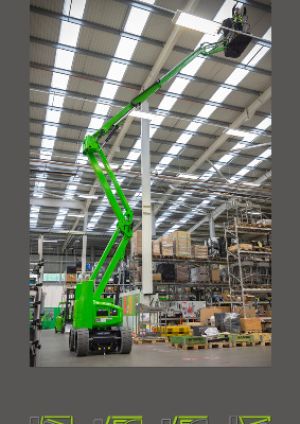

Documentation Literaturewww.bimstore.co/products/hr12l-12-1m-self-propelled/document/product-literature
Documentation Maintenancewww.bimstore.co/products/hr12l-12-1m-self-propelled/document/maintenance-information

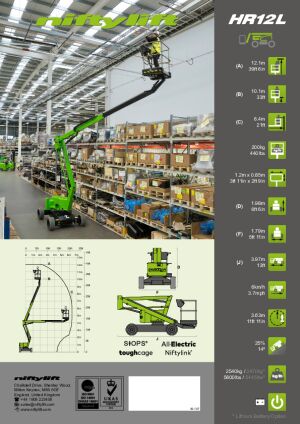

Documentation Technicalwww.bimstore.co/products/hr12l-12-1m-self-propelled/document/technical-data-sheet
Duration UnitYears
Expected Life0
FeaturesTelescopic Upper Boom - Greater accuracy when positioning platform Proportional Multi-Function Control - Fast & precise operation GVW Only 2,540kg* - Low cost transportation ToughCage with SiOPS® - Multi-award winning operator protection Efficient Battery Power System - Maximising battery output to do more with each charge Maintenance-Free Batteries as Standard - Reducing maintenance downtime Niftylink® as Standard - Advanced Telematics for your Niftylift
FinishPainted Steel
Graden/a
Gradeability25% (14°)
Ifc Export AsIfcTransportElement
Ifc Export TypeIfcTransportElementType
KeynoteX
ManufacturerNiftylift
Manufacturer NameNiftylift
MaterialSteel
Minimum Weight2540 kg
ModelSelf Propelled Cherry Picker
Model NumberHR12L
Model ReferenceSelf Propelled Cherry Picker
NBS DescriptionSelf-propelled platforms
NBS Object NameNiftylift - Self-propelled platforms
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth1790 mm
Nominal Height1980 mm
Nominal Length3970 mm
Platform Height10100 mm
Power OptionsBattery only
Production Year2020
Referenced Standardn/a
Replacement Costn/a
Safe Working Load200 kg
Shapen/a
Size1.79m (5ft 11in) [W] x 1.98m (6ft 6in) [H] x 3.97m (13ft) [L]
Spare Partsn/a
Travel Speed6 km/h
Turning Radius3630 mm
Type CommentsHR12L
Type NameSelf Propelled Cherry Picker
URLwww.niftylift.com/uk
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Labormarketing@niftylift.com
Warranty Guarantor Partsmarketing@niftylift.com
Working Outreach6400 mm
