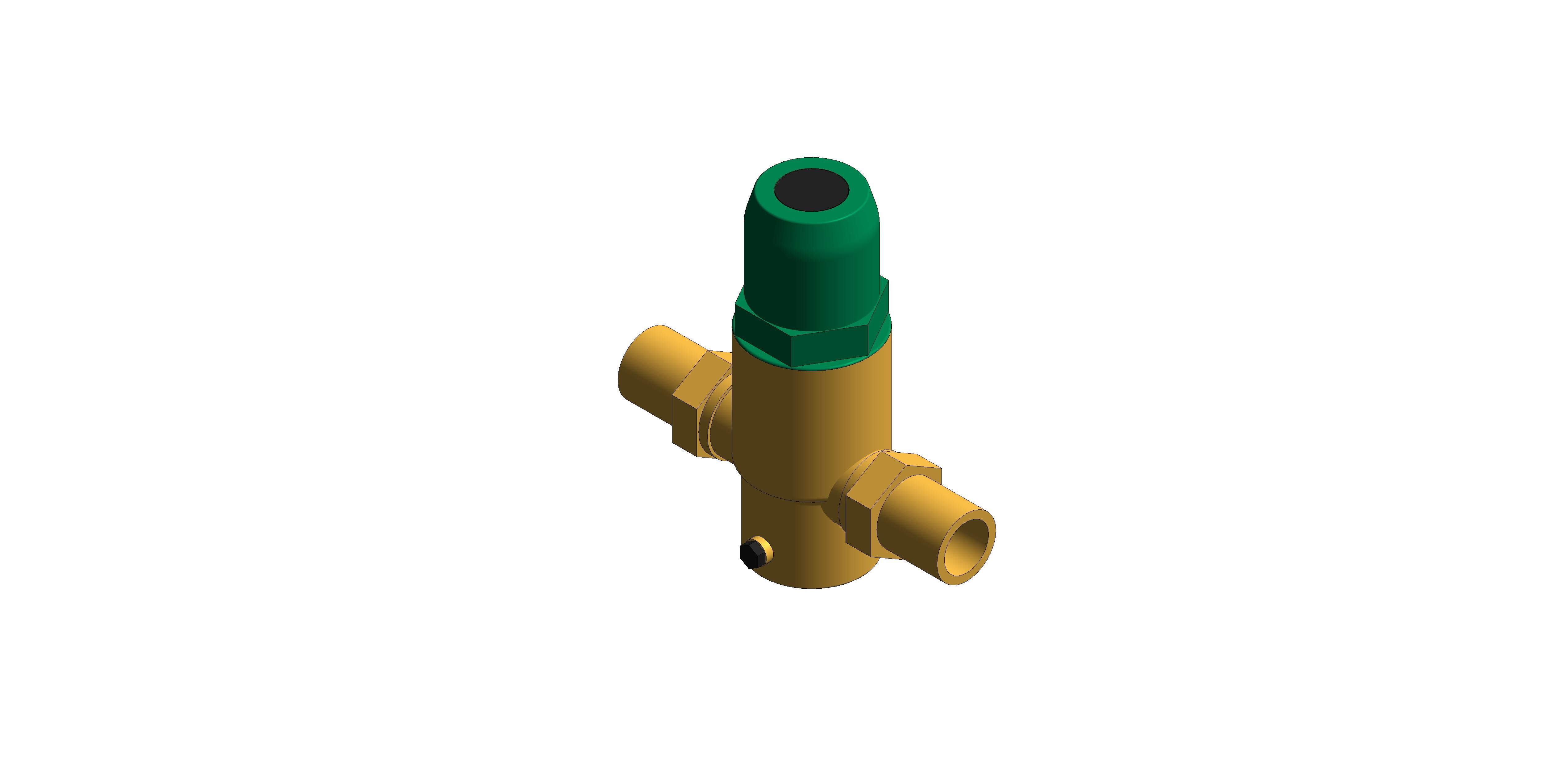

Pressure Reducing Valve (PRV) - DZR Brass

Fig. 425



Features & Benefits

  • PRVs enable control of pressure from boosted hot and cold water supplies to match site requirements

  • Includes male union tail-pieces for ease of maintenance, reducing time spent on site

  • Features an integral strainer preventing debris from affecting valve performance

  • Recommend that isolation valves are fitted upstream and downstream of the valve to enable isolation for cleaning of strainer

  • Performance in accordance with BS EN 1567 for quality assurance

  • Easy access for measuring the outlet pressure

  • A pressure gauge is available to measure outlet pressure for each installed valve and should be ordered separately

  • WRAS Approved to 80°C for drinking water applications



Size

1/2" to 2"

Pressure Rating

PN25

Temperature Rating

Max temp. 80°C

Product Material

DZR Brass

End Connections

Male union tapered tail-pieces to BS EN 10226-1
