Grohe Tempesta System - 250 Shower System - 26671000

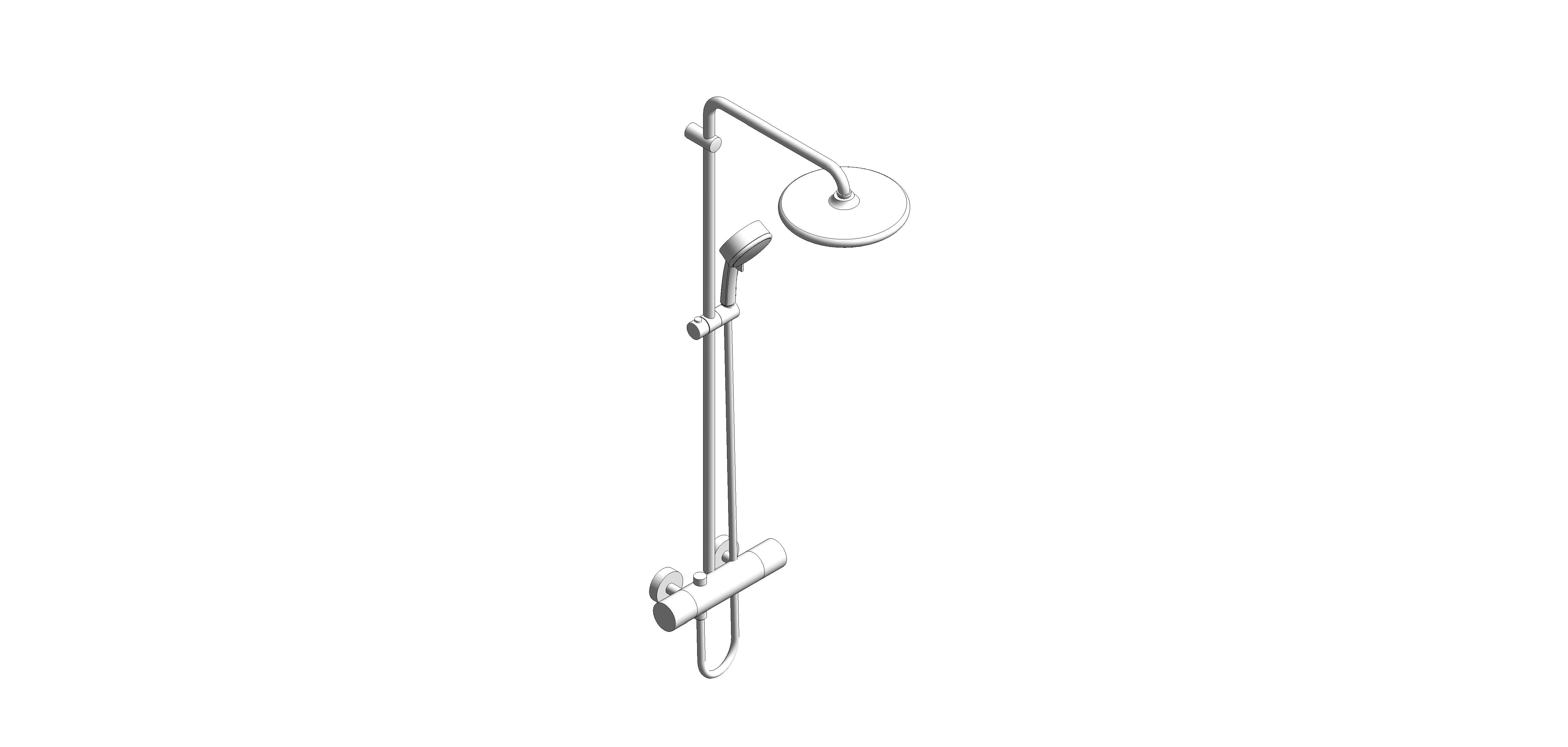

  • bimstore 3D image of the Tempesta System - 250 Shower System - 26671000 from Grohe

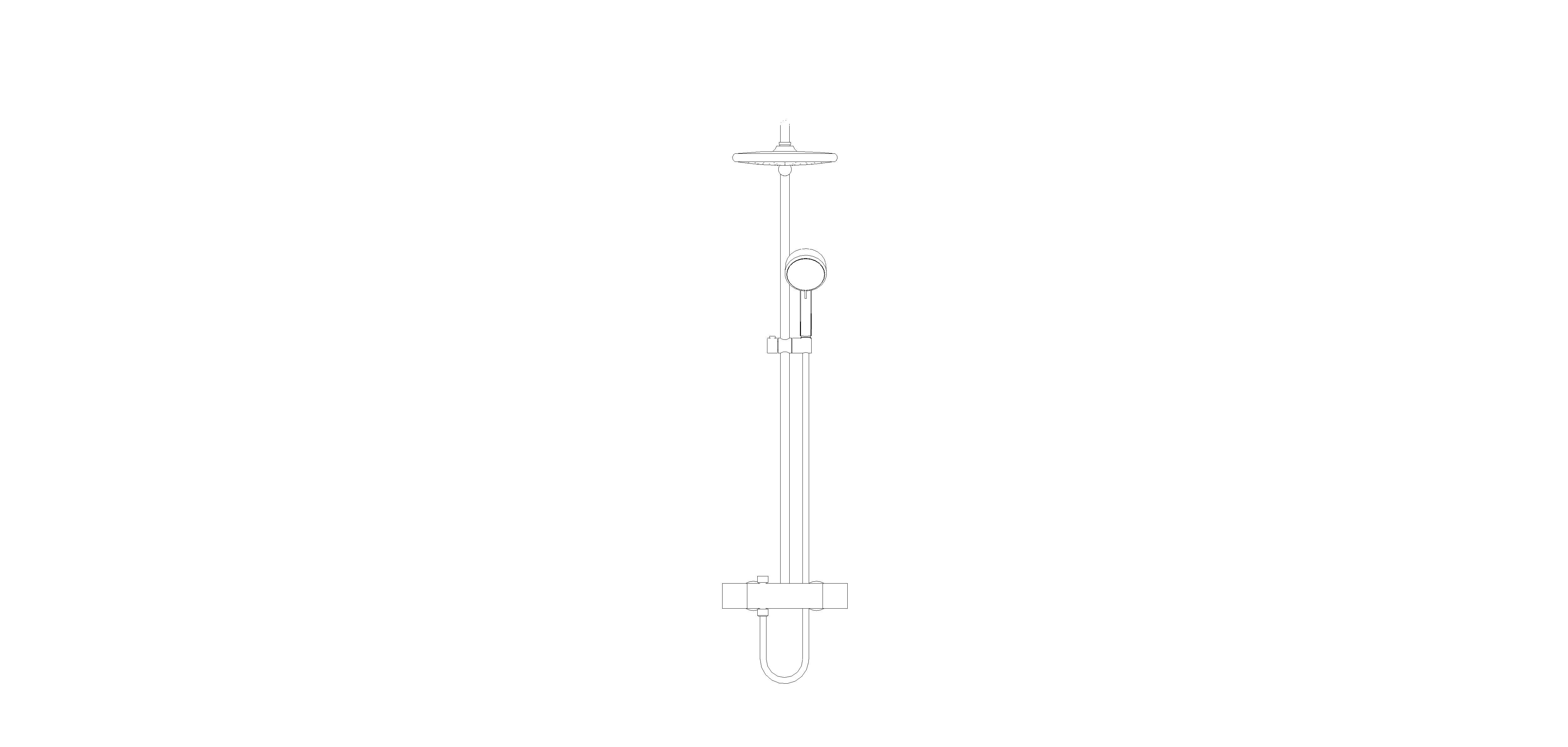

  • bimstore front image of the Tempesta System - 250 Shower System - 26671000 from Grohe

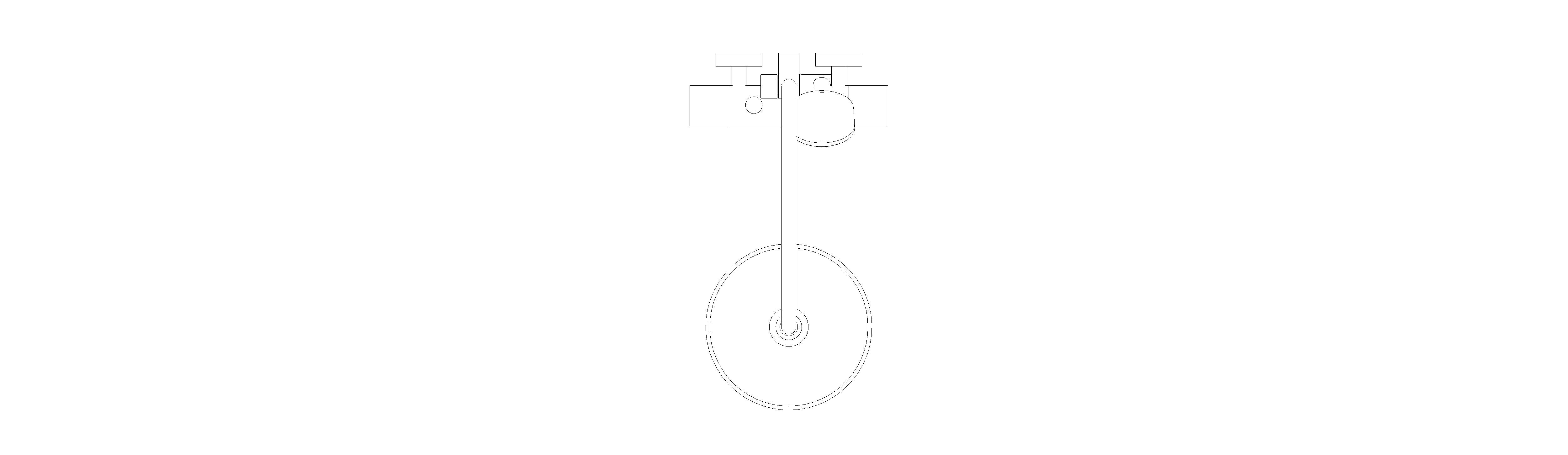

  • bimstore plan image of the Tempesta System - 250 Shower System - 26671000 from Grohe

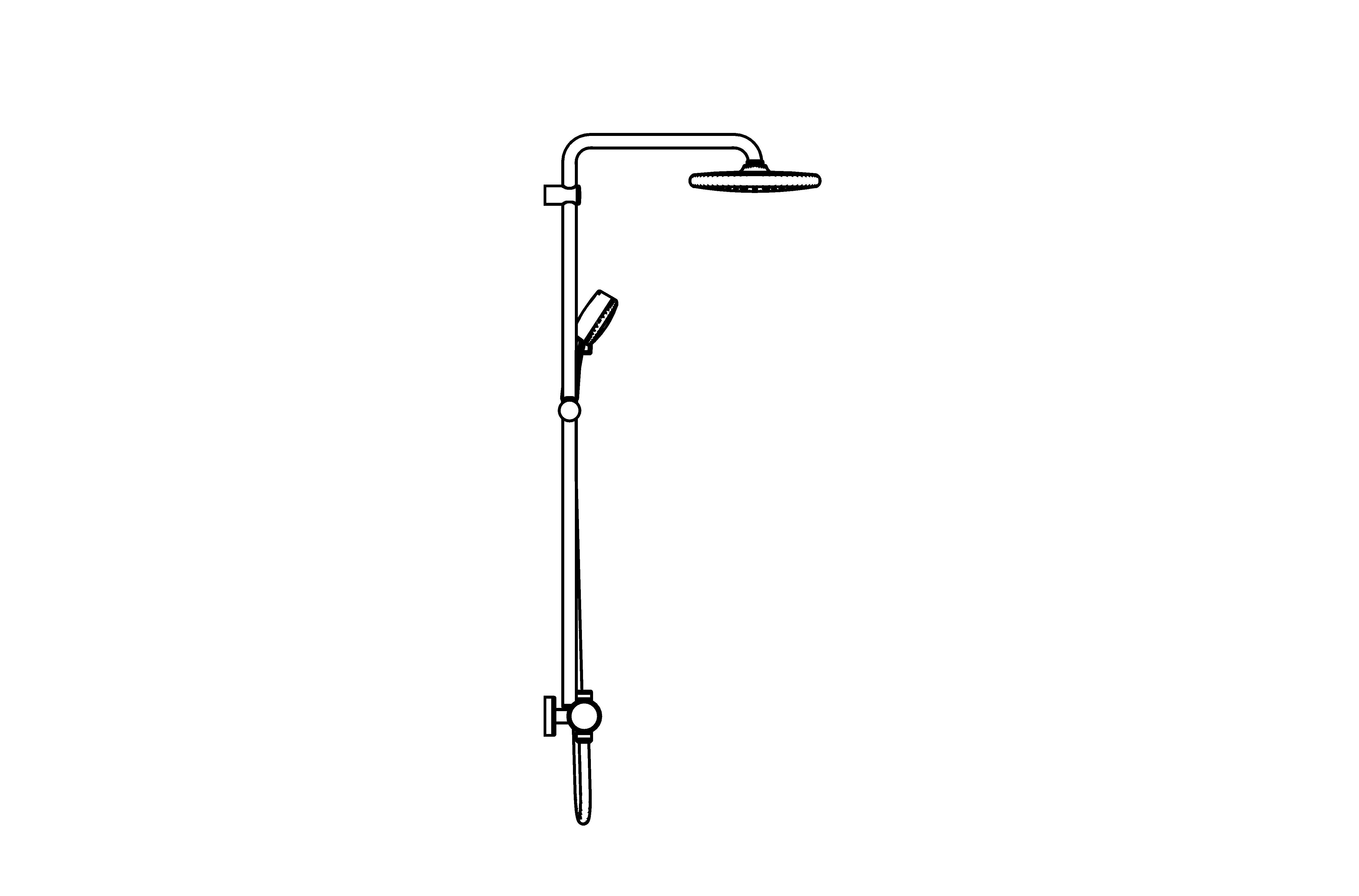

  • bimstore side image of the Tempesta System - 250 Shower System - 26671000 from Grohe
  • Views 188
  • Comments 0
  • Rating- / 5
    Rate this product
    1/5 Rating1/5 Rating2/5 Rating2/5 Rating3/5 Rating3/5 Rating4/5 Rating4/5 Rating5/5 Rating5/5 Rating

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

09/07/2020

Available for:
  • Logo: Autodesk Revit
  • Shower system with thermostat for wall mounting
  • consisting of:
  • horizontal swivable 390 mm shower arm
  • upper bracket adjustable for minimal adaptation to existing drilling holes
  • exposed thermostat with Aquadimmer function
  • allows change between:
  • head shower Tempesta 250
  • spray pattern: Rain including GROHE DripStop
  • with ball joint
  • rotation angle ± 10°
  • Hand shower Tempesta Cosmopolitan 100 (27 571)
  • 2 spray patterns: Rain, Jet
  • adjustable in height with gliding element
  • Rotaflex shower hose 1750 mm 1/2" x 1/2" (28 410)
  • GROHE EcoJoy 9.5 l/min flow limiter
  • GROHE TurboStat compact cartridge with wax thermoelement
  • GROHE SafeStop safety button at 38°C
  • GROHE SafeStop Plus optional temperature limiter at 50°C included
  • GROHE DreamSpray perfect spray pattern
  • GROHE StarLight chrome finish
  • GROHE MetalGrip ergonomically shaped metal handles
  • GROHE DripStop no more after dripping (head shower)
  • SpeedClean anti-lime system
  • Inner WaterGuide for a longer life
  • Twistfree to prevent hose from twisting
  • suitable for instantaneous heaters from 18 kW/h
  • minimum flow rate 7 l/min
  • min. recommended pressure 1.0 bar
  • optional upgrade: GROHE EasyReach tray (26 362), sold separately
