Grohe Solido Perfect - 39191000
5.3k
0
- / 5Rate this product
Available for:

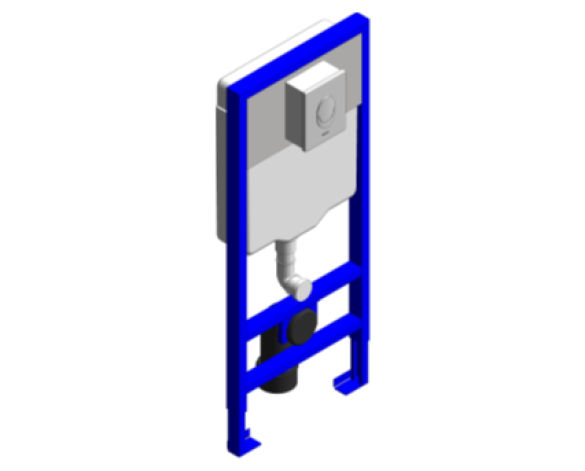

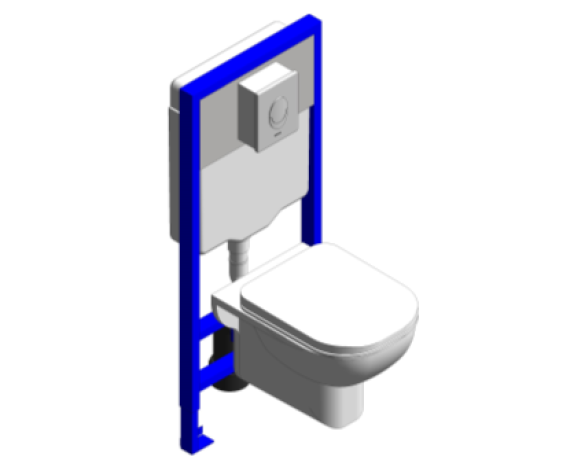

Solido Perfect, Set 4 in 1 with ceramic, flushing cistern GD 2, with small maintenance access, 1.13 m installation height, for on-the-wall installations, r studded walls, powder coated steel frame, self-supporting, with fixed connections, for dry-cladding, completely pre-assembled,for single or rail installation, quick adjustment, lockable, fixing material, 2 WC fixing bolts, fixing device for ceramic, distance of fixing bolts 180/230 mm, PP outlet bend Ø 90 mm, depth adjustable, reducer Ø 90/110 mm, inlet and outlet connecting set, flushing cistern GD 2, 6 - 9 l, adjustment ex factory 6 l and 3 l, pneumatic discharge valve offering 2 modes, of operation: dual flush or start/stop, water supply from left/right or back, low noise (group I acc. to German Noise Specification), insulated against condensation, ½Inch water supply connection including integrated, angle valve and push fit flexible hose union, no tools required for the installation of the inspection shaft, including protection during construction phase,for vertical or horizontal use, accessories for on-the-wall installation, including flush plate Skate Air, for dual flush or start & stop actuation, vertical and horizontal installation, 156 x 197 mm, made of ABS, chrome, wash down WC, 3/6 l, wall hung, white, CE approved, WC seat and lid with soft close feature, material: Duroplast
This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.
This component is created in Revit 2015 for use in MEP systems and is in line with 2015 industry standards.
Read more
