Grohe Rapid SLX Wall Hung WC Frame - 39602000

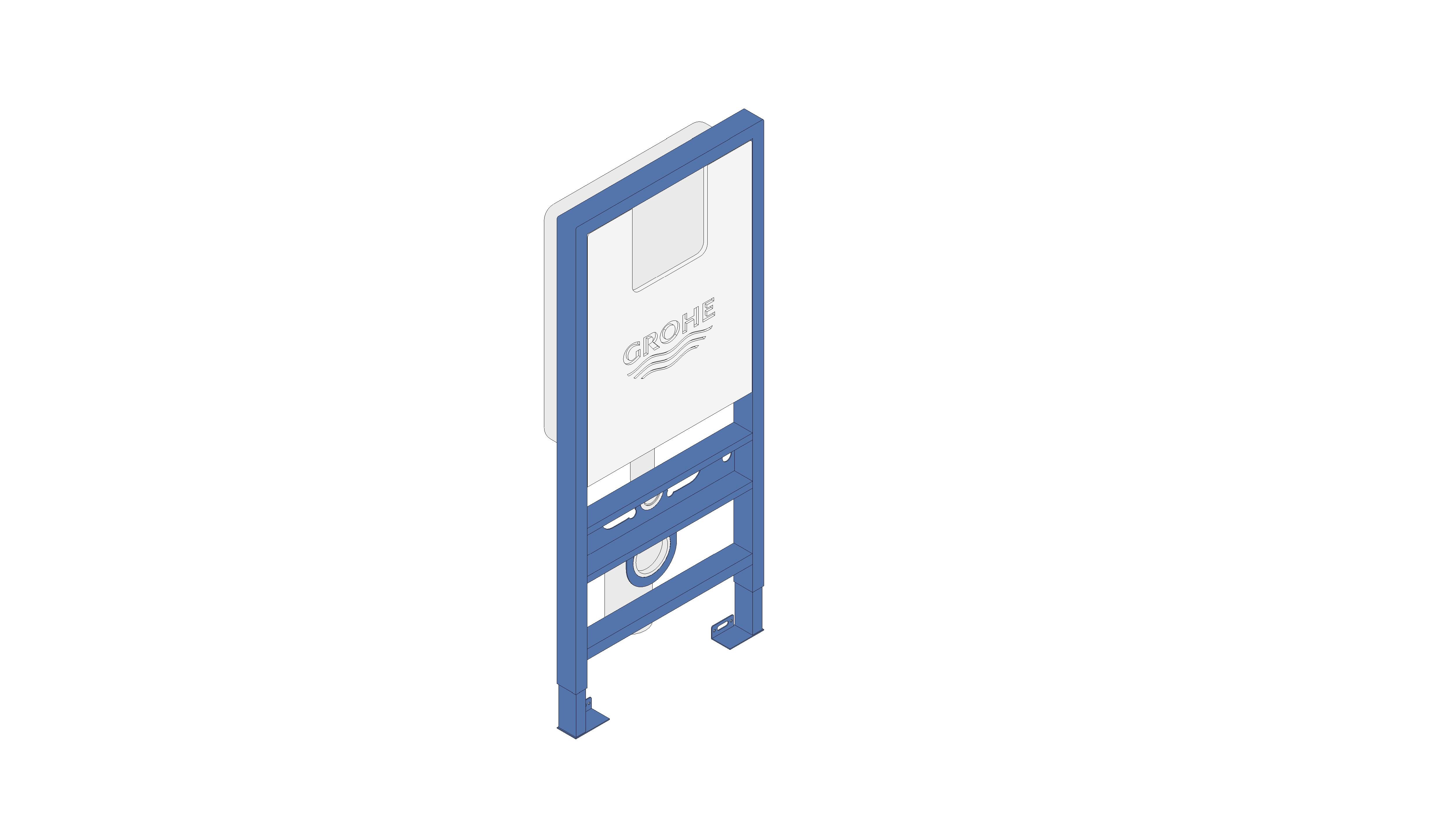

  • bimstore 3D image of the Rapid SLX Wall Hung WC Frame - 39602000 from Grohe

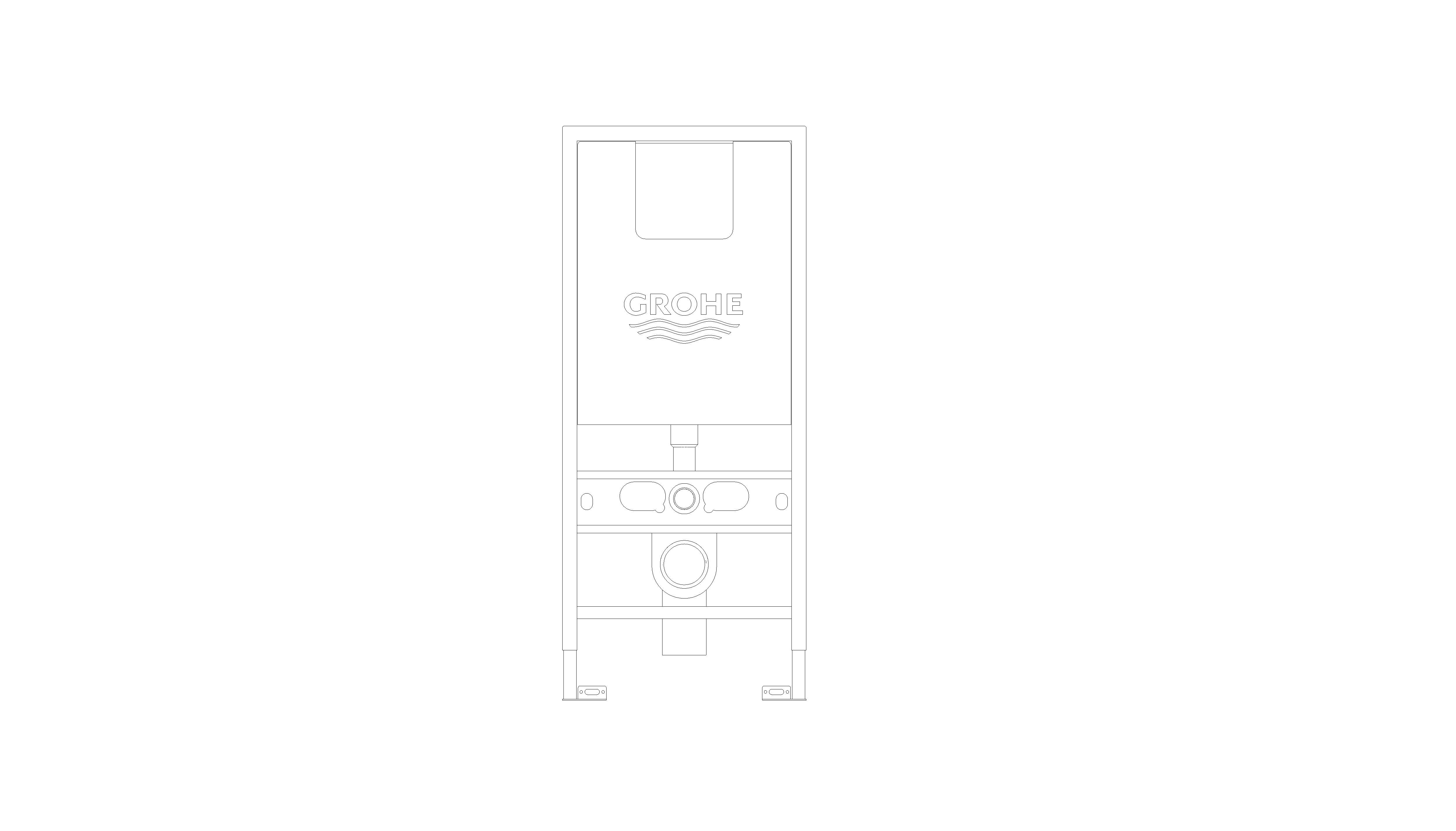

  • bimstore front image of the Rapid SLX Wall Hung WC Frame - 39602000 from Grohe

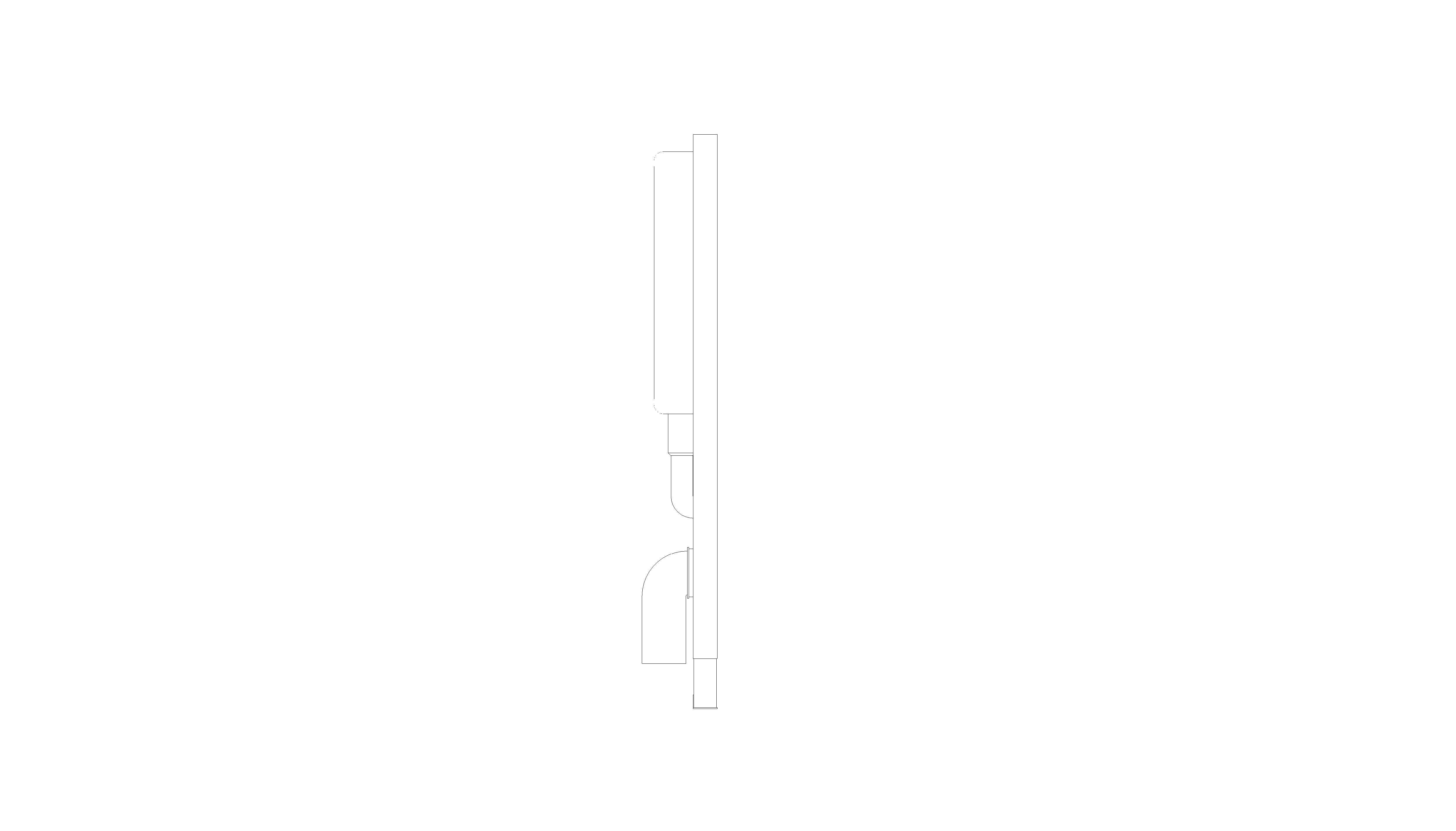

  • bimstore side image of the Rapid SLX Wall Hung WC Frame - 39602000 from Grohe

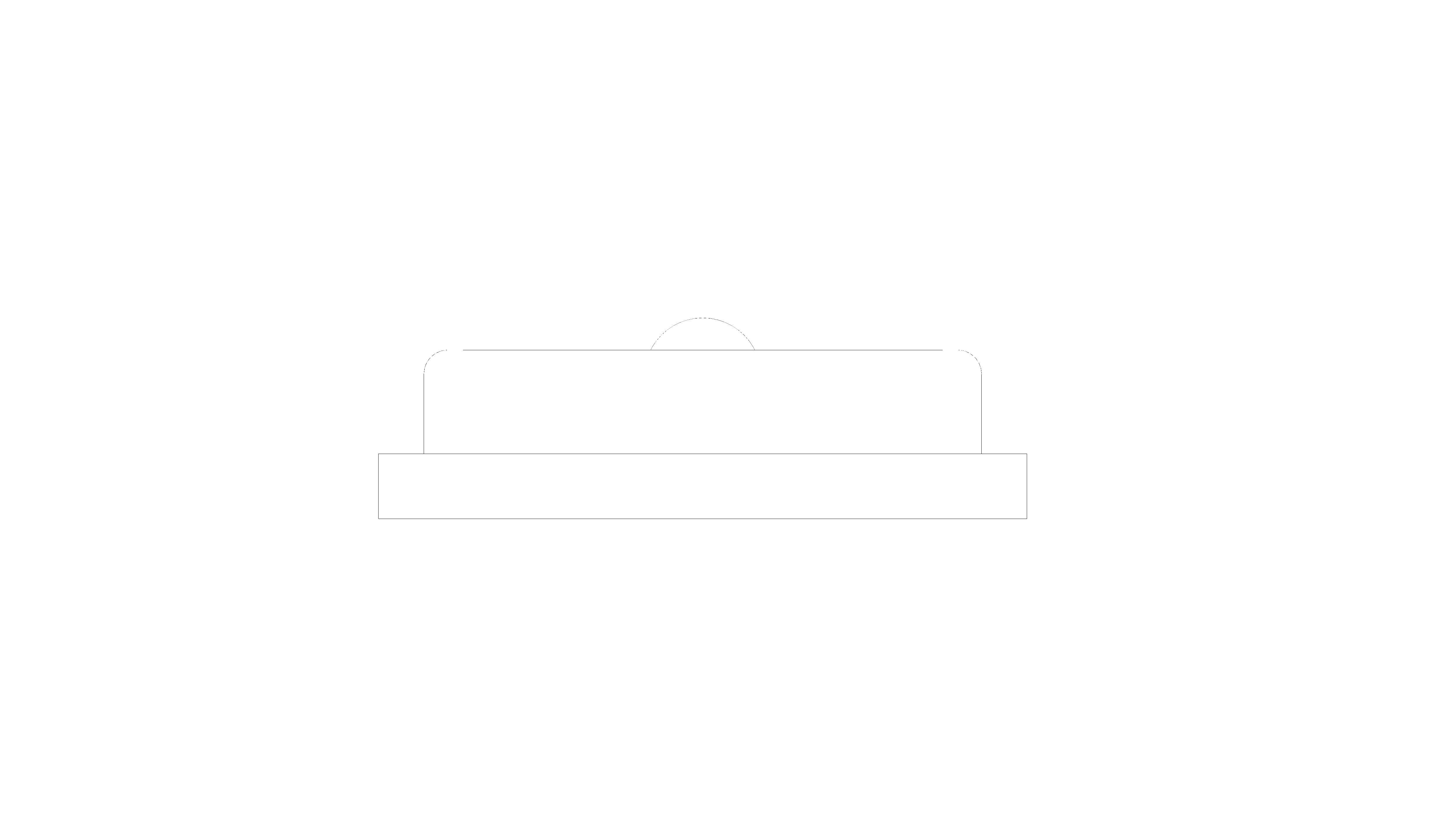

  • bimstore top image of the Rapid SLX Wall Hung WC Frame - 39602000 from Grohe
  • Views 9
  • Comments 0
  • Rating- / 5
    Rate this product
    1/5 Rating1/5 Rating2/5 Rating2/5 Rating3/5 Rating3/5 Rating4/5 Rating4/5 Rating5/5 Rating5/5 Rating

EN ISO 23386

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

05/05/2020

Available for:
  • Logo: Autodesk Revit

Rapid SLX Element for WC, 1.13 m installation height with integrated socket with flushing cistern GD 2with integrated socket for shower toilets (power) ready for shower toilets (water) small revision shaft for small flush plates for on-the-wall installations or studded walls powder coated steel frame, self-supporting for dry-cladding, completely pre-assembled without outlet pipe with fixed connections quick adjustment, lockable fixing material TÜV approved approved for US2 WC fixing bolts fixing device for ceramic distance of fixing bolts 180/230 mm outlet bend Ø 90 mm depth adjustable reducer Ø 90/110 mm inlet and outlet connecting set flushing cistern GD 2, 3 - 6 l, containing following features: adjustment ex factory 6 l and 3 l pneumatic discharge valve offering 3 modes of operation: dual flush or start/stop or single flush water supply from right, back or toplow noise (group I acc. to German Noise Specification) fully insulated against condensation ½“ water supply connection including integrated angle valve and push fit flexible hose union no tools required for the installation of the inspection shaft including protection during construction phase for vertical use for on-the-wall installation please order wall brackets 38 558 00M (sold separately) including flow manager reduces flow of the flush prevents overspill in rimless toilets easy flow regulation via inspection shaft without removing the valves.

Read more
