Grohe - Rapid SLX - Element for WC 1.13m - 39596000

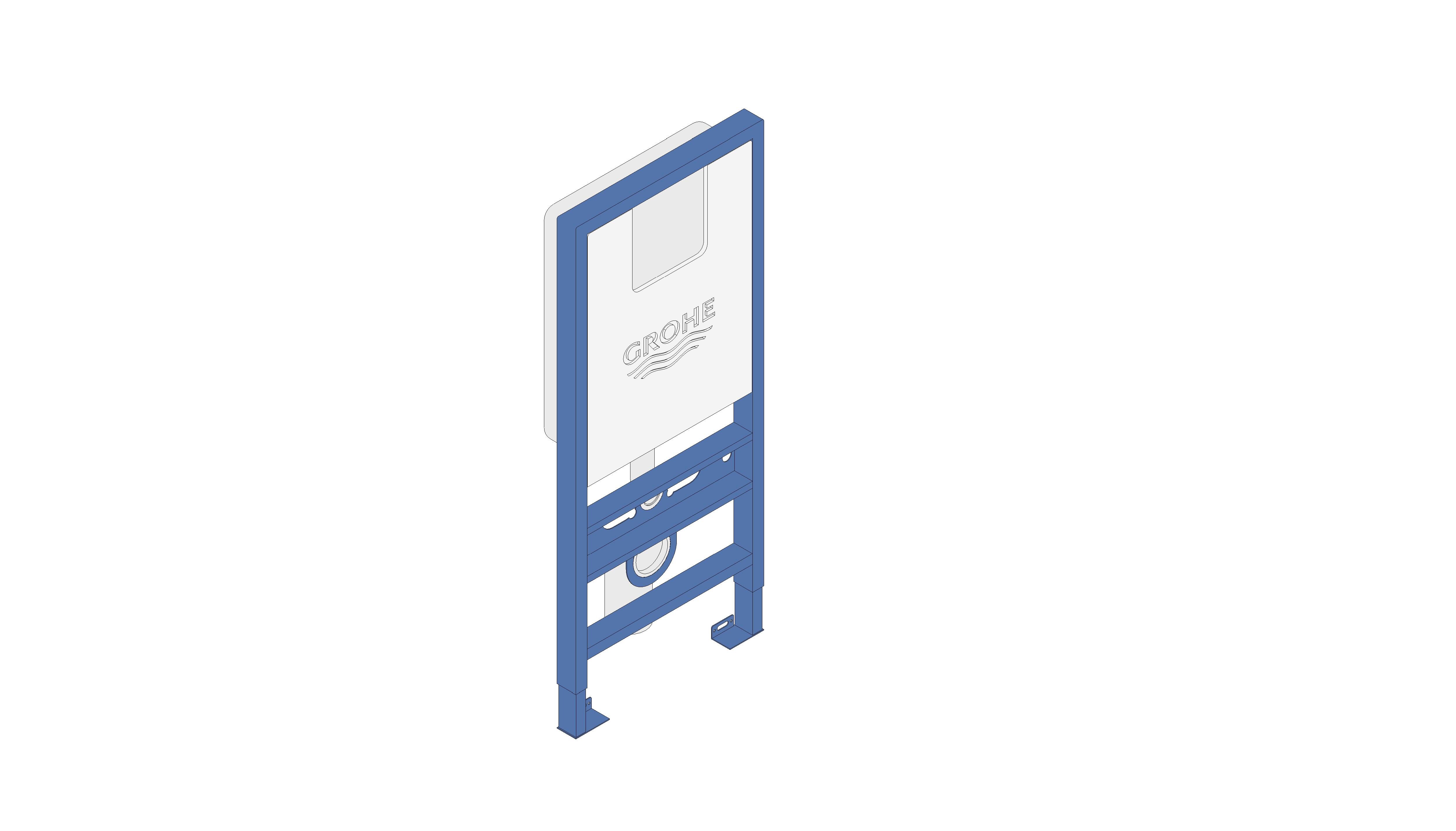

  • bimstore 3D image of the Rapid SLX Wall Hung WC Frame - 39596000 from Grohe

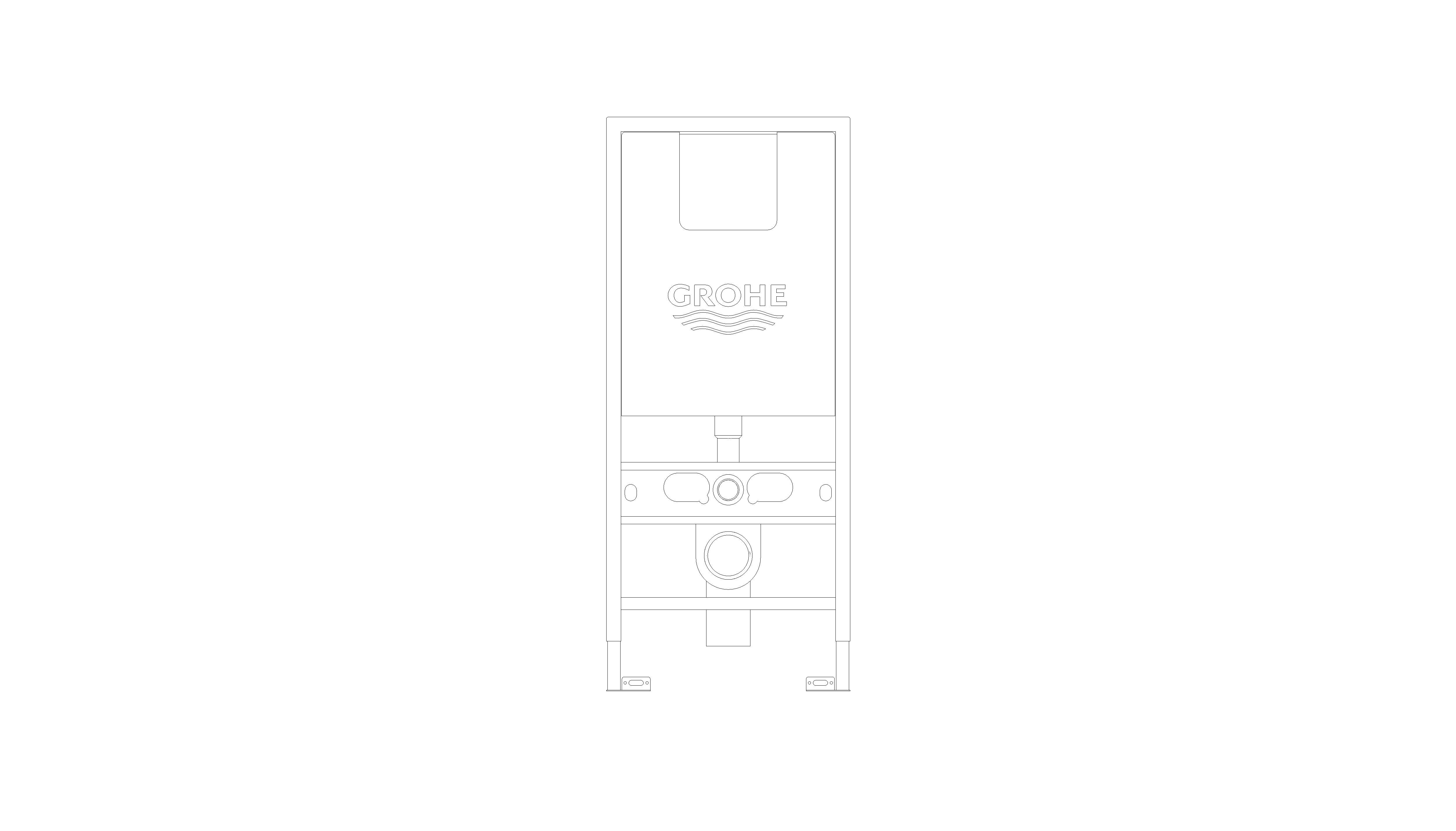

  • bimstore front image of the Rapid SLX Wall Hung WC Frame - 39596000 from Grohe

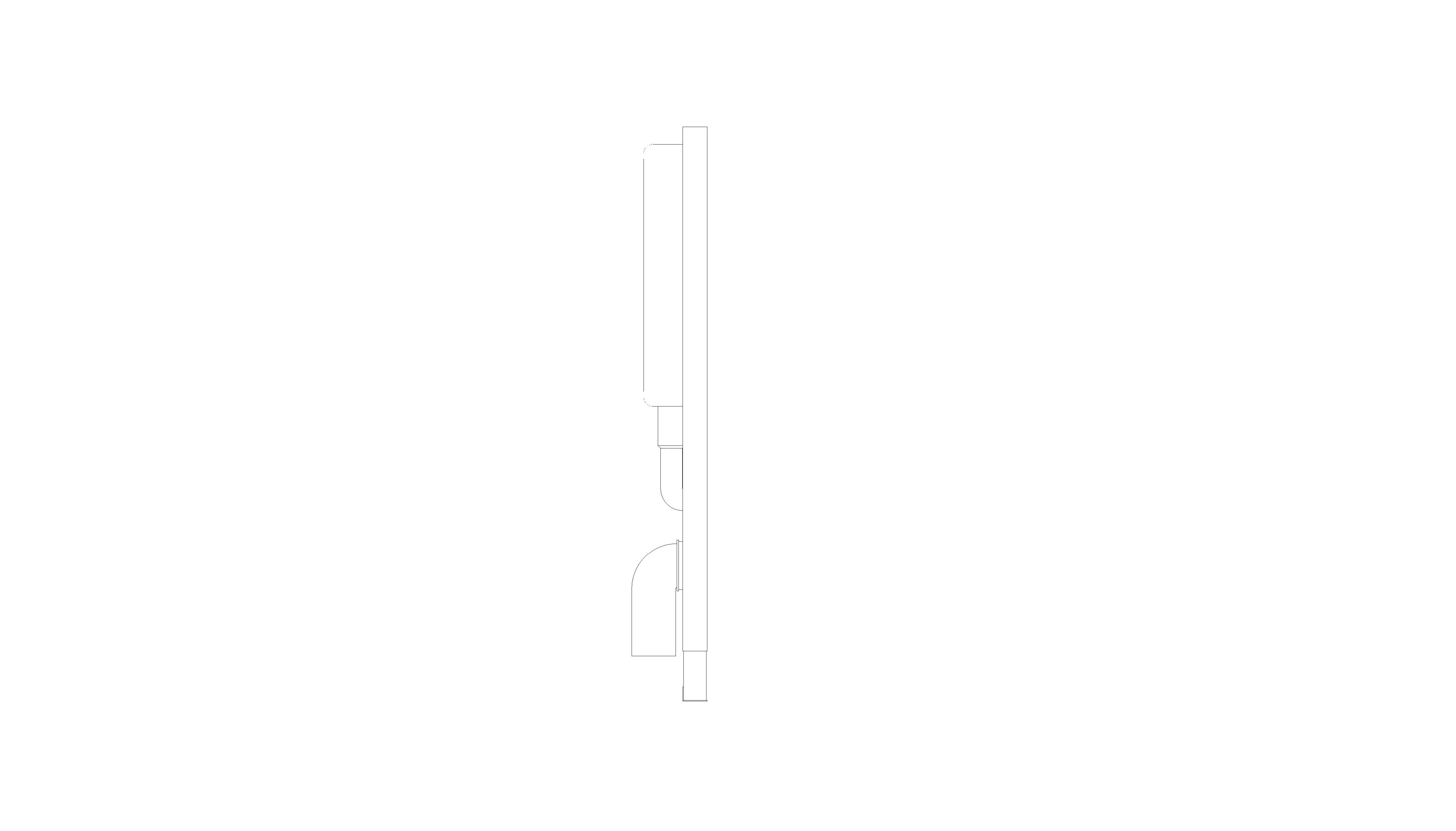

  • bimstore side image of the Rapid SLX Wall Hung WC Frame - 39596000 from Grohe

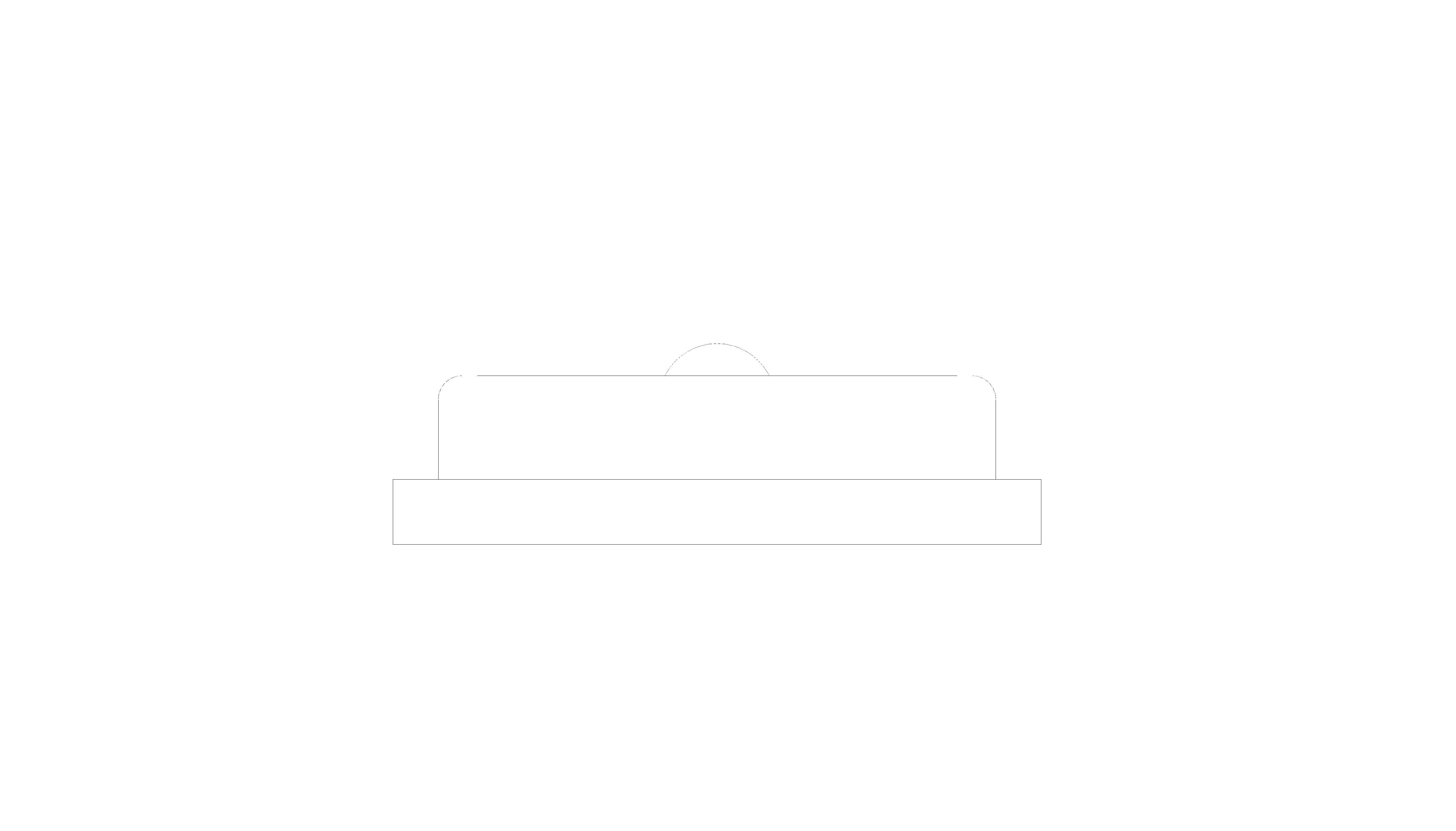

  • bimstore top image of the Rapid SLX Wall Hung WC Frame - 39596000 from Grohe
  • Views 610
  • Comments 0
  • Rating- / 5
    Rate this product
    1/5 Rating1/5 Rating2/5 Rating2/5 Rating3/5 Rating3/5 Rating4/5 Rating4/5 Rating5/5 Rating5/5 Rating

-

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

2 Revision

Last Updated

16/12/2021

Available for:
  • Logo: Autodesk Revit

with flushing cistern GDX, 6 l
with integrated power socket
ready for shower toilets (water)
small revision shaft for small flush plates
for on-the-wall installations or studded walls
powder coated steel frame, self-supporting
for dry-cladding, completely pre-assembled
with fixed connections
quick adjustment, lockable
fixing material
TÜV approved
2 WC fixing bolts
fixing device for ceramic
distance of fixing bolts 180/230 mm
outlet bend Ø 90 mm
depth adjustable
reducer Ø 90/110 mm
inlet and outlet connecting set
flushing cistern GDX, 6 l, containing following features:
adjustment ex factory 6 l and 3 l
pneumatic discharge valve offering 3 modes of
operation: dual flush or start/stop or single flush
water supply from right, back or top
low noise (group I acc. to German Noise Specification)
fully insulated against condensation
½" water supply connection including integrated
angle valve and push fit flexible hose union
no tools required for the installation of the inspection shaft
including protection during construction phase
for vertical use

including flow manager
reduces flow of the flush
prevents overspill in rimless toilets
easy flow regulation via inspection shaft without removing the valves
for on-the-wall installation please order wall brackets 38 558 00M (sold separately)
for mounting of flush plates 156 x 197 mm please order
revision shaft 66 791 000 (sold separately)
