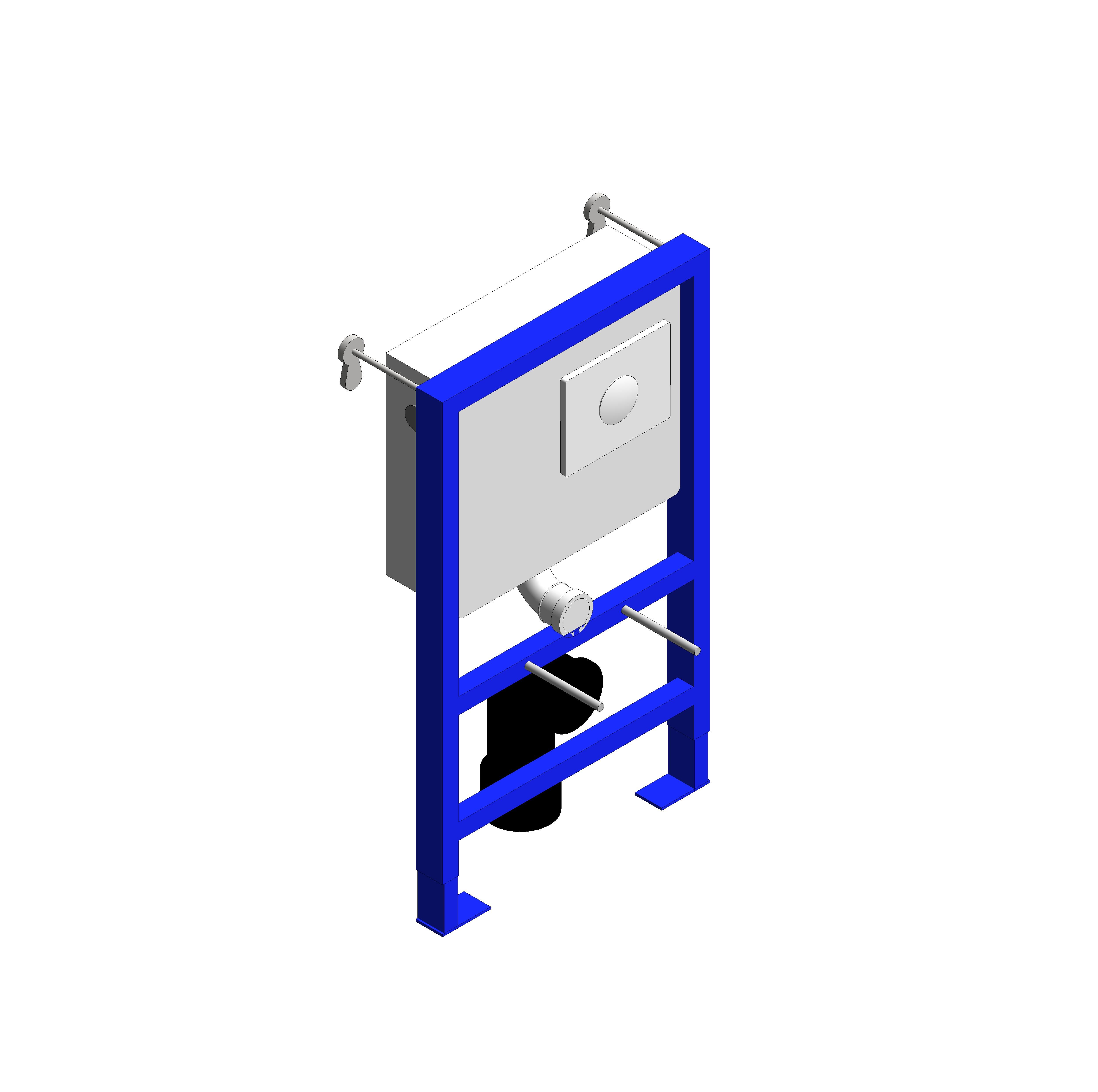

• bimstore 3D image of the Rapid SL 4 in 1 Set - 38886000 from Grohe
  • bimstore front image of the Rapid SL 4 in 1 Set - 38886000 from Grohe
  • bimstore side image of the Rapid SL 4 in 1 Set - 38886000 from Grohe

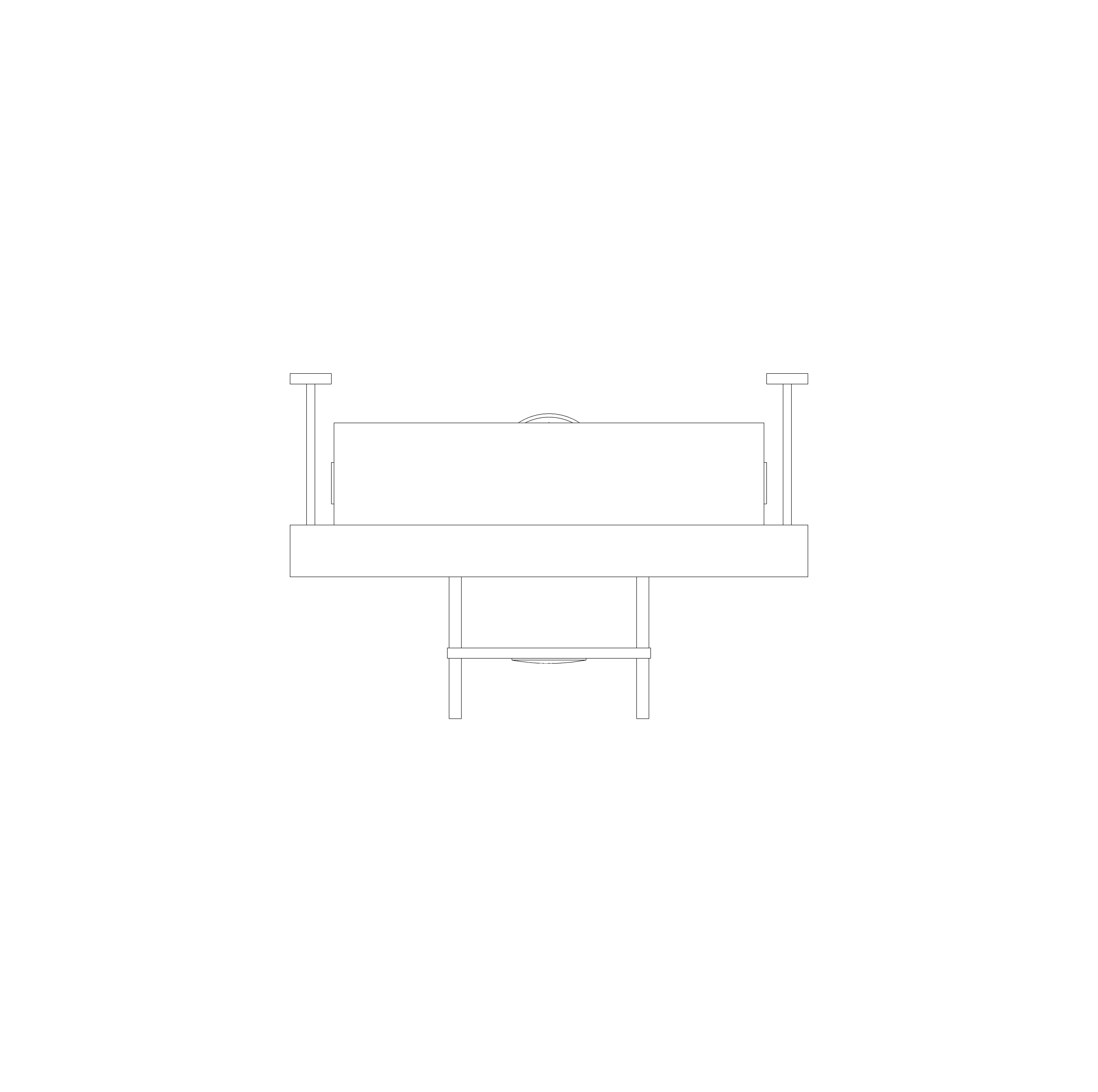

  • bimstore top image of the Rapid SL 4 in 1 Set - 38886000 from Grohe
  • 2.3k
  • 0
  • - / 5
    Rate this product
Cost
How this product price compares with others in the same category.
Carbon
There is no EPD available for this product.
Lifespan
How this product life expectancy compares with others in the same category.

Grohe Rapid SL 4 in 1 Set - 38886000

by GROHE


DownloadAdd to collection

Description

  • with flushing cistern 6 - 9 l
  • for on-the-wall installations or studded walls
  • 0.82 m installation height
  • powder coated steel frame, self-supporting
  • for dry-cladding, completely pre-assembled
  • with fixed connections
  • quick adjustment, lockable
  • fixing material
  • TÜV approved
  • 2 WC fixing bolts
  • fixing device for ceramic
  • distance of fixing bolts 180/230 mm
  • outlet bend Ø 90 mm
  • depth adjustable
  • reducer Ø 90/110 mm
  • inlet and outlet connecting set
  • flushing cistern 6 - 9 l
  • front or top actuation
  • pneumatic discharge valve offering 3 modes of operation: dual flush or start/stop or single flush
  • water supply from left/right or back
  • low noise (group I acc. to
  • German Noise Specification)
  • insulated against condensation
  • ½" water supply connection including integrated
  • angle valve and push fit flexible hose union
  • inspection shaft with protecting block
  • including wall plate Nova Cosmopolitan
  • horizontal installation
  • 156 x 197 mm
  • chrome
  • made of ABS
  • GROHE StarLight chrome finish
  • GROHE EcoJoy Technology
  • for less water and perfect flow
  • accessories for on-the-wall installation
  • with GROHE Fresh retrofit set
Read more
Object Data

1 Revision

Last Updated

13/07/2020

Available Software
  • Logo: Autodesk Revit
BS1192:4

Compliant

BSB

Compliant

EPD

Not Available
