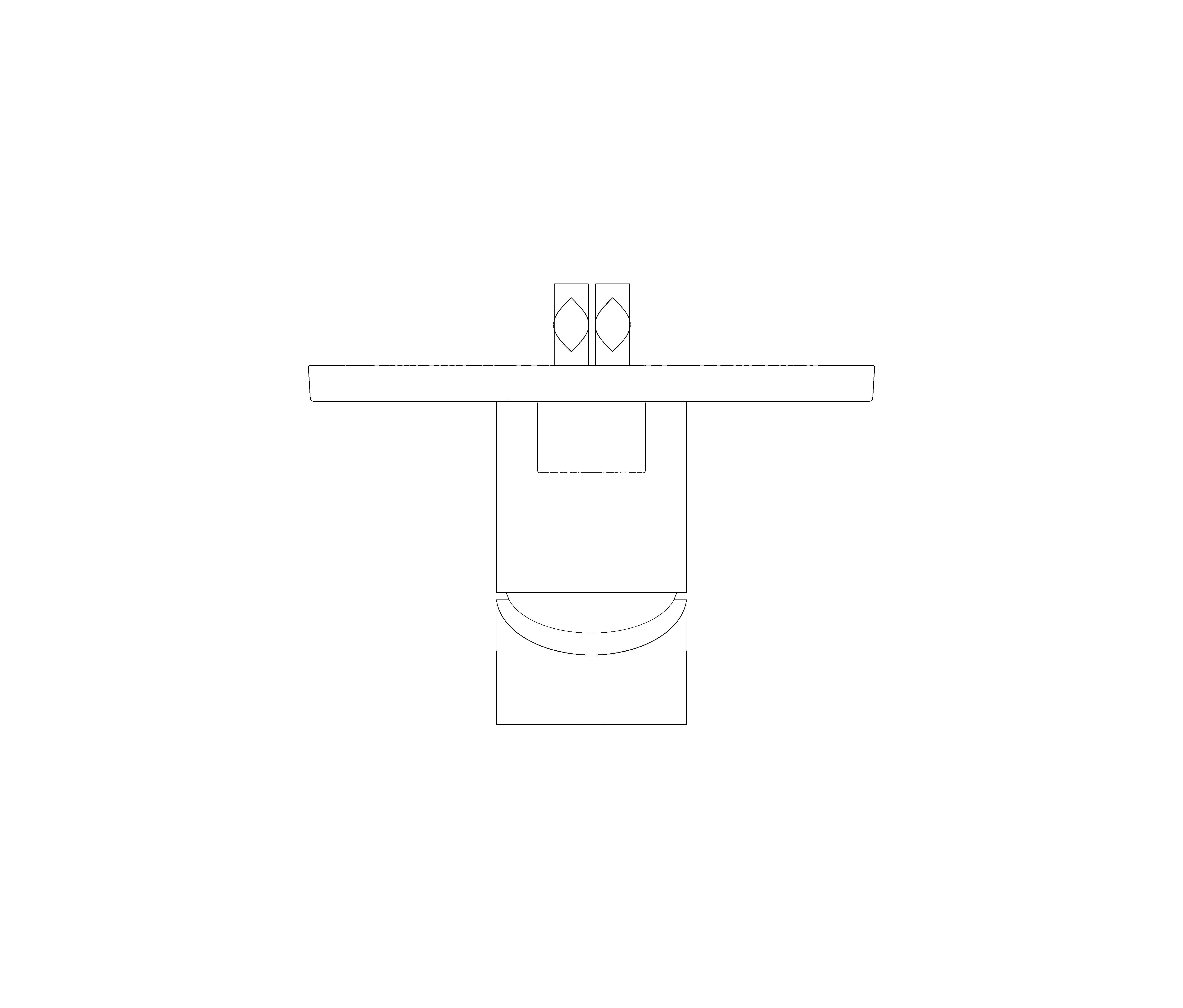

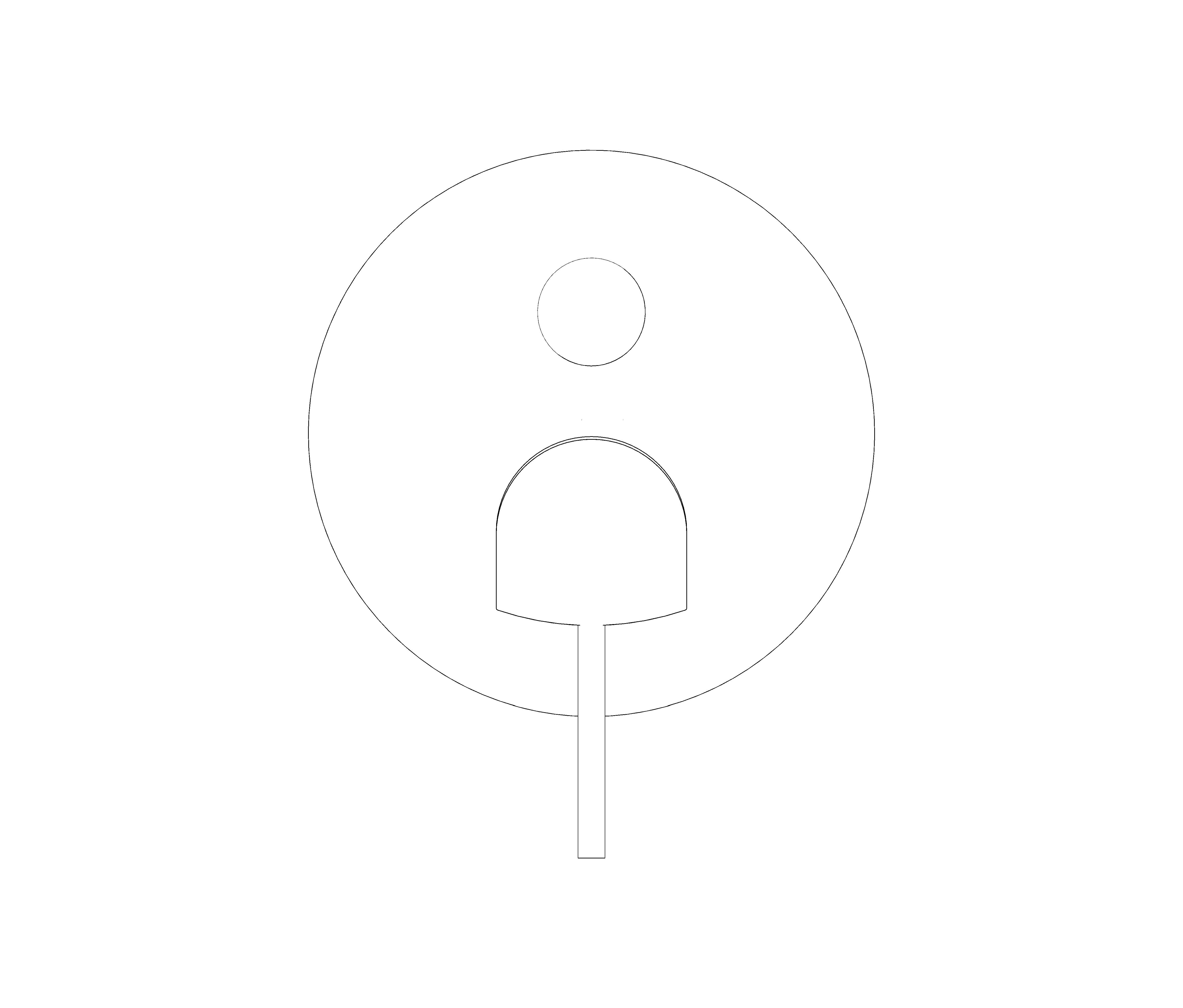

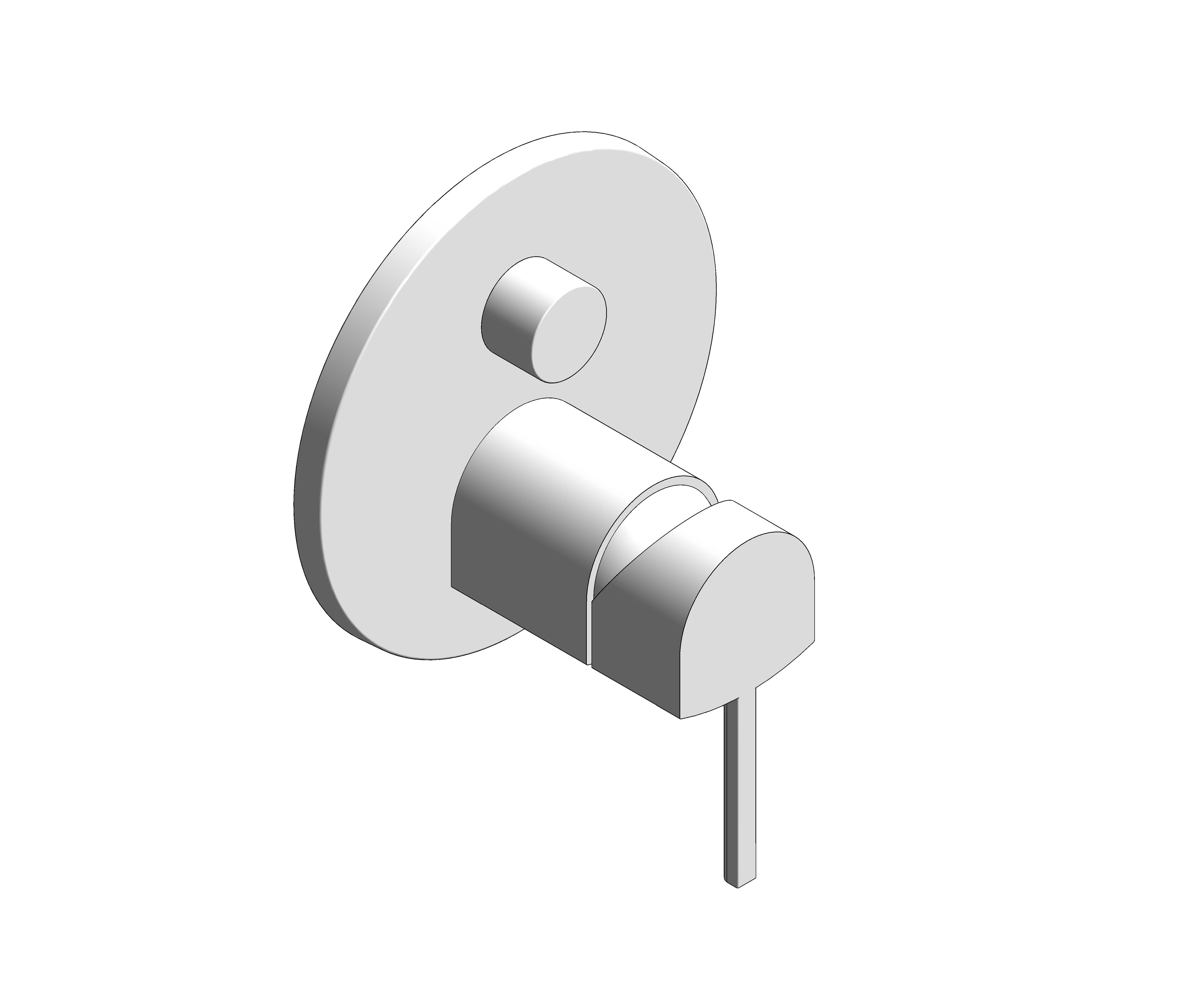

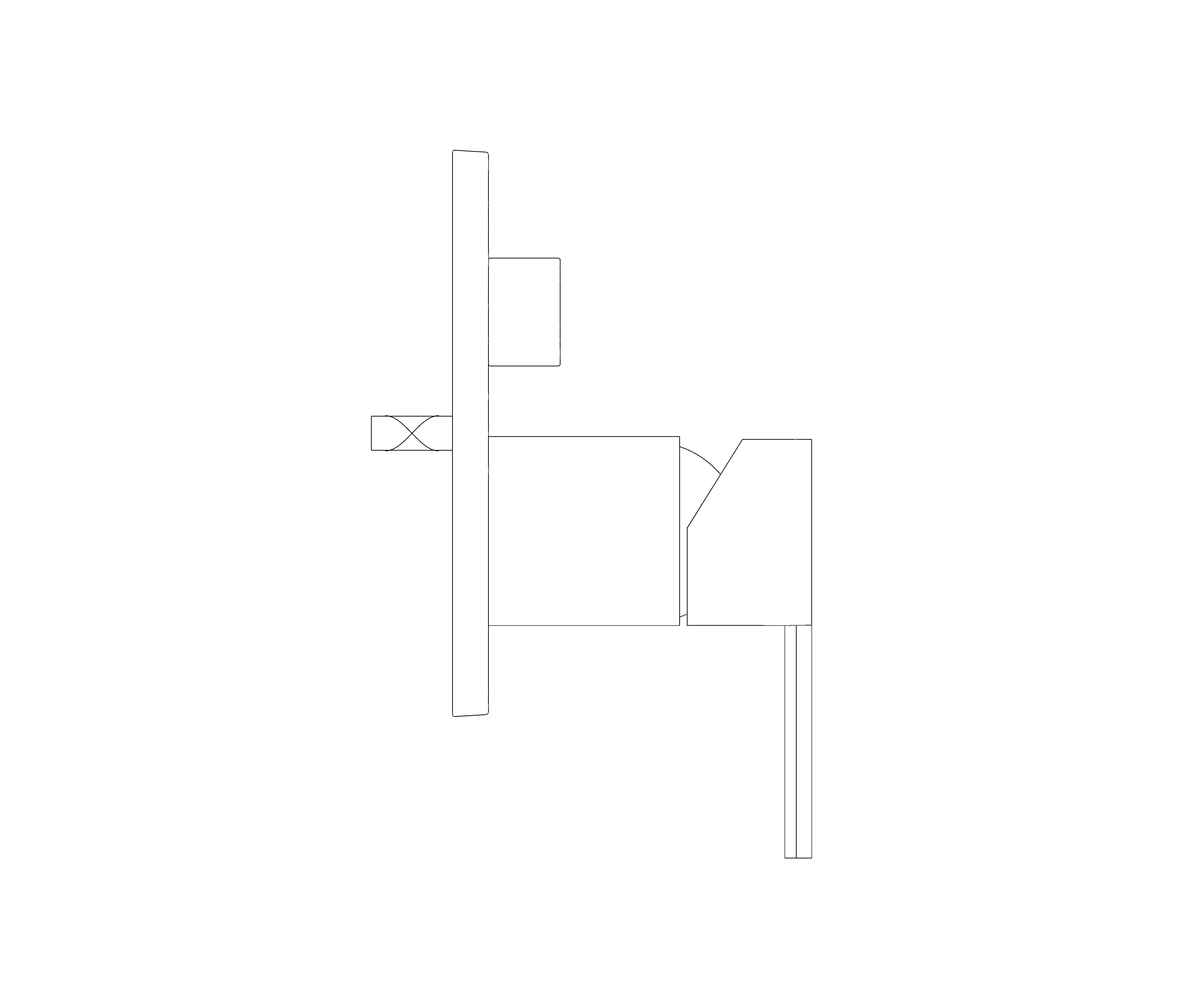

Grohe Plus Single-Lever Mixer with 3-Way Diverter - 24093003

by GROHE

Download Add to collection

Description

set for final installation for GROHE Rapido SmartBox (35 600 000)
GROHE SilkMove 46 mm ceramic cartridge
GROHE StarLight chrome finish
GROHE QuickFix escutcheon with covered shaft sealing and covered fixing
metal escutcheon, retroactively 6° adjustable
metal lever
3-way diverter
flow performance: outlet A = 27 l/min, outlet B = 27 l/min, outlet C = 27 l/min
without roughing-in-set

Also includes 24093DC3 (SuperSteel) and 24093AL3 (Brushed Hard Graphite).

Object Data

3 Revision

Last Updated

07/05/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_AuthorJack Yellop
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Assembly CodeC1030
Asset TypeFixed
BIM Object NameGrohe_PlumbingFixtures_PlusSingle-LeverMixer_24093003
Classification NameUniclass2015
Classification ValuePr_40_20_87_96
Code Performancen/a
ColorSilver
Constituentsn/a
Created Byinfo-uk@grohe.com
Created On2019-04-29T09:00:00
CW ConnectionYes
CWFU4.5
Default Elevation0 mm
Descriptionset for final installation for GROHE Rapido SmartBox (35 600 000), GROHE SilkMove 46 mm ceramic cartridge, GROHE StarLight chrome finish, GROHE QuickFix escutcheon with covered shaft sealing and covered fixing, metal escutcheon, retroactively 6° adjustable, metal lever, 3-way diverterflow performance: outlet A = 27 l/min, outlet B = 27 l/min, outlet C = 27 l/min without roughing-in-set
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturen/a
Documentation Maintenancen/a
Documentation Technicaln/a
Duration UnitYears
Expected Life0
Featuresset for final installation for GROHE Rapido SmartBox (35 600 000), GROHE SilkMove 46 mm ceramic cartridge, GROHE StarLight chrome finish, GROHE QuickFix escutcheon with covered shaft sealing and covered fixing, metal escutcheon, retroactively 6° adjustable, metal lever, 3-way diverterflow performance: outlet A = 27 l/min, outlet B = 27 l/min, outlet C = 27 l/min without roughing-in-set
FinishChrome
Graden/a
HW ConnectionYes
HWFU4.5
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
KeynoteN13
ManufacturerGrohe
Manufacturer NameGrohe
MaterialChrome
ModelPlus Single-lever mixer with 3-way diverter
Model Number24093003
Model ReferencePlus Single-lever mixer with 3-way diverter
NBS DescriptionWater supply fittings for wash basins and troughs
NBS Object NameGrohe - Water supply fittings for wash basins and troughs
NBS Office Master Tagn/a
NBS Reference45-35-70/371
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Primary FinishGrohe- Chrome
Production Year2019
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsn/a
Type Comments24093003
Type NamePlus Single-lever mixer with 3-way diverter
URLwww.grohe.co.uk/en_gb/
Vent ConnectionNo
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsinfo-uk@grohe.com
Waste ConnectionNo
