Grohe Plus Four-Hole Single-Lever Bath Combination - 29307003

by GROHE

Download Add to collection

Description

three hole installation
GROHE SilkMove 35 mm ceramic cartridge
with temperature limiter
GROHE StarLight chrome finish
consisting of:
single lever mixer operating element
diverter bath/shower
without spout
Euphoria Cube hand shower 7.6 l/min
metal shower hose 2000 mm
flexible connection hoses
connection for shower hose
protected against backflow
can be used with 29 037 001
for combination with 28 990 / 28 991
min. recommended pressure 1.0 bar

Also includes 29307DC3 (SuperSteel) and 29307AL3 (Brushed Hard Graphite).

Object Data

3 Revision

Last Updated

07/05/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Maintenance Information

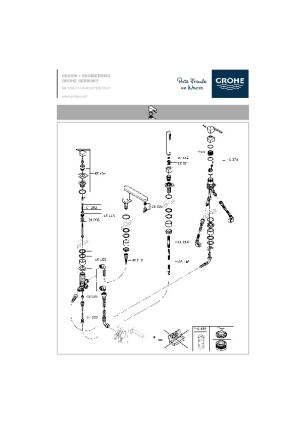

Technical Data Sheet

Object metadata

_AuthorJack Yellop
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
Accessibility Performancen/a
Assembly CodeC1030
Asset TypeFixed
BIM Object NameGrohe_PlumbingFixtures_PlusFour-HoleSingle-LeverBathCombination_29307003
Classification NameUniclass2015
Classification ValuePr_40_20_87_96
Code Performancen/a
ColorSilver
Constituentsn/a
Created Byinfo-uk@grohe.com
Created On2019-04-29T09:00:00
CW ConnectionYes
CWFU4.5
Default Elevation0 mm
DescriptionGROHE SilkMove 35 mm ceramic cartridge, with temperature limiter, GROHE StarLight chrome finish, consisting of: pre-assembled spout laminar mousseur, single lever mixer operating element, metal lever, diverter bath/shower, hand shower Euphoria Cube 6.6 l/min, metal shower hose 2000 mm, flexible connection hoses, connection for shower hose, protected against backflow, can be used with 29 037 001, min. recommended pressure 1.0 bar
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturen/a
Documentation Maintenancen/a
Documentation Technicaln/a
Duration UnitYears
Expected Life0
FeaturesGROHE SilkMove 35 mm ceramic cartridge, with temperature limiter, GROHE StarLight chrome finish, consisting of: pre-assembled spout laminar mousseur, single lever mixer operating element, metal lever, diverter bath/shower, hand shower Euphoria Cube 6.6 l/min, metal shower hose 2000 mm, flexible connection hoses, connection for shower hose, protected against backflow, can be used with 29 037 001, min. recommended pressure 1.0 bar
FinishChrome
Graden/a
HW ConnectionYes
HWFU4.5
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
KeynoteN13
ManufacturerGrohe
Manufacturer NameGrohe
MaterialChrome
ModelPlus Four-hole single-lever bath combination
Model Number29307003
Model ReferencePlus Four-hole single-lever bath combination
NBS DescriptionWater supply fittings for wash basins and troughs
NBS Object NameGrohe - Water supply fittings for wash basins and troughs
NBS Office Master Tagn/a
NBS Reference45-35-70/371
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Primary FinishGrohe- Chrome
Production Year2019
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsn/a
Type Comments29307003
Type NamePlus Four-hole single-lever bath combination
URLwww.grohe.co.uk/en_gb/
Vent ConnectionNo
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsinfo-uk@grohe.com
Waste ConnectionNo
