EUROSMART Single-lever basin mixer 1/2″ L-Size (23537003)

by GROHE

Download Add to collection

Description

A tall, swivel spout for greater comfort and eco-friendly features to save water and money – our Eurosmart basin mixer is designed for modern bathrooms

GROHE SilkMove 28 mm ceramic cartridge
with temperature limiter
GROHE StarLight chrome finish
GROHE EcoJoy mousseur 5.7 l/min
GROHE FastFixation installation system
swivel tubular spout
pop-up waste set 1 1/4"
flexible connection hoses

Object Data

1 Revision

Last Updated

02/08/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

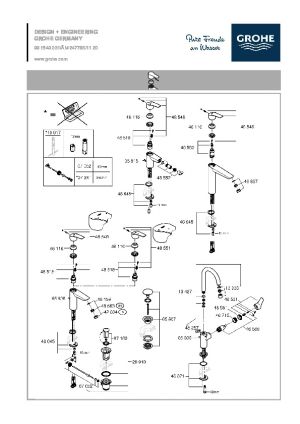

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/grohe-eurosmart-single-lever-basin-mixer-1-2-m-size-23537003/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD2010
Asset TypeFixed
BIM Object NameGrohe_PlumbingFixtures_Eurosmart_SingleLeverBasinMixer_23537003
Classification NameUniclass 2015
Classification ValuePr_40_20_87_55
CO2 Neutral ProductionGROHE is one of the first leading manufacturer within the sanitary industry having a CO2-neutral production.
Code Performancen/a
ColorChrome
Constituentsn/a
Cradle To Cradle Certificationn/a
Created Byinfo-uk@grohe.com
Created On2021-07-27 T09:00:00
CW ConnectionYes
CWFU0
Default Elevation0 mm
DescriptionA tall, swivel spout for greater comfort and eco-friendly features to save water and money - our Eurosmart basin mixer is designed for modern bathrooms.
Dimensions Document Linkn/a
Documentation Certificateswww.bimstore.co/products/grohe-eurosmart-single-lever-basin-mixer-1-2-m-size-23537003/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/grohe-eurosmart-single-lever-basin-mixer-1-2-m-size-23537003/document/installation-guide
Documentation Literaturewww.bimstore.co/products/grohe-eurosmart-single-lever-basin-mixer-1-2-m-size-23537003/document/product-literature
Documentation Maintenancewww.bimstore.co/products/grohe-eurosmart-single-lever-basin-mixer-1-2-m-size-23537003/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/grohe-eurosmart-single-lever-basin-mixer-1-2-m-size-23537003/document/technical-data-sheet
Duration UnitYear
EcojoyNo
EF000003Top/tap hole
EF000139Chromium-plated
EF002286Hose (gland nut)
EF002671Chrome
EF011775AA, free air gap
EF0117790
EF0117810
EF0127535
EF0145910
EF0152800
EF020105No
EF020780Single-grip
EF020781Cartouche, ceramic
EF0207853/8 inch
EF020789311 mm
EF0207920
EF020796311 mm
EF020797208 mm
EF020798Waste unit
EF0207990
EF0208010
EF0218081-hole
EF0218350 mm
EF022042None
EF0221680
EF0236860
EF025109Polished
EFDE0022Group II, <=30 dB(A)
EFSE00020
Expected Life0
FeaturesGROHE SilkMove 28 mm ceramic cartridge; with temperature limiter; GROHE StarLight chrome finish; GROHE EcoJoy mousseur 5.7 l/min; GROHE FastFixation installation system; swivel tubular spout; pop-up waste set 1 1/4"; flexible connection hoses.
Finishn/a
Full Recyclability Of PlasticAll plastic components are fully recyclable
Graden/a
GROHE Social Committmentgreen.grohe.com/social_engagement
GROHE Sustainabilitygreen.grohe.com
HW ConnectionYes
HWFU0
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
Installation Videon/a
KeynoteN13
ManufacturerGrohe
Manufacturer NameGrohe
Materialn/a
Model23537003
Model Number23537003
Model ReferenceSingle-Lever Basin Mixer 1/2″ L-Size
NBS DescriptionMixer taps
NBS Object NameGrohe - Mixer taps
NBS Office Master Tagn/a
NBS Reference45-35-70/345
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
PQ Diagram Linkn/a
Primary MaterialSteel, Chrome Plated
Product Descriptionn/a
Production Year2021
Product Numbern/a
Product Short Textn/a
Product Typen/a
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsn/a
Sustainability Awardgreen.grohe.com/awards
Sustainability Reportgreen.grohe.com/reporting
TPI Document Linkn/a
Type CommentsSingle-Lever Basin Mixer 1/2″ L-Size
Type NameSingle-Lever Basin Mixer 1/2″ L-Size
URLwww.grohe.co.uk/en_gb/
Vent ConnectionNo
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com
Waste ConnectionNo
WFU0

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
