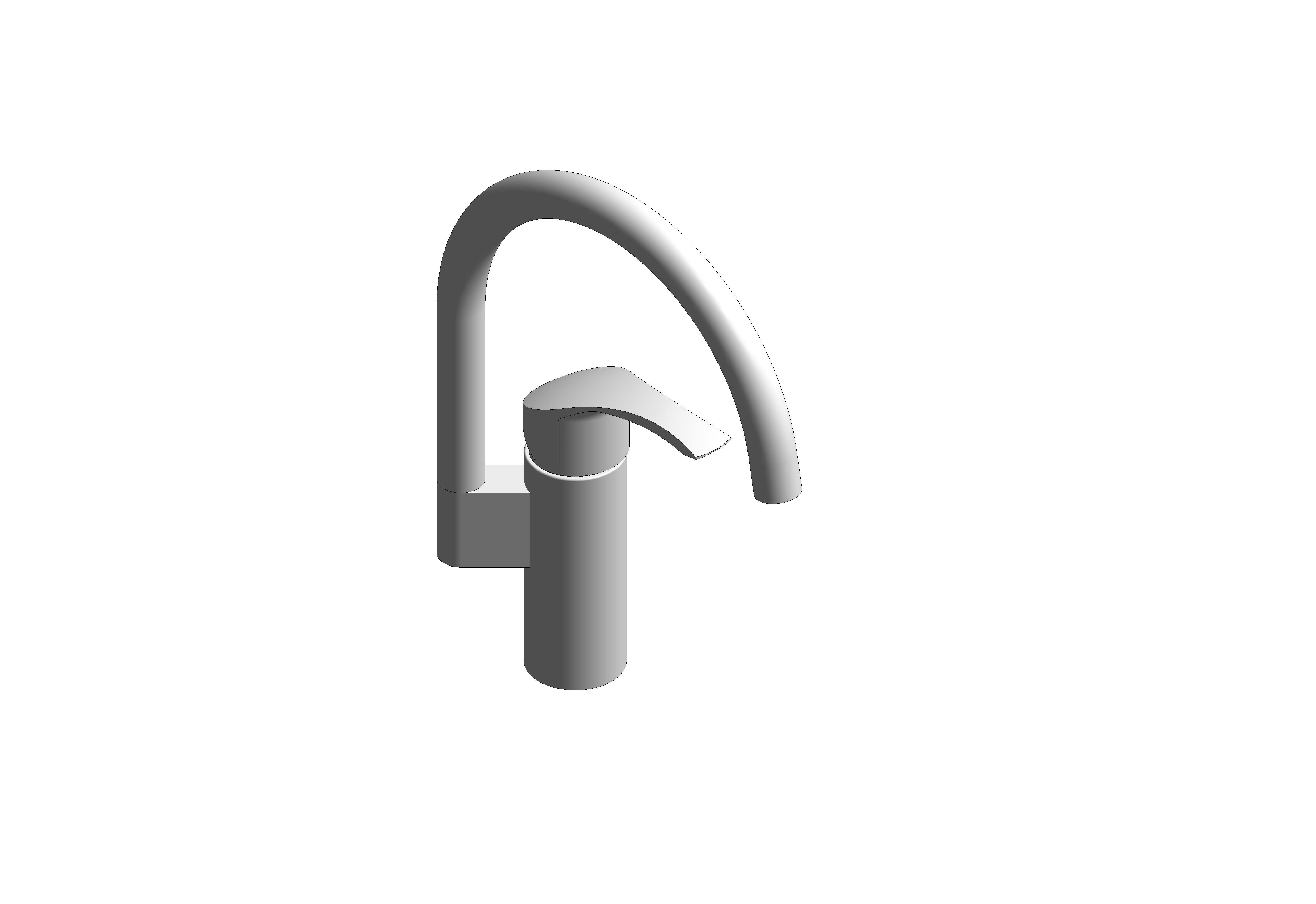

Grohe Eurosmart Kitchen Faucet - 31789000

by GROHE

Download Add to collection

Description

Single-lever sink mixer 1/2“
high spout
single hole installation
GROHE StarLight finish
GROHE SilkMove 35 mm ceramic cartridge
integrated temperature limiter
mousseur
adjustable flow rate limiter
swivel tubular spout
adjustable swivel area 0° / 150° / 360°
flexible connection hoses
rapid installation system
min. recommended pressure 1.0 bar

Object Data

1 Revision

Last Updated

23/01/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
Accessibility Performancen/a
ADA CompliantNo
Assembly CodeC1030
Asset TypeFixed
BIM Object Name- Grohe_PlumbingFixtures_KitchenFaucet_Eurosmart_31789000
Classification NameUniclass2015
Classification ValuePr_40_20_87_84
Code Performancen/a
Cold Water Connection Diameter10 mm
ColorSilver
Constituentsn/a
Created Byinfo-uk@grohe.com
Created On2019-12-05T09:00:00
CW ConnectionYes
CWFU4.5
Default Elevation0 mm
DescriptionSingle-lever sink mixer 1/2“. high spout. single hole installation. GROHE StarLight finish. GROHE SilkMove 35 mm ceramic cartridge. integrated temperature limiter. mousseur. adjustable flow rate limiter. swivel tubular spout. adjustable swivel area 0° / 150° / 360°. flexible connection hoses. rapid installation system. min. recommended pressure 1.0 bar.
Documentation Certificateswww.grohe.com/
Documentation Installation Guidewww.grohe.com/
Documentation Literaturewww.grohe.com/
Documentation Maintenancewww.grohe.com/
Documentation Technicalwww.grohe.com/
Duration UnitYears
EcojoyNo
Expected Life0
Faucet MaterialGrohe-Chrome
FeaturesSingle-lever sink mixer 1/2“. high spout. single hole installation. GROHE StarLight finish. GROHE SilkMove 35 mm ceramic cartridge. integrated temperature limiter. mousseur. adjustable flow rate limiter. swivel tubular spout. adjustable swivel area 0° / 150° / 360°. flexible connection hoses. rapid installation system. min. recommended pressure 1.0 bar.
FinishStainless Steel
Graden/a
Hot Water Connection Diameter10 mm
HW ConnectionYes
HWFU4.5
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
Industry Standardsn/a
KeynoteN13
LEED Creditn/a
Low Emitting MaterialNo
ManufacturerGrohe
Manufacturer NameGrohe
Masterformat Number01 52 19
Masterformat TitleSanitary Facilities
MaterialStainless Steel
ModelEurosmart 2015 OHM sink high spout
Model Number31789000
Model ReferenceEurosmart 2015 OHM sink high spout
NBS DescriptionWater supply fittings for sinks
NBS Object NameGrohe - Water supply fittings for sinks
NBS Office Master Tagn/a
NBS Reference45-35-70/345
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Percentage Of Recycled Contentn/a
Product Documentation Linkn/a
Production Year2019
Product Page URLn/a
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsn/a
Type Comments31789000
Type Name31789000
URLwww.grohe.com
Vent ConnectionNo
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsinfo-uk@grohe.com
Waste ConnectionNo
