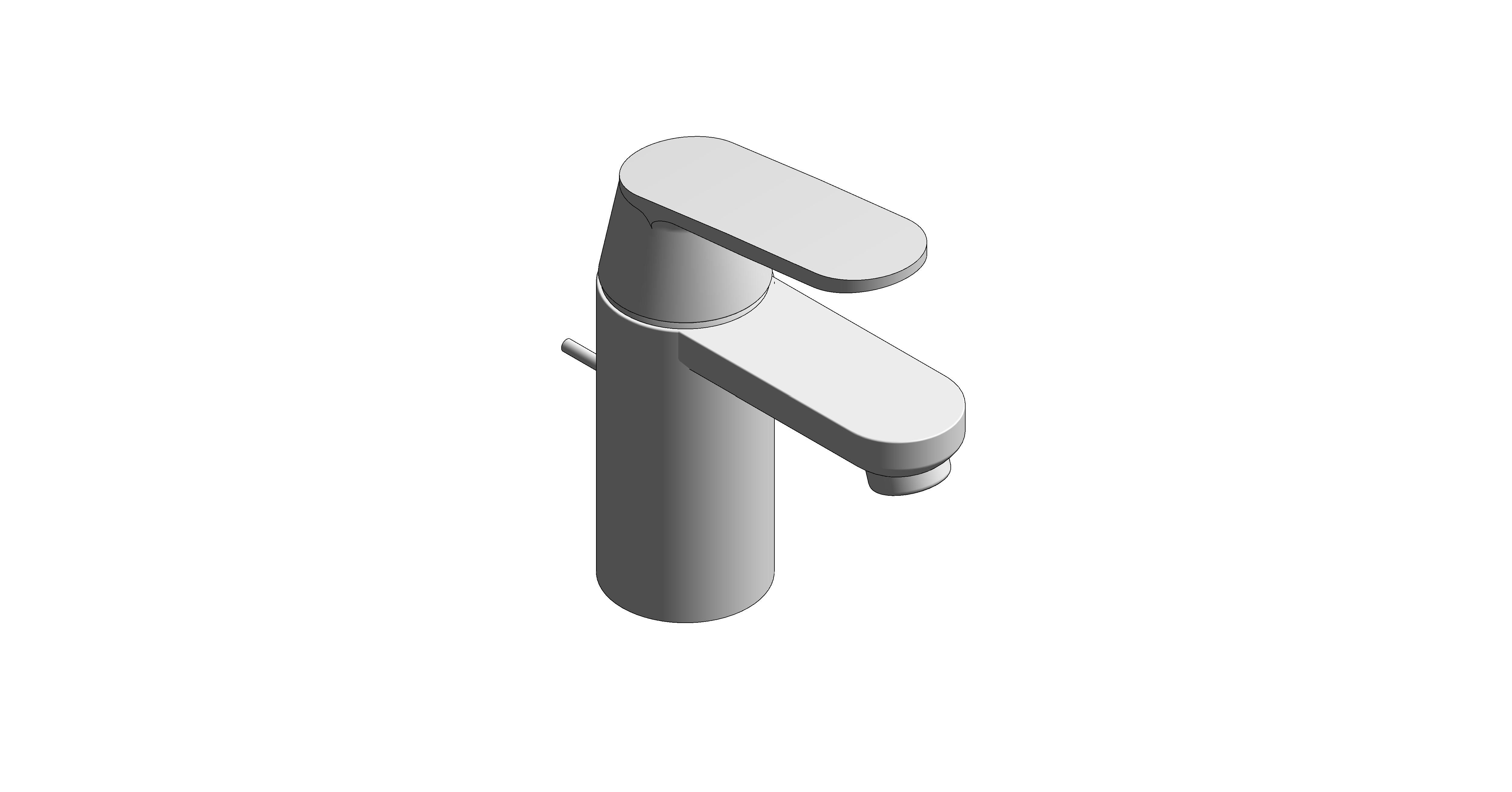

Grohe Eurosmart Cosmopolitan Single Lever Basin Mixer 1/2" S-Size - 23952000

Download Add to collection

Description

single hole installation
metal lever
GROHE SilkMove 35 mm ceramic cartridge
adjustable flow rate limiter
GROHE StarLight chrome finish
GROHE QuickFix installation system
with centering support
mousseur
pop-up waste set 1 1/4“
flexible connection hoses
min. recommended pressure 1.0 bar
optional temperature limiter ref. no. 46 375 000
noise classification I in accordance with DIN 4109

Object Data

1 Revision

Last Updated

30/04/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
Accessibility Performancen/a
ADA CompliantNo
Assembly CodeC1030
Asset TypeFixed
BIM Object NameGrohe_PlumbingFixtures_BasinMixer_Eurosmart_23952000
Classification NameUniclass2015
Classification ValuePr_40_20_87_96
Code Performancen/a
Cold Water Connection Diameter10 mm
ColorSilver
Constituentsn/a
Created Byinfo-uk@grohe.com
Created On2020-02-01T09:00:00
CW ConnectionYes
CWFU4.5
Default Elevation0 mm
Descriptionsingle hole installation. metal lever. GROHE SilkMove 35 mm ceramic cartridge. adjustable flow rate limiter. GROHE StarLight chrome finish. GROHE QuickFix installation system. with centering support. mousseur. pop-up waste set 1 1/4“. flexible connection hoses. min. recommended pressure 1.0 bar. optional temperature limiter ref. no. 46 375 000. noise classification I in accordance with DIN 4109.
Documentation Certificateswww.grohe.com/
Documentation Installation Guidewww.grohe.com/
Documentation Literaturewww.grohe.com/
Documentation Maintenancewww.grohe.com/
Documentation Technicalwww.grohe.com/
Duration UnitYears
EcojoyNo
Expected Life0
Faucet MaterialGrohe-Chrome
Featuressingle hole installation. metal lever. GROHE SilkMove 35 mm ceramic cartridge. adjustable flow rate limiter. GROHE StarLight chrome finish. GROHE QuickFix installation system. with centering support. mousseur. pop-up waste set 1 1/4“. flexible connection hoses. min. recommended pressure 1.0 bar. optional temperature limiter ref. no. 46 375 000. noise classification I in accordance with DIN 4109.
FinishStarLight Chrome
Graden/a
Hot Water Connection Diameter10 mm
HW ConnectionYes
HWFU4.5
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
Industry Standardsn/a
KeynoteN13
LEED Creditn/a
Low Emitting MaterialNo
ManufacturerGrohe
Manufacturer NameGrohe
Masterformat Number01 52 19
Masterformat TitleSanitary Facilities
MaterialStarLight Chrome
ModelEurosmart Cosmopolitan Single-lever basin mixer 1/2“ S-Size
Model Number23952000
Model ReferenceEurosmart Cosmopolitan Single-lever basin mixer 1/2“ S-Size
NBS DescriptionWashbasin manual water supply sets
NBS Object NameGrohe - Washbasin manual water supply sets
NBS Office Master Tagn/a
NBS Reference45-35-70/371
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Percentage Of Recycled Contentn/a
Product Documentation Linkn/a
Production Year2020
Product Page URLn/a
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsn/a
Type Comments23952000
Type Name23952000
URLwww.grohe.com
Vent ConnectionNo
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com
Waste ConnectionNo

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
