Grohe Eurosmart Cosmopolitan E Special Infra-Red Electronic Wall Basin Mixer With Thermostatic Temperature Control 1/2" L-Size - 36454000

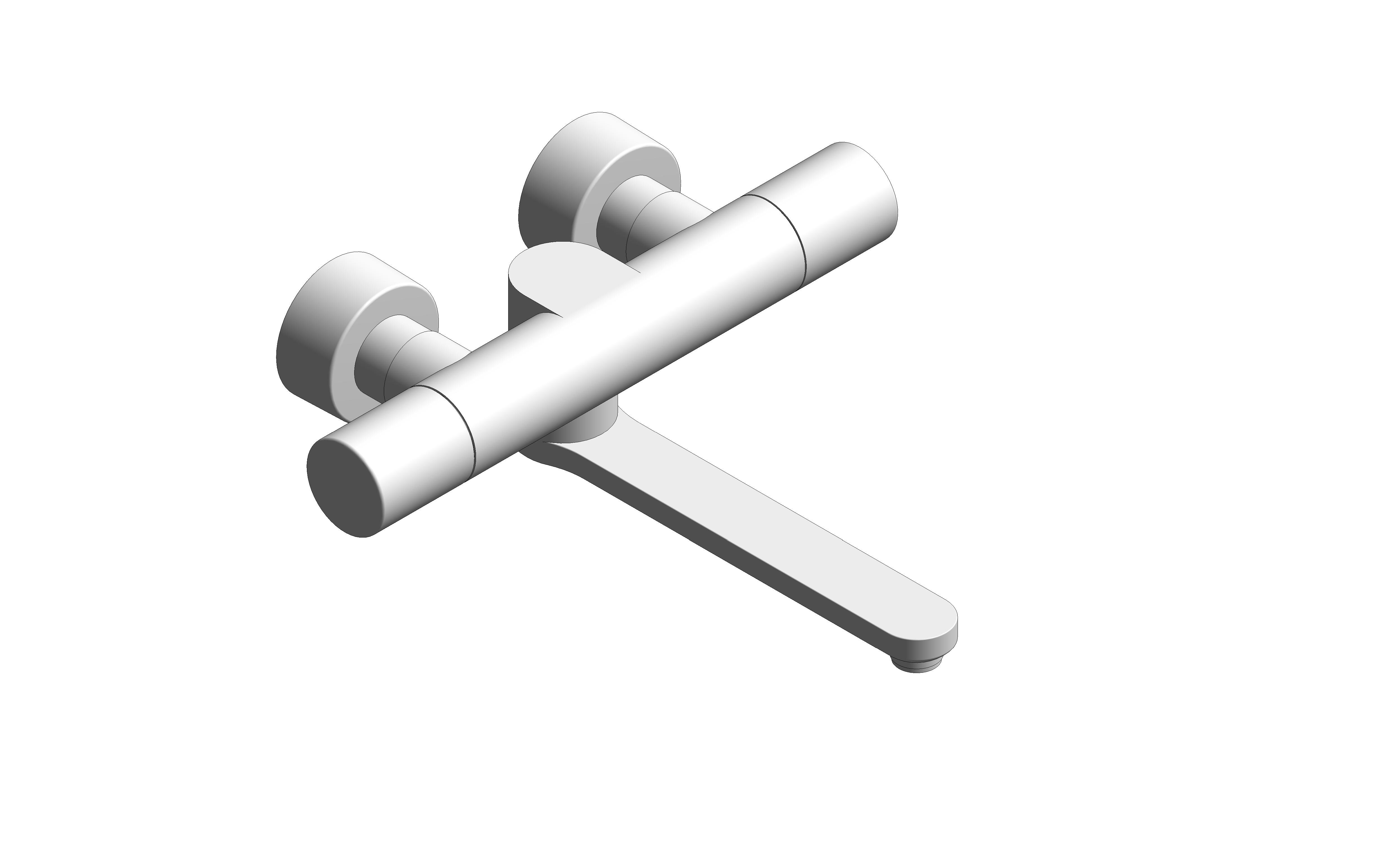

  • bimstore 3D image of the Eurosmart Cosmopolitan E Special Infra-Red Electronic Wall Basin Mixer With Thermostatic Temperature Control 1/2" L-Size - 36454000 from Grohe

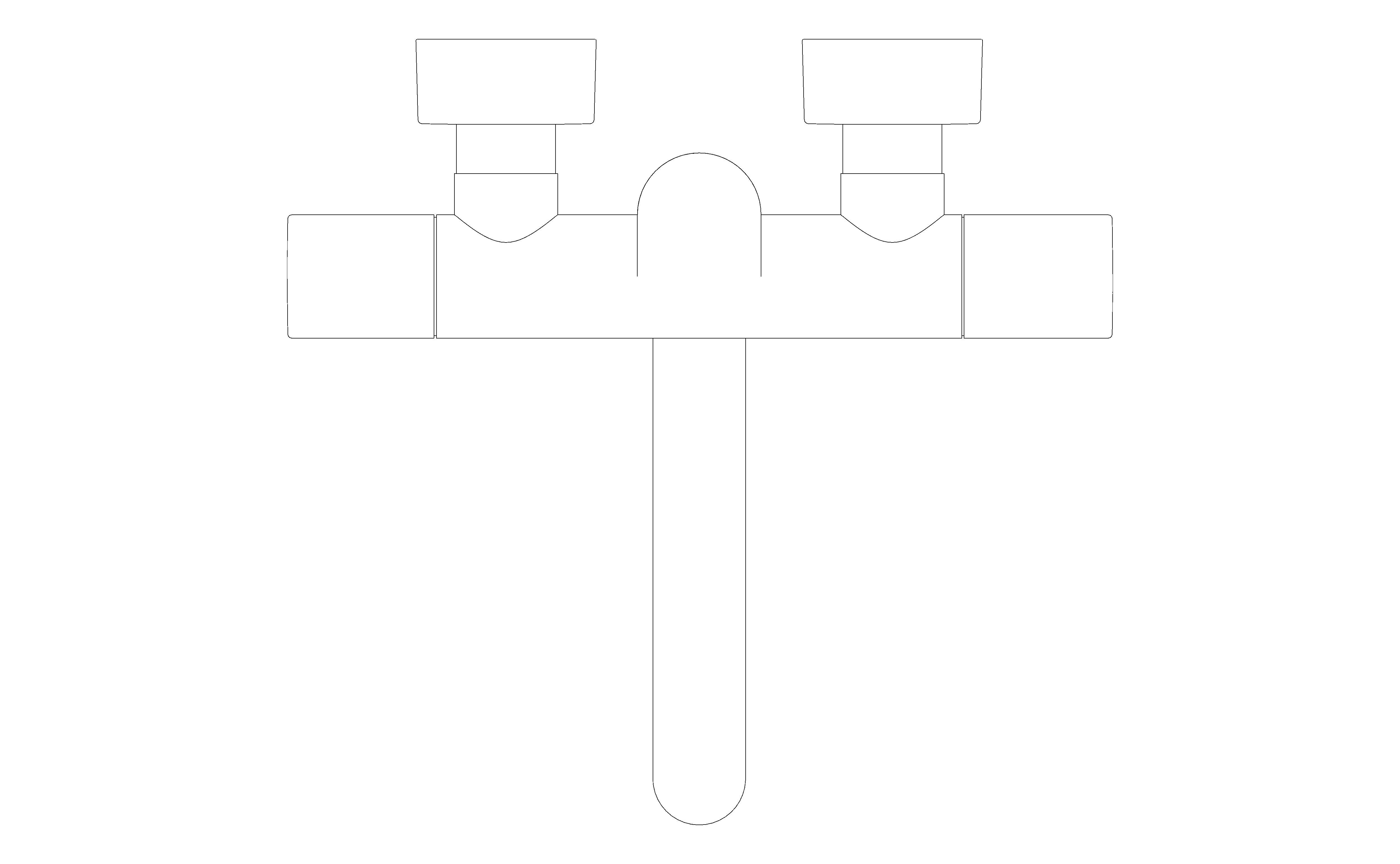

  • bimstore 3D image of the Eurosmart Cosmopolitan E Special Infra-Red Electronic Wall Basin Mixer With Thermostatic Temperature Control 1/2" L-Size - 36454000 from Grohe
  • bimstore 3D image of the Eurosmart Cosmopolitan E Special Infra-Red Electronic Wall Basin Mixer With Thermostatic Temperature Control 1/2" L-Size - 36454000 from Grohe
  • bimstore 3D image of the Eurosmart Cosmopolitan E Special Infra-Red Electronic Wall Basin Mixer With Thermostatic Temperature Control 1/2" L-Size - 36454000 from Grohe
  • Views 90
  • Comments 0
  • Rating- / 5
    Rate this product
    1/5 Rating1/5 Rating2/5 Rating2/5 Rating3/5 Rating3/5 Rating4/5 Rating4/5 Rating5/5 Rating5/5 Rating

EN ISO 23386

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

30/04/2020

Available for:
  • Logo: Autodesk Revit
  • with infrared sensor for bi-directional communication
  • for monitoring, configuration and servicing
  • 6 V lithium battery, type CR-P2
  • battery lifetime: approx. 7 years (150 actuations a day)
  • activation by hand, deactivation automatically when leaving detection zone (handbody
  • detection mode)
  • two additional detection modes adjustable (hand-hand or body-body)
  • GROHE StarLight chrome finish
  • GROHE CoolTouch
  • laminar mousseur 9 l/min
  • non-return valve
  • dirt strainers
  • GROHE SafetyPlus fixed temperature stop
  • temperature scale handle with internal safety stop between 35°C and 43°C
  • metal temperature safety stop
  • full unmixed hot or cold water in extreme handle position for legionella sampling
  • swivel cast spout 219 mm
  • projection 287 mm
  • swivel range stop at 130°, lockable
  • with S-unions and with covers
  • self-sealing escutcheons
  • multistage battery status display
  • 7 pre-set programs:
  • auto flush
  • thermal disinfection
  • cleaning mode
  • additional functions and precise settings by remote control 36 407
  • CE approved
  • noise classification I in accordance with DIN 4109
