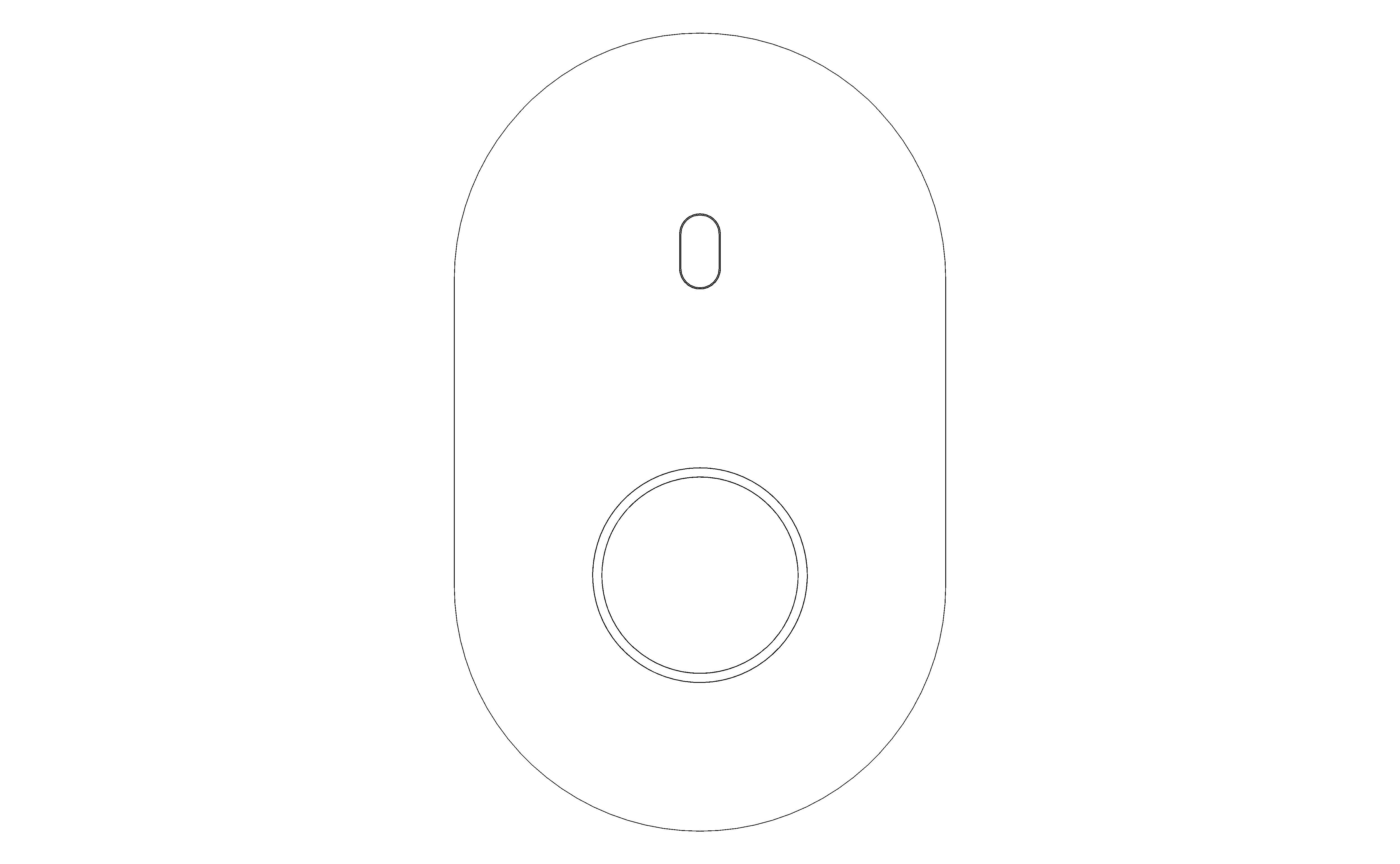

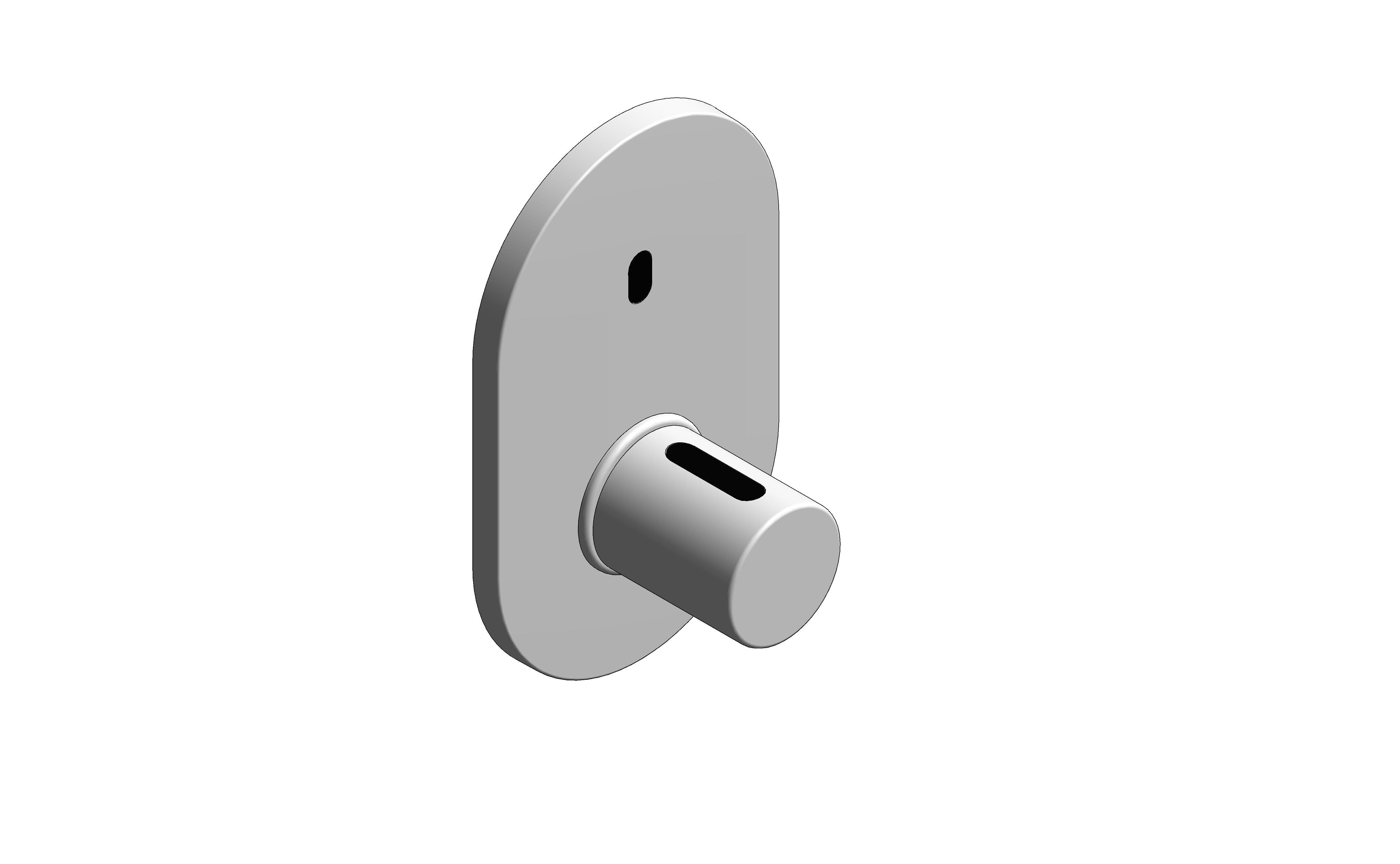

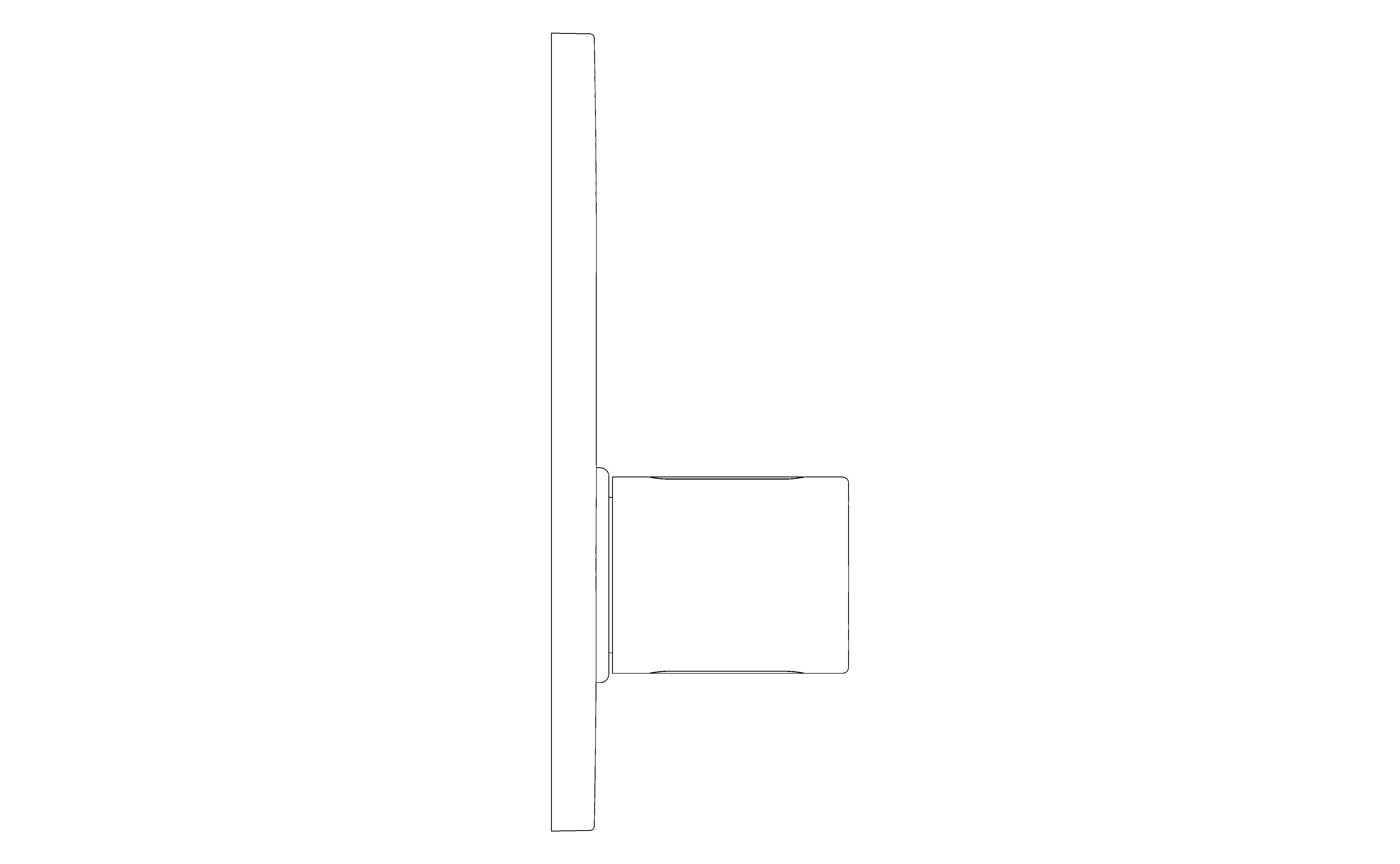

Grohe Eurosmart Cosmopolitan E Special Infra-Red Electronic for Concealed Shower Thermostat - 36456000

Download Add to collection

Description

with infrared sensor for bi-directional communication
for monitoring, configuration and servicing
for concealed installation box 36 458 000 and 36 459 000
ergonomic metal handle
GROHE StarLight chrome finish
GROHE SafetyPlus fixed temperature stop
temperature scale handle with internal safety stop between 35°C and 43°C
metal temperature safety stop
full unmixed hot or cold water in extreme handle position for legionella sampling
7 pre-set programs:
auto flush
thermal disinfection
cleaning mode
additional functions and precise settings by remote control 36 407
CE approved
noise classification I in accordance with DIN 4109

Object Data

1 Revision

Last Updated

30/04/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Maintenance Information

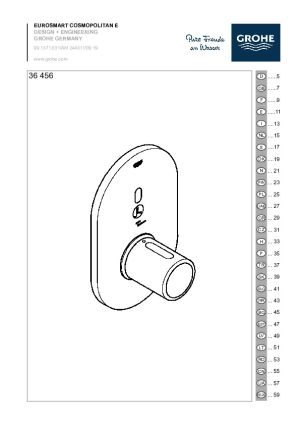

Technical Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
Accessibility Performancen/a
ADA CompliantNo
Assembly CodeC1030
Asset TypeFixed
BIM Object NameGrohe_PlumbingFixtures_ShowerThermostat_Eurosmart_36456000
Classification NameUniclass2015
Classification ValuePr_40_20_87_78
Code Performancen/a
Cold Water Connection Diameter10 mm
ColorSilver
Constituentsn/a
Created Byinfo-uk@grohe.com
Created On2020-02-01T09:00:00
CW ConnectionYes
CWFU4.5
Default Elevation0 mm
Descriptionwith infrared sensor for bi-directional communication. for monitoring, configuration and servicing. for concealed installation box 36 458 000 and 36 459 000. ergonomic metal handle. GROHE StarLight chrome finish. GROHE SafetyPlus fixed temperature stop. temperature scale handle with internal safety stop between 35°C and 43°C. metal temperature safety stop. full unmixed hot or cold water in extreme handle position for legionella sampling. 7 pre-set programs:. auto flush. thermal disinfection. cleaning mode. additional functions and precise settings by remote control 36 407. CE approved. noise classification I in accordance with DIN 4109.
Documentation Certificateswww.grohe.com/
Documentation Installation Guidewww.grohe.com/
Documentation Literaturewww.grohe.com/
Documentation Maintenancewww.grohe.com/
Documentation Technicalwww.grohe.com/
Duration UnitYears
EcojoyNo
Expected Life0
Faucet MaterialGrohe-Chrome
Featureswith infrared sensor for bi-directional communication. for monitoring, configuration and servicing. for concealed installation box 36 458 000 and 36 459 000. ergonomic metal handle. GROHE StarLight chrome finish. GROHE SafetyPlus fixed temperature stop. temperature scale handle with internal safety stop between 35°C and 43°C. metal temperature safety stop. full unmixed hot or cold water in extreme handle position for legionella sampling. 7 pre-set programs:. auto flush. thermal disinfection. cleaning mode. additional functions and precise settings by remote control 36 407. CE approved. noise classification I in accordance with DIN 4109.
Finishn/a
Graden/a
Hot Water Connection Diameter10 mm
HW ConnectionYes
HWFU4.5
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
Industry Standardsn/a
KeynoteN13
LEED Creditn/a
Low Emitting MaterialNo
ManufacturerGrohe
Manufacturer NameGrohe
Masterformat Number01 52 19
Masterformat TitleSanitary Facilities
Materialn/a
ModelEurosmart Cosmopolitan E Special Infra-red electronic for concealed shower thermostat
Model Number36456000
Model ReferenceEurosmart Cosmopolitan E Special Infra-red electronic for concealed shower thermostat
NBS DescriptionShower manual water supply sets
NBS Object NameGrohe - Shower manual water supply sets
NBS Office Master Tagn/a
NBS Reference45-35-70/335
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Percentage Of Recycled Contentn/a
Product Documentation Linkn/a
Production Year2020
Product Page URLn/a
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsn/a
Type Comments36456000
Type Name36456000
URLwww.grohe.com
Vent ConnectionNo
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com
Waste ConnectionNo

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
