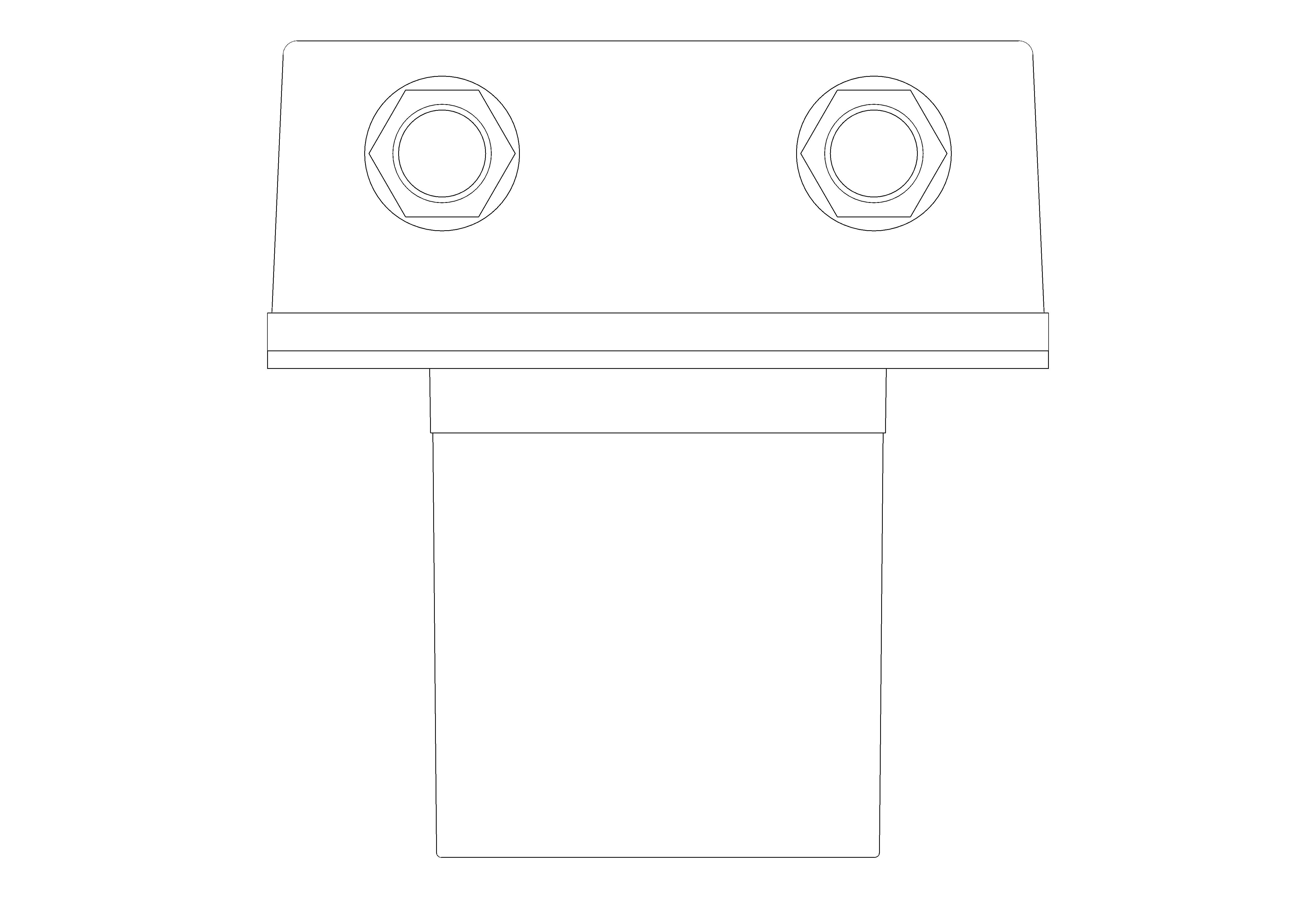

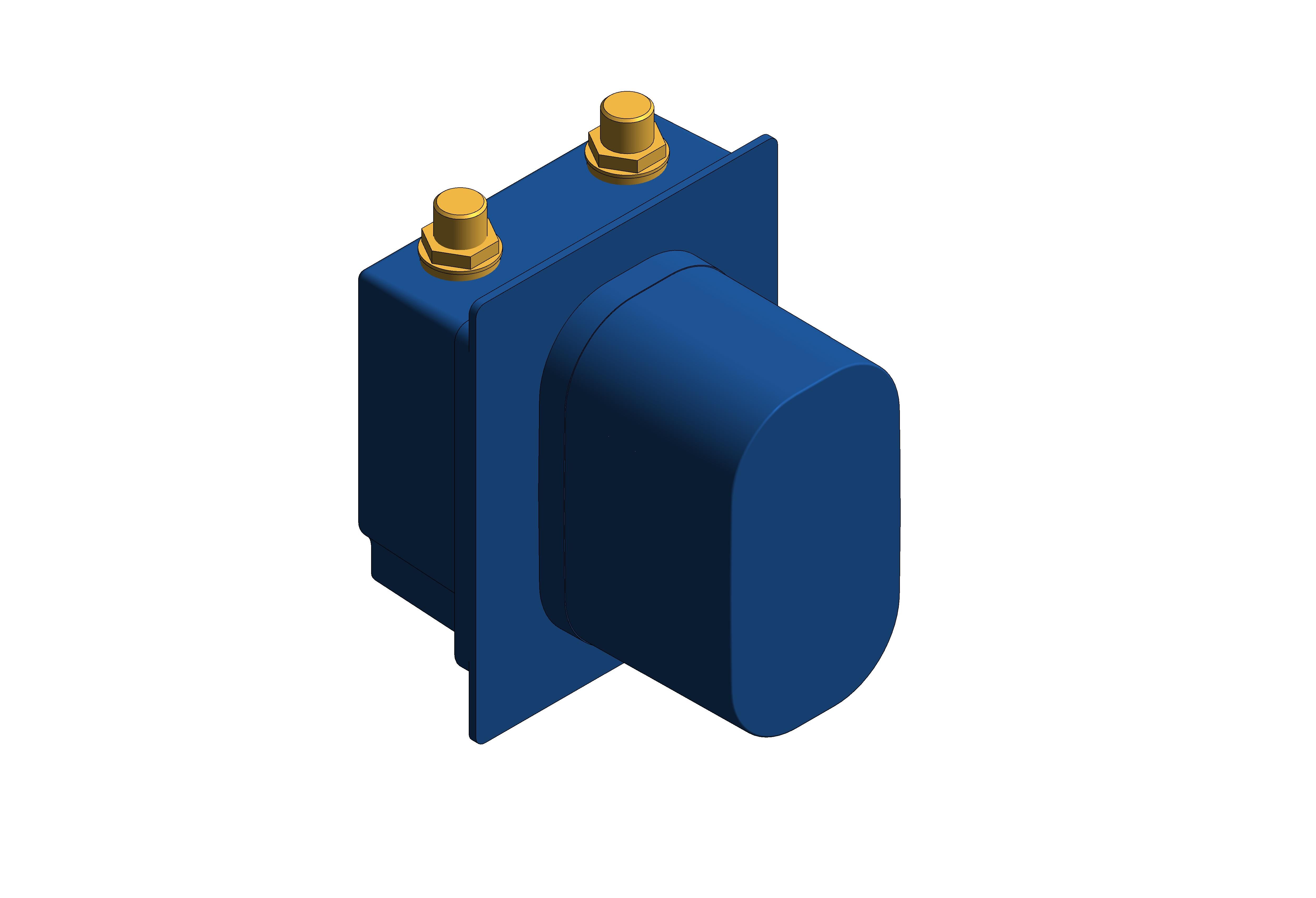

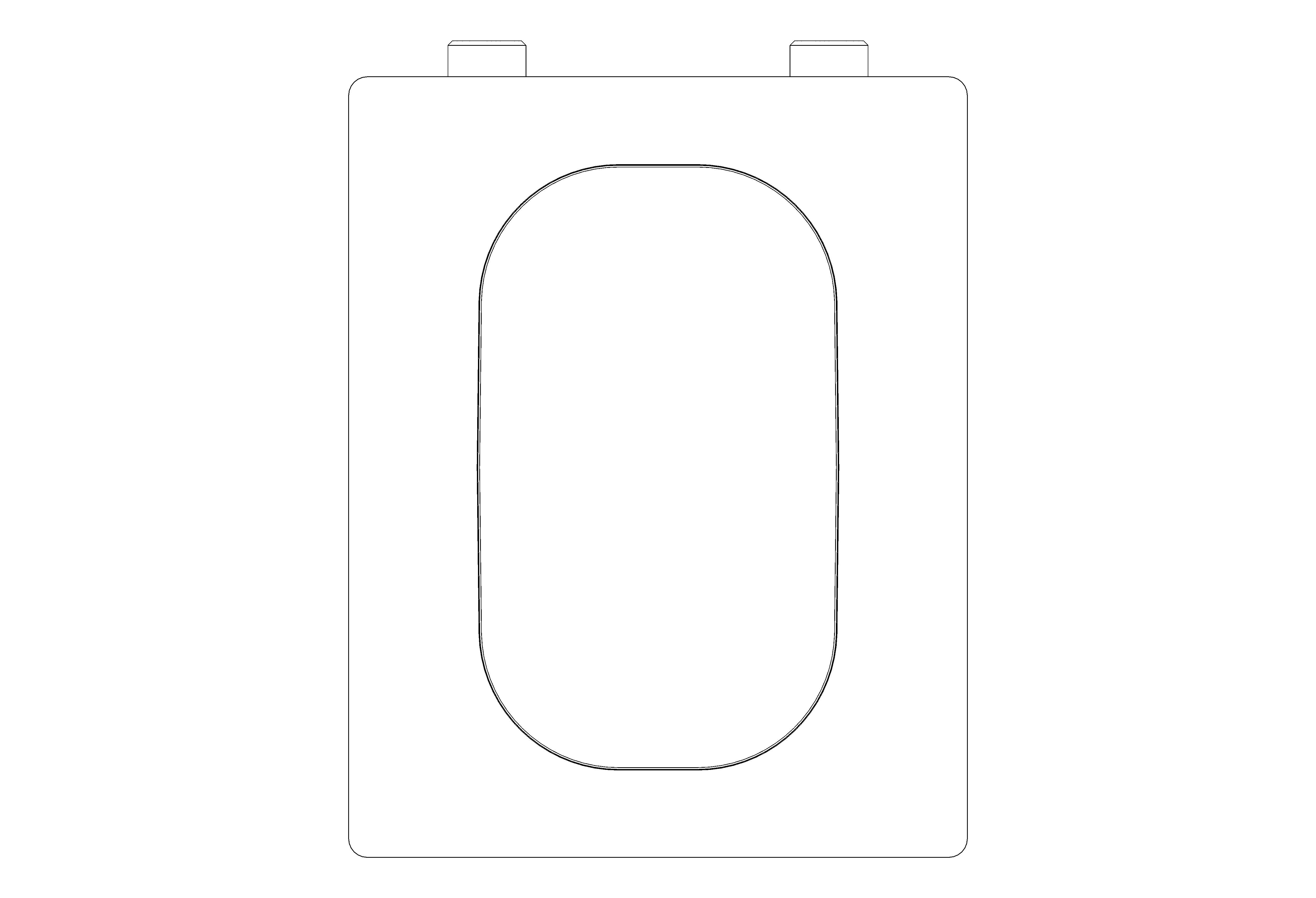

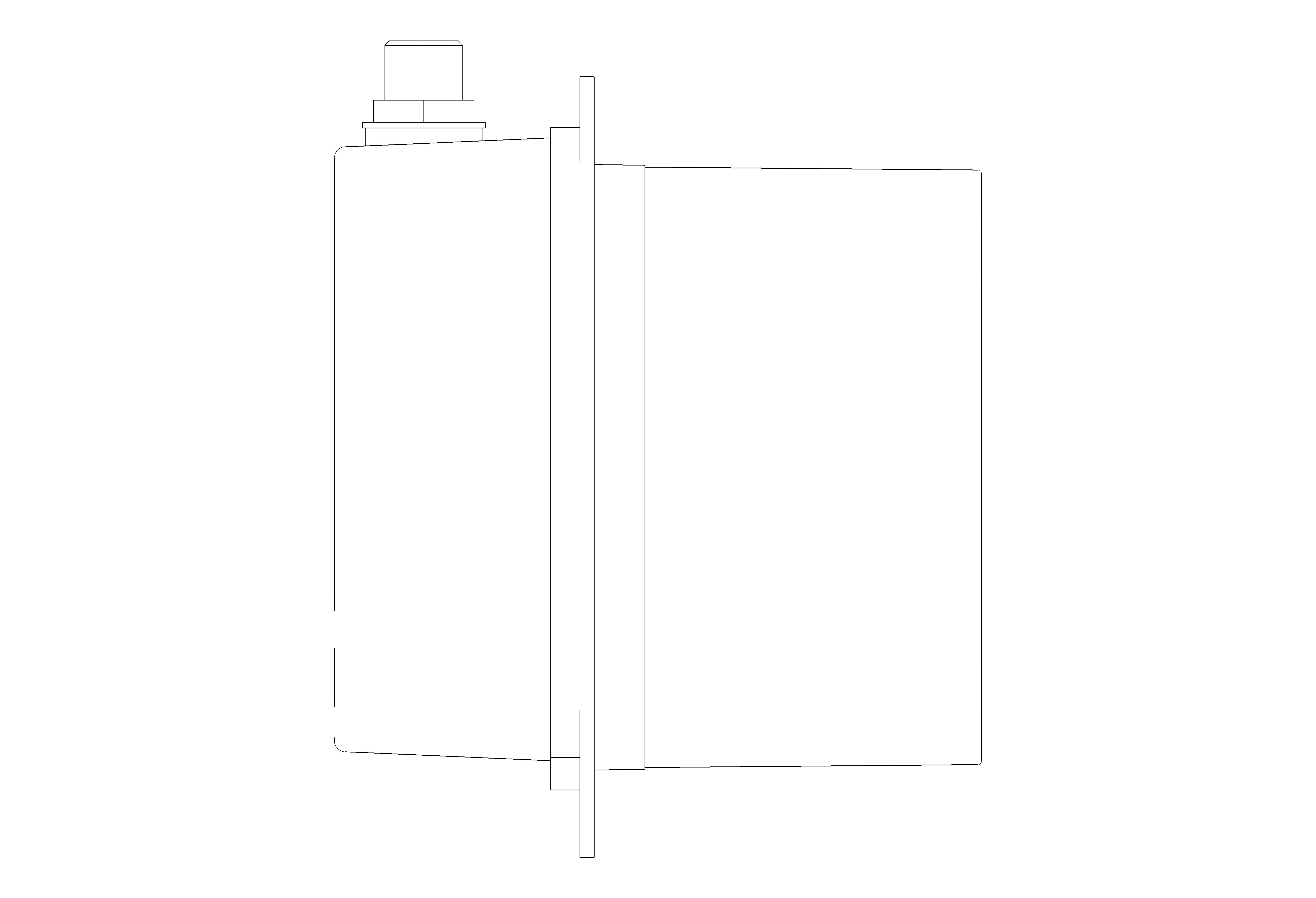

Grohe Eurosmart Cosmopolitan E Concealed Mounting Box - 36336001

Download Add to collection

Description

with integrated pre-adjustable thermostatic mixer
wall installation
suitable for IR-sets for final installation
2 stop valves
non-return valve
connection housing for power supply
suitable for
36 410 000, 36 334 SD0, 36 335 SD0, 36 273 000
allows for waterproofing of wall construction surrounding the concealed body
with sealing sleeve
min. recommended pressure 1.0 bar

Object Data

1 Revision

Last Updated

30/04/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Technical Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
Accessibility Performancen/a
ADA CompliantNo
Assembly CodeC1030
Asset TypeFixed
BIM Object NameGrohe_PlumbingFixtures_ConcealedBody_Eurosmart_36336001
Classification NameUniclass2015
Classification ValuePr_40_20_87_80
Code Performancen/a
Cold Water Connection Diameter10 mm
ColorBlue
Constituentsn/a
Created Byinfo-uk@grohe.com
Created On2020-02-01T09:00:00
CW ConnectionYes
CWFU4.5
Default Elevation0 mm
Descriptionwith integrated pre-adjustable thermostatic mixer. wall installation. suitable for IR-sets for final installation. 2 stop valves. non-return valve. connection housing for power supply. suitable for. 36 410 000, 36 334 SD0, 36 335 SD0, 36 273 000. allows for waterproofing of wall construction surrounding the concealed body. with sealing sleeve. min. recommended pressure 1.0 bar.
Documentation Certificateswww.grohe.com/
Documentation Installation Guidewww.grohe.com/
Documentation Literaturewww.grohe.com/
Documentation Maintenancewww.grohe.com/
Documentation Technicalwww.grohe.com/
Duration UnitYears
EcojoyNo
Expected Life0
Faucet MaterialPlastic, Opaque Dark Blue
Featureswith integrated pre-adjustable thermostatic mixer. wall installation. suitable for IR-sets for final installation. 2 stop valves. non-return valve. connection housing for power supply. suitable for. 36 410 000, 36 334 SD0, 36 335 SD0, 36 273 000. allows for waterproofing of wall construction surrounding the concealed body. with sealing sleeve. min. recommended pressure 1.0 bar.
Finishn/a
Graden/a
Hot Water Connection Diameter10 mm
HW ConnectionYes
HWFU4.5
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
Industry Standardsn/a
KeynoteN13
LEED Creditn/a
Low Emitting MaterialNo
ManufacturerGrohe
Manufacturer NameGrohe
Masterformat Number01 52 19
Masterformat TitleSanitary Facilities
Materialn/a
ModelEurosmart Cosmopolitan E Concealed mounting box
Model Number36336001
Model ReferenceEurosmart Cosmopolitan E Concealed mounting box
NBS DescriptionShower thermostatic valves
NBS Object NameGrohe - Shower thermostatic valves
NBS Office Master Tagn/a
NBS Reference45-35-70/335
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Percentage Of Recycled Contentn/a
Product Documentation Linkn/a
Production Year2020
Product Page URLn/a
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsn/a
Type Comments36336001
Type Name36336001
URLwww.grohe.com
Vent ConnectionNo
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com
Waste ConnectionNo

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
