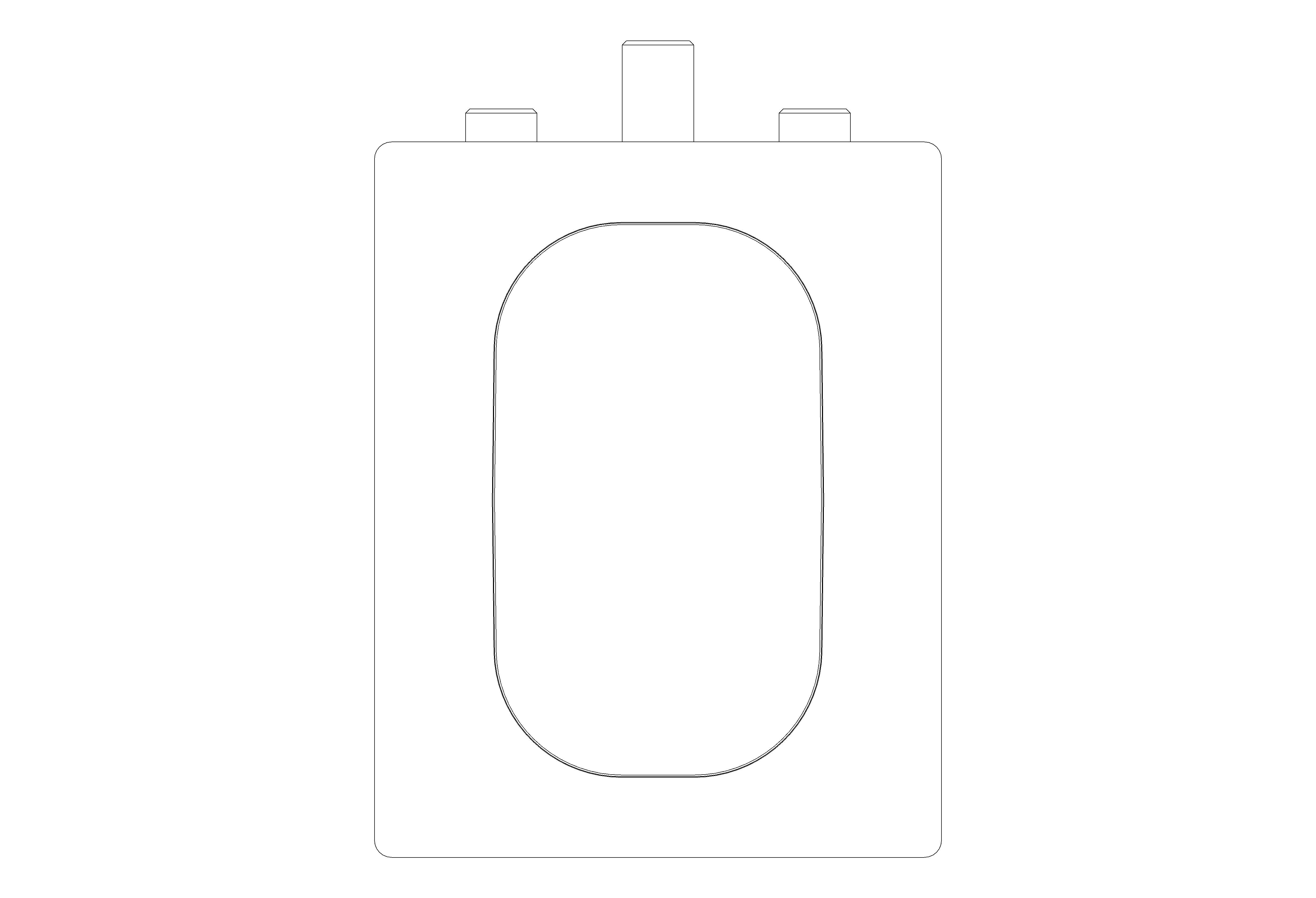

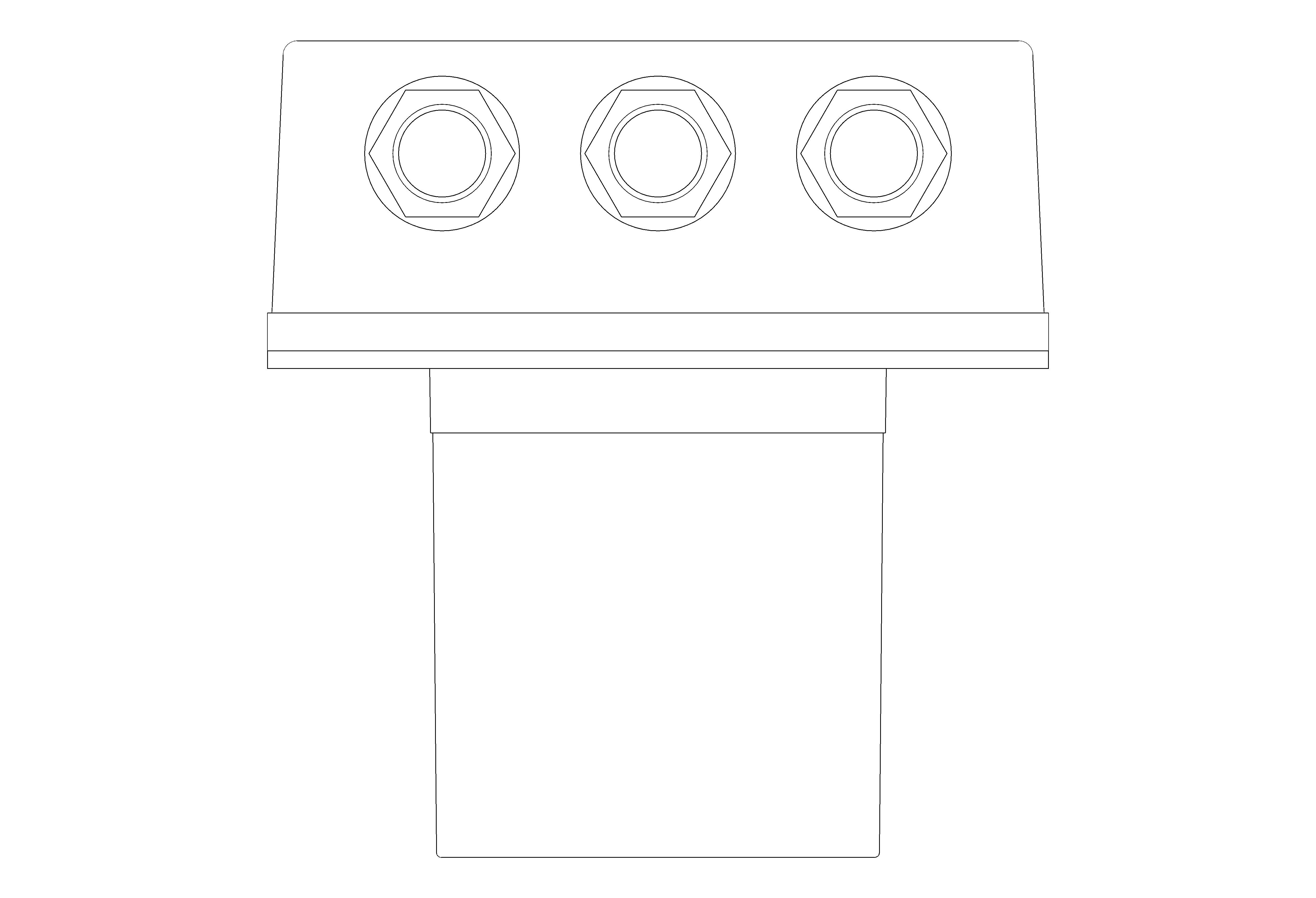

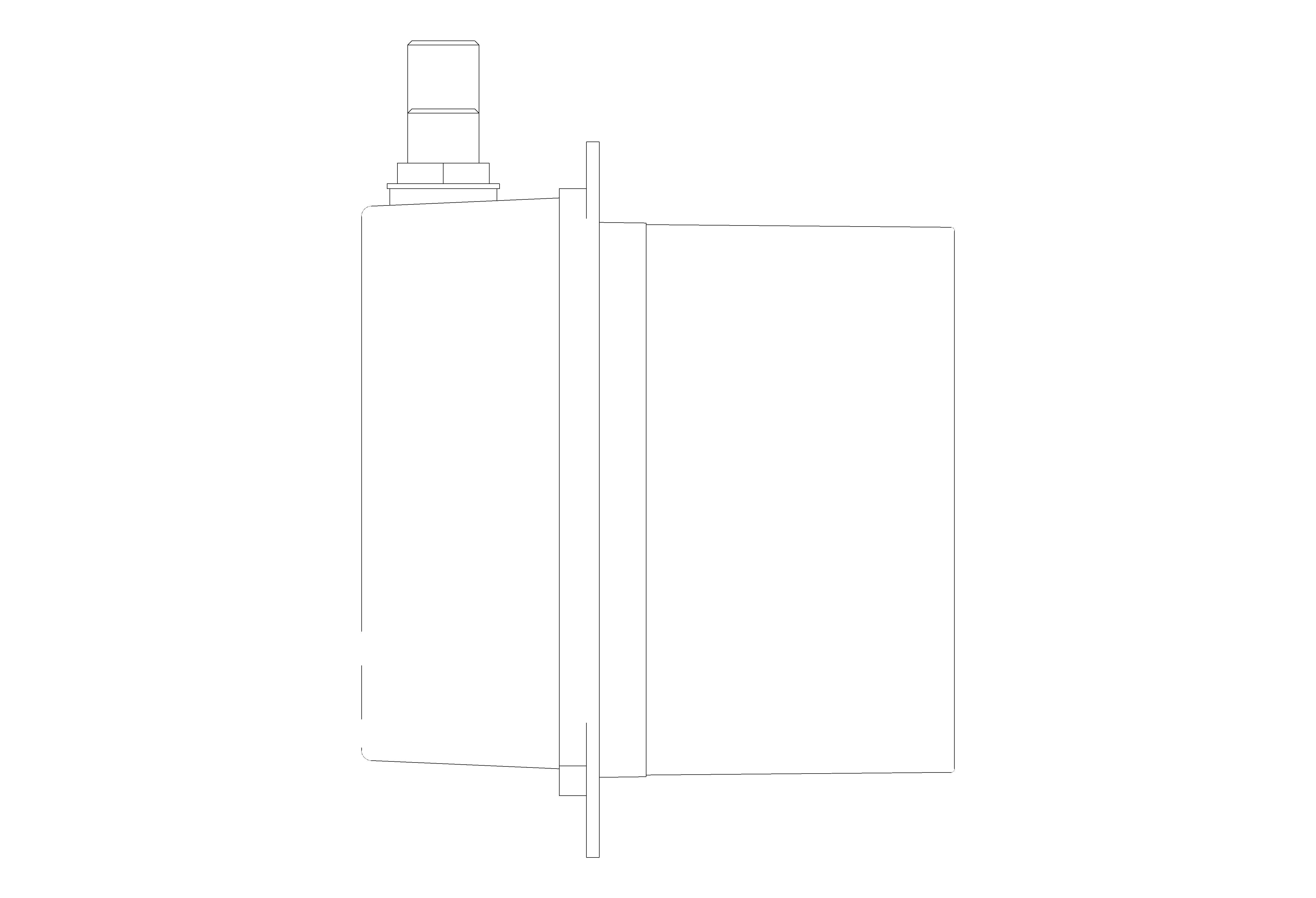

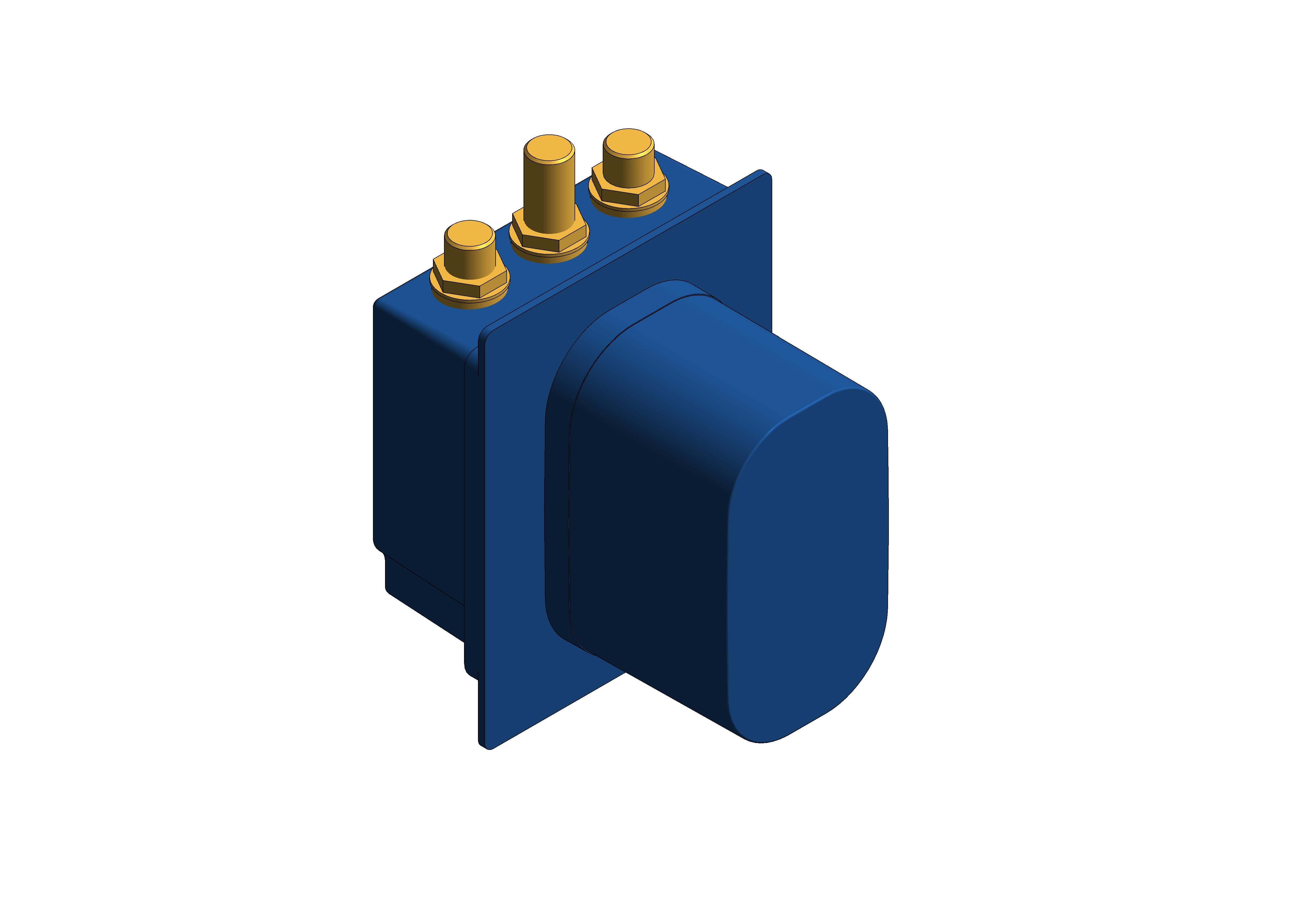

Grohe Eurosmart Cosmopolitan E Concealed Body - 36464000

Download Add to collection

Description

for shower
with integrated pre-adjustable thermostatic mixer
suitable for infra-red set 36 463 000
2 stop valves
non-return valves with filters
6 V lithium battery, type CR-P2
battery lifetime: approx. 7 years (150 actuations a day)
allows for waterproofing of wall construction surrounding the concealed body
with sealing sleeve

Object Data

1 Revision

Last Updated

30/04/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

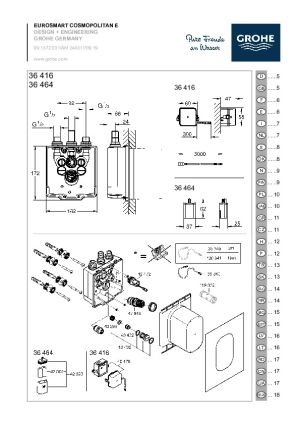

Technical Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
Accessibility Performancen/a
ADA CompliantNo
Assembly CodeC1030
Asset TypeFixed
BIM Object NameGrohe_PlumbingFixtures_ConcealedBody_Eurosmart_36464000
Classification NameUniclass2015
Classification ValuePr_40_20_87_80
Code Performancen/a
Cold Water Connection Diameter10 mm
ColorBlue
Constituentsn/a
Created Byinfo-uk@grohe.com
Created On2020-02-01T09:00:00
CW ConnectionYes
CWFU4.5
Default Elevation0 mm
Descriptionfor shower. with integrated pre-adjustable thermostatic mixer. suitable for infra-red set 36 463 000. 2 stop valves. non-return valves with filters. 6 V lithium battery, type CR-P2. battery lifetime: approx. 7 years (150 actuations a day). allows for waterproofing of wall construction surrounding the concealed body. with sealing sleeve.
Documentation Certificateswww.grohe.com/
Documentation Installation Guidewww.grohe.com/
Documentation Literaturewww.grohe.com/
Documentation Maintenancewww.grohe.com/
Documentation Technicalwww.grohe.com/
Duration UnitYears
EcojoyNo
Expected Life0
Faucet MaterialPlastic, Opaque Dark Blue
Featuresfor shower. with integrated pre-adjustable thermostatic mixer. suitable for infra-red set 36 463 000. 2 stop valves. non-return valves with filters. 6 V lithium battery, type CR-P2. battery lifetime: approx. 7 years (150 actuations a day). allows for waterproofing of wall construction surrounding the concealed body. with sealing sleeve.
Finishn/a
Graden/a
Hot Water Connection Diameter10 mm
HW ConnectionYes
HWFU4.5
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
Industry Standardsn/a
KeynoteN13
LEED Creditn/a
Low Emitting MaterialNo
ManufacturerGrohe
Manufacturer NameGrohe
Masterformat Number01 52 19
Masterformat TitleSanitary Facilities
Materialn/a
ModelEurosmart Cosmopolitan E Concealed body
Model Number36464000
Model ReferenceEurosmart Cosmopolitan E Concealed body
NBS DescriptionShower thermostatic valves
NBS Object NameGrohe - Shower thermostatic valves
NBS Office Master Tagn/a
NBS Reference45-35-70/335
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Percentage Of Recycled Contentn/a
Product Documentation Linkn/a
Production Year2020
Product Page URLn/a
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsn/a
Type Comments36464000
Type Name36464000
URLwww.grohe.com
Vent ConnectionNo
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com
Waste ConnectionNo

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
