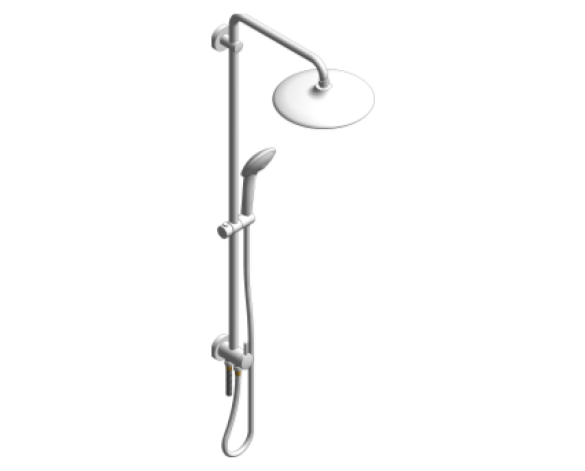

Grohe Euphoria - System 260 - 27421002

3.3k
0
- / 5
Rate this product

-

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

20/04/2018

Download BIM

Add to collection

Available for:

Euphoria System 260Shower system with diverter for wall mountingConsisting of:horizontal swivable 450 mm projection shower armchange between hand and head shower by using the diverterhead shower Euphoria 260 (26 457)3 spray patterns:Rain, SmartRain, Jetwith ball jointrotation angle ± 15°hand shower Euphoria 110 Massage (27 239 000)3 spray patterns:Rain, SmartRain, Massageadjustable height via gliding elementSilverflex shower hose 1750 mm (28 388 000)Silverflex shower hose 800 mmconnection to water supply with 1/2"-thread of the 800 mm shower hose to faucet / wall unionGROHE EcoJoy 9.5 l/min flow limiterGROHE DreamSpray perfect spray patternGROHE StarLight chrome finishGROHE SprayDimmer (Stepless flow rate reduction)SpeedClean anti-limescale systemInner WaterGuide for a longer lifeTwistfree preventing the hose from twistingmin.recommended pressure 1 barminimum flow rate 7 l/min.min. recommended pressure 1 bar

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2016 for use in MEP systems and is in line with 2015 industry standards.

_AuthorRyan Lashley
_Authorized ByRyan Lashley
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
ADA CompliantNo
Assembly CodeC1030
Asset TypeFixed
BIM Object NameGrohe_PlumbingFixtures_Euphoria_ShowerSystem_27421002
Classification NameUniclass2015
Classification ValuePr_40_20_87_75
Code Performancen/a
Cold Water Connection Diameter10 mm
ColorSilver
Constituentsn/a
Created Byinfo-uk@grohe.com
Created On2018-02-01T09:00:00
Default Elevation0 mm
DescriptionThis impressive shower system with a diverter adds instant designer style and showering enjoyment to any modern bathroom. This system is ideal for quick bathroom revamps as it’s compatible with your existing shower valves and can be fitted in no time. Made in Germany and packed with GROHE’s cutting edge technology, top performance is guaranteed. GROHE EcoJoy limits water flow to 9.5 l/min but guarantees complete showering satisfaction and GROHE DreamSpray ensures the flow of water from every nozzle is even. The 260mm head shower comes with three distinctive spray zones. Jet Spray is powerful and focused, perfect for washing out shampoo and an invigorating head or neck massage. The SmartRain Spray is wider for an energizing yet relaxing experience and Rain Spray uses all the nozzles on the generous spray plate for full body coverage and a truly soothing shower. To choose the spray you want all you have to do is turn the button in the centre of the spray head. And its 450mm arm even swivels through 180° for added flexibility. The 110mm hand shower, which has a Silverflex (1750mm) TwistFree hose, offers the soft Rain, the water-saving SmartRain and the powerful Massage Spray. GROHE’s scratch resistant StarLight chrome finish has a sparkle that lasts for years and the Inner WaterGuide prevents the surface of the shower from getting hot. TThe GROHE Euphoria 260 shower system with diverter – all-round showering perfection that will make you smile!
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturen/a
Documentation Maintenancen/a
Documentation Technicaln/a
Duration UnitYears
EcojoyNo
Expected Life0
FeaturesThis impressive shower system with a diverter adds instant designer style and showering enjoyment to any modern bathroom. This system is ideal for quick bathroom revamps as it’s compatible with your existing shower valves and can be fitted in no time. Made in Germany and packed with GROHE’s cutting edge technology, top performance is guaranteed. GROHE EcoJoy limits water flow to 9.5 l/min but guarantees complete showering satisfaction and GROHE DreamSpray ensures the flow of water from every nozzle is even. The 260mm head shower comes with three distinctive spray zones. Jet Spray is powerful and focused, perfect for washing out shampoo and an invigorating head or neck massage. The SmartRain Spray is wider for an energizing yet relaxing experience and Rain Spray uses all the nozzles on the generous spray plate for full body coverage and a truly soothing shower. To choose the spray you want all you have to do is turn the button in the centre of the spray head. And its 450mm arm even swivels through 180° for added flexibility. The 110mm hand shower, which has a Silverflex (1750mm) TwistFree hose, offers the soft Rain, the water-saving SmartRain and the powerful Massage Spray. GROHE’s scratch resistant StarLight chrome finish has a sparkle that lasts for years and the Inner WaterGuide prevents the surface of the shower from getting hot. TThe GROHE Euphoria 260 shower system with diverter – all-round showering perfection that will make you smile!
FinishChrome finish
Graden/a
Hot Water Connection Diameter10 mm
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
Industry Standardsn/a
KeynoteN13
LEED Creditn/a
Low Emitting MaterialNo
ManufacturerGrohe
Manufacturer NameGrohe
Masterformat Number01 52 19
Masterformat TitleSanitary Facilities
Materialn/a
ModelEuphoria System 260 Shower system with diverter for wall mounting
Model Number27421002
Model ReferenceEuphoria System 260 Shower system with diverter for wall mounting
NBS DescriptionShower fittings package
NBS Object NameGrohe - Shower fittings package
NBS Office Master Tagn/a
NBS Reference45-35-70/330
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Percentage Of Recycled Contentn/a
Product Documentation Linkwww.grohe.co.uk/en_gb/euphoria-system-260-shower-system-with-diverter-br-for-wall-mounting-27421002.html
Production Year2018
Product Page URLwww.grohe.co.uk/en_gb/euphoria-system-260-shower-system-with-diverter-br-for-wall-mounting-27421002.html
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsn/a
Type Comments27421002
Type NameEuphoria System 260 Shower system with diverter for wall mounting
URLwww.grohe.co.uk/en_gb/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsinfo-uk@grohe.com
