ESSENCE Basin mixer 1/2″ S-Size (23590AL1)

Object metadata

• _AuthorAM
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version16
• _Created Bywww.bimstore.co
• _Current Revision1
• _Distributed Bywww.bimstore.co
• _Object User Guidewww.bimstore.co/products/grohe-essence-basin-mixer-1-2-s-size/document/object-user-guide
• Accessibility Performancen/a
• Assembly CodeC1030200
• Asset TypeFixed
• BIM Object NameGrohe_PlumbingFixtures_Essence_SingleLeverBasinMixer_23590AL1
• Classification NameUniclass2015
• Classification ValuePr_40_20_87_07
• CO2 Neutral ProductionGROHE is one of the first leading manufacturer within the sanitary industry having a CO2-neutral production.
• Code Performancen/a
• ColorGraphite
• Constituentsn/a
• Cradle To Cradle Certificationn/a
• Created Byinfo-uk@grohe.com
• Created On2021-12-07 T:09:00:00
• CW ConnectionYes
• Default Elevation0.0 mm
• Descriptionsingle hole installation metal lever GROHE SilkMove 28 mm ceramic cartridge with temperature limiter GROHE StarLight finish GROHE EcoJoy mousseur 5.7 l/min GROHE AquaGuide adjustable mousseur GROHE FastFixation Plus installation system smooth body flexible connection hoses
• Dimensions Document Linkcdn.cloud.grohe.com/dimdraw/100000/100000/100000/100000/100020/100020/100020834/1280/100020834.jpg
• Documentation Certificateswww.bimstore.co/products/grohe-essence-basin-mixer-1-2-s-size/document/product-certificates
• Documentation Installation Guidewww.bimstore.co/products/grohe-essence-basin-mixer-1-2-s-size/document/installation-guide
• Documentation Literaturewww.bimstore.co/products/grohe-essence-basin-mixer-1-2-s-size/document/product-literature
• Documentation Maintenancewww.bimstore.co/products/grohe-essence-basin-mixer-1-2-s-size/document/maintenance-information

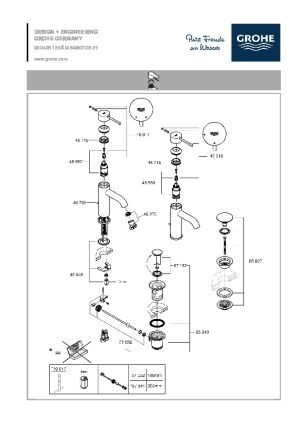

• Documentation Technicalwww.bimstore.co/products/grohe-essence-basin-mixer-1-2-s-size/document/technical-data-sheet
• Duration UnitYear
• EcojoyNo
• EF000003Top/tap hole
• EF000139Other
• EF002149Yes
• EF002286Hose (gland nut)
• EF002671Other
• EF007955No
• EF011775AA, free air gap
• EF011779No
• EF011781Electronic
• EF0127535.0
• EF015280No
• EF020075Yes
• EF020105No
• EF020780Single-grip
• EF020781Cartouche, ceramic
• EF0207853/8 inch
• EF020787Group I,<= 20 dB(A)
• EF020789116.0 mm
• EF020791Brass
• EF020792No
• EF020794Yes
• EF020795Fixed
• EF020796208.0 mm
• EF020797102.0 mm
• EF020798Pop-up waste (click-clack)
• EF020799Yes
• EF020801No
• EF0218081-hole
• EF0218275.0
• EF0218350.0 mm
• EF022042None
• EF022168No
• EF022750Cast
• EF023686Aluminium
• EF023687No
• EF023688Foam jet nozzle
• EF025109Other
• EFDE0022Group I, <=20 dB(A)
• Expected Life0
• Featuresn/a
• Finishn/a
• Full Recyclability Of PlasticAll plastic components are fully recycable
• Graden/a
• GROHE Social Committmentgreen.grohe.com/social_engagement
• GROHE Sustainabilitygreen.grohe.com
• HW ConnectionYes
• Ifc Export AsIfcPipeFitting
• Ifc Export TypeIfcPipeFittingType
• Installation Videon/a
• KeynoteN13
• ManufacturerGrohe
• Manufacturer NameGrohe
• MaterialBrass
• Model2359AL1
• Model Number2359AL1
• Model ReferenceSingle-lever basin mixer 1/2" S-Size
• NBS DescriptionWater supply fittings
• NBS Noten/a
• NBS Object NameGrohe - Water supply fittings
• NBS Office Master Tagn/a
• NBS Reference45-35-70/315
• Nominal Depth0.0 mm
• Nominal Height0.0 mm
• Nominal Length0.0 mm
• PQ Diagram Linkcdn.cloud.grohe.com/PQCharts/lores/2/235/original/23590AL1-pqchart-en_GB.svg
• Primary MaterialGrohe - Metal - Brushed Hard Graphite
• Product Descriptionsingle hole installation metal lever GROHE SilkMove 28 mm ceramic cartridge with temperature limiter GROHE StarLight finish GROHE EcoJoy mousseur 5.7 l/min GROHE AquaGuide adjustable mousseur GROHE FastFixation Plus installation system smooth body flexible connection hoses
• Production Year2021
• Product Number23590AL1
• Product Short TextSingle-lever basin mixer 1/2" S-Size
• Product TypeSingle Lever Mixer
• Referenced Standardn/a
• Replacement Costn/a
• Shapen/a
• Sizen/a
• Spare Partsn/a
• Sustainability Awardgreen.grohe.com/awards
• Sustainability Reportgreen.grohe.com/reporting
• TPI Document Linkcdn.cloud.grohe.com/tpi/100000/100000/100000/100200/100240/100240/100240123/original/100240123.pdf
• Type CommentsSingle-lever basin mixer 1/2" S-Size
• Type NameSingle-lever basin mixer 1/2" S-Size
• URLwww.grohe.co.uk/en_gb/
• Vent ConnectionNo
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts0
• Warranty Duration UnitYear
• Warranty Guarantor Laborinfo-uk@grohe.com
• Warranty Guarantor Partsinfo-uk@grohe.com
• Waste ConnectionNo
