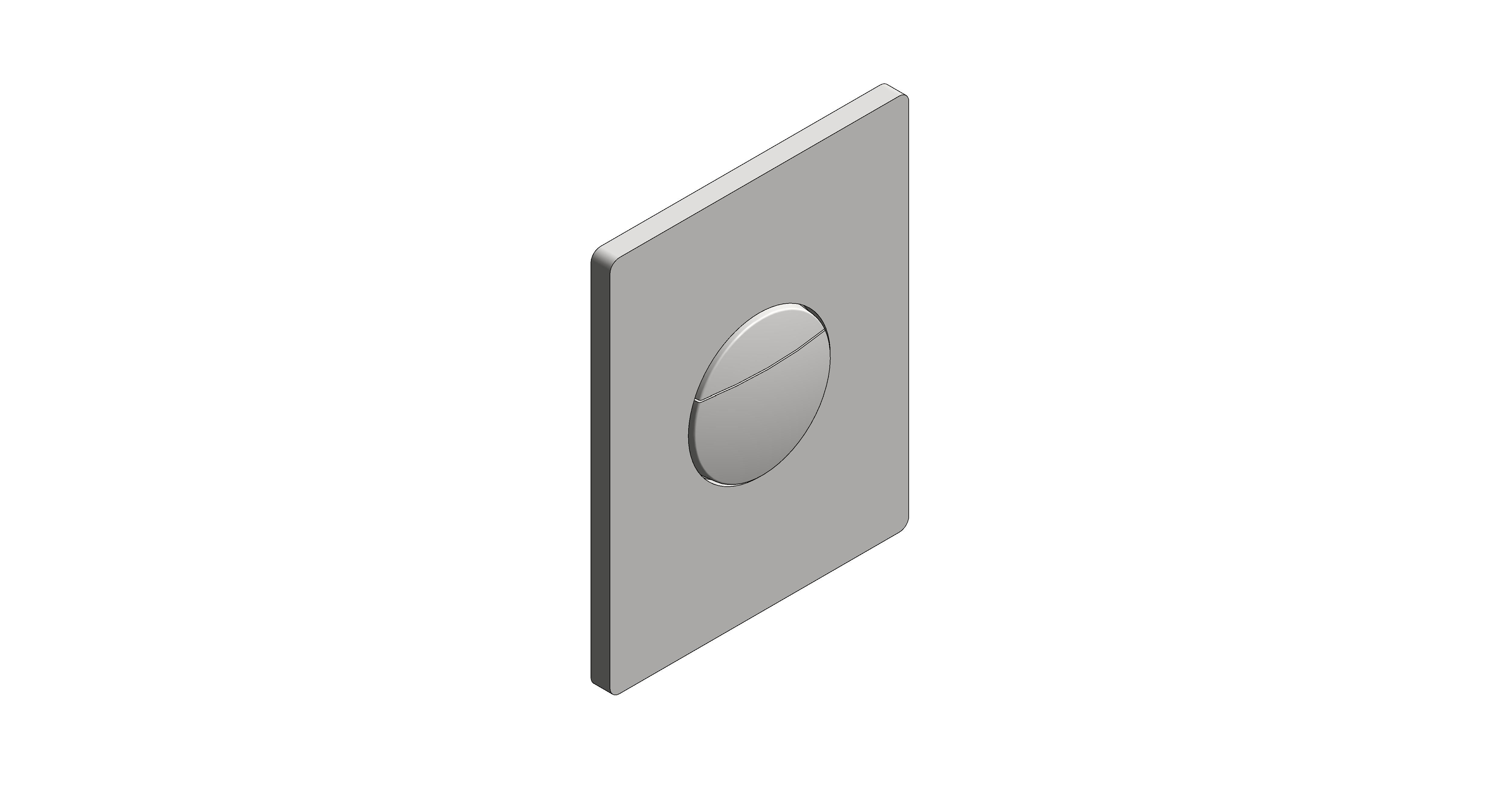

NOVA Light Wall plate 230 V (39972000)

by GROHE

Download Add to collection

Description

Product Number - 39972000

EAN - 4005176759550

Colour - chrome

PRODUCT MAIN FEATURES

for dual flush or start & stop actuation
external highlighted outline
with LEDs in blue, red, yellow, green
colour gradient adjustable
on/off button
timer for individual regulation of illuminating period
3 m connecting cable
transformer for external installation
operating voltage 230 V AC
50/60 Hz, 2.0 VA
CE approved
for pneumatic discharge valve AV1
vertical and horizontal installation
156 x 197 mm
material: ABS
GROHE Long-Life finish
GROHE Water Saving - Less water, perfect flow
for combination with Rapid SL and Uniset with GD 2 cistern
for use with Rapid SLX please order shaft 66 791 000 (sold separately)

Product Page - https://www.grohe.co.id/id_id/nova-cosmopolitan-light-wall-plate-39972000.html

Object Data

1 Revision

Last Updated

27/08/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Data Sheet

Object metadata

_AuthorIH 161
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/grohe-39972000/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD2010
Asset TypeFixed
BIM Object NameGrohe_ManualActuation_NovaLight_39972000
Classification NameUniclass2015
Classification ValuePr_75_50_46_31
CO2 Neutral ProductionGROHE is one of the first leading manufacturer within the sanitary industry having a CO2-neutral production.
Code Performancen/a
ColorChrome
Constituentsn/a
Cradle To Cradle Certificationn/a
Created Bywww.grohe.co.uk
Created On2023-03-21T09:00:00
Default Elevation0.0 mm
Descriptionfor dual flush or start & stop actuation external highlighted outline with LEDs in blue, red, yellow, green light colour individually adjustable on/off button timer for individual regulation of illuminating period 3 m connecting cable transformer for external installation operating voltage 230 V AC 50/60 Hz, 2.0 VA this product contains built-in LED lamps, which cannot be changed: energy efficiency class: A+ CE approved for pneumatic discharge valve AV1 vertical and horizontal installation 156 x 197 mm made of ABS GROHE Long-Life Shine durable sparkling sheen GROHE Water Saving - Less water, perfect flow for combination with Rapid SL and Uniset with GD 2 cistern for use with Rapid SLX please order shaft 66 791 000 (sold separately)

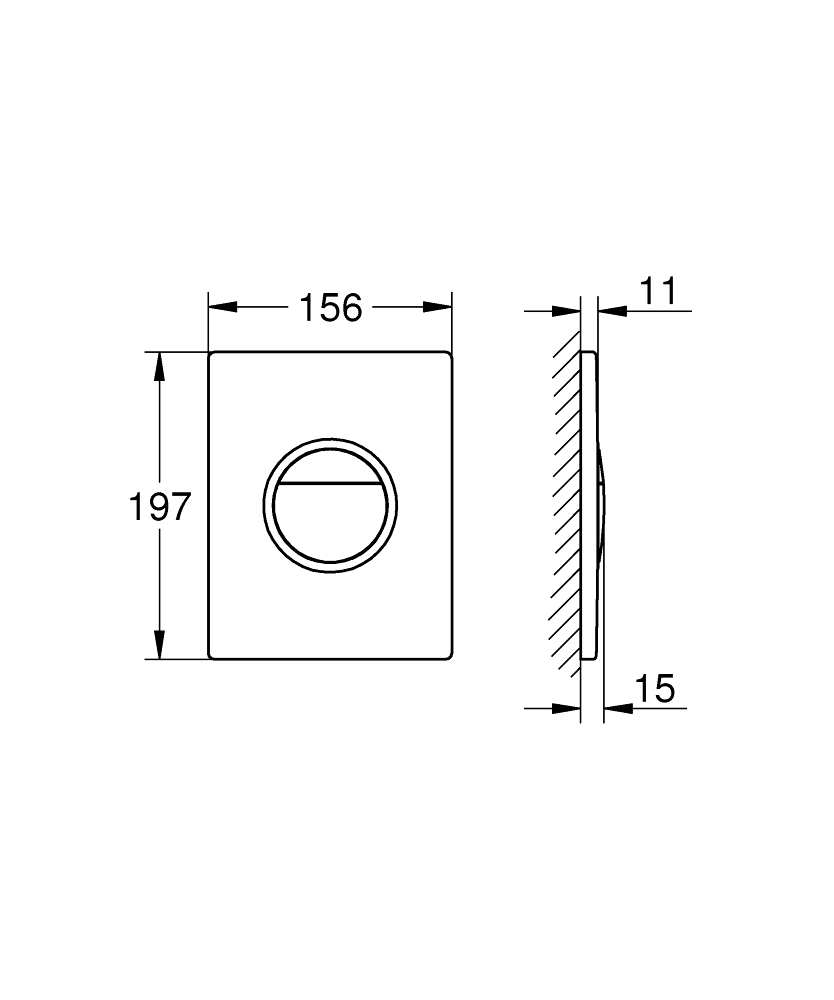

Dimensions Document Linkcdn.cloud.grohe.com/dimdraw/2000/2100/2180/2182/2182241/1280/2182241.jpg
Documentation Certificateswww.bimstore.co/products/grohe-39972000/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/grohe-39972000/document/installation-guide
Documentation Literaturewww.bimstore.co/products/grohe-39972000/document/product-literature
Documentation Maintenancewww.bimstore.co/products/grohe-39972000/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/grohe-39972000/document/technical-data-sheet
Duration UnitYears
EcojoyNo
EF000007Chrome
EF000008156.0 mm
EF00004011.0 mm
EF001438197.0 mm
EF002147Two button
EF002169Plastic
EF006331false
EF006949Pneumatic
EF010109false
EF020827true
EF020828true
EF023751true
EF023752true
Expected Life0
Featuresn/a
Finishn/a
Full Recyclability Of PlasticAll plastic components are fully recycable
Graden/a
GROHE Social Committmentgreen.grohe.com/social_engagement
GROHE Sustainabilitygreen.grohe.com
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
Installation Videon/a
KeynoteN13
ManufacturerGrohe
Manufacturer NameGrohe
Materialn/a
ModelNOVA LIGHT Wall plate 230 V (39972000)
Model Number39972000
Model ReferenceNOVA LIGHT Wall plate 230 V (39972000)
NBS DescriptionFlush Control Devices
NBS Noten/a
NBS Object NameGrohe - Flush Control Devices
NBS Office Master Tagn/a
NBS Reference90-15-35/470
Nominal Depth0.0 mm
Nominal Height0.0 mm
Nominal Length0.0 mm
PQ Diagram Linkn/a
Primary MaterialGrohe_Chorme
Product Descriptionfor dual flush or start & stop actuation external highlighted outline with LEDs in blue, red, yellow, green light colour individually adjustable on/off button timer for individual regulation of illuminating period 3 m connecting cable transformer for external installation operating voltage 230 V AC 50/60 Hz, 2.0 VA this product contains built-in LED lamps, which cannot be changed: energy efficiency class: A+ CE approved for pneumatic discharge valve AV1 vertical and horizontal installation 156 x 197 mm made of ABS GROHE Long-Life Shine durable sparkling sheen GROHE Water Saving - Less water, perfect flow for combination with Rapid SL and Uniset with GD 2 cistern for use with Rapid SLX please order shaft 66 791 000 (sold separately)
Production Year2023
Product Number39972000
Product Short TextNova Light Wall plate 230 V
Product TypeManual Actuation
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsinfo-uk@grohe.com
Sustainability Awardgreen.grohe.com/awards
Sustainability Reportgreen.grohe.com/reporting
TPI Document Linkcdn.cloud.grohe.com/tpi/2000/2100/2190/2196/2196952/original/2196952.pdf
Type CommentsNOVA LIGHT Wall plate 230 V (39972000)
Type NameNOVA LIGHT Wall plate 230 V (39972000)
URLwww.grohe.co.uk/en_gb/-35108000.html
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com
