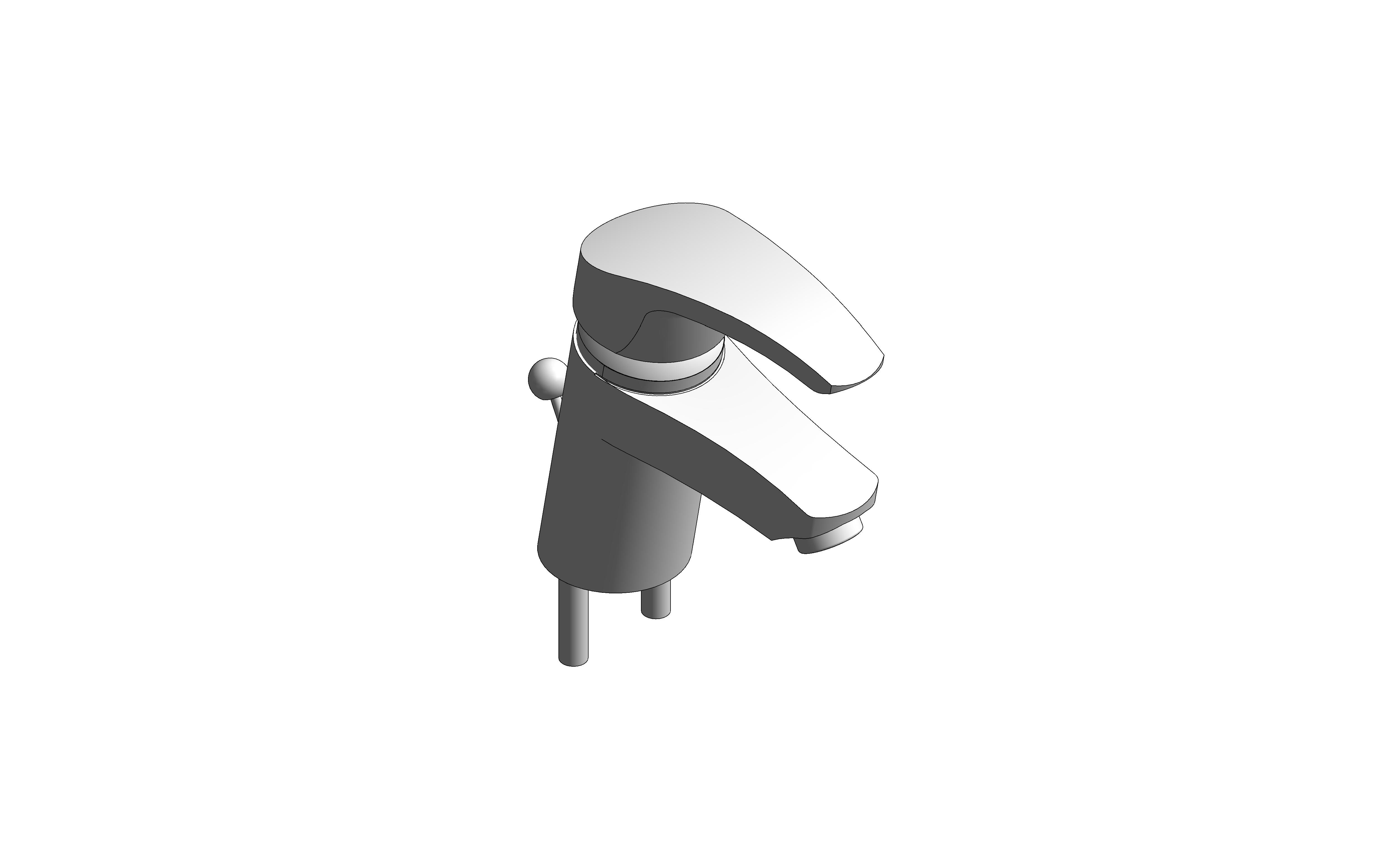

EUROSMART Single Lever Basin Mixer (33265002)

Download Add to collection

Description

Product Number - 33265002

EAN - 4005176861543

Colour - Chrome

PRODUCT MAIN FEATURES

single hole installation
metal lever
GROHE SilkMove 35 mm ceramic cartridge
adjustable flow rate limiter
with temperature limiter
GROHE Long-Life finish
GROHE Water Saving - Less water, perfect flow
maximum flow rate (at 3 bar): 5 l/min
GROHE FastFixation rapid installation system
pop-up waste set 1 1/4"
flexible connection hoses

Product Page - https://www.grohe.co.uk/en_gb/atrio-single-lever-shower-mixer-1-2-24366DC0.html

Object Data

1 Revision

Last Updated

07/08/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Data Sheet

Object metadata

_AuthorSM 172
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/grohe-33265002/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD2041
Asset TypeFixed
BIM Object NameGrohe_BasinMixer_Eurosmart_33265002
Classification NameUniclass2015
Classification ValuePr_40_20_87_98
CO2 Neutral ProductionGROHE is one of the first leading manufacturer within the sanitary industry having a CO2-neutral production.
Code Performancen/a
ColorChrome
Constituentsn/a
Cradle To Cradle Certificationn/a
Created Byinfo-uk@grohe.com
Created On2023-10-01T:09:00:00
Default Elevation1219 mm
DescriptionEUROSMART Basin Mixer
Dimensions Document Linkcdn.cloud.grohe.com/dimdraw/100000/100000/100000/100000/100020/100021/100021950/1280/100021950.jpg
Documentation Certificateswww.bimstore.co/products/grohe-33265002/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/grohe-33265002/document/installation-guide
Documentation Literaturewww.bimstore.co/products/grohe-33265002/document/product-literature
Documentation Maintenancewww.bimstore.co/products/grohe-33265002/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/grohe-33265002/document/technical-data-sheet
Duration UnitYears
EcojoyNo
EF000003Top/tap hole
EF000139Chromium-plated
EF00170770 �C
EF002149TRUE
EF002286Hose (gland nut)
EF002671Chrome
EF007955FALSE
EF011775AA, free air gap
EF011779FALSE
EF011781not applicable
EF0127535.00
EF014578not applicable
EF014591false
EF015280false
EF016731Group I,<= 20 dB(A)
EF020075Yes
EF020105No
EF020780Single-grip
EF020781Cartouche, ceramic
EF0207853/8 inch
EF020789104 mm
EF020791Brass
EF020792FALSE
EF020794FALSE
EF020795Fixed
EF020796184 mm
EF02079761 mm
EF020798Waste unit
EF020799TRUE
EF020801FALSE
EF0218081-hole
EF0218275.0
EF0218350 mm
EF022042None
EF022168FALSE
EF022750Cast
EF023686not applicable
EF023687TRUE
EF023688Foam jet nozzle
EF025109Polished
EFDE0022Group I, <=20 dB(A)
EFSE0002false
Expected Life0
Featuresn/a
Finishn/a
Full Recyclability Of PlasticAll plastic components are fully recycable
Graden/a
GROHE Social Committmentgreen.grohe.com/social_engagement
GROHE Sustainabilitygreen.grohe.com
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
KeynoteN44
ManufacturerGrohe
Manufacturer NameGrohe
Materialn/a
ModelEUROSMART Basin Mixer
Model Number33265002
Model ReferenceEUROSMART Basin Mixer
NBS DescriptionWater supply fittings for wash basins and troughs
NBS Noten/a
NBS Object NameGrohe - Water supply fittings for wash basins and troughs
NBS Office Master Tagn/a
NBS Reference45-35-70/371
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
PQ Diagram Linkcdn.cloud.grohe.com/PQCharts/lores/3/332/original/33265002-pqchart-en_GB.svg
Primary MaterialGrohe-Chrome
Product Descriptionsingle hole installation metal lever GROHE SilkMove 35 mm ceramic cartridge adjustable flow rate limiter with temperature limiter GROHE Long-Life finish GROHE Water Saving mousseur 5.7 l/min GROHE FastFixation rapid installation system pop-up waste set 1 1/4" flexible connection hoses
Production Year2023
Product Number33265002
Product Page URLn/a
Product Short TextEUROSMART Basin Mixer
Product TypeBasin Mixer
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsinfo-uk@grohe.com
Sustainability Awardgreen.grohe.com/awards
Sustainability Reportgreen.grohe.com/reporting
TPI Document Linkcdn.cloud.grohe.com/tpi/100000/100000/100000/100100/100130/100131/100131247/original/100131247.pdf
Type CommentsEUROSMART Basin Mixer
Type NameEUROSMART Basin Mixer
URLwww.grohe.co.uk/en_gb/-33265002.html
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
