EUROSMART COSMOPOLITAN Shower Mixer (32837GL0)

by GROHE

Download Add to collection

Description

Product Number - 32837GL0

Colour - Cool Sunrise

THE GROHE EUROSMART COSMOPOLITAN SINGLE-LEVER SHOWER MIXER – ELEGANCE AND FUNCTIONAL EXCELLENCE!

With its smooth cylindrical body the GROHE Eurosmart Cosmopolitan single-lever shower mixer has a timeless look that is perfect in any modern bathroom. Beautifully built with GROHE technology and German engineering, it is a delight to operate. The control of water volume and temperature is precise and effortless thanks to the GROHE SilkMove ceramic cartridge while the gleaming and easy-to-clean GROHE StarLight chrome coating is scratch-resistant and keeps its sparkle for years. There is also an adjustable flow rate limiter which can save water and bills. Just add a matching handshower of your choice – there is a wide variety of complementary GROHE products to choose from – to create a new level of bathroom comfort and convenience. GROHE Eurosmart Cosmopolitan – boosting bathroom style and performance!

PRODUCT MAIN FEATURES

wall mounted
metal lever
GROHE SilkMove 46 mm ceramic cartridge
GROHE Long-Life Shine durable sparkling sheen
adjustable flow rate limiter
shower bottom outlet 1/2" with integrated non return-valve
S-unions
optional temperature limiter (46 308 000)
protected against backflow

Object Data

1 Revision

Last Updated

18/09/2023

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_AuthorJY 144
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/grohe-32837gl0/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD2010
Asset TypeFixed
BIM Object NameGrohe_ShowerMixer_EurosmartCosmopolitan_32837GL0
Classification NameUniclass2015
Classification ValuePr_40_20_87_78
CO2 Neutral ProductionGROHE is one of the first leading manufacturer within the sanitary industry having a CO2-neutral production.
Code Performancen/a
ColorCool Sunrise
Constituentsn/a
Cradle To Cradle Certificationn/a
Created Byinfo-uk@grohe.com
Created On2023-08-14T:09:00:00
Default Elevation0.0 mm
DescriptionEUROSMART COSMOPOLITAN Shower Mixer

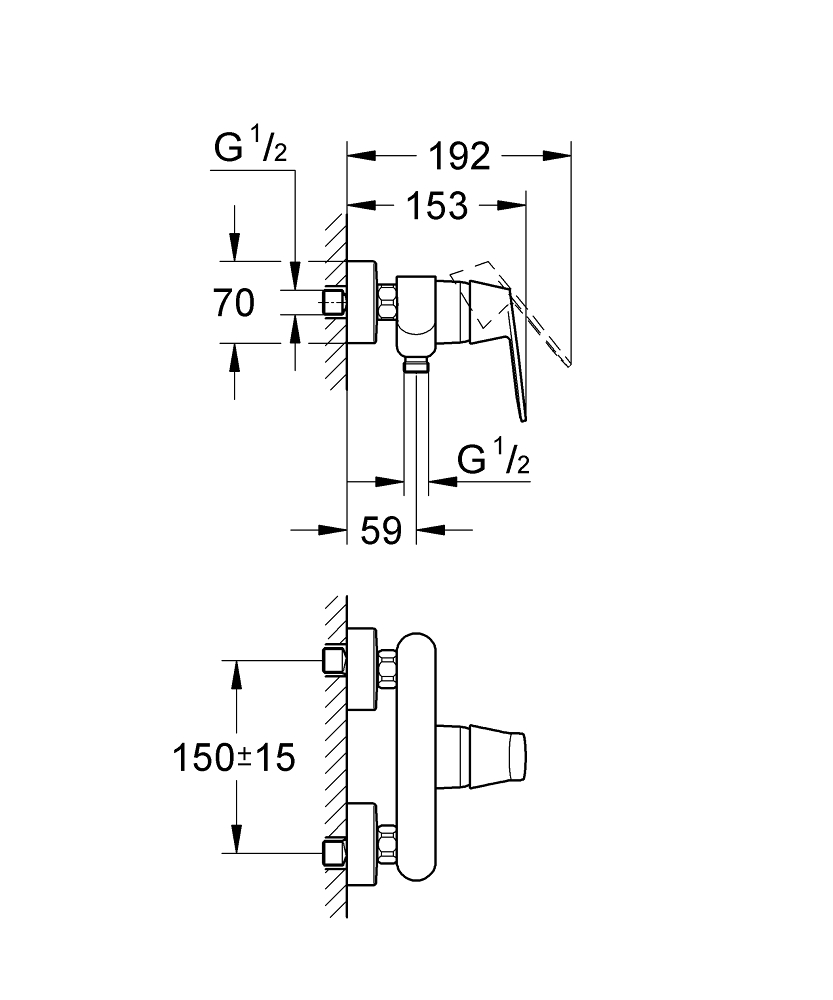

Dimensions Document Linkcdn.cloud.grohe.com/dimdraw/1000/1300/1380/1387/1387738/1280/1387738.jpg
Documentation Certificateswww.bimstore.co/products/grohe-32837gl0/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/grohe-32837gl0/document/installation-guide
Documentation Literaturewww.bimstore.co/products/grohe-32837gl0/document/product-literature
Documentation Maintenancewww.bimstore.co/products/grohe-32837gl0/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/grohe-32837gl0/document/technical-data-sheet
Duration UnitYears
EcojoyNo
EF000003Other
EF000139Other
EF00170770 °C
EF002149FALSE
EF002286External thread
EF002671Other
EF007955TRUE
EF011775EB
EF011779FALSE
EF01275334.0
EF014578true
EF014591false
EF016731Group I,<= 20 dB(A)
EF020105Yes
EF020259Downwards
EF020780Single-grip
EF020781Cartouche, ceramic
EF020785Other
EF020787Group II, <=30 dB(A)
EF020788false
EF020791Brass
EF020799FALSE
EF020805FALSE
EF020967FALSE
EF021035true
EF021835150.0 mm
EF021855false
EF022042D
EF0223371/2 inch
EF023687TRUE
EF023688not relevant
EF023957FALSE
EF024919FALSE
EF025109Polished
EFDE0022Group I, <=20 dB(A)
EFNL0001true
EFSE0002false
Expected Life0
Featuresn/a
Finishn/a
Full Recyclability Of PlasticAll plastic components are fully recycable
Graden/a
GROHE Social Committmentgreen.grohe.com/social_engagement
GROHE Sustainabilitygreen.grohe.com
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
KeynoteN13
ManufacturerGrohe
Manufacturer NameGrohe
Materialn/a
ModelEUROSMART COSMOPOLITAN Shower Mixer
Model Number32837GL0
Model ReferenceEUROSMART COSMOPOLITAN Shower Mixer
NBS DescriptionShower mixers
NBS Noten/a
NBS Object NameGrohe - Shower mixers
NBS Office Master Tagn/a
NBS Reference45-35-70/335
Nominal Depth0.0 mm
Nominal Height0.0 mm
Nominal Length0.0 mm
PQ Diagram Linkcdn.cloud.grohe.com/PQCharts/lores/3/328/original/32837GL0-pqchart-en_GB.svg
Primary MaterialGrohe_CoolSunrise
Product Descriptionwall mounted metal lever GROHE SilkMove 46 mm ceramic cartridge GROHE Long-Life Shine finish adjustable flow rate limiter adjustable minimum flow rate approx. 2.5 l/min shower bottom outlet 1/2" with integrated non return valve S-unions optional temperature limiter ref. no. 46 308 protected against backflow noise classification I in accordance with DIN 4109
Production Year2023
Product Number32837GL0
Product Page URLwww.grohe.cn
Product Short TextSingle-lever shower mixer 1/2"
Product TypeSingle Lever Mixer
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsinfo-uk@grohe.com
Sustainability Awardgreen.grohe.com/awards
Sustainability Reportgreen.grohe.com/reporting
TPI Document Linkcdn.cloud.grohe.com/tpi/2000/2100/2180/2183/2183467/original/2183467.pdf
Type CommentsEUROSMART COSMOPOLITAN Shower Mixer
Type NameEUROSMART COSMOPOLITAN Shower Mixer
URLwww.grohe.co.uk/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com
