EUROECO SPECIAL Basin Mixer 1/2″ (32779000)

by GROHE

Download Add to collection

Description

Product main features

wall mounted
GROHE Long-Life finish
GROHE SilkMove 46 mm ceramic cartridge
maximum flow rate (at 3 bar): 8 l/min
adjustable flow rate limiter
adjustable temperature limiter
adjustable minimum flow rate 2.5 l/min
Laminar flow straightener
cast spout
projection 221 mm
metal lever
lever length 170 mm
with lockable S-unions

Object Data

1 Revision

Last Updated

14/07/2025

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Data Sheet

Object metadata

_AuthorRW 201
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/e5628363-7df2-407d-b743-1059ad0e34eb/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD2010
Asset TypeFixed
BIM Object NameGrohe_BasinMixer_EuroecoSpecial_32779000
Classification NameUniclass2015
Classification ValuePr_40_20_87_55
CO2 Neutral ProductionGROHE is one of the first leading manufacturer within the sanitary industry having a CO2-neutral production.
Code Performancen/a
ColorChrome
Constituentsn/a
Cradle To Cradle CertificationN/A
Created Byinfo-uk@grohe.com
Created On2025-07-14T09:00:00
Default Elevation0 mm
DescriptionEUROECO SPECIAL Basin Mixer 1/2″ (32779000)

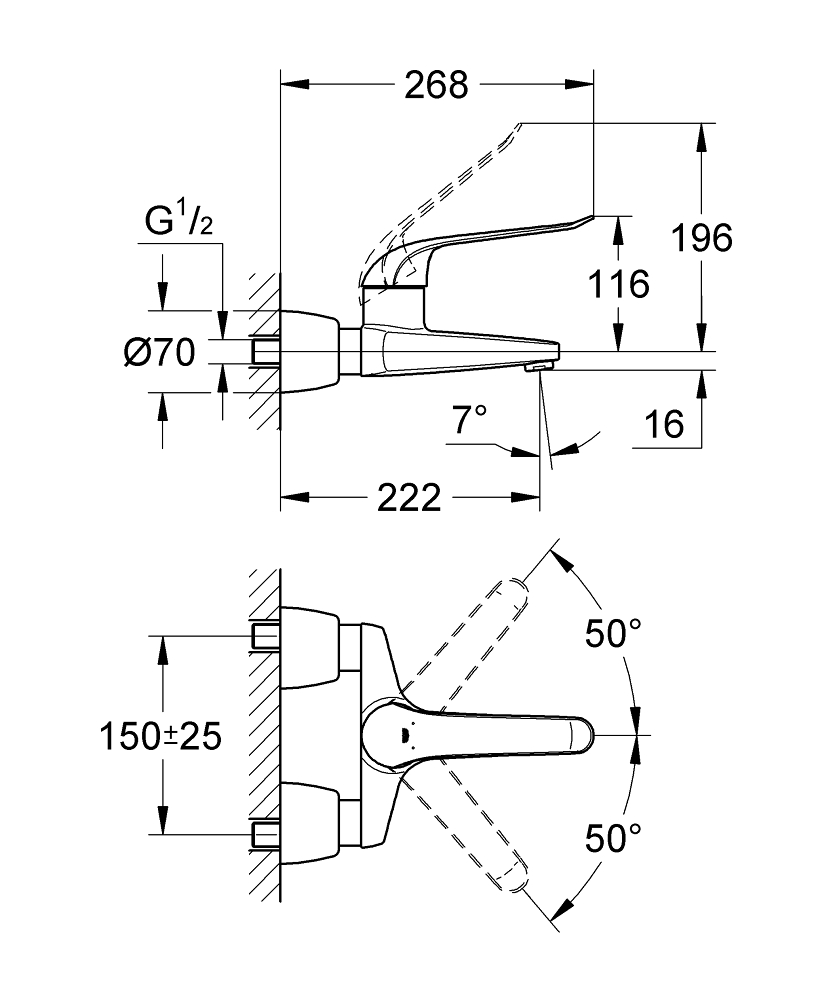

Dimensions Document Linkcdn.cloud.grohe.com/dimdraw/1000/1400/1410/1418/1418914/1280/1418914.jpg
Documentation Certificateswww.bimstore.co/products/e5628363-7df2-407d-b743-1059ad0e34eb/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/e5628363-7df2-407d-b743-1059ad0e34eb/document/installation-guide
Documentation Literaturewww.bimstore.co/products/e5628363-7df2-407d-b743-1059ad0e34eb/document/product-literature
Documentation Maintenancewww.bimstore.co/products/e5628363-7df2-407d-b743-1059ad0e34eb/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/e5628363-7df2-407d-b743-1059ad0e34eb/document/technical-data-sheet
Duration UnitYears
EcojoyNo
EF000003Wall
EF000139Chromium-plated
EF000278not relevant
EF000958true
EF001469not relevant
EF00170770
EF002149true
EF002286External thread
EF002671Chrome
EF005474not applicable
EF006974Manually operated
EF007955true
EF011775AA, free air gap
EF011779false
EF011781not applicable
EF0127538.00
EF013612true
EF014578not applicable
EF014591false
EF015280false
EF016712TRUE
EF016713TRUE
EF016714TRUE
EF016731Group I,<= 20 dB(A)
EF016945FALSE
EF017097TRUE
EF020075Yes
EF020103false
EF020105No
EF020780Single-grip
EF020781Cartouche, ceramic
EF020787Group I,<= 20 dB(A)
EF020789222
EF020791Brass
EF020792false
EF020794true
EF020795Fixed, bottom
EF020796196 mm
EF02079716
EF020798not relevant
EF020799true
EF020800false
EF020801false
EF020803true
EF020871false
EF020872false
EF021707true
EF021760true
EF0218082-hole
EF0218278.0
EF021835150
EF022042Z
EF022133false
EF022168false
EF022182false
EF022750Cast
EF023686not applicable
EF023687true
EF023688Anti-splash jet nozzle
EF024921true
EF025098not applicable
EF025102not relevant
EF025109Polished
EFBE0001TRUE
EFDE0022Group I, <=20 dB(A)
EFNL0001true
EFSE0002false
Expected Life0
Featuresn/a
FinishChrome
Full Recyclability Of PlasticAll plastic components are fully recycable
Graden/a
GROHE Social Committmentgreen.grohe.com/social_engagement
GROHE Sustainabilitygreen.grohe.com
Ifc Export AsIfcValveType
Ifc Export TypeFAUCET
KeynoteN13
ManufacturerGrohe
Manufacturer NameGrohe
Materialn/a
ModelEUROECO SPECIAL Single-Lever Basin Mixer 1/2″ (32768000)
Model Number32779000
Model ReferenceEUROECO SPECIAL Basin Mixer 1/2″ (32779000)
NBS DescriptionMixer taps
NBS Noten/a
NBS Object NameVADO - Mixer taps
NBS Office Master Tagn/a
NBS Reference45-35-70/345
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
PQ Diagram Linkcdn.cloud.grohe.com/PQCharts/lores/3/327/original/32779000-pqchart-en_GB.svg
Primary MaterialGrohe_Chrome
Product Descriptionwall mounted GROHE Long-Life finish GROHE SilkMove 46 mm ceramic cartridge maximum flow rate (at 3 bar): 8 l/min adjustable flow rate limiter adjustable temperature limiter adjustable minimum flow rate approx. 2.5 l/min laminar flow straightener cast spout projection 221 mm metal lever lever length 170 mm with lockable S-unions
Production Year2025
Product Number32779000
Product Page URLwww.grohe.co.uk/en_gb/-32779000.html
Product Short TextSingle-lever basin mixer 1/2"
Product TypeSingle Lever Mixer
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsinfo-uk@grohe.com
Sustainability Awardgreen.grohe.com/awards
Sustainability Reportgreen.grohe.com/reporting
TPI Document Linkcdn.cloud.grohe.com/tpi/100000/100000/100000/100100/100120/100125/100125649/original/100125649.pdf cdn.cloud.grohe.com/tpi/1000/1500/1590/1597/1597294/original/1597294.pdf
Type CommentsEUROECO SPECIAL Basin Mixer 1/2″ (32779000)
Type NameEUROECO SPECIAL Basin Mixer 1/2″ (32779000)
URLwww.grohe.co.uk/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
