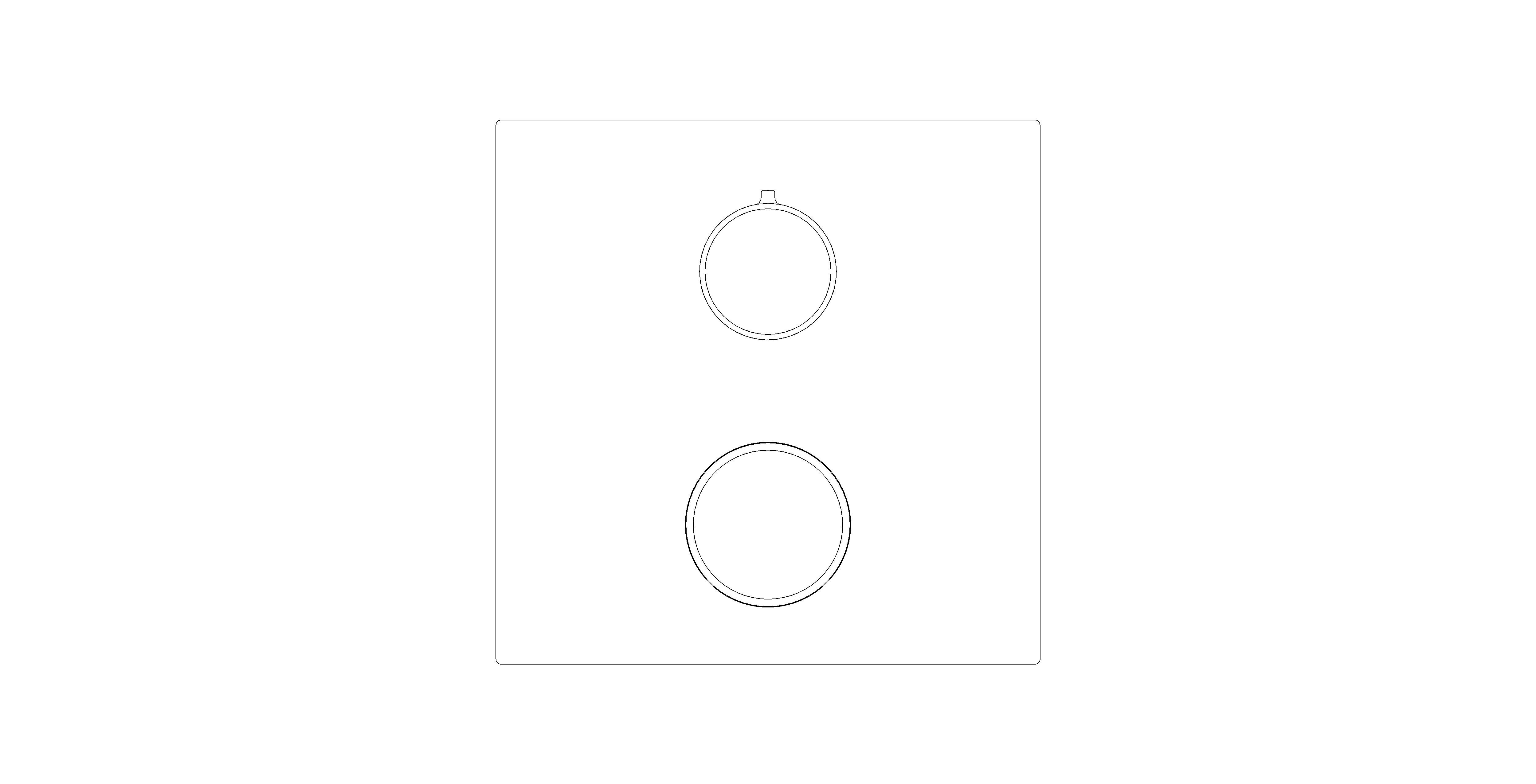

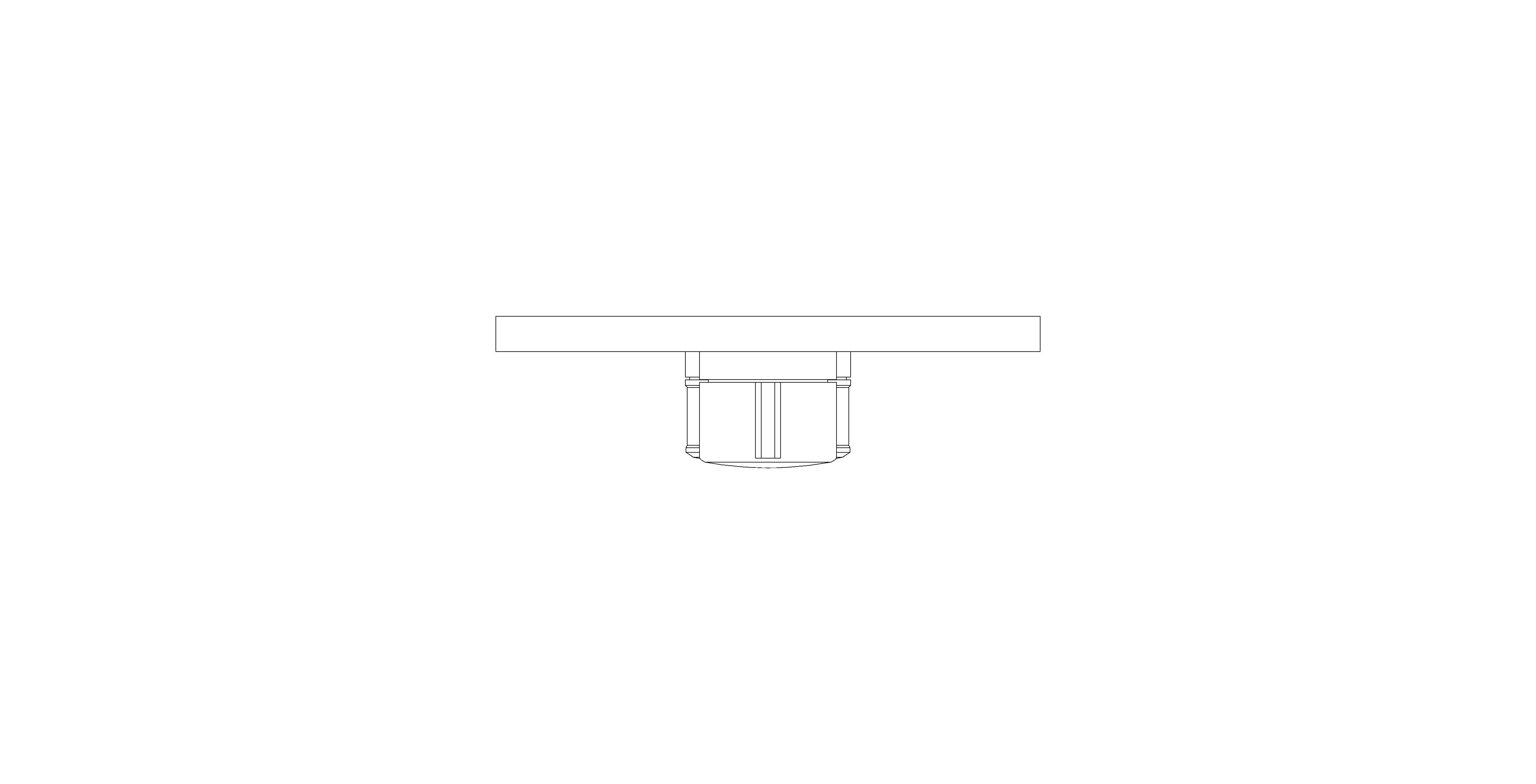

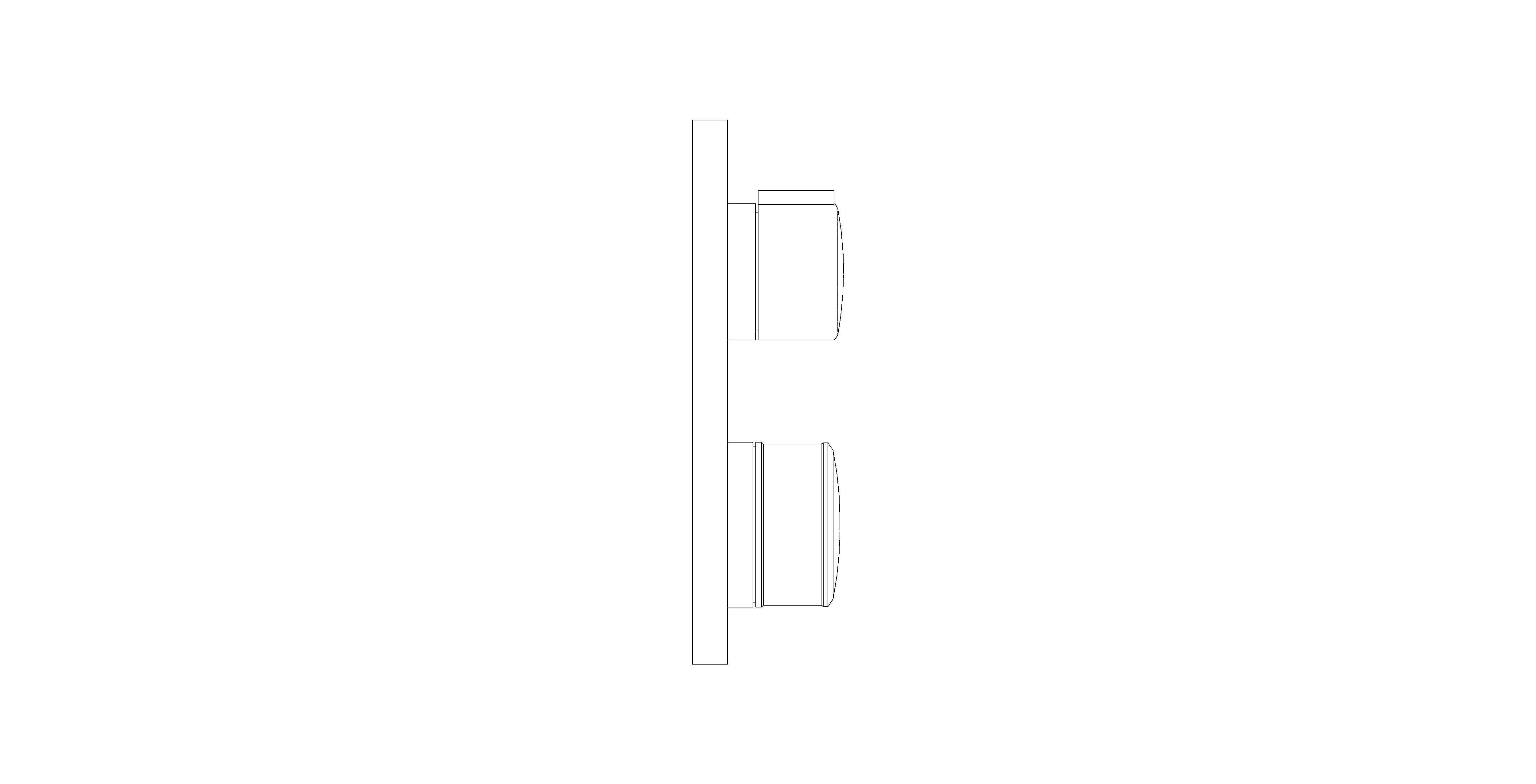

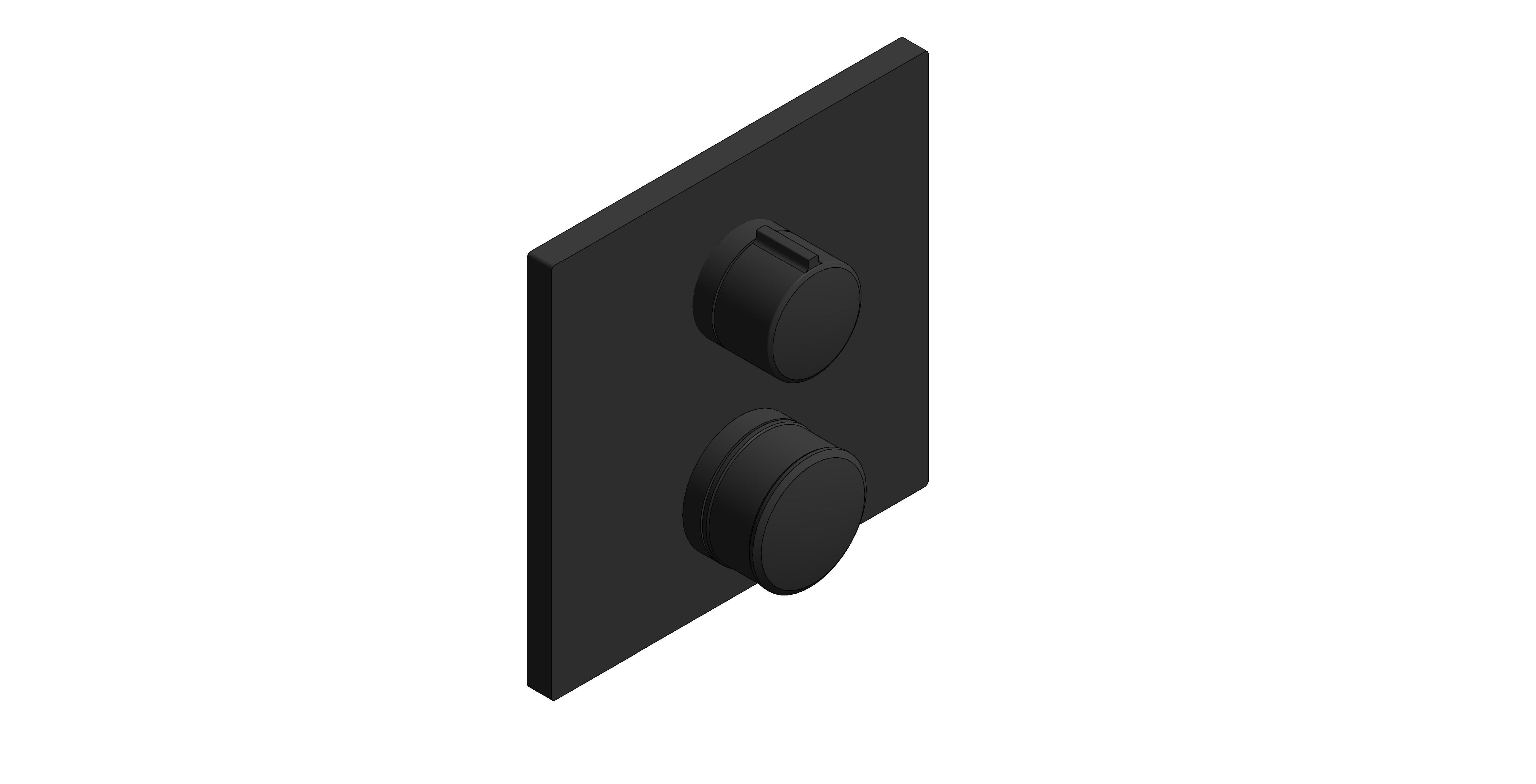

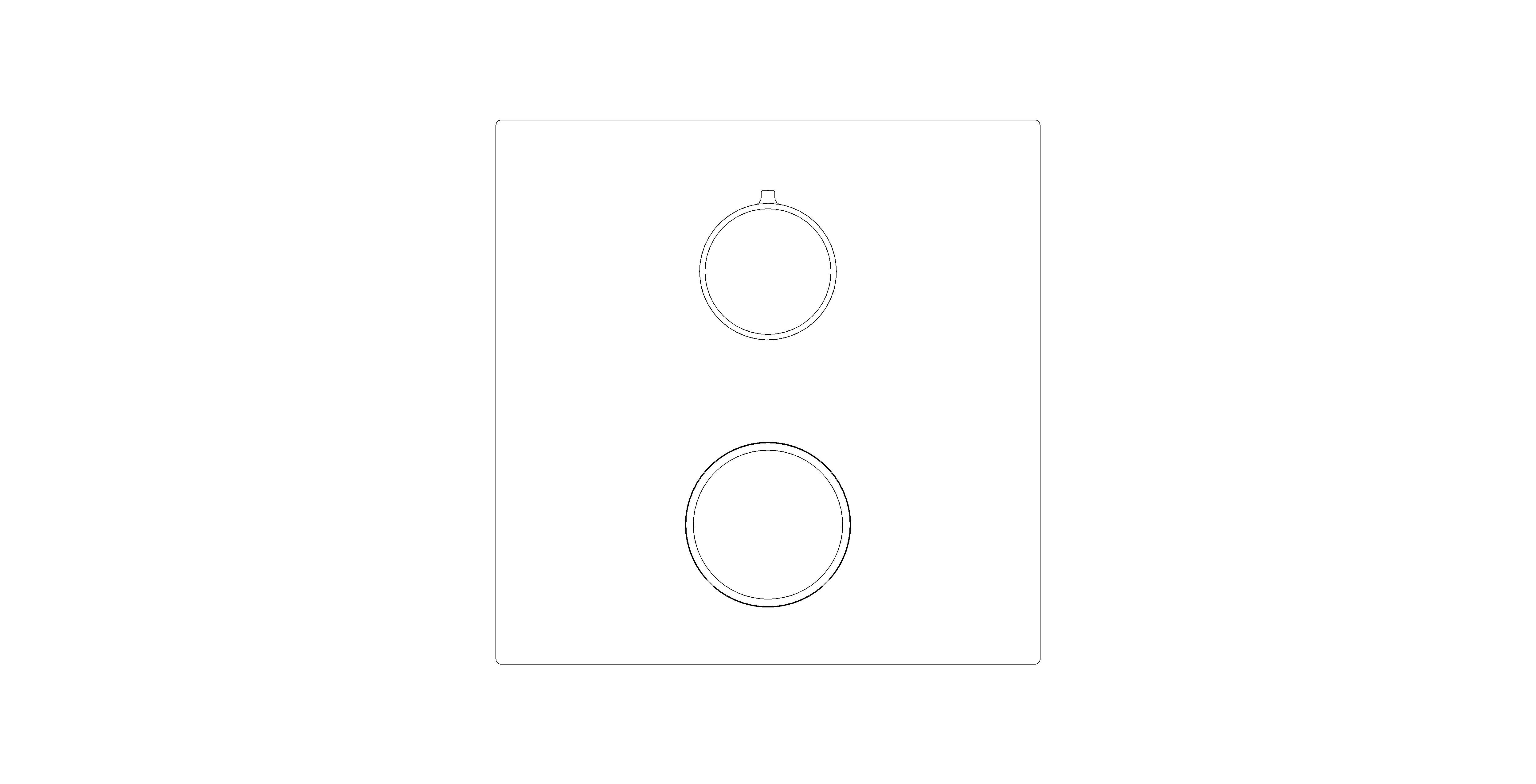

ALLURE Thermostat for concealed installation with 2-way diverter (29181KF2)

Download Add to collection

Description

Product Number - 29181KF2

EAN - n/a

Colour - Phantom Black

PRODUCT MAIN FEATURES

set for final installation for
GROHE Rapido SmartBox 35 600/35 604
GROHE TurboStat compact cartridge with wax thermoelement
GROHE Long-Life finish
wall escutcheon with GROHE FastFixation(covered escutcheon- and shaft sealing, covered fixing)
metal escutcheon, retroactively 6° adjustable
printed head and hand shower symbol
GROHE SafeStop safety button at 38°C(calibration required)
GROHE SafeStop Plus optional temperature limiter at 43°C or 46°C included
GROHE AquaDimmer, integrated shut off/diverter valve
flow performance: outlet B = 27 l/min outlet C = 30 l/min
without roughing-in set 35 600/35 604 (please order separately)

Product Page - n/a

Object Data

1 Revision

Last Updated

26/08/2025

Available Software

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_AuthorRL 200
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/d4cdcddf-ed3a-4567-bc1f-71e8fabfa380/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD2010
Asset TypeFixed
BIM Object NameGrohe_Thermostat_29181KF2
Classification NameUniclass2015
Classification ValuePr_65_54_95_88
CO2 Neutral ProductionGROHE is one of the first leading manufacturer within the sanitary industry having a CO2-neutral production.
Code Performancen/a
ColorPhantom Black
Constituentsn/a
Cradle To Cradle CertificationN/A
Created Byinfo-uk@grohe.com
Created On2025-07-08T09:00:00
Default Elevation1219 mm
DescriptionThermostat For Concealed Installation With 2-Way Diverter (29181KF2)
Dimensions Document Linkcdn.cloud.grohe.com/dimdraw/100000/100000/100000/100200/100240/100243/100243838/1280/100243838.jpg
Documentation Certificateswww.bimstore.co/products/d4cdcddf-ed3a-4567-bc1f-71e8fabfa380/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/d4cdcddf-ed3a-4567-bc1f-71e8fabfa380/document/installation-guide
Documentation Literaturewww.bimstore.co/products/d4cdcddf-ed3a-4567-bc1f-71e8fabfa380/document/product-literature
Documentation Maintenancewww.bimstore.co/products/d4cdcddf-ed3a-4567-bc1f-71e8fabfa380/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/d4cdcddf-ed3a-4567-bc1f-71e8fabfa380/document/technical-data-sheet
Duration UnitYears
EcojoyNo
EF000010Finishing section
EF000278not relevant
EF000958true
EF001469not relevant
EF002149true
EF002286not applicable
EF002671Black
EF005474IP25
EF006974Thermostatic
EF011775EB
EF011779not applicable
EF01275327.00
EF014578not applicable
EF014591true
EF015280not relevant
EF016712TRUE
EF016713TRUE
EF016714TRUE
EF016731Group I,<= 20 dB(A)
EF017097TRUE
EF020103false
EF020105Yes
EF020774false
EF020775false
EF020776true
EF020777false
EF020778false
EF020779false
EF020780Single-grip
EF020781Cartouche, ball
EF020782Other
EF020783Other
EF020784Other
EF020785not applicable
EF0207862
EF020787Group II, <=30 dB(A)
EF020788false
EF020790true
EF020963true
EF021498FALSE
EF021855false
EF022042C
EF022133false
EF022484true
EF023686Other
EF023687true
EF023957true
EF024921true
EF025098not applicable
EF025102not relevant
EFDE0022None
EFSE0002true
Expected Life0
Featuresn/a
FinishPhantom Black
Full Recyclability Of PlasticAll plastic components are fully recycable
Graden/a
GROHE Social Committmentgreen.grohe.com/social_engagement
GROHE Sustainabilityn/a
Ifc Export AsIfcValveType
Ifc Export TypeMIXING
KeynoteN13
ManufacturerGrohe
Manufacturer NameGrohe
Materialn/a
ModelThermostat For Concealed Installation With 2-Way Diverter (29181KF2)
Model Number29181KF2
Model ReferenceThermostat For Concealed Installation With 2-Way Diverter (29181KF2)
NBS DescriptionThermostatic mixing valves
NBS Noten/a
NBS Object NameVADO - Thermostatic mixing valves
NBS Office Master Tagn/a
NBS Reference90-10-90/370
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
PQ Diagram Linkcdn.cloud.grohe.com/PQCharts/lores/2/291/original/29181KF2-pqchart-en_GB.svg
Primary MaterialGrohe_PhantomBlack
Product Descriptionset for final installation for GROHE Rapido SmartBox (35 600/35 604) GROHE TurboStat compact cartridge with wax thermoelement GROHE FastFixation escutcheon with covered shaft sealing and covered fixing metal escutcheon, retroactively 6° adjustable printed head and hand shower symbol GROHE SafeStop safety button at 38°C GROHE SafeStop Plus optional temperature limiter at 43°C or 46°C included GROHE AquaDimmer, integrated shut off/diverter valve metal handles flow performance: outlet B = 27 l/min, outlet C = 30 l/min without roughing-in set 35 600/35 604 (please order separately)
Production Year2025
Product Number29181KF2
Product Page URLwww.grohe.co.uk/en_gb/-29181KF2.html
Product Short TextThermostat for concealed installation with 2-way diverter
Product TypeThermostat
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsinfo-uk@grohe.com
Sustainability Awardgreen.grohe.com/awards
Sustainability Reportgreen.grohe.com/reporting
TPI Document Linkcdn.cloud.grohe.com/tpi/2000/2200/2240/2243/2243425/original/2243425.pdf cdn.cloud.grohe.com/tpi/2000/2200/2200/2208/2208210/original/2208210.pdf
Type CommentsThermostat For Concealed Installation With 2-Way Diverter (29181KF2)
Type NameThermostat For Concealed Installation With 2-Way Diverter (29181KF2)
URLwww.grohe.co.uk/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
