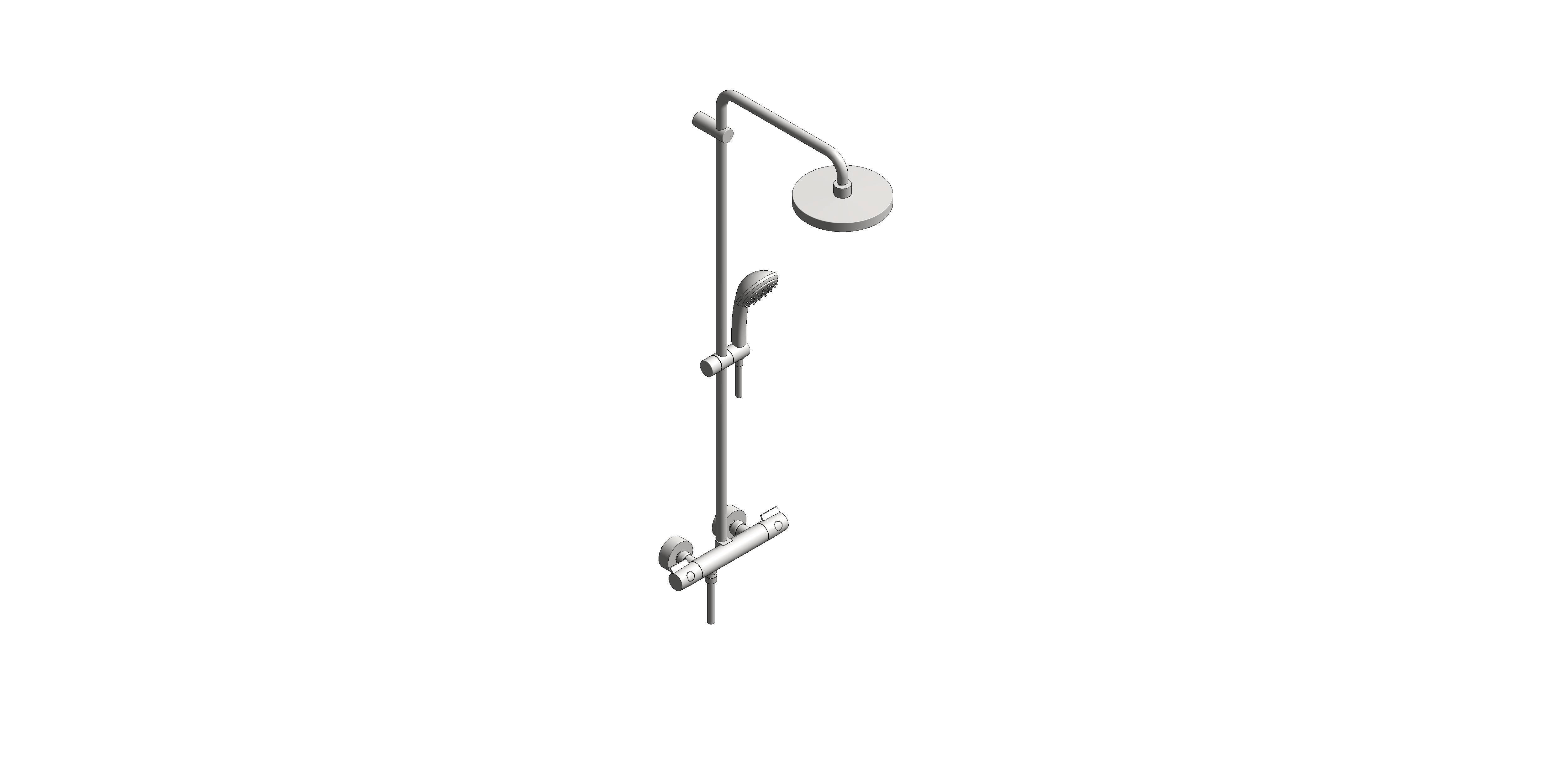

Shower System (2672200C)

by GROHE

Download Add to collection

Description

Product Number - 2672200C

Colour - Chrome

PRODUCT MAIN FEATURES

horizontal swivable 390 mm shower arm
exposed thermostat with Aquadimmer function
allows change between:
head shower Tempesta Cosmopolitan 200
GROHE Water Saving 9 l/min flow limiter
spray plate white
spray pattern: Rain
with ball joint
rotation angle ± 15°
hand shower Tempesta 100
GROHE Water Saving 9.5 l/min flow limiter
spray pattern: Rain
adjustable in height with gliding element
Rotaflex TwistStop shower hose 1750 mm 1/2" x 1/2" (28 410)
GROHE TurboStat compact cartridge with wax thermoelement
GROHE SafeStop safety button at 38°C
GROHE SafeStop Plus optional temperature limiter at 43°C included
GROHE DreamSpray perfect spray pattern
SpeedClean anti-limescale system
Inner WaterGuide for a longer life
TwistStop to prevent hose from twisting
suitable for instantaneous heaters from 18 kW/h
minimum flow rate 7 l/min
optional upgrade: GROHE EasyReach tray (26 362), sold separately

Product Page - https://www.grohe.co.uk/en_gb/-2672200C.html

Object Data

1 Revision

Last Updated

10/06/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Data Sheet

Object metadata

_AuthorSM 183
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/grohe-2672200C/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD2010
Asset TypeFixed
BIM Object NameGrohe_ShowerSystem_2672200C
Classification NameUniclass2015
Classification ValuePr_40_20_87_75
CO2 Neutral ProductionGROHE is one of the first leading manufacturer within the sanitary industry having a CO2-neutral production.
Code Performancen/a
ColorChrome
Constituentsn/a
Cradle To Cradle CertificationN/A
Created Byinfo-uk@grohe.com
Created On2024-05-28T09:00:00
CWFU4.5
Default Elevation0 mm
Descriptionconsisting of: horizontal swivable 390 mm shower arm exposed thermostat with Aquadimmer function allows change between: head shower Tempesta Cosmopolitan 200 GROHE Water Saving 9 l/min flow limiter spray plate white spray pattern: Rain with ball joint rotation angle ± 15° hand shower Tempesta 100 GROHE Water Saving 9.5 l/min flow limiter spray pattern: Rain adjustable in height with gliding element Rotaflex TwistStop shower hose 1750 mm 1/2" x 1/2" (28 410) GROHE TurboStat compact cartridge with wax thermoelement GROHE SafeStop safety button at 38°C GROHE SafeStop Plus optional temperature limiter at 43°C included GROHE DreamSpray perfect spray pattern SpeedClean anti-limescale system Inner WaterGuide for a longer life TwistStop to prevent hose from twisting suitable for instantaneous heaters from 18 kW/h minimum flow rate 7 l/min optional upgrade: GROHE EasyReach tray (26 362), sold separately
Dimensions Document Linkcdn.cloud.grohe.com/dimdraw/100000/100000/100000/100100/100180/100182/100182397/1280/100182397.jpg
Documentation Certificateswww.bimstore.co/products/grohe-2672200C/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/grohe-2672200C/document/installation-guide
Documentation Literaturewww.bimstore.co/products/grohe-2672200C/document/product-literature
Documentation Maintenancewww.bimstore.co/products/grohe-2672200C/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/grohe-2672200C/document/technical-data-sheet
Duration UnitYears
EcojoyNo
Expected Life0
Featuresn/a
Finishn/a
Full Recyclability Of PlasticAll plastic components are fully recycable
Graden/a
GROHE Social Committmentgreen.grohe.com/social_engagement
GROHE Sustainabilitygreen.grohe.com
HWFU4.5
Ifc Export AsIfcFlowTerminalType
Ifc Export TypeIfcSanitaryTerminalTypeEnum.SHOWER
KeynoteN13
ManufacturerGrohe
Manufacturer NameGrohe
Materialn/a
Model2672200C
Model Number2672200C
Model ReferenceShower System (2672200C)
NBS DescriptionShower fittings package
NBS Noten/a
NBS Object NameGrohe - Shower fittings package
NBS Office Master Tagn/a
NBS Reference45-35-70/330
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Primary MaterialGrohe_Chrome
Product Descriptionconsisting of: horizontal swivable 390 mm shower arm exposed thermostat with Aquadimmer function allows change between: head shower Tempesta Cosmopolitan 200 GROHE Water Saving 9 l/min flow limiter spray plate white spray pattern: Rain with ball joint rotation angle ± 15° hand shower Tempesta 100 GROHE Water Saving 9.5 l/min flow limiter spray pattern: Rain adjustable in height with gliding element Rotaflex TwistStop shower hose 1750 mm 1/2" x 1/2" (28 410) GROHE TurboStat compact cartridge with wax thermoelement GROHE SafeStop safety button at 38°C GROHE SafeStop Plus optional temperature limiter at 43°C included GROHE DreamSpray perfect spray pattern SpeedClean anti-limescale system Inner WaterGuide for a longer life TwistStop to prevent hose from twisting suitable for instantaneous heaters from 18 kW/h minimum flow rate 7 l/min optional upgrade: GROHE EasyReach tray (26 362), sold separately
Production Year2024
Product Number2672200C
Product Short TextShower system with thermostatic mixer for wall mounting
Product TypeShower System
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsinfo-uk@grohe.com
Sustainability Awardgreen.grohe.com/awards
Sustainability Reportgreen.grohe.com/reporting
Type CommentsShower System (2672200C)
Type NameShower System (2672200C)
URLwww.grohe.co.uk/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborwww.grohe.co.uk
Warranty Guarantor Partswww.grohe.co.uk

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
