ESSENCE Bath Shower Mixer (25250KF1)

by GROHE

Download Add to collection

Description

Product Number - 25250KF1

EAN - 4005176782404

Colour - phantom black

PRODUCT MAIN FEATURES

wall mounted
metal lever
GROHE SilkMove 35 mm ceramic cartridge
with temperature limiter
GROHE Long-Life finish
automatic diverter: bath/shower
mousseur
shower outlet 1/2"
integrated non-return valve
S-unions
protected against backflow

Product Page - https://www.grohe.co.uk/en_gb/allure-brilliant-shower-outlet-elbow-1-2-26850AL0.html

Object Data

1 Revision

Last Updated

22/09/2023

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Data Sheet

Object metadata

_AuthorAM 147
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/grohe-25250KF1/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD2010
Asset TypeFixed
BIM Object NameGrohe_BathShowerMixer_Essence_25250KF1
Classification NameUniclass2015
Classification ValuePr_40_20_87_08
CO2 Neutral ProductionGROHE is one of the first leading manufacturer within the sanitary industry having a CO2-neutral production.
Code Performancen/a
ColorMatt Black
Constituentsn/a
Cradle To Cradle Certificationn/a
Created Byinfo-uk@grohe.com
Created On2023-03-01T09:00:00
CW ConnectionYes
Default Elevation0.0 mm
DescriptionESSENCE Bath Shower Mixer

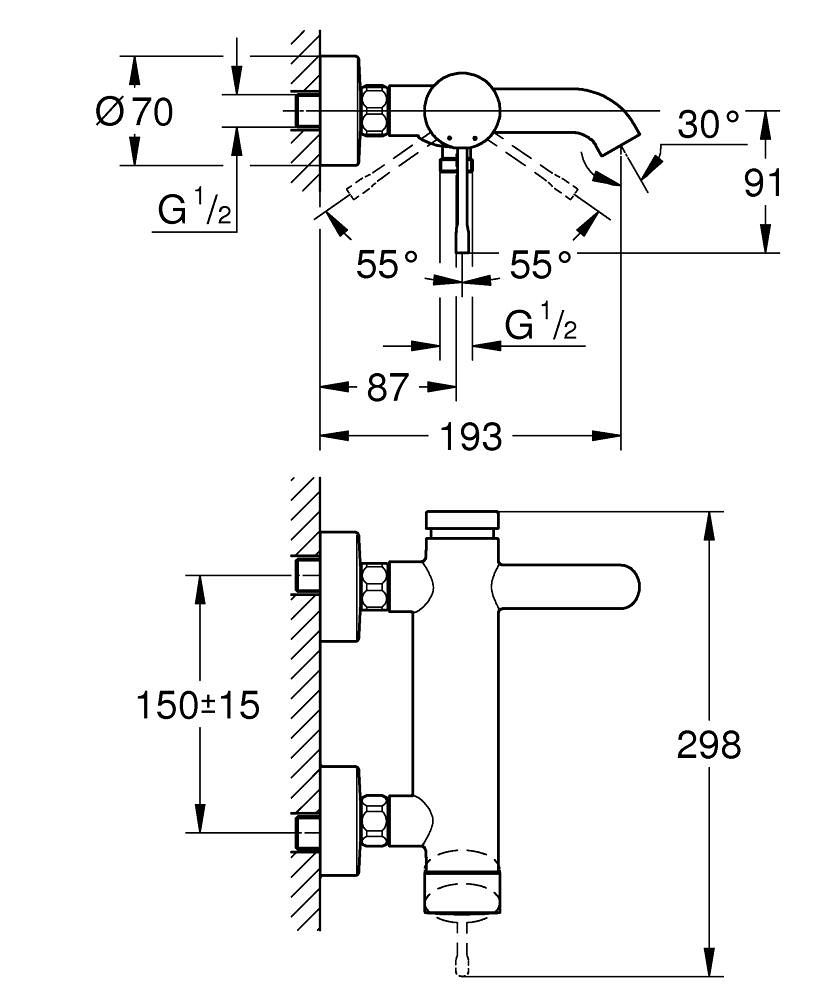

Dimensions Document Linkcdn.cloud.grohe.com/dimdraw/1000/1900/1930/1934/1934023/1280/1934023.jpg
Documentation Certificateswww.bimstore.co/products/grohe-25250KF1/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/grohe-25250KF1/document/installation-guide
Documentation Literaturewww.bimstore.co/products/grohe-25250KF1/document/product-literature
Documentation Maintenancewww.bimstore.co/products/grohe-25250KF1/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/grohe-25250KF1/document/technical-data-sheet
Duration UnitYears
EcojoyNo
EF000003Wall
EF000139Other
EF00170770 °C
EF002149TRUE
EF002286Internal thread
EF002671Black
EF007955TRUE
EF011775EB
EF011779FALSE
EF01275320.0
EF014578not applicable
EF014591FALSE
EF016731Group I,<= 20 dB(A)
EF020105No
EF020259Downwards
EF020780Single-grip
EF020781Cartouche, ceramic
EF0207851/2 inch
EF020787Group II, <=30 dB(A)
EF020789193.0 mm
EF020791Brass
EF020799TRUE
EF020805FALSE
EF020967FALSE
EF021035FALSE
EF0218082-hole
EF021835150.0 mm
EF021855FALSE
EF022042B
EF0223371/2 inch
EF023686not applicable
EF023687FALSE
EF023688Foam jet nozzle
EF023957TRUE
EF024919FALSE
EF025109Other
EFDE0022Group I, <=20 dB(A)
EFNL0001FALSE
EFSE0002FALSE
Expected Life0
Featuresn/a
Finishn/a
Full Recyclability Of PlasticAll plastic components are fully recyclable
Graden/a
GROHE Social Committmentgreen.grohe.com/social_engagement
GROHE Sustainabilitygreen.grohe.com
HW ConnectionYes
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
KeynoteN13
ManufacturerGrohe
Manufacturer NameGrohe
Materialn/a
ModelESSENCE Bath Shower Mixer
Model Number25250KF1
Model ReferenceESSENCE Bath Shower Mixer
NBS DescriptionBath mixer taps
NBS Noten/a
NBS Object NameGrohe - Bath mixer taps
NBS Office Master Tagn/a
NBS Reference45-35-70/315
Nominal Depth0.0 mm
Nominal Height0.0 mm
Nominal Length0.0 mm
PQ Diagram Linkcdn.cloud.grohe.com/PQCharts/lores/2/252/original/25250KF1-pqchart-en_GB.svg
Primary MaterialGrohe_MattBlack
Product Descriptionwall mounted metal lever GROHE SilkMove 35 mm ceramic cartridge with temperature limiter GROHE Long-Life Shine finish automatic diverter: bath/shower mousseur shower outlet 1/2" integrated non-return valve S-unions protected against backflow min. recommended pressure 1.0 bar
Production Year2023
Product Number25250KF1
Product Page URLwww.grohe.co.uk/en_gb/-25250KF1.html
Product Short TextEssence Single-lever bath/shower mixer 1/2"
Product TypeSingle Lever Mixer
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsinfo-uk@grohe.com
Sustainability Awardgreen.grohe.com/awards
Sustainability Reportgreen.grohe.com/reporting
TPI Document Linkcdn.cloud.grohe.com/tpi/100000/100000/100000/100200/100230/100233/100233821/original/100233821.pdf
Type CommentsESSENCE Bath Shower Mixer
Type NameESSENCE Bath Shower Mixer
URLwww.grohe.co.uk/
Vent ConnectionNo
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com
Waste ConnectionNo

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
