_AuthorSM 160
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/Grohe-24371IG0/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD2010
Asset TypeFixed

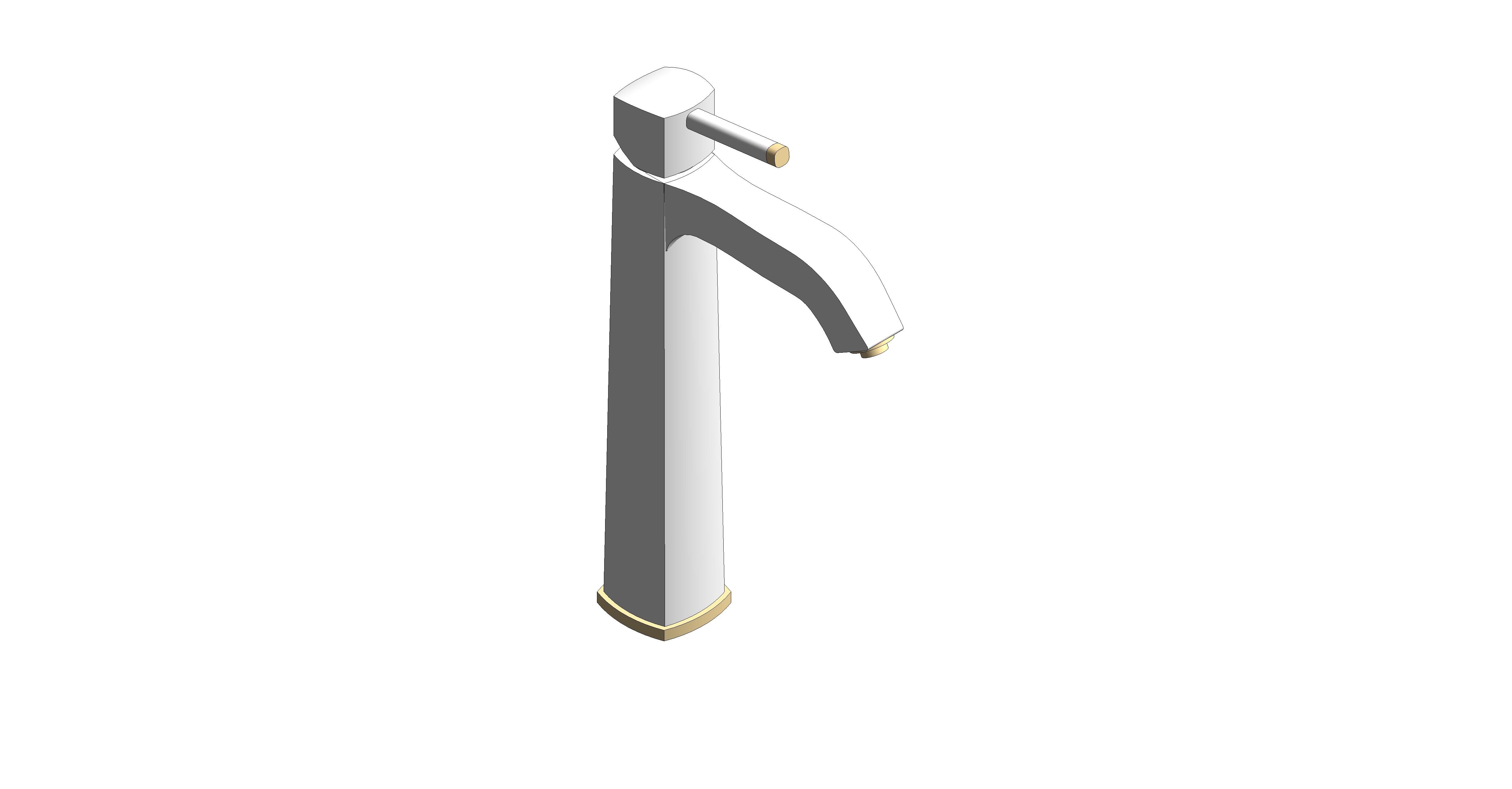

BIM Object NameGrohe_SingleLeverMixer_Grandera_24371IG0
Classification NameUniclass2015
Classification ValuePr_40_20_87_98
CO2 Neutral ProductionGROHE is one of the first leading manufacturer within the sanitary industry having a CO2-neutral production.
Code Performancen/a
ColorChrome
Constituentsn/a
Cradle To Cradle Certificationn/a
Created Byinfo-uk@grohe.com
Created On2023-08-25T09:00:00
Default Elevation0.0 mm
DescriptionGRANDERA OHM Vessel Basin Smooth b.
Dimensions Document Linkn/a
Documentation Certificateswww.bimstore.co/products/Grohe-24371IG0/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/Grohe-24371IG0/document/installation-guide
Documentation Literaturewww.bimstore.co/products/Grohe-24371IG0/document/product-literature
Documentation Maintenancewww.bimstore.co/products/Grohe-24371IG0/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/Grohe-24371IG0/document/technical-data-sheet
Duration UnitYears
EcojoyNo
EF000003Top/tap hole
EF000139Chromium-plated
EF00170770 °C
EF002149TRUE
EF002286Hose (gland nut)
EF002671Chrome
EF007955FALSE
EF011775AA, free air gap
EF011779FALSE
EF011781not applicable
EF0127535.0
EF014578not applicable
EF014591false
EF015280false
EF016731Group I,<= 20 dB(A)
EF020075Yes
EF020105No
EF020780Single-grip
EF020781Cartouche, ceramic
EF0207853/8 inch
EF020787Group II, <=30 dB(A)
EF020789157.0 mm
EF020791Brass
EF020792FALSE
EF020794TRUE
EF020795Fixed
EF020796365.0 mm
EF020797234.0 mm
EF020798not relevant
EF020799TRUE
EF020801FALSE
EF0218081-hole
EF0218350.0 mm
EF022042None
EF022168FALSE
EF022750Cast
EF023686Gold
EF023687FALSE
EF023688Foam jet nozzle
Expected Life0
Featuresn/a
Finishn/a
Full Recyclability Of PlasticAll plastic components are fully recyclable
Graden/a
GROHE Social Committmentgreen.grohe.com/social_engagement
GROHE Sustainabilitygreen.grohe.com
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
Installation Videon/a
KeynoteN13
ManufacturerGrohe
Manufacturer NameGrohe
Materialn/a
ModelGRANDERA OHM Vessel Basin Smooth b.
Model Number24371IG0
Model ReferenceGRANDERA OHM Vessel Basin Smooth b.
NBS DescriptionWashbasin taps
NBS Noten/a
NBS Object NameGrohe - Washbasin taps
NBS Office Master Tagn/a
NBS Reference45-35-70/345
Nominal Depth0.0 mm
Nominal Height0.0 mm
Nominal Length0.0 mm
PQ Diagram Linkn/a
Primary MaterialGrohe - Chrome
Product Descriptionfor free-standing basins GROHE SilkMove 28 mm ceramic cartridge temperature limiter GROHE Long-Life Shine durable sparkling sheen GROHE Water Saving - Less water, perfect flow GROHE FastFixation installation system GROHE AquaGuide adjustable mousseur 5.7 l/min smooth body flexible connection hoses min. recommended pressure 1.0 bar
Production Year2023
Product Number24371IG0
Product Page URLwww.grohe.co.uk/en_gb/grandera-basin-mixer-1-2-xl-size-24371IG0.html
Product Short TextGrandera OHM vessel basin smooth b.
Product TypeSingle Lever Mixer
Referenced Standardn/a
Replacement Costn/a
Secondary MaterialGrohe - BrushedCoolSunrise
Shapen/a
Sizen/a
Spare Partsinfo-uk@grohe.com
Sustainability Awardgreen.grohe.com/awards
Sustainability Reportgreen.grohe.com/reporting
TPI Document Linkcdn.cloud.grohe.com/tpi/2000/2200/2200/2200/2200552/original/2200552.pdf
Type CommentsGRANDERA OHM Vessel Basin Smooth b.
Type NameGRANDERA OHM Vessel Basin Smooth b.
URLwww.grohe.co.uk/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
