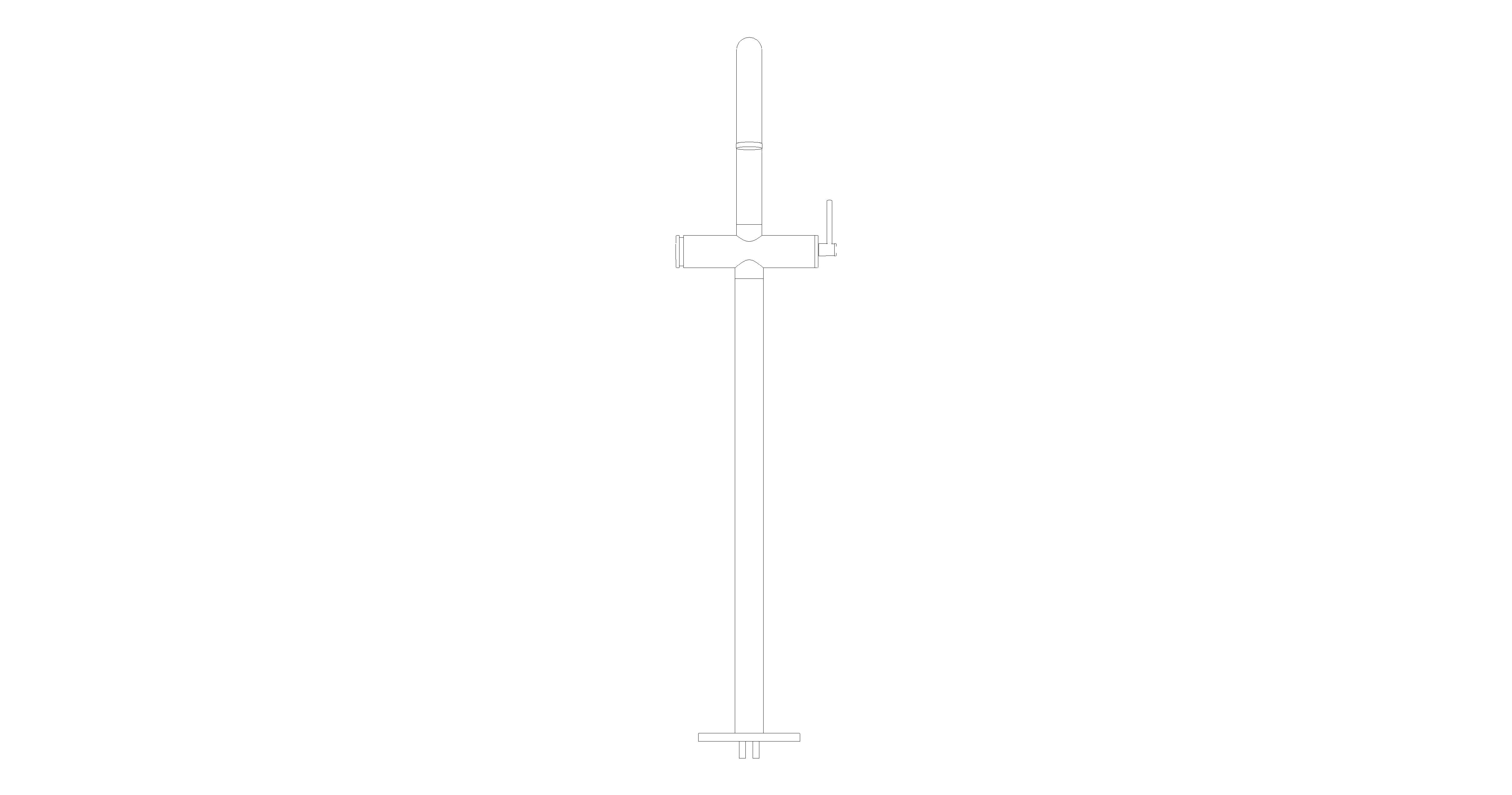

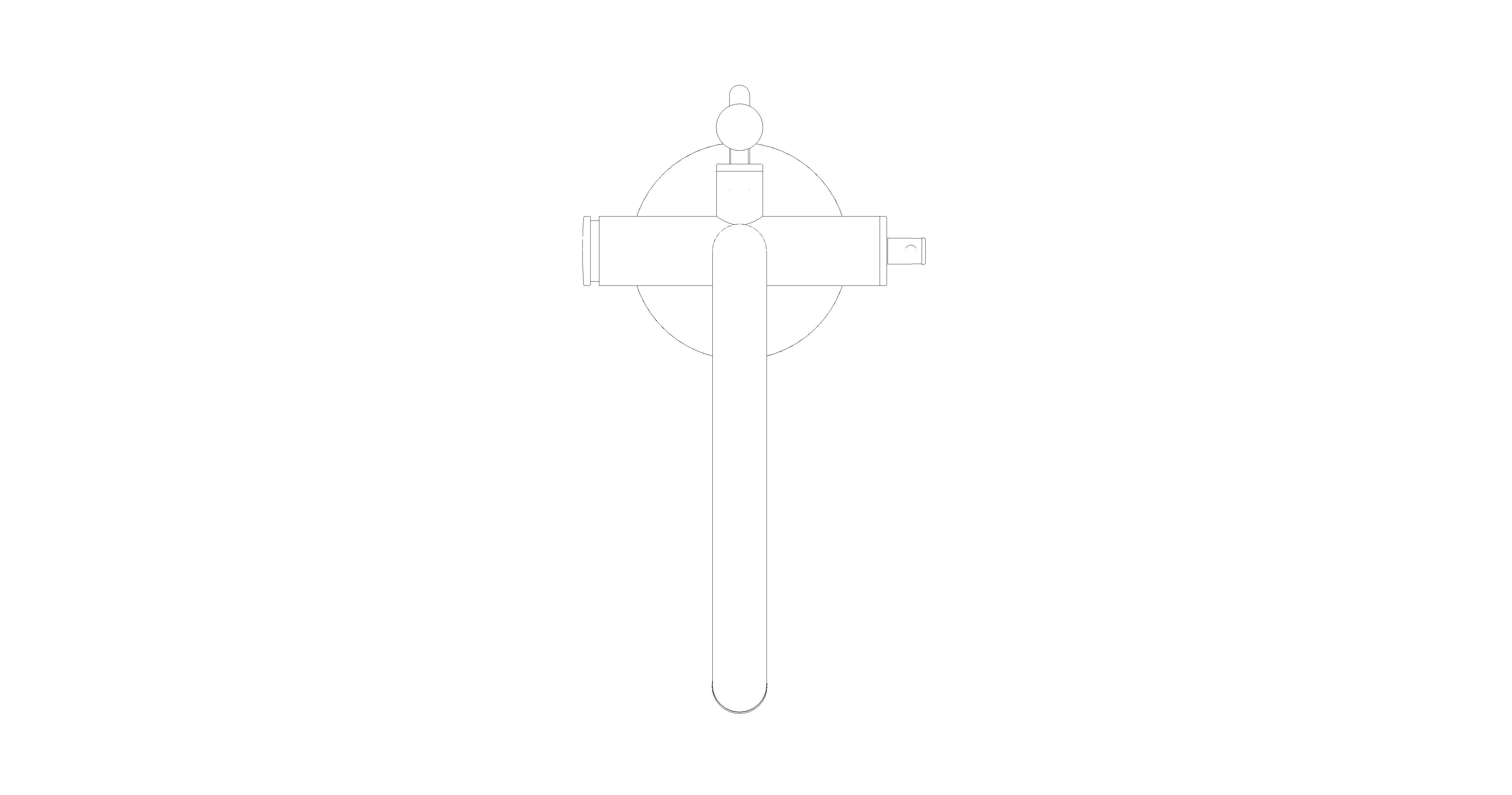

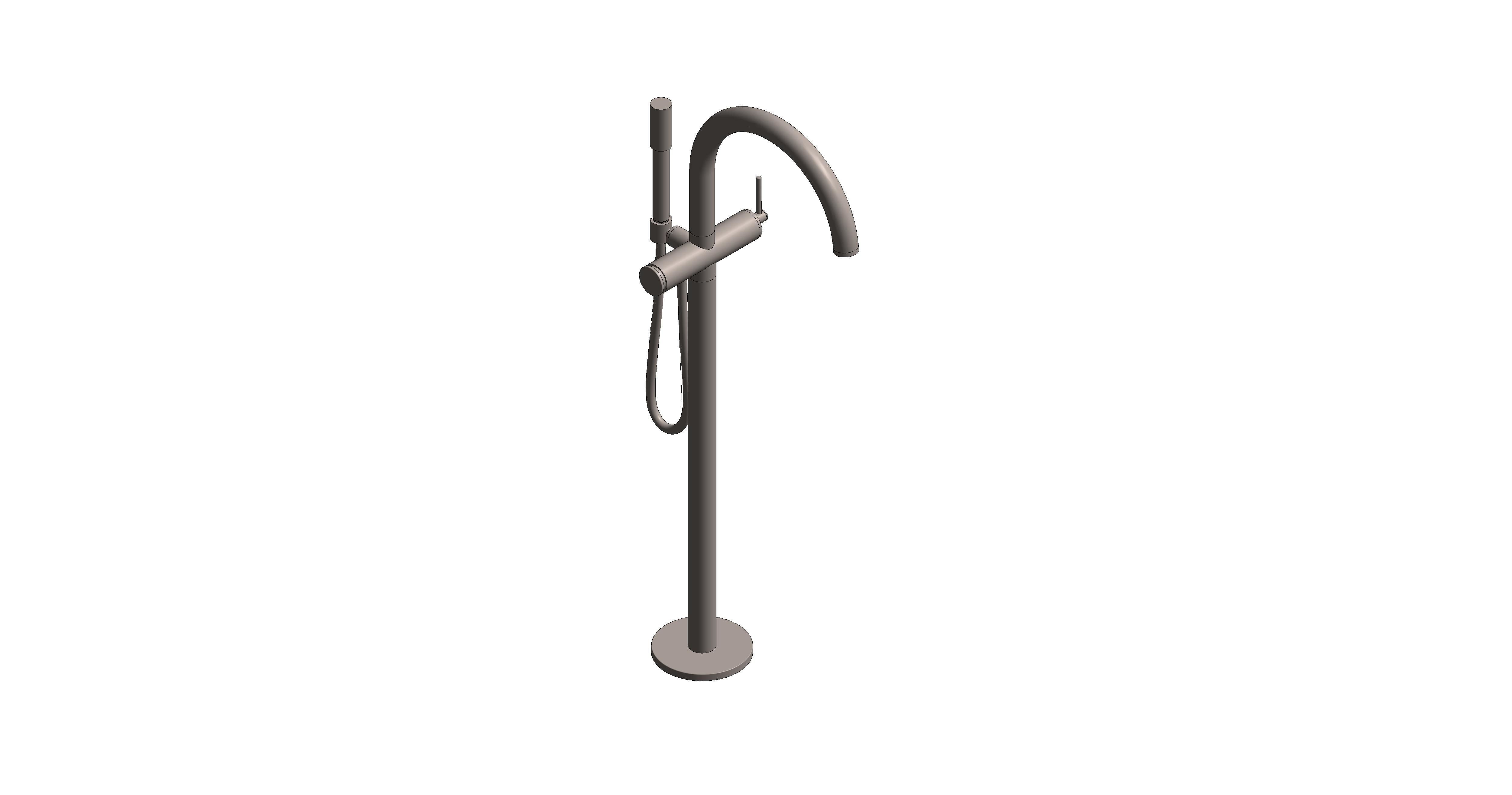

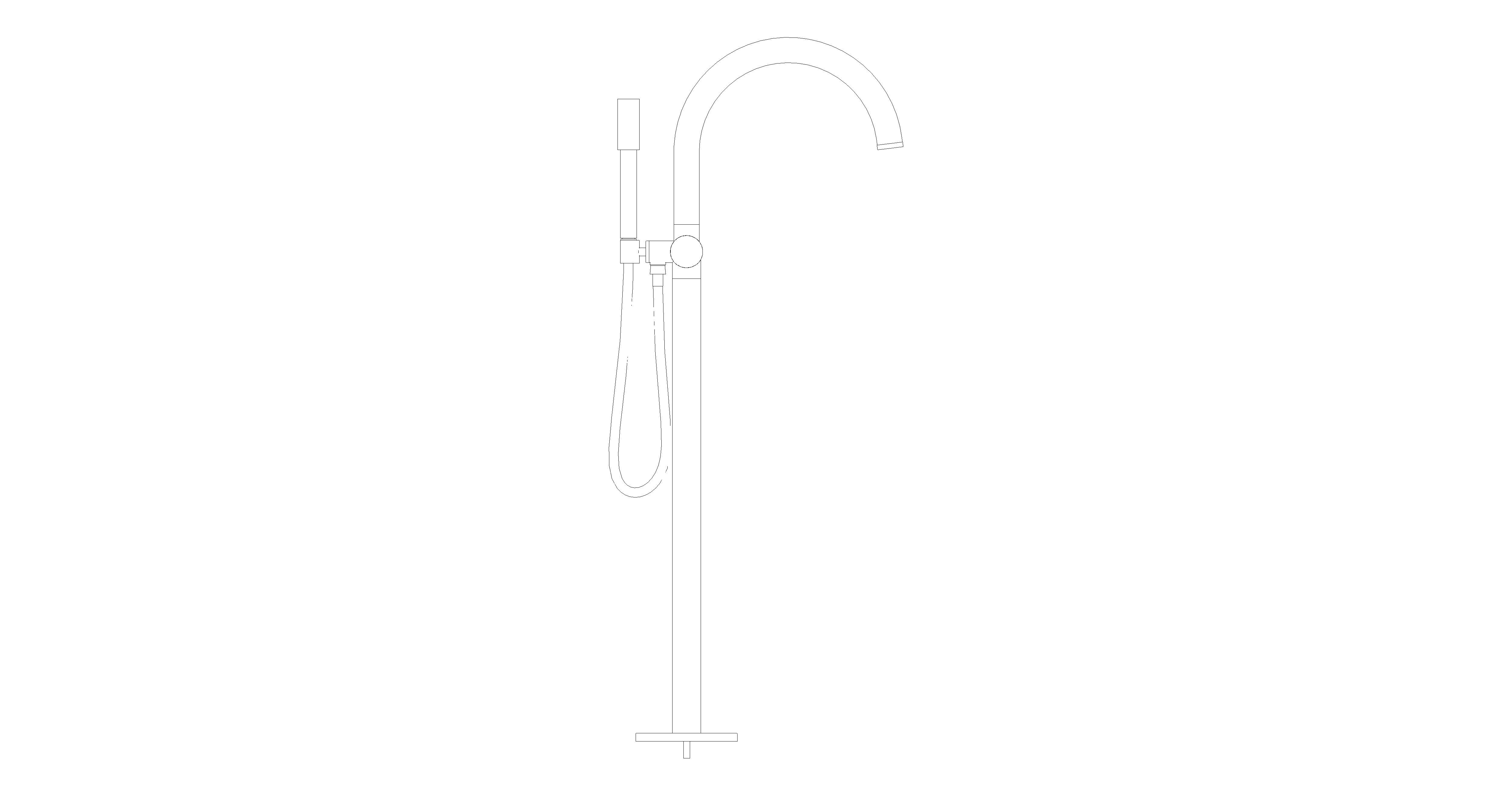

ATRIO NEW Bath Frest (24368AL0)

by GROHE

Download Add to collection

Description

Product Number - 24368AL0

EAN - 4005176761119

Colour - brushed hard graphite

PRODUCT MAIN FEATURES

set for final installation for
45 984 001
without roughing-in-set
GROHE SilkMove 35 mm ceramic cartridge
with temperature limiter
GROHE Long-Life finish
automatic diverter: bath/shower
spout with mousseur
projection 301 mm
integrated non-return valve in the shower outlet 1/2"
with shower holder
hand shower Rainshower Aqua Stick (26 866)
Silverflex shower hose 1250 mm
protected against backflow

Product Page - https://www.grohe.co.uk/en_gb/atrio-single-lever-bath-mixer-floor-mounted-24368AL0.html

Object Data

1 Revision

Last Updated

15/08/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Data Sheet

Object metadata

_AuthorIH 158
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/grohe-24368AL0/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD2010
Asset TypeFixed
BIM Object NameGrohe_SingleLeverMixer_AtrioNew_24368AL0
Classification NameUniclass2015
Classification ValuePr_40_20_87_07
CO2 Neutral ProductionGROHE is one of the first leading manufacturer within the sanitary industry having a CO2-neutral production.
Code Performancen/a
ColorChrome
Constituentsn/a
Cradle To Cradle Certificationn/a
Created Bywww.grohe.co.uk
Created On2023-02-08T09:00:00
Default Elevation0.0 mm
Descriptionset for final installation for 45 984 without roughing-in set GROHE SilkMove 35 mm ceramic cartridge with temperature limiter GROHE Long-Life Shine finish automatic diverter: bath/shower spout with mousseur projection 301 mm integrated non-return valve in the shower outlet 1/2" with shower holder hand shower Rainshower Aqua Stick (26 866) Silverflex shower hose 1250 mm protected against backflow min. recommended pressure 1.0 bar
Dimensions Document Linkcdn.cloud.grohe.com/dimdraw/100000/100000/100000/100000/100050/100051/100051033/1280/100051033.jpg
Documentation Certificateswww.bimstore.co/products/grohe-24368AL0/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/grohe-24368AL0/document/installation-guide
Documentation Literaturewww.bimstore.co/products/grohe-24368AL0/document/product-literature
Documentation Maintenancewww.bimstore.co/products/grohe-24368AL0/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/grohe-24368AL0/document/technical-data-sheet
Duration UnitYears
EcojoyNo
EF000003Floor
EF000139Other
EF00170770 °C
EF002149TRUE
EF002286Internal thread
EF002671Other
EF007955FALSE
EF011775EB
EF011779FALSE
EF01275320.0
EF014591false
EF016731Group I,<= 20 dB(A)
EF020105No
EF020259Downwards
EF020780Single-grip
EF020781Cartouche, ceramic
EF0207851/2 inch
EF020787Group II, <=30 dB(A)
EF020789301.0 mm
EF020791Brass
EF020799TRUE
EF020805false
EF020967false
EF021035false
EF0218081-hole
EF0218350.0 mm
EF021855true
EF022042B
EF0223371/2 inch
EF023687FALSE
EF023688Foam jet nozzle
EF023957TRUE
EF024919false
EF025109Other
EFDE0022Group I, <=20 dB(A)
EFNL0001false
EFSE0002false
Expected Life0
Featuresn/a
Finishn/a
Full Recyclability Of PlasticAll plastic components are fully recycable
Graden/a
GROHE Social Committmentgreen.grohe.com/social_engagement
GROHE Sustainabilitygreen.grohe.com
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
Installation Videon/a
KeynoteN13
ManufacturerGrohe
Manufacturer NameGrohe
Materialn/a
ModelATRIO NEW OHM bath freest. (24368AL0)
Model Number24368AL0
Model ReferenceATRIO NEW OHM bath freest. (24368AL0)
NBS DescriptionBath mixer taps with shower hose and hand sprays
NBS Noten/a
NBS Object NameGrohe - Bath mixer taps with shower hose and hand sprays
NBS Office Master Tagn/a
NBS Reference45-35-70/315
Nominal Depth0.0 mm
Nominal Height0.0 mm
Nominal Length0.0 mm
PQ Diagram Linkcdn.cloud.grohe.com/PQCharts/lores/2/243/original/24368AL0-pqchart-en_GB.svg
Primary MaterialGrohe_BrushedHardGraphite
Product Descriptionset for final installation for 45 984 without roughing-in set GROHE SilkMove 35 mm ceramic cartridge with temperature limiter GROHE Long-Life Shine finish automatic diverter: bath/shower spout with mousseur projection 301 mm integrated non-return valve in the shower outlet 1/2" with shower holder hand shower Rainshower Aqua Stick (26 866) Silverflex shower hose 1250 mm protected against backflow min. recommended pressure 1.0 bar
Production Year2023
Product Number24368AL0
Product Short TextAtrio New OHM bath freest.
Product TypeSingle Lever Mixer
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsinfo-uk@grohe.com
Sustainability Awardgreen.grohe.com/awards
Sustainability Reportgreen.grohe.com/reporting
TPI Document Linkcdn.cloud.grohe.com/tpi/2000/2200/2200/2200/2200547/original/2200547.pdf
Type CommentsATRIO NEW OHM bath freest. (24368AL0)
Type NameATRIO NEW OHM bath freest. (24368AL0)
URLwww.grohe.co.uk/en_gb/-24368AL0.html
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
