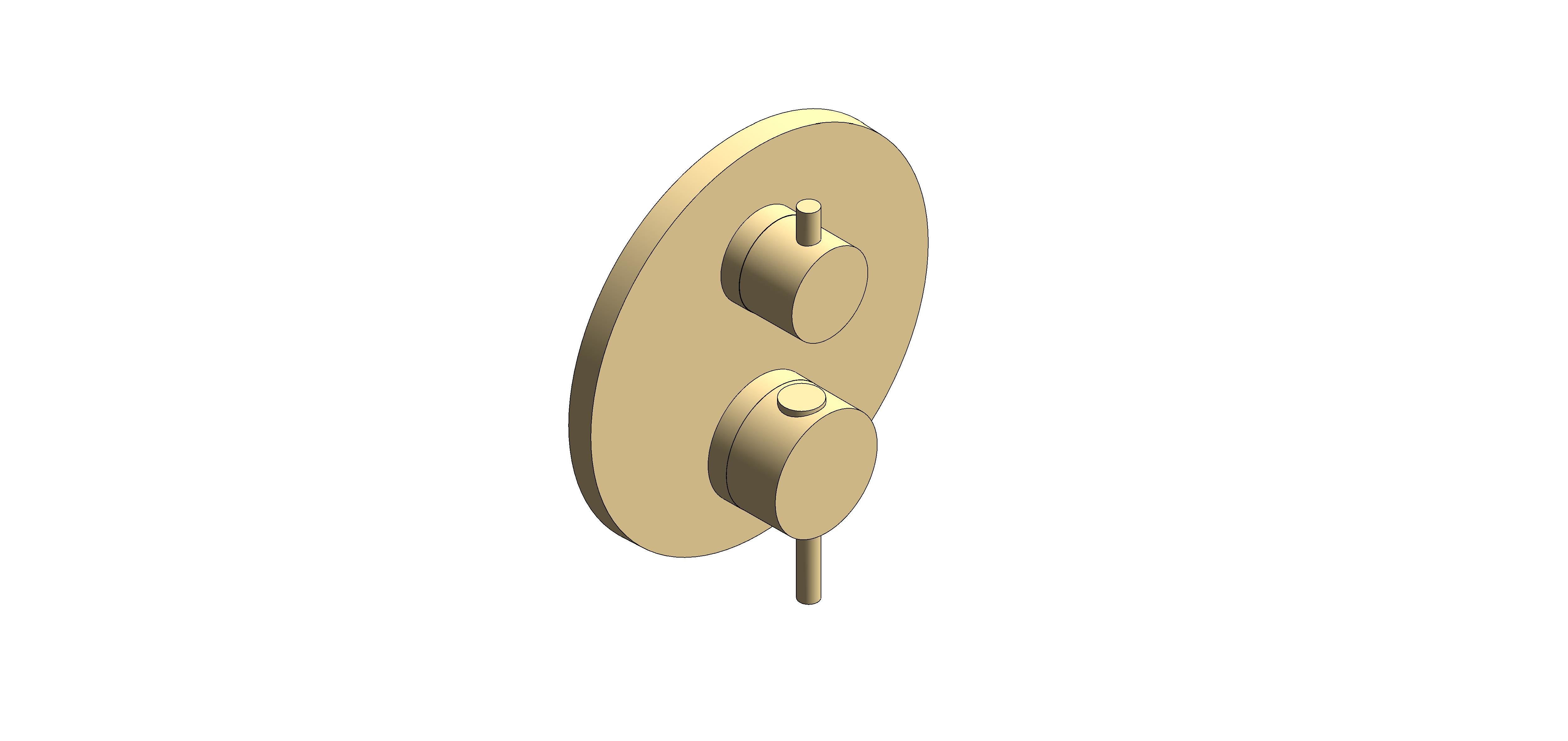

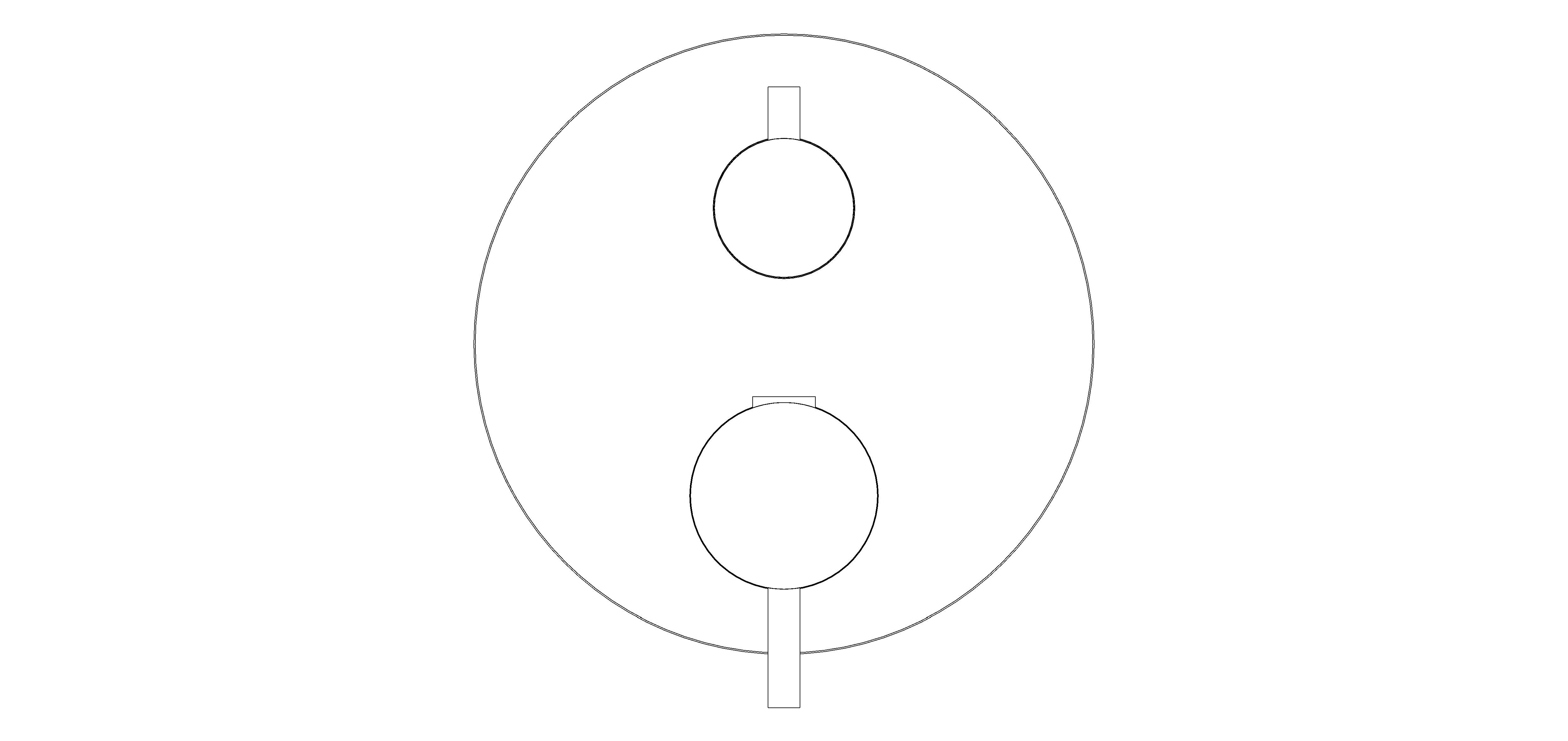

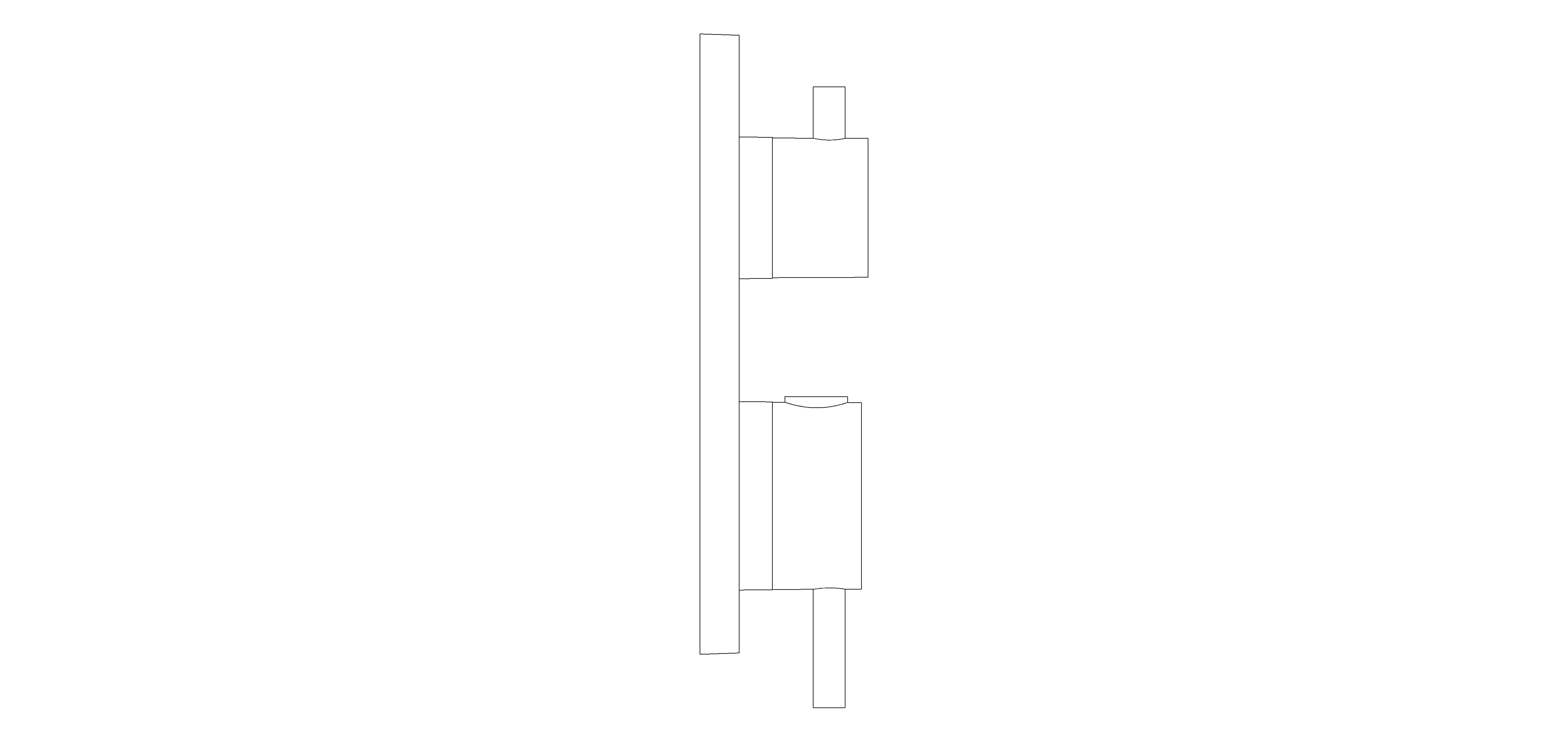

ATRIO Thermostatic bath tub mixer for 2 outlets with integrated shut off/diverter valve (24359GL0)

by GROHE

Download Add to collection

Description

Product Number - 24359GL0

EAN - 4005176761416

Colour - Cool Sunrise

PRODUCT MAIN FEATURES

set for final installation for
GROHE Rapido SmartBox 35 600/35 604
GROHE TurboStat compact cartridge with wax thermoelement
GROHE Long-Life finish
wall escutcheon with GROHE FastFixation(covered escutcheon- and shaft sealing, covered fixing)
metal escutcheon, retroactively 6° adjustable
printed hand shower and bath filler symbol
GROHE SafeStop safety button at 38°C ( calibration required )
GROHE SafeStop Plus optional temperature limiter at 43°C or 46°C included
GROHE AquaDimmer, integrated shut off/diverter valve
metal handles
flow performance: outlet B = 27 l/min outlet C = 30 l/min
without roughing-in-set

Product Page - https://www.grohe.co.uk/en_gb/atrio-thermostatic-bath-tub-mixer-for-2-outlets-with-integrated-shut-off-diverter-valve-24359GL0.html

Object Data

1 Revision

Last Updated

20/09/2023

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Data Sheet

Object metadata

_AuthorRW 157
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/grohe-24359GL0/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD2010
Asset TypeFixed
BIM Object NameGrohe_MixerWithShutOffValve_Atrio_24359GL0
Classification NameUniclass2015
Classification ValuePr_40_20_87_55
CO2 Neutral ProductionGROHE is one of the first leading manufacturer within the sanitary industry having a CO2-neutral production.
Code Performancen/a
ColorCool Sunrise
Constituentsn/a
Cradle To Cradle Certificationn/a
Created Byinfo-uk@grohe.com
Created On2023-08-25T09:00:00
Default Elevation0.0 mm
DescriptionATRIO Mixer With Shut Off Valve
Dimensions Document Linkcdn.cloud.grohe.com/dimdraw/2000/2100/2180/2182/2182288/1280/2182288.jpg
Documentation Certificateswww.bimstore.co/products/grohe-24359GL0/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/grohe-24359GL0/document/installation-guide
Documentation Literaturewww.bimstore.co/products/grohe-24359GL0/document/product-literature
Documentation Maintenancewww.bimstore.co/products/grohe-24359GL0/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/grohe-24359GL0/document/technical-data-sheet
Duration UnitYears
EcojoyNo
EF000010Finishing section
EF00170770 °C
EF002149TRUE
EF002286not applicable
EF002671Other
EF0054640
EF011775EB
EF011779TRUE
EF01275327.0
EF014578not applicable
EF014591false
EF016731Group I,<= 20 dB(A)
EF020105Yes
EF020774true
EF020775false
EF020776false
EF020777false
EF020778false
EF020780Two-grip
EF020781Top section, ceramic
EF020782Brass
EF020783Other
EF020784Other
EF020785not applicable
EF0207862
EF020787Group II, <=30 dB(A)
EF020788false
EF0207890.0 mm
EF020790true
EF020963true
EF021855false
EF022042C
EF023686not applicable
EF023687FALSE
EF023957TRUE
EFDE0022None
EFSE0002false
Expected Life0
Featuresn/a
Finishn/a
Full Recyclability Of PlasticAll plastic components are fully recyclable
Graden/a
GROHE Social Committmentgreen.grohe.com/social_engagement
GROHE Sustainabilitygreen.grohe.com
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
KeynoteN13
ManufacturerGrohe
Manufacturer NameGrohe
Materialn/a
ModelATRIO Mixer With Shut Off Valve
Model Number24359GL0
Model ReferenceATRIO Mixer With Shut Off Valve
NBS DescriptionMixer taps
NBS Noten/a
NBS Object NameGrohe - Mixer taps
NBS Office Master Tagn/a
NBS Reference45-35-70/345
Nominal Depth50.0 mm
Nominal Height221.0 mm
Nominal Length250.0 mm
Pipe MaterialGroheLimited-Pipework
PQ Diagram Linkcdn.cloud.grohe.com/PQCharts/lores/2/243/original/24359GL0-pqchart-en_GB.svg
Primary MaterialGrohe_CoolSunrise
Product Descriptionset for final installation for, GROHE Rapido SmartBox (35 600/35 604) GROHE TurboStat compact cartridge with wax thermoelement GROHE Long-Life Shine finish GROHE FastFixation escutcheon with covered shaft sealing and covered fixing metal escutcheon, retroactively 6° adjustable printed hand shower and bath filler symbol GROHE SafeStop safety button at 38°C GROHE SafeStop Plus optional temperature limiter at 43°C or 46°C included GROHE AquaDimmer, integrated shut off/diverter valve metal handles flow performance: outlet B = 27 l/min outlet C = 30 l/min without roughing-in set
Production Year2023
Product Number24359GL0
Product Page URLwww.grohe.co.uk/en_gb/-24359GL0.html
Product Short TextAtrio New THM trimset Rapido bath
Product TypeThermostat
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsinfo-uk@grohe.com
Sustainability Awardgreen.grohe.com/awards
Sustainability Reportgreen.grohe.com/reporting
TPI Document Linkcdn.cloud.grohe.com/tpi/2000/2200/2200/2201/2201458/original/2201458.pdf cdn.cloud.grohe.com/tpi/2000/2100/2190/2198/2198293/original/2198293.pdf
Type CommentsATRIO Mixer With Shut Off Valve
Type NameATRIO Mixer With Shut Off Valve
URLwww.grohe.co.uk/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
