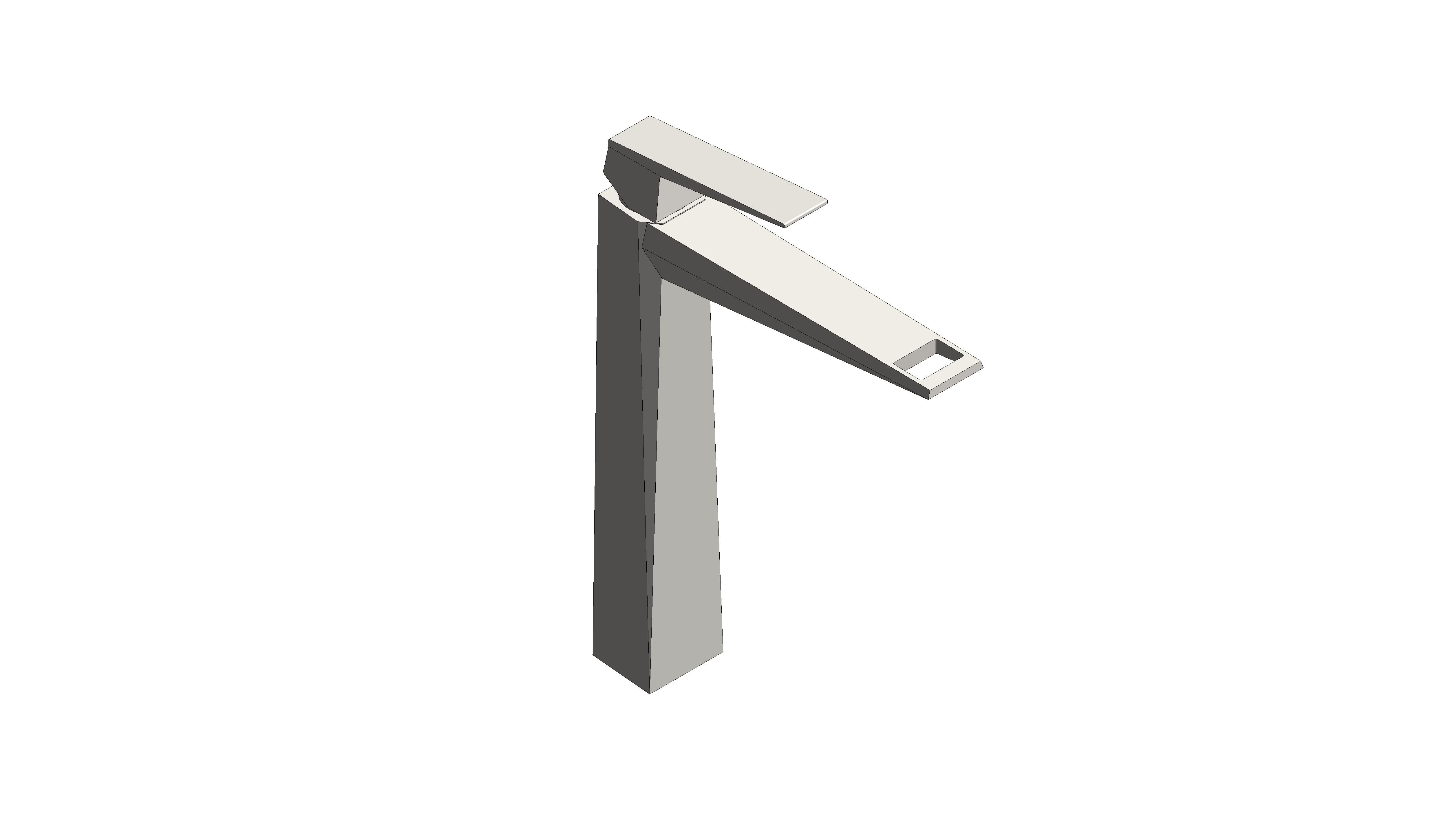

ALLURE BRILLIANT Basin mixer 1/2″ XL-Size (24346DC0)

Download Add to collection

Description

Product Number - 24346DC0

EAN - 4005176759826

Colour - supersteel

PRODUCT MAIN FEATURES

monobloc installation
for free-standing basins
28 mm ceramic cartridge with GROHE SilkMove
temperature limiter
GROHE Long-Life finish
GROHE FastFixation installation system
GROHE Water Saving 5.0 l/min. flow limiter
spout with integrated mousseur
smooth body
flexible connection hoses
min. recommended pressure 1.0 bar

Product Page - https://www.grohe.co.uk/en_gb/allure-brilliant-basin-mixer-1-2-br-xl-size-24346DC0.html

Object Data

1 Revision

Last Updated

24/09/2023

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Literature

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorSM 150
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/grohe-24346dc0/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD2010
Asset TypeFixed
BIM Object NameGrohe_BidetMixer_AllureBrilliant_24346DC0
Classification NameUniclass2015
Classification ValuePr_40_20_87_12
CO2 Neutral ProductionGROHE is one of the first leading manufacturer within the sanitary industry having a CO2-neutral production.
Code Performancen/a
ColorSupersteel
Constituentsn/a
Cradle To Cradle Certificationn/a
Created Byinfo-uk@grohe.com
Created On2023-03-01T09:00:00
Default Elevation0.0 mm
DescriptionALLURE BRILLIANT Bidet Mixer
Dimensions Document Linkcdn.cloud.grohe.com/dimdraw/1000/1500/1510/1511/1511338/1280/1511338.jpg
Documentation Certificateswww.bimstore.co/products/grohe-24346dc0/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/grohe-24346dc0/document/installation-guide
Documentation Literaturewww.bimstore.co/products/grohe-24346dc0/document/product-literature
Documentation Maintenancewww.bimstore.co/products/grohe-24346dc0/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/grohe-24346dc0/document/technical-data-sheet
Duration UnitYears
EcojoyNo
EF000003Top/tap hole
EF000139Other
EF00170770 °C
EF002149True
EF002286Hose (gland nut)
EF002671Stainless steel.
EF007955False
EF011775AA, free air gap
EF011779False
EF011781n/a
EF0127535.0
EF014578n/a
EF014591False
EF015280False
EF016731Group I,<= 20 dB(A)
EF020075Yes
EF020105No
EF020780Single-grip
EF020781Cartouche, ceramic
EF0207853/8 inch
EF020787Group II, <=30 dB(A)
EF020789180.0 mm
EF020791Brass
EF020792False
EF020794False
EF020795Fixed
EF020796333.0 mm
EF020797173.0 mm
EF020798not relevant
EF020799True
EF020801False
EF0218081-hole
EF0218350.0 mm
EF022042None
EF022168False
EF022750Cast
EF023686n/a
EF023687False
EF023688Foam jet nozzle
EF025109Brushed
EFDE0022Group I, <=20 dB(A)
EFSE0002False
Expected Life0
Featuresn/a
Finishn/a
Full Recyclability Of PlasticAll plastic components are fully recyclable
Graden/a
GROHE Social Committmentgreen.grohe.com/social_engagement
GROHE Sustainabilitygreen.grohe.com
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
KeynoteN13
ManufacturerGrohe
Manufacturer NameGrohe
Materialn/a
ModelALLURE BRILLIANT Bidet Mixer
Model Number24346DC0
Model ReferenceALLURE BRILLIANT Bidet Mixer
NBS DescriptionBidet mixer for ascending spray taps
NBS Noten/a
NBS Object NameGrohe - Bidet mixer for ascending spray taps
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth0.0 mm
Nominal Height0.0 mm
Nominal Length0.0 mm
PQ Diagram Linkcdn.cloud.grohe.com/PQCharts/lores/2/243/original/24346DC0-pqchart-en_GB.svg
Primary MaterialGrohe_Supersteel
Product Descriptionsingle hole installation for free-standing basins GROHE SilkMove 28 mm ceramic cartridge temperature limiter GROHE Long-Life Shine finish GROHE FastFixation installation system GROHE Water Saving 5.0 l/min flow limiter spout with integrated mousseur smooth body flexible connection hoses min. recommended pressure 1.0 bar
Production Year2023
Product Number24346DC0
Product Page URLwww.grohe.co.uk/en_gb/-24346DC0.html
Product Short TextAllure Brilliant OHM vessel smth b XL
Product TypeSingle Lever Mixer
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsinfo-uk@grohe.com
Sustainability Awardgreen.grohe.com/awards
Sustainability Reportgreen.grohe.com/reporting
TPI Document Linkcdn.cloud.grohe.com/tpi/2000/2100/2190/2195/2195473/original/2195473.pdf
Type CommentsALLURE BRILLIANT Bidet Mixer
Type NameALLURE BRILLIANT Bidet Mixer
URLwww.grohe.co.uk/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
