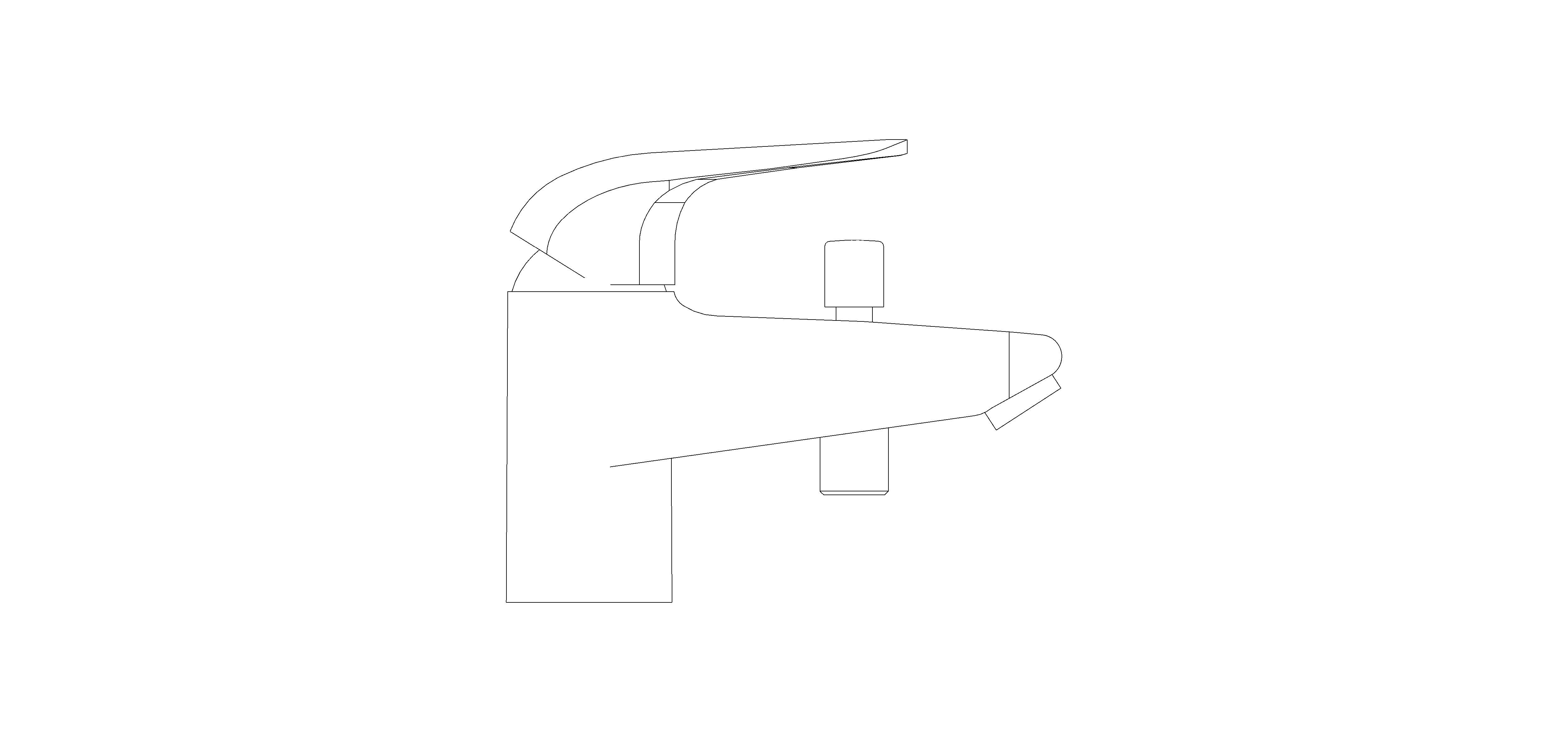

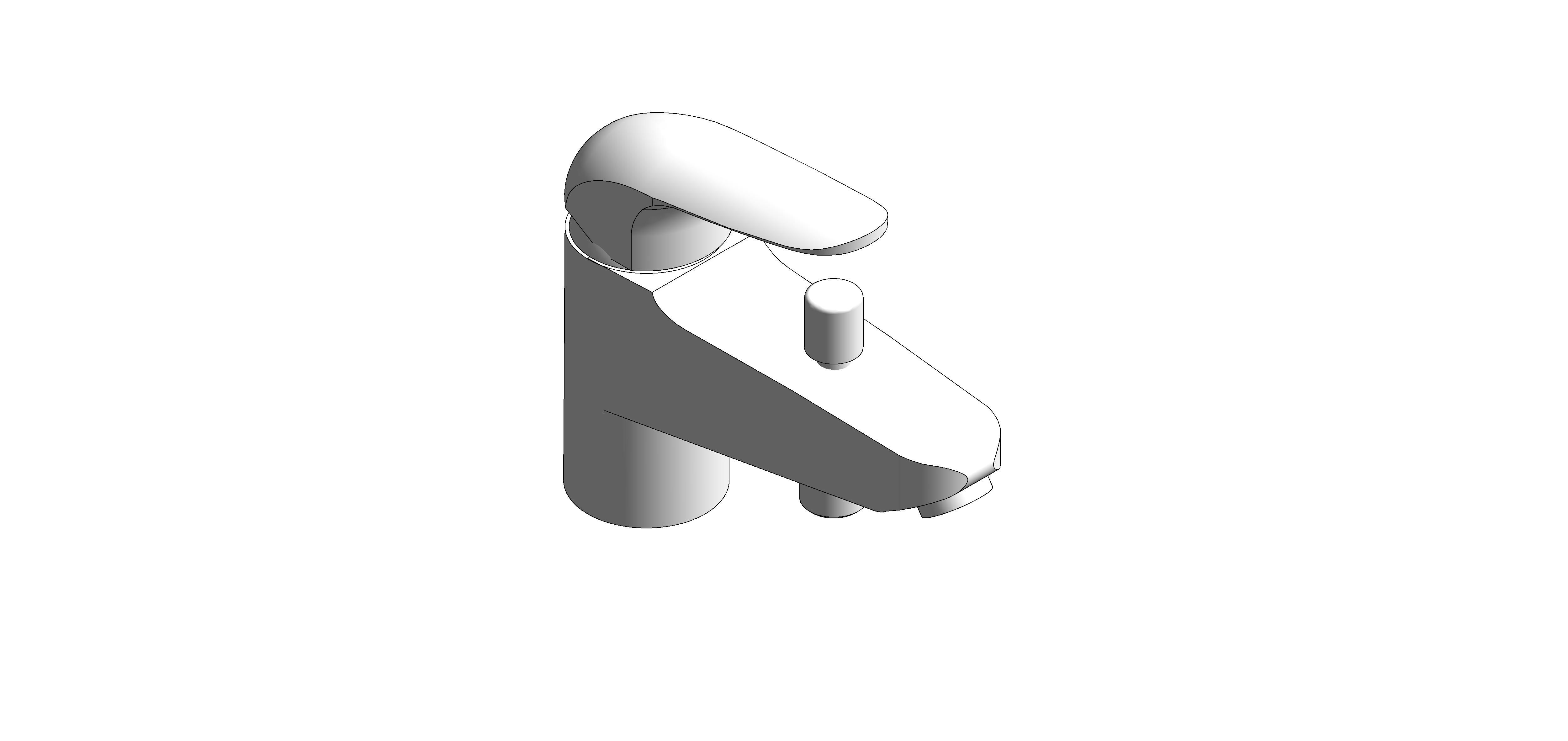

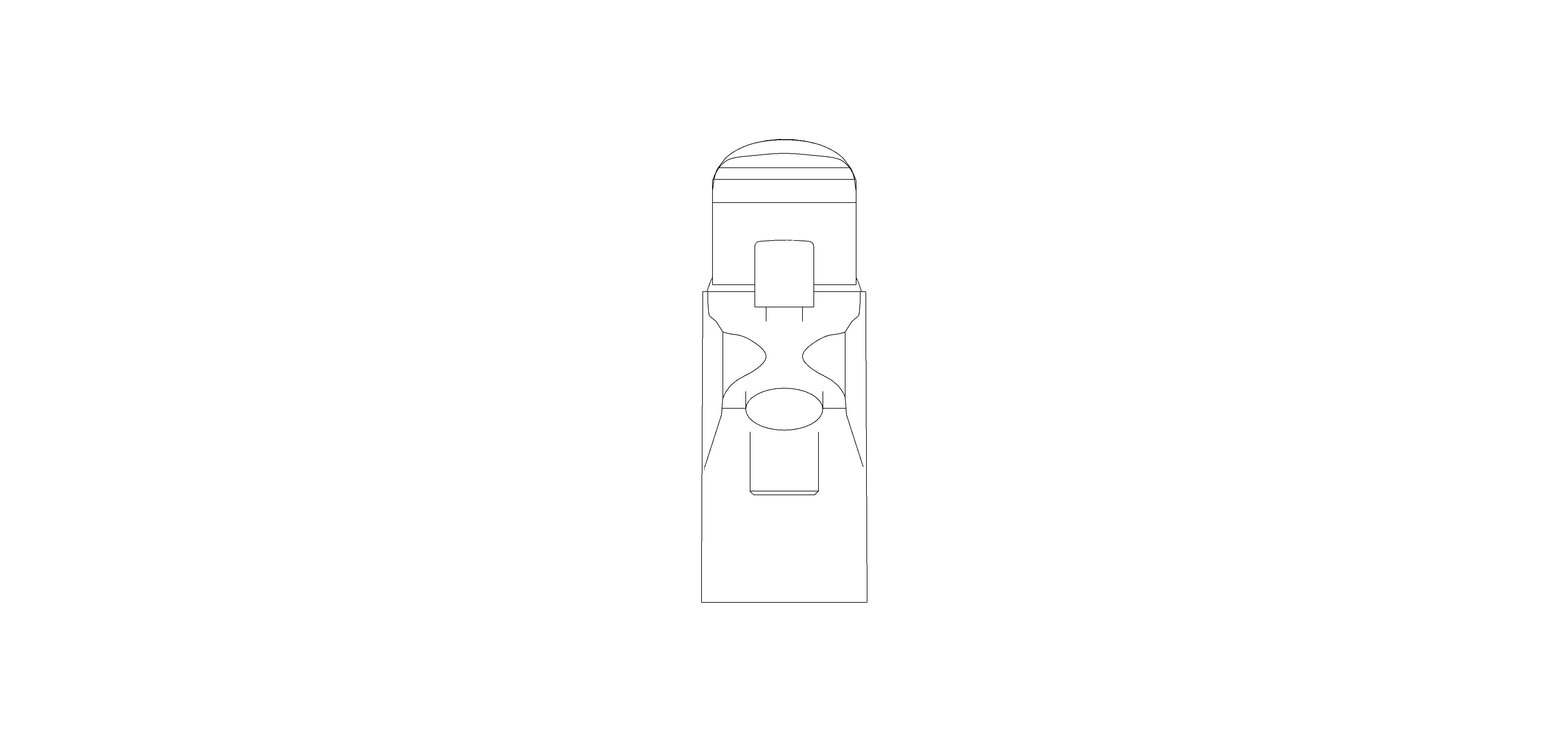

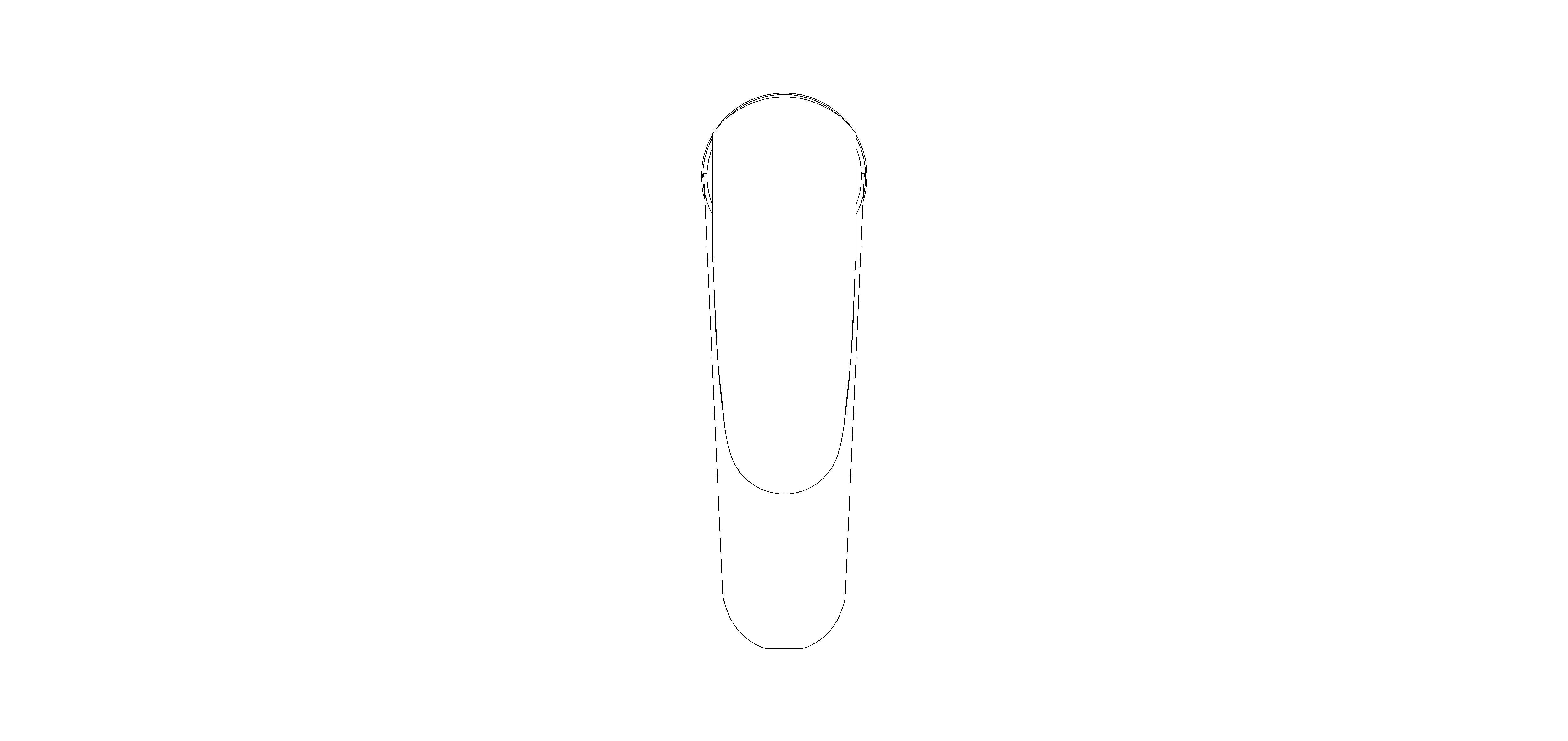

EURO ECO Bath Mixer (24281001)

Download Add to collection

Description

Product Number - 24281001

EAN - TBC

Colour - White

PRODUCT MAIN FEATURES

Euroeco
1/2" bath and shower mixer
Single-hole installation
GROHE Long-Life
35 mm ceramic cartridge with Eco-Override-Stop
With temperature limiter
GROHE Long-Life surface
Adjustable flow limiter
Automatic diverter: bath/shower
Spout with mousseur
1/2" bottom outlet with integrated non-return valve
Flexible connection hoses
Intrinsic safety against backflow

Product Page - COMING SOON

Object Data

1 Revision

Last Updated

11/09/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Data Sheet

Object metadata

_AuthorAG 180
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/grohe-24281001/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD2010
Asset TypeFixed
BIM Object NameGrohe_SingleLeverMixer_24281001
Classification NameUniclass2015
Classification ValuePr_40_20_87_55
CO2 Neutral ProductionGROHE is one of the first leading manufacturer within the sanitary industry having a CO2-neutral production.
Code Performancen/a
ColorChrome
Constituentsn/a
Cradle To Cradle Certificationn/a
Created Byinfo-uk@grohe.com
Created On2024-03-28T:09:00:00
CW ConnectionYes
Default Elevation0.0 mm
Descriptionsingle hole installation GROHE Long-Life 35 mm ceramic cartridge with Eco-Override-Stop with temperature limiter GROHE Long-Life finish adjustable flow rate limiter automatic diverter: bath/shower spout with mousseur shower bottom outlet 1/2"" with integrated non return valve flexible connection hoses protected against backflow professional exclusive
Dimensions Document Linkcdn.cloud.grohe.com/dimdraw/100000/100000/100000/100300/100320/100327/100327117/1280/100327117.jpg
Documentation Certificateswww.bimstore.co/products/grohe-24281001/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/grohe-24281001/document/installation-guide
Documentation Literaturewww.bimstore.co/products/grohe-24281001/document/product-literature
Documentation Maintenancewww.bimstore.co/products/grohe-24281001/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/grohe-24281001/document/technical-data-sheet
Duration UnitYears
EcojoyNo
EF000003Bath edge / tile edge
EF000139Chromium-plated
EF00170770 °C
EF002149FALSE
EF002286Hose (gland nut)
EF002671Chrome
EF007955FALSE
EF011775EB
EF011779FALSE
EF01275322.00
EF014578false
EF014591false
EF016731Group II, <=30 dB(A)
EF020105No
EF020259Downwards
EF020780Single-grip
EF020781Cartouche, ceramic
EF020785Other
EF020787Group II, <=30 dB(A)
EF020789131
EF020791Brass
EF020799TRUE
EF020805false
EF020967false
EF021035false
EF0218081-hole
EF0218350
EF021855false
EF022042B
EF0223371/2 inch
EF023686not applicable
EF023687FALSE
EF023688Foam jet nozzle
EF023957TRUE
EF024919false
EF025109Polished
EFDE0022Group II, <=30 dB(A)
EFNL0001false
EFSE0002false
Expected Life0
Faucet MaterialGrohe-Chrome
Featuresn/a
Finishn/a
Full Recyclability Of PlasticAll plastic components are fully recycable
Graden/a
GROHE Social Committmentgreen.grohe.com/social_engagement
GROHE Sustainabilitygreen.grohe.com
HW ConnectionYes
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
Installation Videon/a
KeynoteN13
ManufacturerGrohe
Manufacturer NameGrohe
Materialn/a
Model24281001
Model Number24281001
Model ReferenceSingle Lever Mixer
NBS DescriptionMixer taps
NBS Noten/a
NBS Object NameGrohe - Mixer Taps
NBS Office Master Tagn/a
NBS Reference45-35-70/345
Nominal Depth0.0 mm
Nominal Height0.0 mm
Nominal Length0.0 mm
PQ Diagram Linkcdn.cloud.grohe.com/PQCharts/lores/2/242/original/24281001-pqchart-en_GB.svg
Primary MaterialGrohe - Chrome
Product Descriptionsingle hole installation GROHE Long-Life 35 mm ceramic cartridge with Eco-Override-Stop with temperature limiter GROHE Long-Life finish adjustable flow rate limiter automatic diverter: bath/shower spout with mousseur shower bottom outlet 1/2"" with integrated non return valve flexible connection hoses protected against backflow professional exclusive
Production Year2024
Product Number24281001
Product Short TextSingle-lever bath mixer 1/2"
Product TypeSingle Lever Mixer
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsinfo-uk@grohe.com
Sustainability Awardgreen.grohe.com/awards
Sustainability Reportgreen.grohe.com/reporting
TPI Document Linkcdn.cloud.grohe.com/tpi/2000/2200/2200/2205/2205628/original/2205628.pdf
Type CommentsSingle Lever Mixer
Type NameSingle-lever basin mixer 1/2" (24281001)
URLwww.grohe.co.uk/
Vent ConnectionNo
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com
Waste ConnectionNo

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
