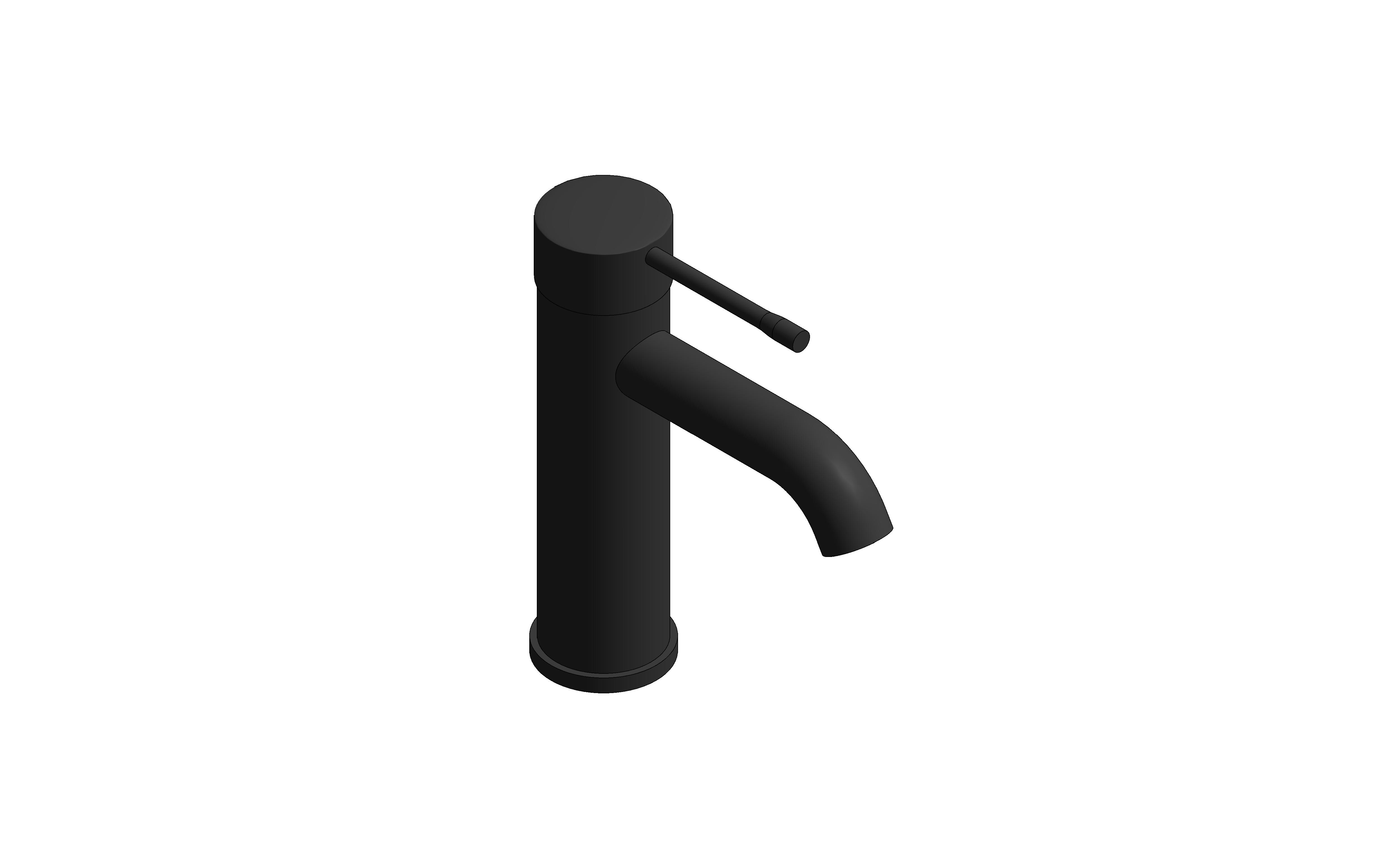

ESSENCE Basin Mixer (24172KF1)

Download Add to collection

Description

Product Number - 24172KF1

EAN - 4005176782398

Colour - phantom black

PRODUCT MAIN FEATURES

monobloc installation
metal lever
28 mm ceramic cartridge with GROHE SilkMove
with temperature limiter
GROHE Long-Life finish
GROHE Water Saving mousseur 5.7 l/min
GROHE AquaGuide adjustable mousseur
GROHE FastFixation Plus installation system
smooth body
flexible connection hoses

Product Page - https://www.grohe.co.uk/en_gb/essence-basin-mixer-1-2-s-size-24172KF1.html

Object Data

1 Revision

Last Updated

22/09/2023

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Data Sheet

Object metadata

_AuthorAM 147
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/grohe-24172KF1/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD2010
Asset TypeFixed
BIM Object NameGrohe_BasinMixer_Essence_24172KF1
Classification NameUniclass2015
Classification ValuePr_40_20_87_55
CO2 Neutral ProductionGROHE is one of the first leading manufacturer within the sanitary industry having a CO2-neutral production.
Code Performancen/a
ColorMatt Black
Constituentsn/a
Cradle To Cradle Certificationn/a
Created Byinfo-uk@grohe.com
Created On2023-03-01T09:00:00
CW ConnectionYes
Default Elevation0.0 mm
DescriptionESSENCE Basin Mixer
Dimensions Document Linkcdn.cloud.grohe.com/dimdraw/100000/100000/100000/100000/100020/100020/100020834/1280/100020834.jpg
Documentation Certificateswww.bimstore.co/products/grohe-24172KF1/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/grohe-24172KF1/document/installation-guide
Documentation Literaturewww.bimstore.co/products/grohe-24172KF1/document/product-literature
Documentation Maintenancewww.bimstore.co/products/grohe-24172KF1/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/grohe-24172KF1/document/technical-data-sheet
Duration UnitYears
EcojoyNo
EF000003Top/tap hole
EF000139Other
EF00170770 °C
EF002149TRUE
EF002286Hose (gland nut)
EF002671Black
EF007955FALSE
EF011775AA, free air gap
EF011779FALSE
EF011781not applicable
EF0127535.0
EF014578not applicable
EF014591FALSE
EF015280FALSE
EF016731Group I,<= 20 dB(A)
EF020075Yes
EF020105No
EF020780Single-grip
EF020781Cartouche, ceramic
EF0207853/8 inch
EF020787Group II, <=30 dB(A)
EF020789116.0 mm
EF020791Brass
EF020792FALSE
EF020794TRUE
EF020795Fixed
EF020796208.0 mm
EF020797102.0 mm
EF020798not relevant
EF020799TRUE
EF020801FALSE
EF0218081-hole
EF0218350.0 mm
EF022042None
EF022168FALSE
EF022750Cast
EF023686not applicable
EF023687FALSE
EF023688Foam jet nozzle
EF025109Other
EFDE0046Group I, <=20 dB(A)
EFSE0002FALSE
Expected Life0
Featuresn/a
Finishn/a
Full Recyclability Of PlasticAll plastic components are fully recyclable
Graden/a
GROHE Social Committmentgreen.grohe.com/social_engagement
GROHE Sustainabilitygreen.grohe.com
HW ConnectionYes
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
KeynoteN13
ManufacturerGrohe
Manufacturer NameGrohe
Materialn/a
ModelESSENCE Basin Mixer
Model Number24172KF1
Model ReferenceESSENCE Basin Mixer
NBS DescriptionMixer taps
NBS Noten/a
NBS Object NameGrohe - Mixer taps
NBS Office Master Tagn/a
NBS Reference45-35-70/345
Nominal Depth0.0 mm
Nominal Height0.0 mm
Nominal Length0.0 mm
PQ Diagram Linkcdn.cloud.grohe.com/PQCharts/lores/2/241/original/24172KF1-pqchart-en_GB.svg
Primary MaterialGrohe_MattBlack
Product Descriptionsingle hole installation metal lever GROHE SilkMove 28 mm ceramic cartridge with temperature limiter GROHE Long-Life Shine finish GROHE Water Saving mousseur 5.7 l/min GROHE AquaGuide adjustable mousseur GROHE FastFixation Plus installation system smooth body flexible connection hoses
Production Year2023
Product Number24172KF1
Product Page URLwww.grohe.co.uk/en_gb/-24172KF1.html
Product Short TextEssence Basin mixer 1/2" S-Size
Product TypeSingle Lever Mixer
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsinfo-uk@grohe.com
Sustainability Awardgreen.grohe.com/awards
Sustainability Reportgreen.grohe.com/reporting
TPI Document Linkcdn.cloud.grohe.com/tpi/100000/100000/100000/100200/100240/100240/100240123/original/100240123.pdf
Type CommentsESSENCE Basin Mixer
Type NameESSENCE Basin Mixer
URLwww.grohe.co.uk/
Vent ConnectionNo
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com
Waste ConnectionNo

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
