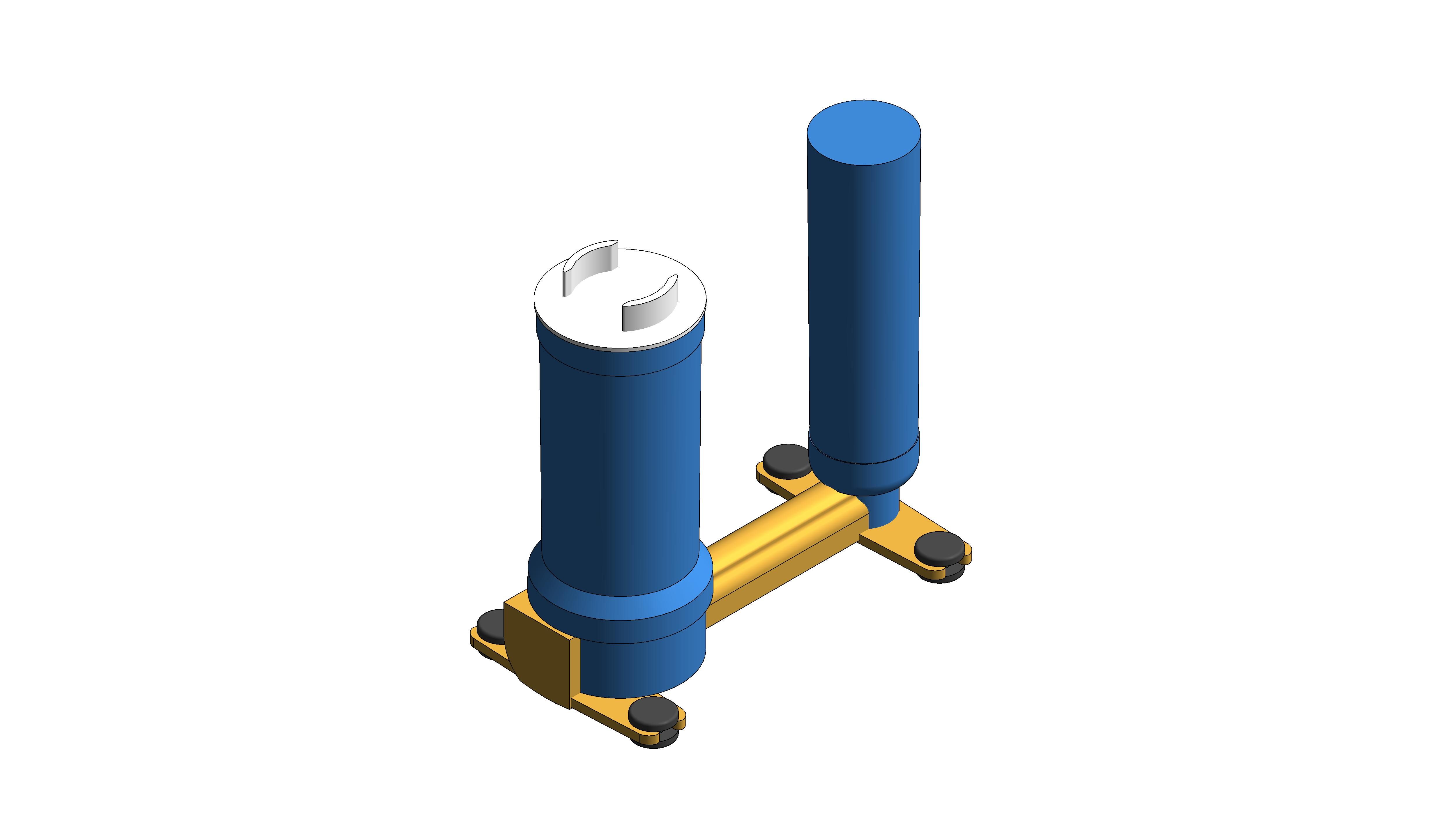

Single-Lever Mixer 1/2", Universal Concealed Body (23571000)

Download Add to collection

Description

Product Number - 23571000

EAN - 4005176334276

PRODUCT MAIN FEATURES

for 2 hole basin mixer
wall installation
without finishing trim set
GROHE SilkMove 35 mm ceramic cartridge
adjustable flow rate limiter
with temperature limiter
spout can be positioned on the right or left
DR-brass
installation device
allows for waterproofing of wall construction surrounding the concealed body
with sealing sleeve

Product Page - https://www.grohe.co.uk/en_gb/concealed-body-for-ohm-single-lever-mixer-1-2-universal-concealed-body-23571000.html

Object Data

1 Revision

Last Updated

08/04/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

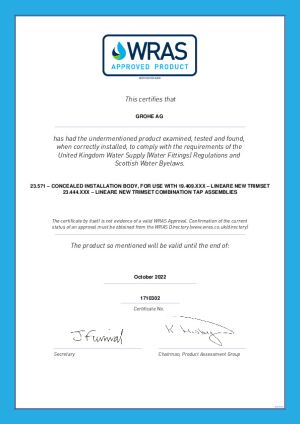

Product Certificates

Product Literature

Technical Data Sheet

Object metadata

_AuthorJY
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision0
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/grohe-single-lever-mixer-concealed-body-23571000/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD2010900
Asset TypeFixed
BIM Object NameGrohe_PlumbingFixture_SingleLeverMixer_ConcealedBody_23571000
Classification NameUniclass2015
Classification ValuePr_40_20_87_98
Code Performancen/a
Colorn/a
Constituentsn/a
Created Byinfo-uk@grohe.com
Created On2021-04-07T:09:00:00
Default Elevation0 mm
Descriptionfor 2 hole basin mixer wall installation without finishing trim set GROHE SilkMove 35 mm ceramic cartridge adjustable flow rate limiter with temperature limiter spout can be positioned on the right or left DR-brass installation device allows for waterproofing of wall construction surrounding the concealed body with sealing sleeve
Documentation Certificateswww.bimstore.co/products/grohe-single-lever-mixer-concealed-body-23571000/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/grohe-single-lever-mixer-concealed-body-23571000/document/installation-guide
Documentation Literaturewww.bimstore.co/products/grohe-single-lever-mixer-concealed-body-23571000/document/product-literature
Documentation Maintenancewww.bimstore.co/products/grohe-single-lever-mixer-concealed-body-23571000/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/grohe-single-lever-mixer-concealed-body-23571000/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
FinishCeramic
Graden/a
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFitting
KeynoteN13
ManufacturerGrohe
Manufacturer NameGrohe
MaterialCeramic
ModelSingle Lever Mixer
Model Number23571000
Model ReferenceSingle Lever Mixer
NBS DescriptionWater supply fittings for wash basins and troughs
NBS Object NameGrohe - Water supply fittings for wash basins and troughs
NBS Office Master Tagn/a
NBS Reference45-35-70/371
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Production Year2021
Referenced Standardn/a
Replacement Cost0
Shapen/a
Sizen/a
Spare Partsn/a
Type Comments23571000
Type Name23571000
URLwww.grohe.co.uk/en_gb/single-lever-mixer-1-2-universal-concealed-body-23571000.html
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
