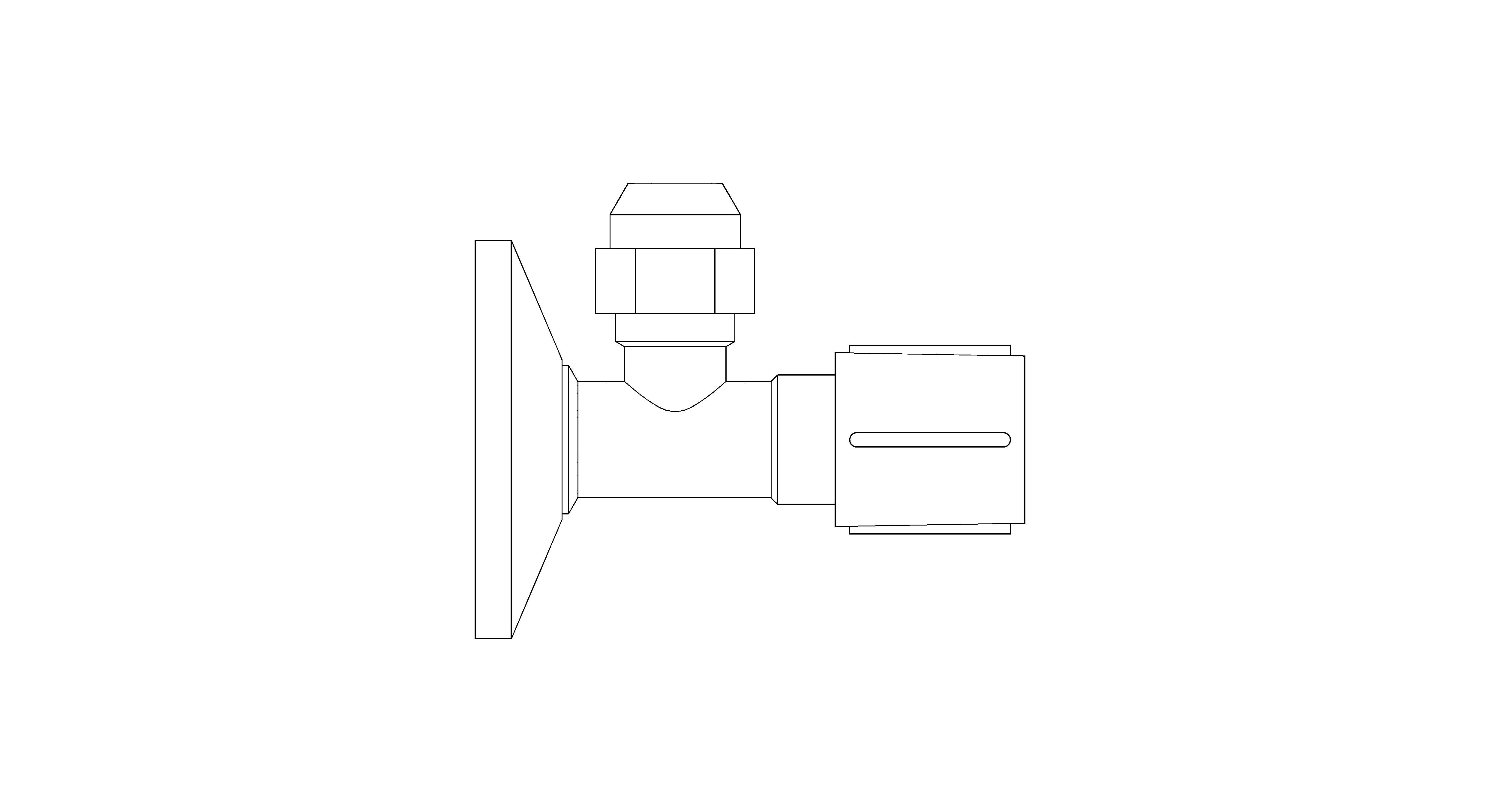

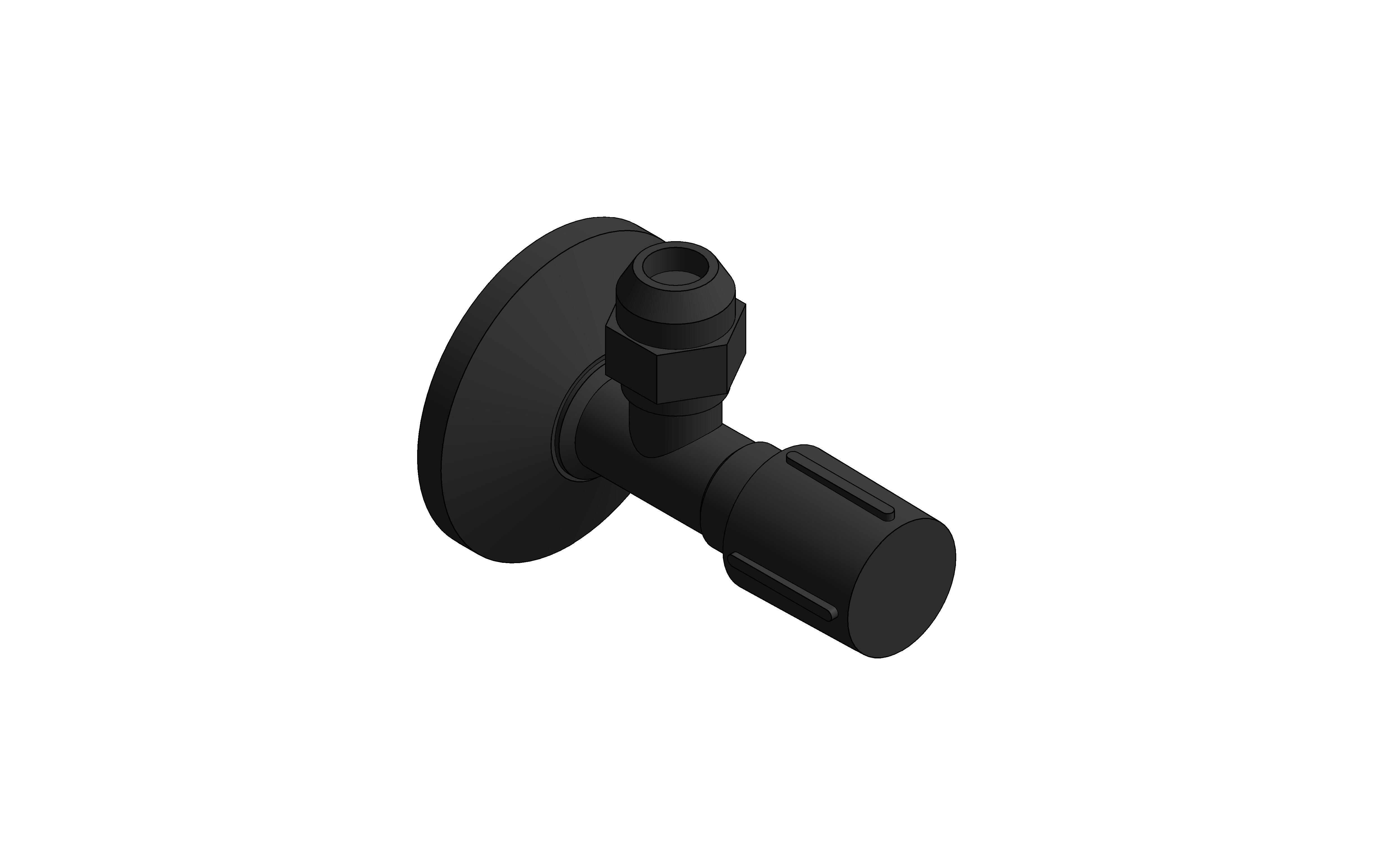

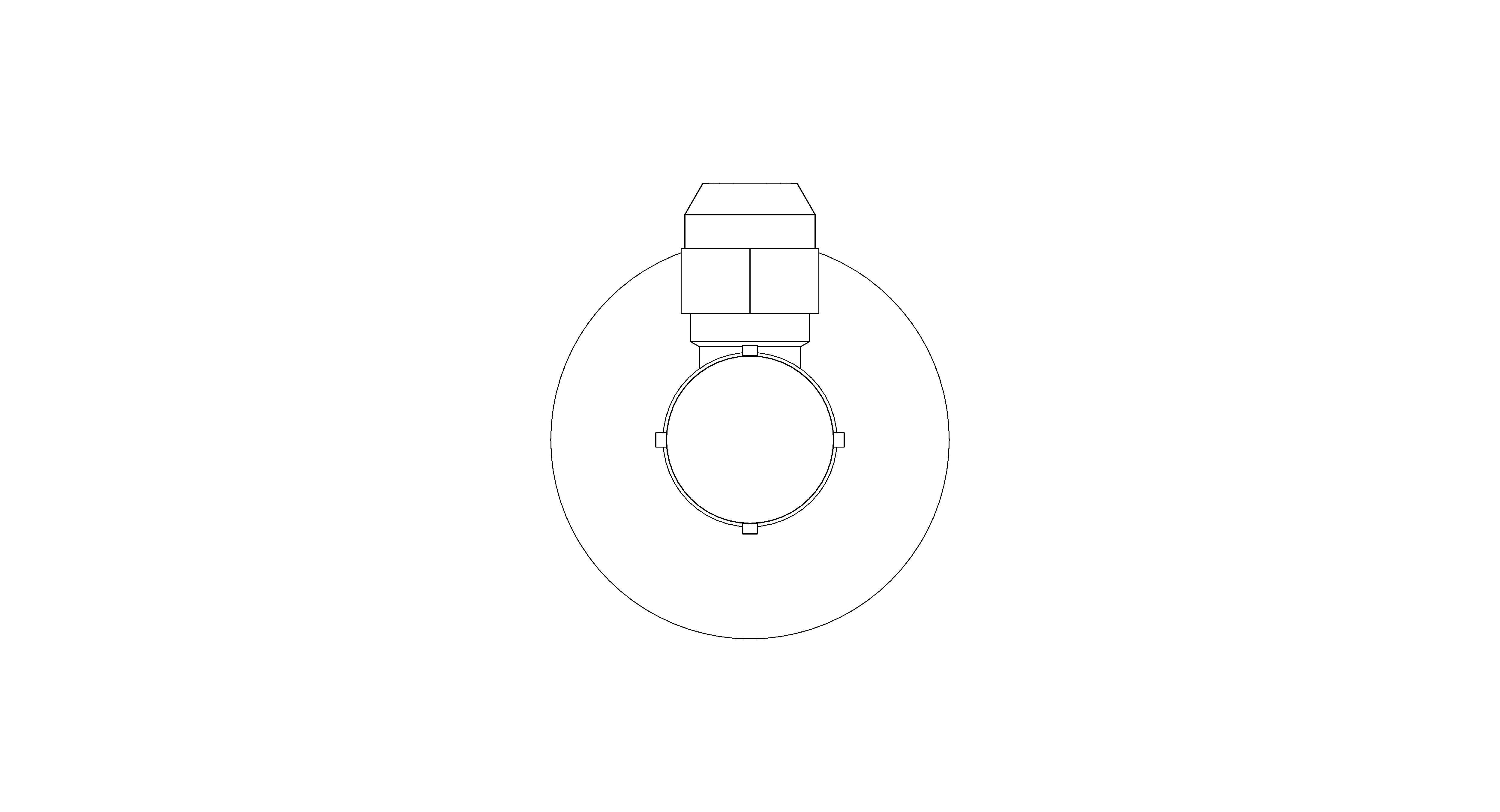

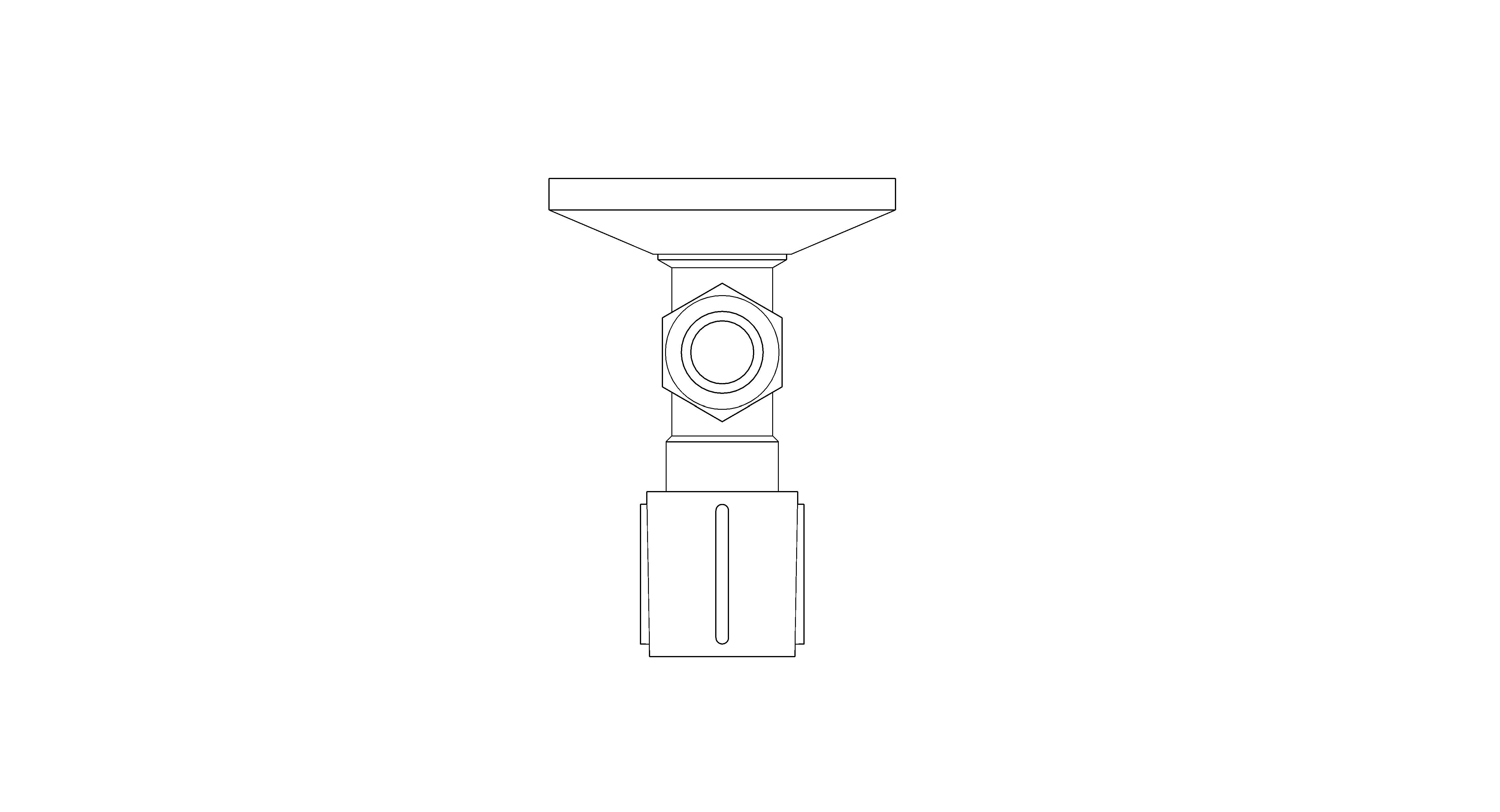

Angle Valve (22074KF0)

Download Add to collection

Description

Product Number - 22074KF0

EAN - 4005176782640

Colour - phantom black

PRODUCT MAIN FEATURES

pre-roughened connection thread for easy sealing
wall connection 1/2"
outlet thread 3/8"
with length compensation
with compression nut Ø 10 mm
water protected spindle shutoff, brass,with grease chamber and double o-ring sealing
long connecting shaft
ergonomic metal handle
marking: neutral
metal push-on escutcheon Ø 55 mm
GROHE Long-Life finish

Product Page - https://www.grohe.co.uk/en_gb/angle-valve-1-2-22074KF0.html

Object Data

1 Revision

Last Updated

22/09/2023

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Data Sheet

Object metadata

_AuthorAM 147
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/grohe-22074kf0/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD2010
Asset TypeFixed
BIM Object NameGrohe_AngleValve_22074KF0
Classification NameUniclass2015
Classification ValuePr_65_54_95_06
CO2 Neutral ProductionGROHE is one of the first leading manufacturer within the sanitary industry having a CO2-neutral production.
Code Performancen/a
ColorMatt Black
Constituentsn/a
Cradle To Cradle Certificationn/a
Created Byinfo-uk@grohe.com
Created On2023-03-01T09:00:00
CW ConnectionYes
Default Elevation0.0 mm
DescriptionAngle Valve

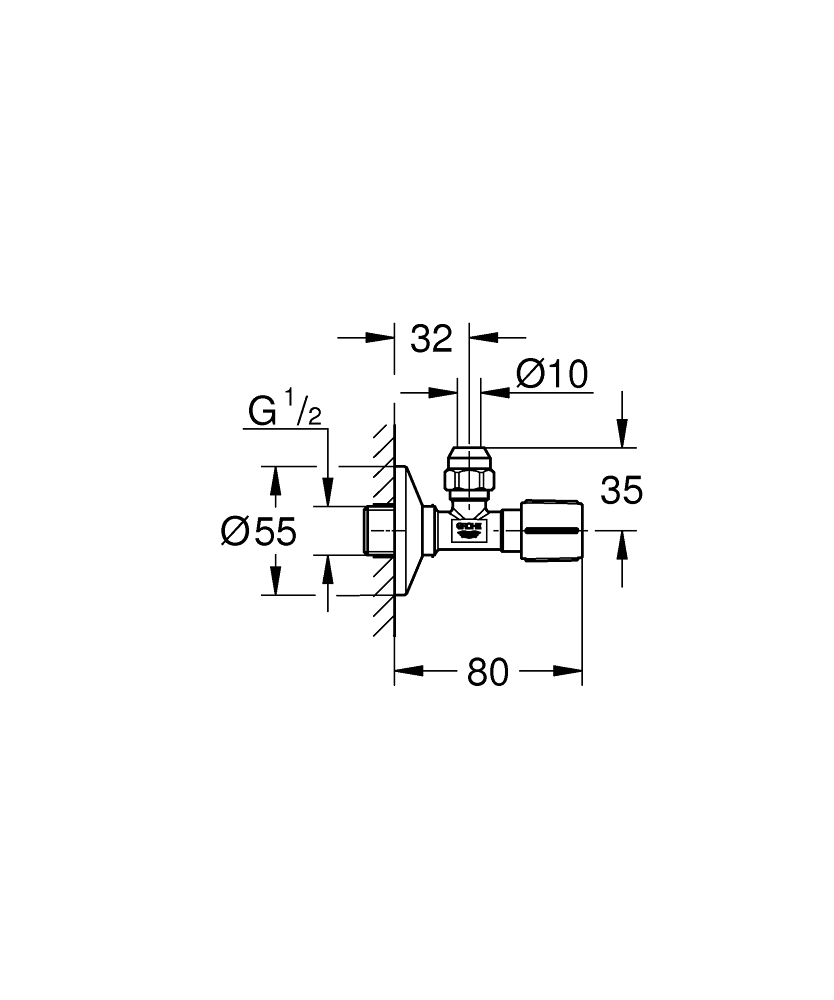

Dimensions Document Linkcdn.cloud.grohe.com/dimdraw/1000/1900/1950/1952/1952387/1280/1952387.jpg
Documentation Certificateswww.bimstore.co/products/grohe-22074kf0/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/grohe-22074kf0/document/installation-guide
Documentation Literaturewww.bimstore.co/products/grohe-22074kf0/document/product-literature
Documentation Maintenancewww.bimstore.co/products/grohe-22074kf0/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/grohe-22074kf0/document/technical-data-sheet
Duration UnitYears
EcojoyNo
EF000051Right-angled
EF000113TRUE
EF002147Handle
EF002286External thread
EF002671Black
EF003454FALSE
EF0054640
EF020781Top section, ceramic
EF0207851/2 inch
EF020791Brass
EF020963FALSE
EF020969Compression ring
EF0209703/8 inch
EF020971not relevant
EF023662TRUE
EF023686Other
EFNL0001FALSE
EFSE0002FALSE
Expected Life0
Featuresn/a
Finishn/a
Full Recyclability Of PlasticAll plastic components are fully recyclable
Graden/a
GROHE Social Committmentgreen.grohe.com/social_engagement
GROHE Sustainabilitygreen.grohe.com
HW ConnectionYes
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
KeynoteN13
ManufacturerGrohe
Manufacturer NameGrohe
Materialn/a
ModelAngle Valve
Model Number22074KF0
Model ReferenceAngle Valve
NBS DescriptionBall valves
NBS Noten/a
NBS Object NameGrohe - Ball valves
NBS Office Master Tagn/a
NBS Reference90-10-90/330
Nominal Depth0.0 mm
Nominal Height0.0 mm
Nominal Length0.0 mm
PQ Diagram Linkn/a
Primary MaterialGrohe_MattBlack
Product Descriptionpre-roughened connection thread for easy sealing wall connection 1/2" outlet 3/8" with length compensation with compression nut Ø 10 mm water protected spindle shutoff, brass, with grease chamber and double o-ring sealing long connecting shaft ergonomic metal handle marking: neutral metal push-on escutcheon Ø 55 mm GROHE Long-Life Shine finish
Production Year2023
Product Number22074KF0
Product Page URLwww.grohe.co.uk/en_gb/-22074KF0.html
Product Short TextAngle Valves Angle valve 1/2"
Product TypeClassic Tap and Valve
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsinfo-uk@grohe.com
Sustainability Awardgreen.grohe.com/awards
Sustainability Reportgreen.grohe.com/reporting
TPI Document Linkn/a
Type CommentsAngle Valve
Type NameAngle Valve
URLwww.grohe.co.uk/
Vent ConnectionNo
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com
Waste ConnectionNo

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
