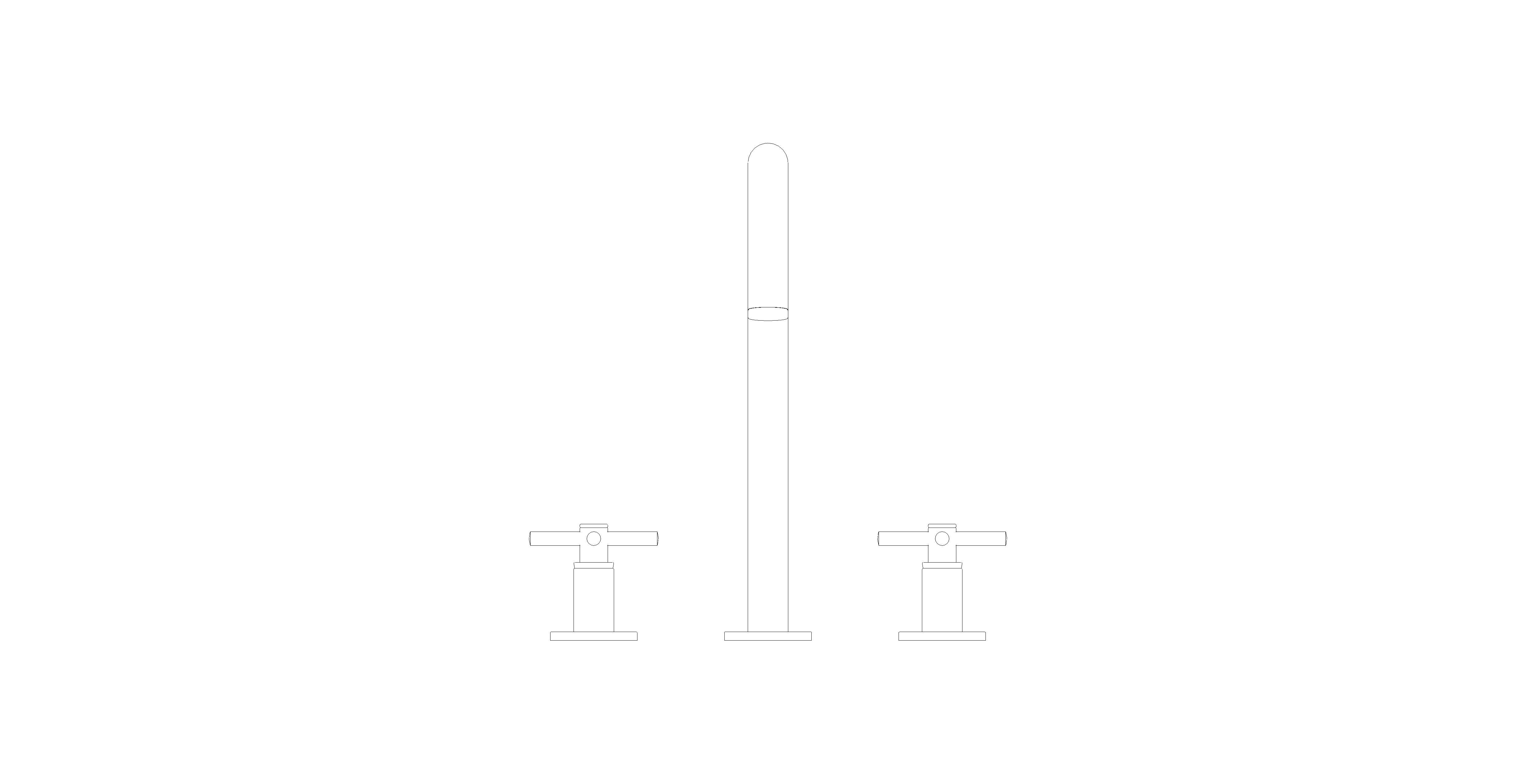

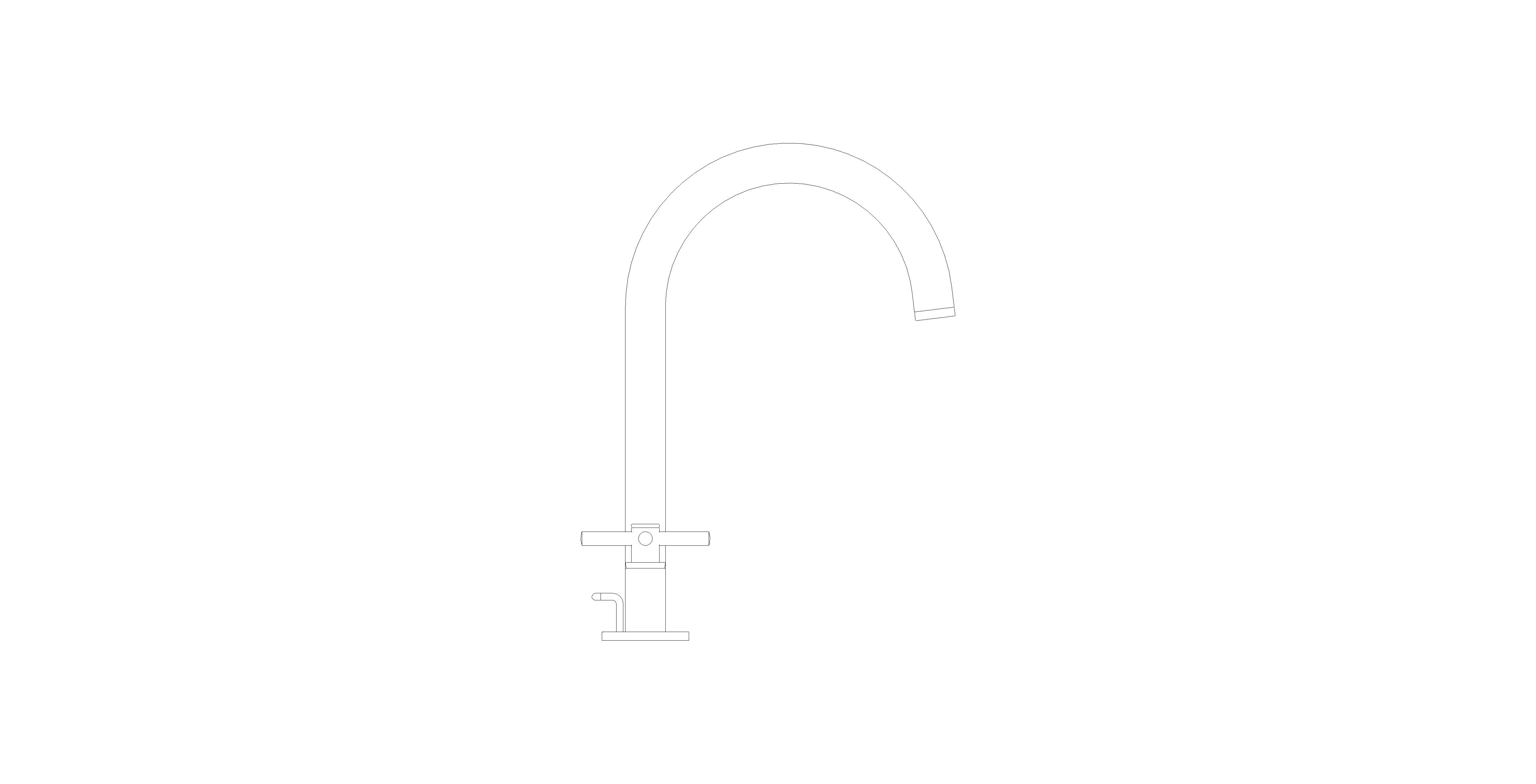

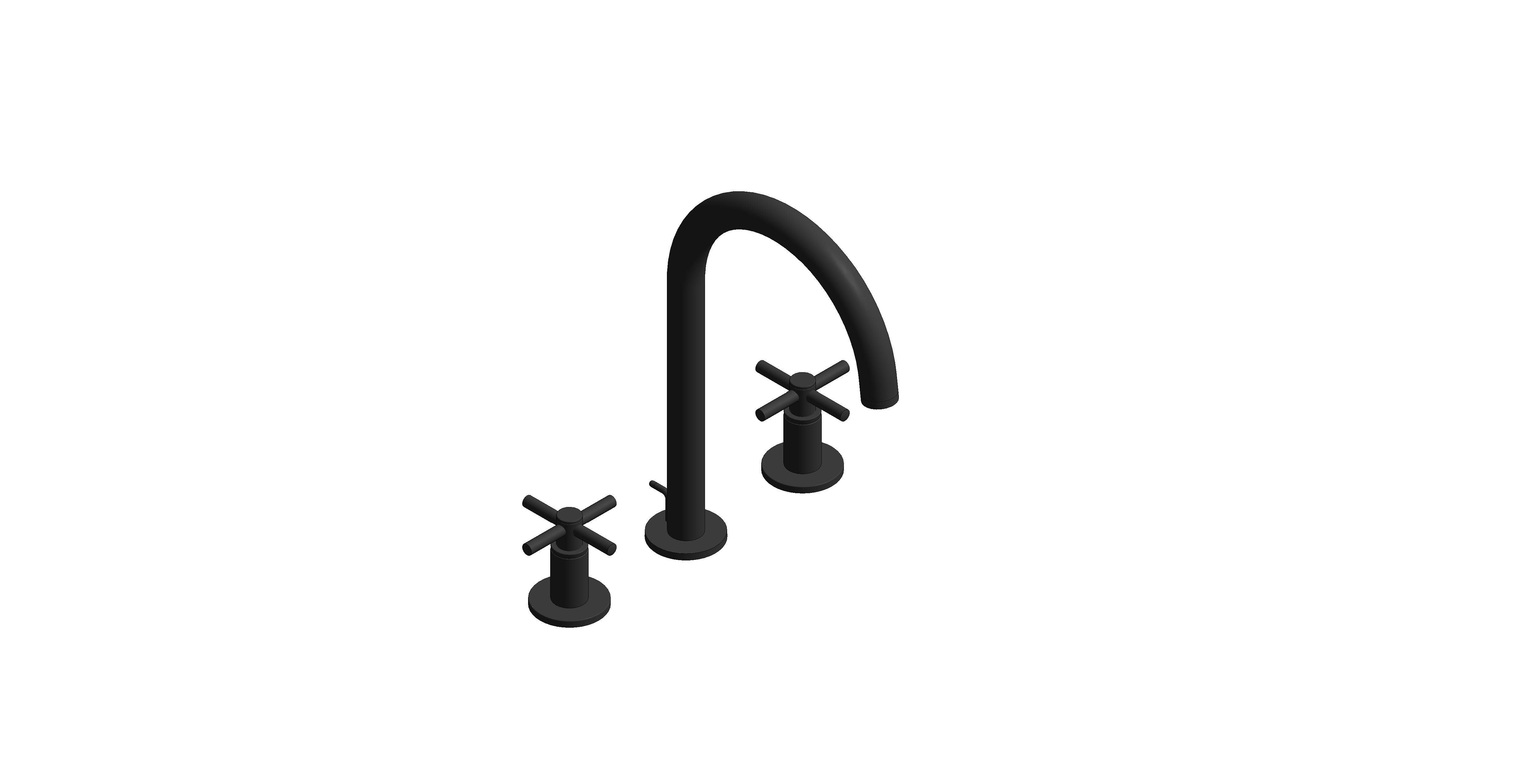

ATRIO Three-Hole Basin Mixer 1/2" L-Size (20643KF0)

Download Add to collection

Description

Product Number - 20643KF0

EAN - n/a

Colour - Phantom Black

PRODUCT MAIN FEATURES

ceramic headparts 1/2", 90°
GROHE Long-Life finish
GROHE Water Saving - Less water, perfect flow
maximum flow rate (at 3 bar): 5 l/min
swivel tubular spout with mousseur and stop limiter
adjustable swivel area 0° / 150° / 360°
pop-up waste set 1 1/4"
pressure-proof, flexible connection hoses between spout and side valves
with cross handles
Two different sets of caps included. One set with "H" and "C" marking, one set without marking.

Product Page - n/a

Object Data

1 Revision

Last Updated

20/08/2025

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Data Sheet

Object metadata

_AuthorRL 200
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/7836ffbd-39c8-4f07-a1f9-b1df7e250524/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD2010
Asset TypeFixed
BIM Object NameGrohe_BasinMixer_20643KF0
Classification NameUniclass2015
Classification ValuePr_40_20_87_55
CO2 Neutral ProductionGROHE is one of the first leading manufacturer within the sanitary industry having a CO2-neutral production.
Code Performancen/a
ColorPhantom Black
Constituentsn/a
Cradle To Cradle CertificationN/A
Created Byinfo-uk@grohe.com
Created On2025-07-08T09:00:00
Default Elevation1219 mm
DescriptionThree-Hole Basin Mixer 1/2" L-Size (20643KF0)
Dimensions Document Linkcdn.cloud.grohe.com/dimdraw/100000/100000/100000/100000/100030/100031/100031540/1280/100031540.jpg
Documentation Certificateswww.bimstore.co/products/7836ffbd-39c8-4f07-a1f9-b1df7e250524/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/7836ffbd-39c8-4f07-a1f9-b1df7e250524/document/installation-guide
Documentation Literaturewww.bimstore.co/products/7836ffbd-39c8-4f07-a1f9-b1df7e250524/document/product-literature
Documentation Maintenancewww.bimstore.co/products/7836ffbd-39c8-4f07-a1f9-b1df7e250524/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/7836ffbd-39c8-4f07-a1f9-b1df7e250524/document/technical-data-sheet
Duration UnitYears
EcojoyNo
Expected Life0
Featuresn/a
FinishPhantom Black
Full Recyclability Of PlasticAll plastic components are fully recycable
Graden/a
GROHE Social Committmentgreen.grohe.com/social_engagement
GROHE Sustainabilityn/a
Handle Material<By Category>
Ifc Export AsIfcValveType
Ifc Export TypeFAUCET
KeynoteN13
ManufacturerGrohe
Manufacturer NameGrohe
Materialn/a
ModelThree-Hole Basin Mixer 1/2" L-Size (20643KF0)
Model Number20643KF0
Model ReferenceThree-Hole Basin Mixer 1/2" L-Size (20643KF0)
NBS DescriptionMixer taps
NBS Noten/a
NBS Object NameVADO - Mixer taps
NBS Office Master Tagn/a
NBS Reference45-35-70/345
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
PQ Diagram Linkcdn.cloud.grohe.com/PQCharts/lores/2/206/original/20643KF0-pqchart-en_GB.svg
Primary MaterialGrohe_PhantomBlack
Product Descriptionceramic headparts 1/2", 90° GROHE Water Saving - Less water, perfect flow maximum flow rate (at 3 bar): 5 l/min swivel tubular spout with mousseur and stop limiter adjustable swivel area 0° / 150° / 360° pop-up waste set 1 1/4" pressure-proof flexible connection hoses between spout and side valves with cross handles Two different sets of caps included. One set with "H" and "C" marking, one set without marking.
Production Year2025
Product Number20643KF0
Product Page URLwww.grohe.co.uk/en_gb/-20643KF0.html
Product Short TextThree-hole basin mixer 1/2"<br />L-Size
Product TypeTwo Handle Fitting
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsinfo-uk@grohe.com
Sustainability Awardgreen.grohe.com/awards
Sustainability Reportgreen.grohe.com/reporting
TPI Document Linkcdn.cloud.grohe.com/tpi/2000/2200/2230/2234/2234750/original/2234750.pdf cdn.cloud.grohe.com/tpi/2000/2200/2200/2204/2204724/original/2204724.pdf
Type CommentsThree-Hole Basin Mixer 1/2" L-Size (20643KF0)
Type NameThree-Hole Basin Mixer 1/2" L-Size (20643KF0)
URLwww.grohe.co.uk/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
