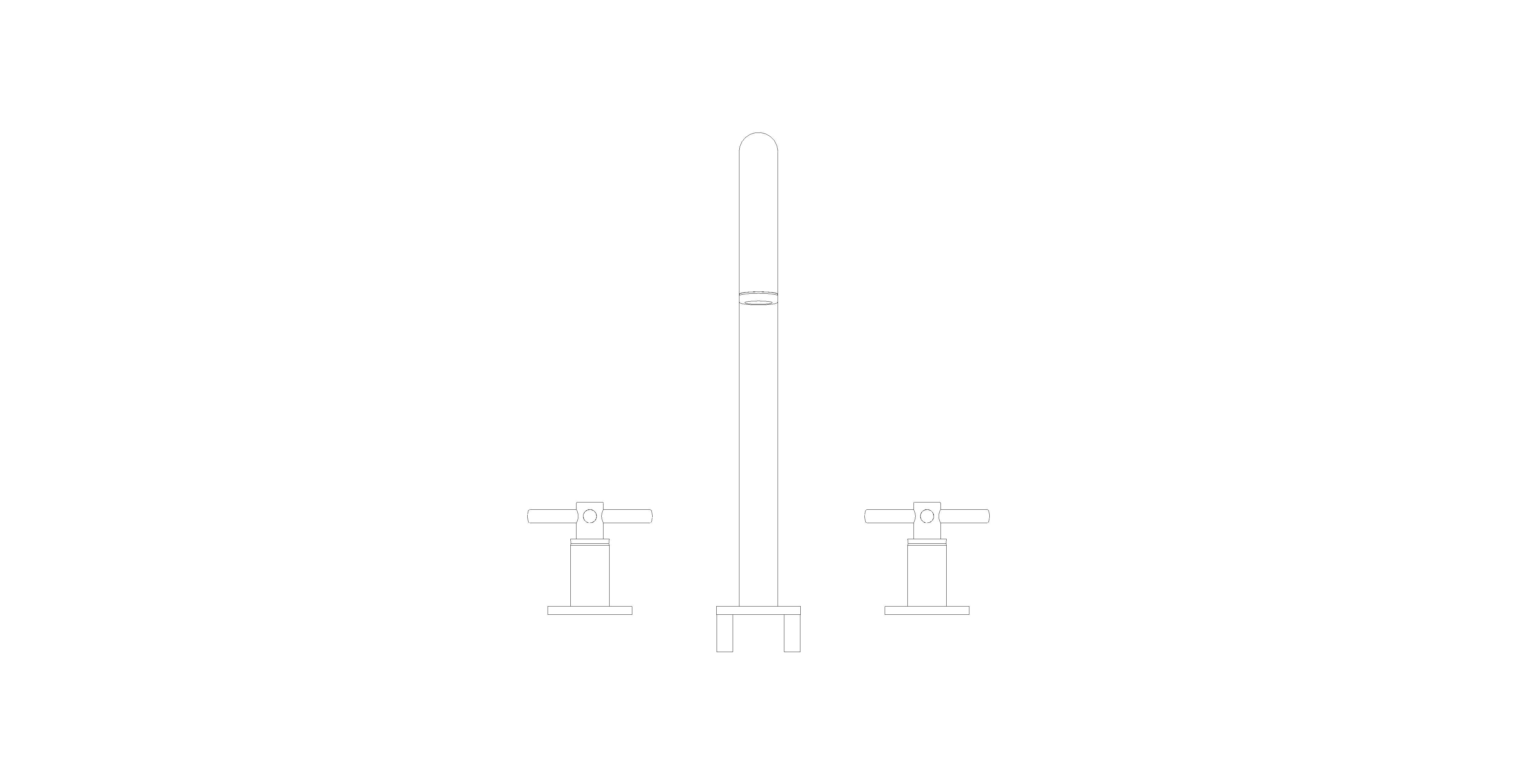

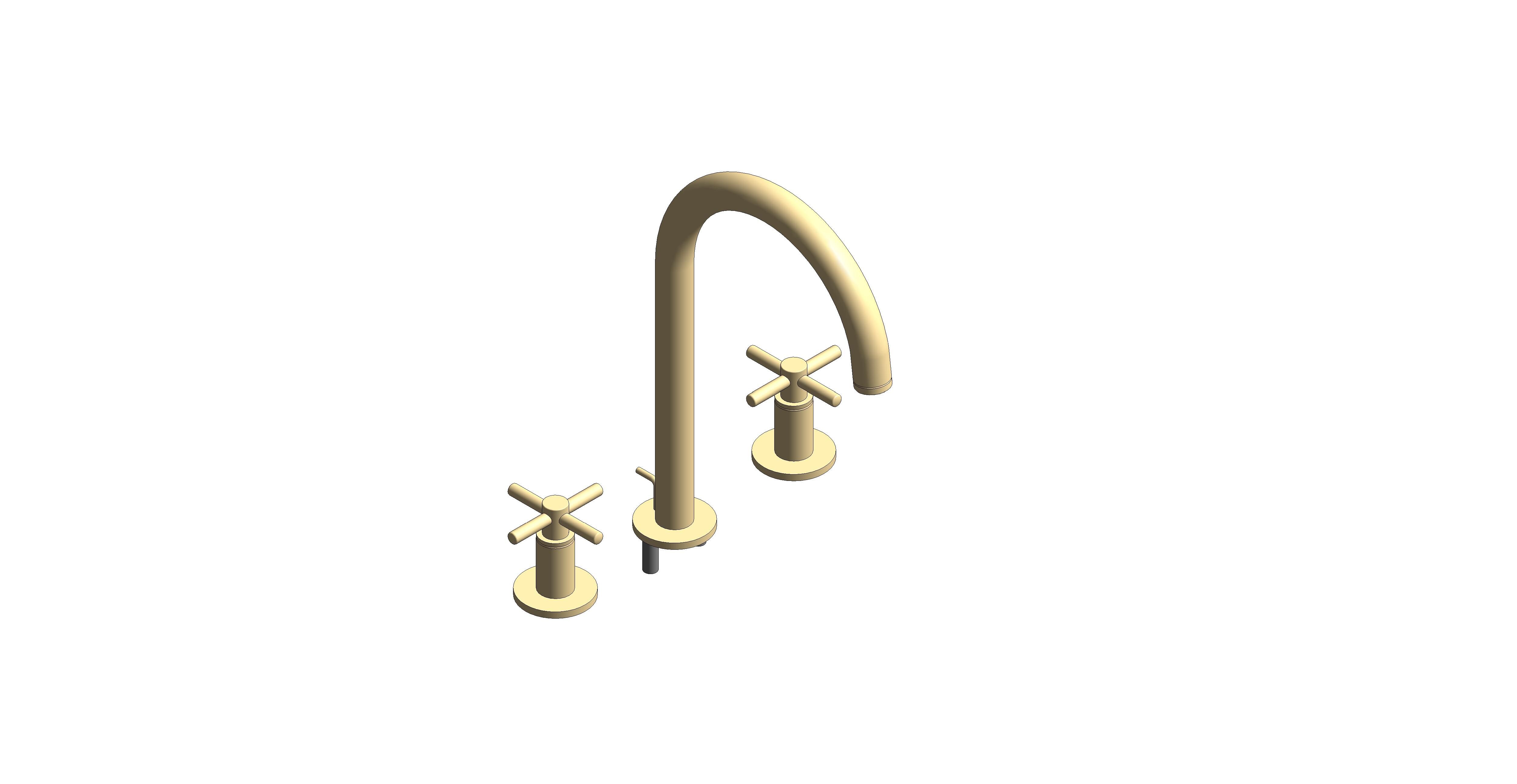

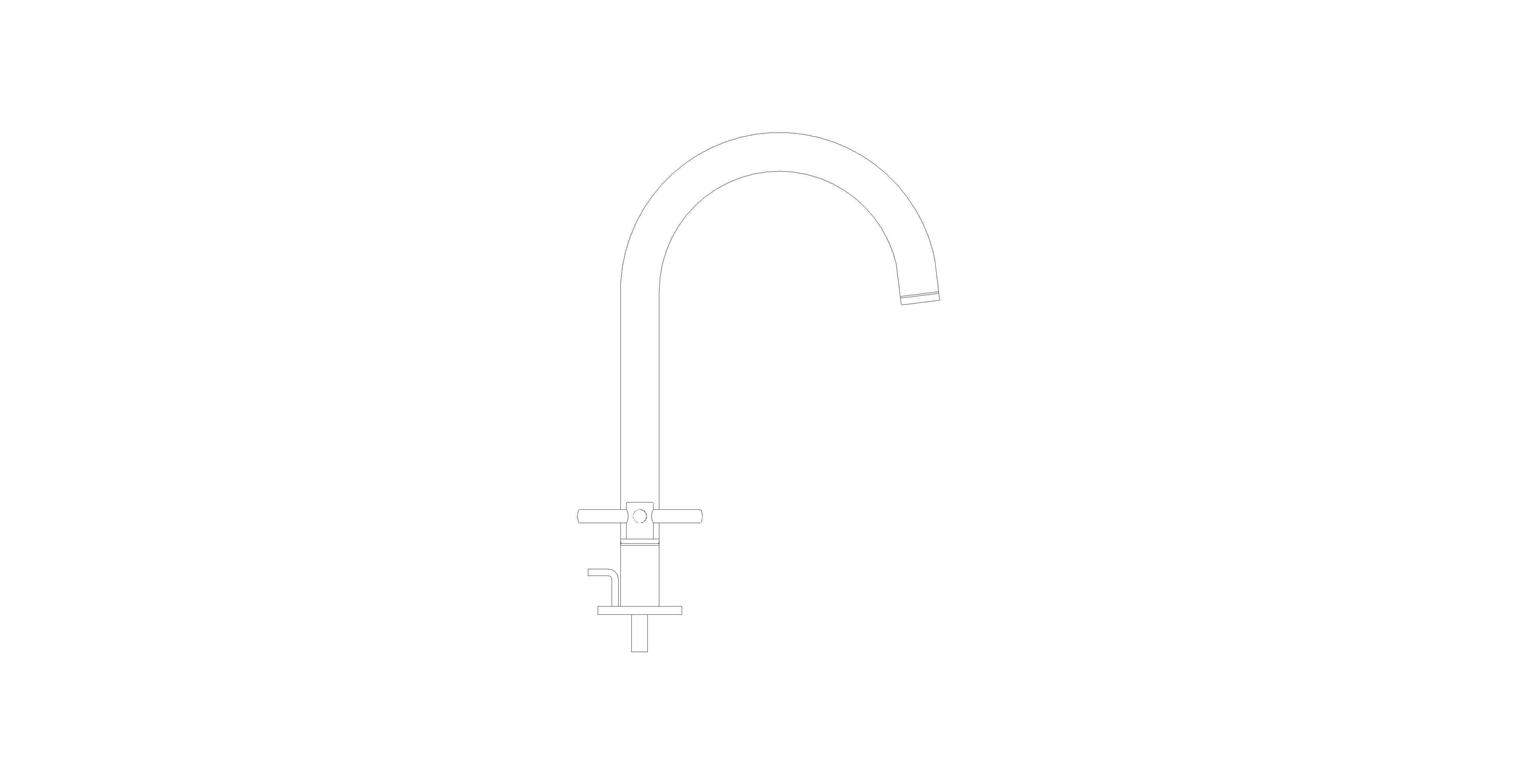

ATRIO Three-hole basin mixer 1/2″ L-Size (20643GL0)

Object metadata

• _AuthorSM 151
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version17
• _Created Bywww.bimstore.co/
• _Current Revision1
• _Distributed Bywww.bimstore.co/
• _Object User Guidewww.bimstore.co/products/grohe-20643gl0/document/object-user-guide
• Accessibility Performancen/a
• Assembly CodeD2010
• Asset TypeFixed
• BIM Object NameGrohe_BasinMixer_Atrio_20643GL0
• Classification NameUniclass2015
• Classification ValuePr_40_20_87_55
• CO2 Neutral ProductionGROHE is one of the first leading manufacturer within the sanitary industry having a CO2-neutral production.
• Code Performancen/a
• ColorCool Sunrise
• Constituentsn/a
• Cradle To Cradle Certificationn/a
• Created Byinfo-uk@grohe.com
• Created On2023-05-04T09:00:00
• CWFU4.5
• Default Elevation0.0 mm
• DescriptionATRIO Three-hole basin mixer 1/2″ L-Size
• Dimensions Document Linkcdn.cloud.grohe.com/dimdraw/100000/100000/100000/100000/100030/100031/100031540/1280/100031540.jpg
• Documentation Certificateswww.bimstore.co/products/grohe-20643gl0/document/product-certificates
• Documentation Installation Guidewww.bimstore.co/products/grohe-20643gl0/document/installation-guide
• Documentation Literaturewww.bimstore.co/products/grohe-20643gl0/document/product-literature
• Documentation Maintenancewww.bimstore.co/products/grohe-20643gl0/document/maintenance-information
• Documentation Technicalwww.bimstore.co/products/grohe-20643gl0/document/technical-data-sheet
• Duration UnitYears
• EcojoyNo
• EF000003Top/tap hole
• EF000139Other
• EF00170770 °C
• EF002149FALSE
• EF002286External thread
• EF002671Other
• EF007955FALSE
• EF011775AA, free air gap
• EF011779FALSE
• EF011781not applicable
• EF0127535.0
• EF014578false
• EF014591false
• EF015280false
• EF016731Group I,<= 20 dB(A)
• EF020075Yes
• EF020105No
• EF020780Two-grip
• EF020781Top section, ceramic
• EF0207851/2 inch
• EF020787Group II, <=30 dB(A)
• EF020789166.0 mm
• EF020791Brass
• EF020792FALSE
• EF020794TRUE
• EF020795Rotatable
• EF020796291.0 mm
• EF020797190.0 mm
• EF020798Waste unit
• EF020799TRUE
• EF020801FALSE
• EF0218083-hole
• EF021835200.0 mm
• EF022042None
• EF022168FALSE
• EF022750Pipe
• EF023686not applicable
• EF023687FALSE
• EF023688Anti-splash jet nozzle
• EF025109Polished
• EFDE0022Group I, <=20 dB(A)
• EFSE0002false
• Expected Life0
• Featuresn/a
• Finishn/a
• Full Recyclability Of PlasticAll plastic components are fully recyclable
• Graden/a
• GROHE Social Committmentgreen.grohe.com/social_engagement
• GROHE Sustainabilitygreen.grohe.com
• HWFU4.5
• Ifc Export AsIfcPipeFitting
• Ifc Export TypeIfcPipeFittingType
• KeynoteN13
• ManufacturerGrohe
• Manufacturer NameGrohe
• Materialn/a
• ModelATRIO Three-hole basin mixer 1/2″ L-Size
• Model Number20643GL0
• Model ReferenceATRIO Three-hole basin mixer 1/2″ L-Size
• NBS DescriptionMixer taps
• NBS Noten/a
• NBS Object NameGrohe - Mixer Taps
• NBS Office Master Tagn/a
• NBS Reference45-35-70/345
• Nominal Depth0.0 mm
• Nominal Height0.0 mm
• Nominal Length0.0 mm
• PQ Diagram Linkcdn.cloud.grohe.com/PQCharts/lores/2/206/original/20643GL0-pqchart-en_GB.svg
• Primary MaterialGrohe_CoolSunrise
• Product Descriptionceramic headparts 1/2", 90° GROHE Long-Life Shine finish GROHE Water Saving 5.7 l/min laminar mousseur swivel tubular spout with mousseur and stop limiter pop-up waste set 1 1/4" pressure-proof flexible connection hoses between spout and side valves with cross handles Two different sets of caps included. One set with "H" and "C" marking, one set without marking.
• Production Year2023
• Product Number20643GL0
• Product Page URLwww.grohe.co.uk/en_gb/-20643GL0.html
• Product Short TextAtrio New 2hdl basin 3-h L
• Product TypeTwo Handle Fitting
• Referenced Standardn/a
• Replacement Costn/a
• Shapen/a
• Sizen/a
• Spare Partsinfo-uk@grohe.com
• Sustainability Awardgreen.grohe.com/awards
• Sustainability Reportgreen.grohe.com/reporting
• TPI Document Linkcdn.cloud.grohe.com/tpi/2000/2100/2190/2199/2199251/original/2199251.pdf
• Type CommentsATRIO Three-hole basin mixer 1/2″ L-Size
• Type NameATRIO Three-hole basin mixer 1/2″ L-Size
• URLwww.grohe.co.uk/
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts0
• Warranty Duration UnitYears
• Warranty Guarantor Laborinfo-uk@grohe.com
• Warranty Guarantor Partsinfo-uk@grohe.com
