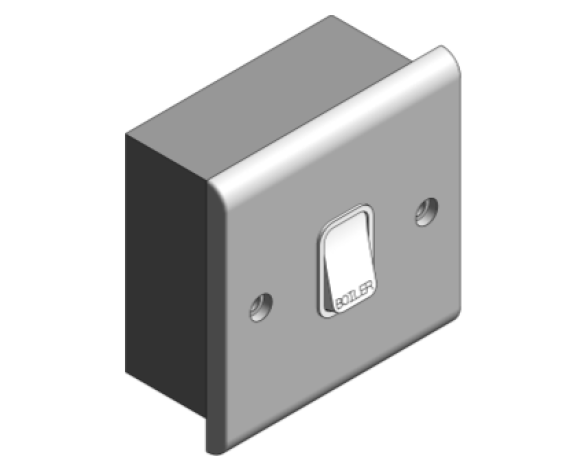

Gridswitch (Décor Chrome)

by Deta Electrical Co. Ltd.

Download Add to collection

Description

multi-switching, control and monitoring. Flexible, cost-effective solution for the most demanding projects.

This download is for the Deta Electrical Slimline Décor Chrome Gridswitch and includes the following types / features;

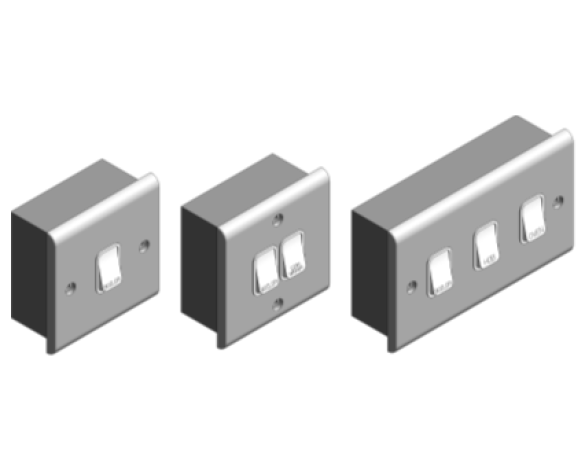

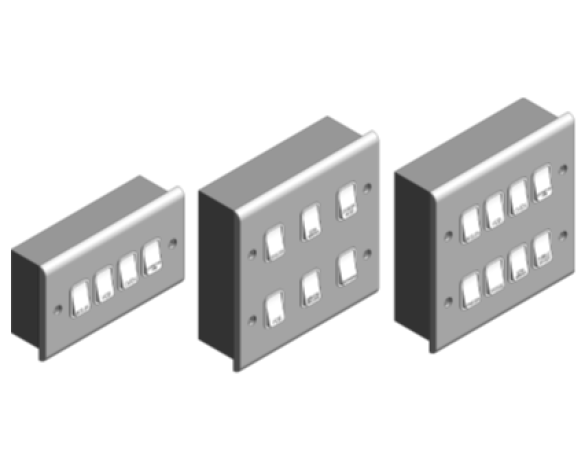

1-8 gang versions
User selectable backbox specification and guidance
User selectable switch modules for each gang slot

Object Data

1 Revision

Last Updated

10/07/2023

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

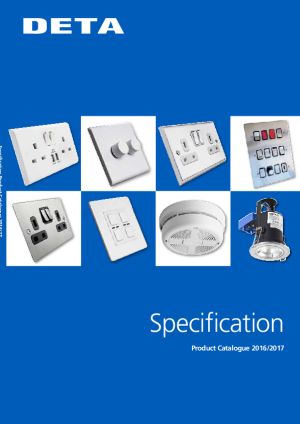

Product Literature

Product Data Sheet

Object metadata

_AuthorIan Holmes
_Authorized ByKris Atkinson
_Bim Spec Guid0
_BS Bible Version14
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Assembly CodeD5020120
Asset TypeFixed
Back Box Depth35 mm
BIM Object NameElectricalFixtures_Gridswitch_DetaElectrical_SlimlineDecor_Chrome_1Gang
Classification NameUniclass2015
Classification ValuePr_65_72_97_34
Code Performancen/a
ColorChrome
Constituentsn/a
Created Bysales@detaelectrical.co.uk
Created On2017-06-01T00:00:00
Default Elevation1219 mm
DescriptionDeta Gridswitch offers multi-switching, control and monitoring, providing a flexible and cost-effective switching management solution for the most demanding projects.
Documentation Certificatesn/a
Documentation Installation Guidespecifi.bimstore.co.uk/document/share/2157
Documentation Literaturespecifi.bimstore.co.uk/document/share/2157
Documentation Maintenancen/a
Documentation Technicalspecifi.bimstore.co.uk/document/share/2157
Duration UnitYears
Expected Life0
FeaturesAll modules have Clear Grey font engraving to curved rocker - identifying the individual function, clear terminal markings and are front loading so they simply clip in place, which means they can easily be upgraded or replaced without the need to remove the mounting grid frame.
Finishn/a
Fixing Offset43 mm
Fixing Offset 2100 mm
Fixing Offset 35 mm
Fixing Offset 453 mm
Graden/a
Grid FramesG3401 - 1 module - for 1 gang plate frame
Gridswitch No1
Height86 mm
Ifc Export AsPset_ElectricalDeviceCommon
Ifc Export TypeIfcSwitchingDeviceType
KeynoteV31
ManufacturerDeta Electrical
Manufacturer NameDeta Electrical
Materialn/a
Material Type ChromeYes
Material Type SatinNo
ModelGridswitch - Slimline Décor
Model NumberG3421CH
Model ReferenceGridswitch - Slimline Décor
NBS DescriptionMultiswitches
NBS Noten/a
NBS Object NameDeta Electrical - Multiswitches
NBS Office Master Tagn/a
NBS Reference90-70-10/465
Nominal Depth7 mm
Nominal Height86 mm
Nominal Length86 mm
Production Year2017
Referenced StandardIn compliance with BS 5733
Replacement Costn/a
ShapeSquare
Size86mm x 86mm
Spare Partsn/a
Switch 1Yes
Switch 1-5 Offset43 mm
Switch 2No
Switch 2-6 Offset55 mm
Switch 3No
Switch 3-6 Offset5 mm
Switch 4No
Switch 4-8 Offset5 mm
Switch 5No
Switch 6No
Switch 7No
Switch 8No
Switch MaterialDetaElectrical_White
Thickness7 mm
Type Comments1 Gang Gridswitch (Chrome)
Type Name1 Gang Gridswitch (Chrome)
Unit MaterialDetaElectrical_Chrome
URLwww.detaelectrical.co.uk/
Warranty DescriptionProducts in the Gridswitch range are guaranteed for 25 years (2 years for electronic products).
Warranty Duration Laborn/a
Warranty Duration Parts25
Warranty Duration UnitYears
Warranty Guarantor Laborsales@detaelectrical.co.uk
Warranty Guarantor Partssales@detaelectrical.co.uk
Width86 mm
