Protect Fulmetal UniRoll Ventilated Ridge and Hip System

Description

Protect Fulmetal UniRoll with unions is a universal ventilated ridge and hip system with a difference. Featuring a roll manufactured completely in aluminium for high weather proof performance, UniRoll ensures ventilation requirements are met in accordance with BS 5250, with full compliance to BS 8612 and BS 5534.

Object Data

1 Revision

Last Updated

15/01/2026

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

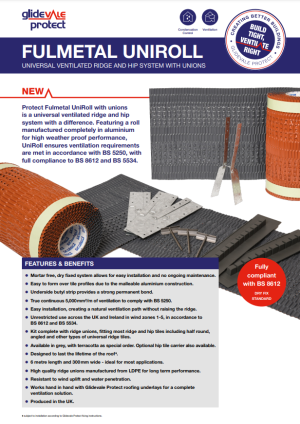

Product Literature

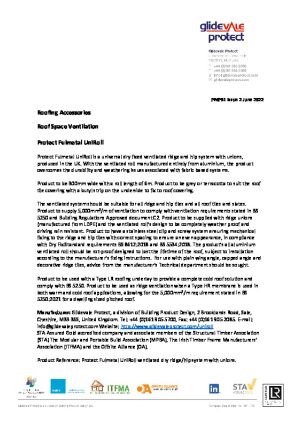

Technical Data Sheet

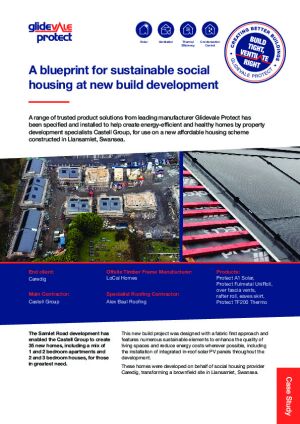

Case Study

Product Data Sheet

Object metadata

_AuthorWB
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision2
_Distributed Bywww.bimstore.co/
_Object User Guideglidevaleprotect.com/technical-resources/downloads/
Accessibility Performancen/a
Assembly CodeB30
Asset TypeFixed
BIM Object NameGlidevaleProtect_RidgeAndHipSystem_FulmetalUniRoll
Classification NameUniclass2015
Classification ValuePr_25_57_51_66
Code Performancen/a
ColorGrey
Constituentsn/a
Created Byinfo@glidevaleprotect.com
Created On2025-09-08 T09:00:00
Default Elevation0 mm
DescriptionProtect Fulmetal UniRoll with unions is a ventilated ridge and hip system with a difference. Featuring a roll manufactured in aluminium for high weather proof performance, UniRoll ensures ventilation requirements are met in accordance with BS 5250, with full compliance to BS 8612 and BS 5534.
Documentation Certificatesglidevaleprotect.com/technical-resources/downloads/
Documentation Installation Guideglidevaleprotect.com/technical-resources/downloads/
Documentation Literatureglidevaleprotect.com/technical-resources/downloads/
Documentation Maintenanceglidevaleprotect.com/technical-resources/downloads/
Documentation Technicalglidevaleprotect.com/technical-resources/downloads/
Duration UnitYear
Expected Life0
Features- Mortar free, dry fixed system allows for easy installation and no ongoing maintenance - Easy to form over tile profiles due to the malleable aluminium construction - Underside butyl strips provide a strong permanent bond - True continuous 5,000mm²/m of ventilation to comply with BS 5250 - Easy installation, creating a natural ventilation path without raising the ridge - Unrestricted use across the UK and Ireland in wind zones 1-5, in accordance to BS 8612 and BS 5534 - Kit complete with ridge unions, fitting most ridge and hip tiles including half round, angled and other types of universal ridge tiles - Available in grey, with terracotta as special order - Designed to last the lifetime of the roof - 6 metre length and 300mm wide - ideal for most applications. - High quality ridge unions manufactured from LDPE for long term performance - Resistant to wind uplift and water penetration - Works hand in hand with Glidevale Protect roofing underlays for a complete ventilation solution - Produced in the UK
Finishn/a
Fire Ratingn/a
Flexibility At Low TemperatureTBC
Graden/a
Ifc Export AsIfcCoveringType
Ifc Export TypeROOFING
KeynoteU
ManufacturerGlidevale Protect
Manufacturer NameGlidevale Protect
MaterialAluminium roll, LDPE unions, stainless steel fixings
ModelFulmetal UniRoll
Model Numbern/a
Model ReferenceFulmetal UniRoll
NBS DescriptionPolymeric membranes
NBS Object NameGlidevale Protect - Polymeric membranes
NBS Office Master Tagn/a
NBS Reference45-65-50/363
Nominal Depth300 mm
Nominal Height2 mm
Nominal Length6000 mm
Production Year2025
Redi Roll MaterialGlidevaleProtect_Aluminium_Grey
Referenced StandardConforms to Dry Fix Standard BS 8612 and BS 5534. True continuous 5,000mm²/m of ventilation to comply with BS 5250.
Roll AreaTo be continually installed to provide ventilation area equivalent to 5,000mm²/m
Roll Length6m
Roll Size Options6000mm x 300mm
Roll WeightTBC
Roll Width0.3m
Shapen/a
Size300mm x 6000mm x 2mm
Spare Partsn/a
Thermal Resistancen/a
Type CommentsFulmetal UniRoll ridge/hip roll system
Type NameFulmetal UniRoll - Grey
URLglidevaleprotect.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborn/a
Warranty Guarantor Partsinfo@glidevaleprotect.com
WeightTBC

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
